BATTERY WHEELBARROW MD500EPRO

LUMAG BATTERY WHEELBARROW MD500EPRO

This Lumag MD500EPRO battery wheelbarrow with tipper is unique because it is equipped with an electric motor with a 48-volt battery.
The motor provides a capacity of 750 watts. The electric motor in combination with the belt drive makes this a very universal dumper.
The machine is very suitable for the transport of many materials up to a weight of 500 kg over various surfaces.

By using tires instead of tracks, the load on the surface is reduced and the machine is very manoeuvrable, even on hard and soft surfaces.
The MD500EPRO has two castor wheels at the rear for easy steering.
Stability is additionally supported by a pivoting rear axle.
This ensures that your wheelbarrow almost always touches the ground with 4 wheels.
The electric motor ensures that the noise production is minimal and that the machine can also be used in a closed space.
The 48 volt batteries (4 pieces of 12 volt with 32 ah capacity) ensure that you can use the machine for a maximum of 8 hours (charging time 7 hours).

The machine is 86 cm wide! Optionally, this width can be reduced to 82 cm by adjusting the steering levers.
The dump body dimensions are (LxWxH) 1135x820x380 mm.
The maximum load capacity is 500kg.
The own weight of the machine is 178kg.

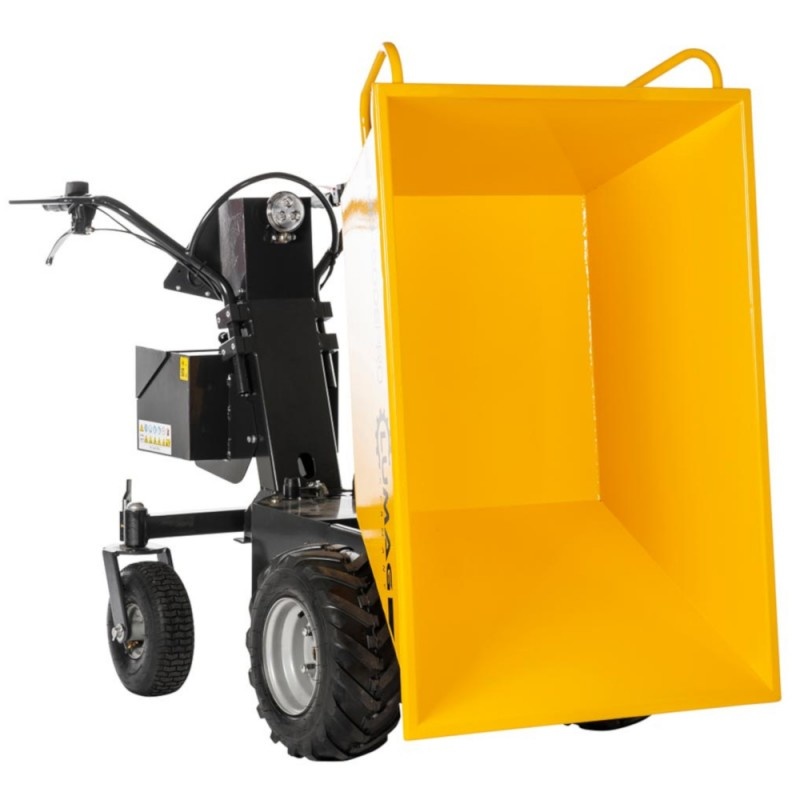

The tipping of the body is done manually.
However, this is easy due to the placement of the tipper body (the two extra gas springs provide extra guidance and prevent the tipper from tipping back).

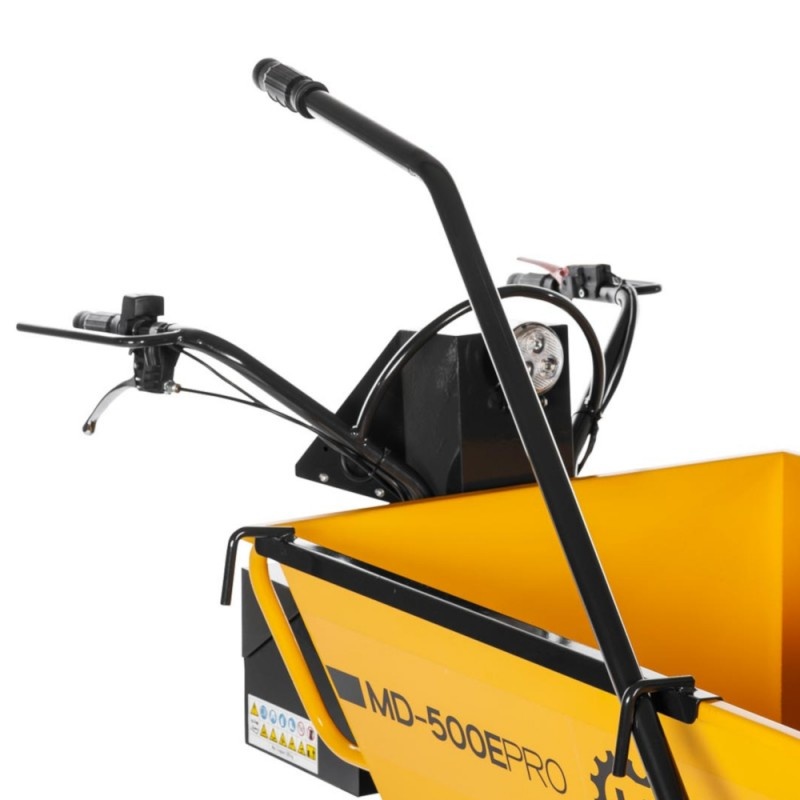

The "handlebar" of the MD500EPRO is adjustable in height.
The LED lighting provides sufficient light in a dark environment.

The MD500EPRO battery wheelbarrow is supplied WITHOUT a snow blade.

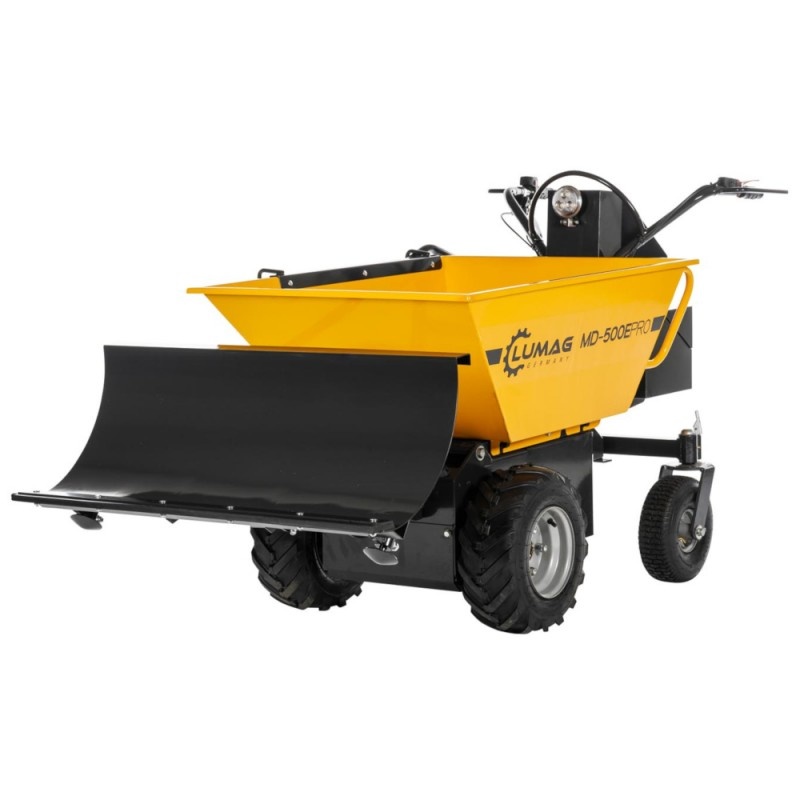

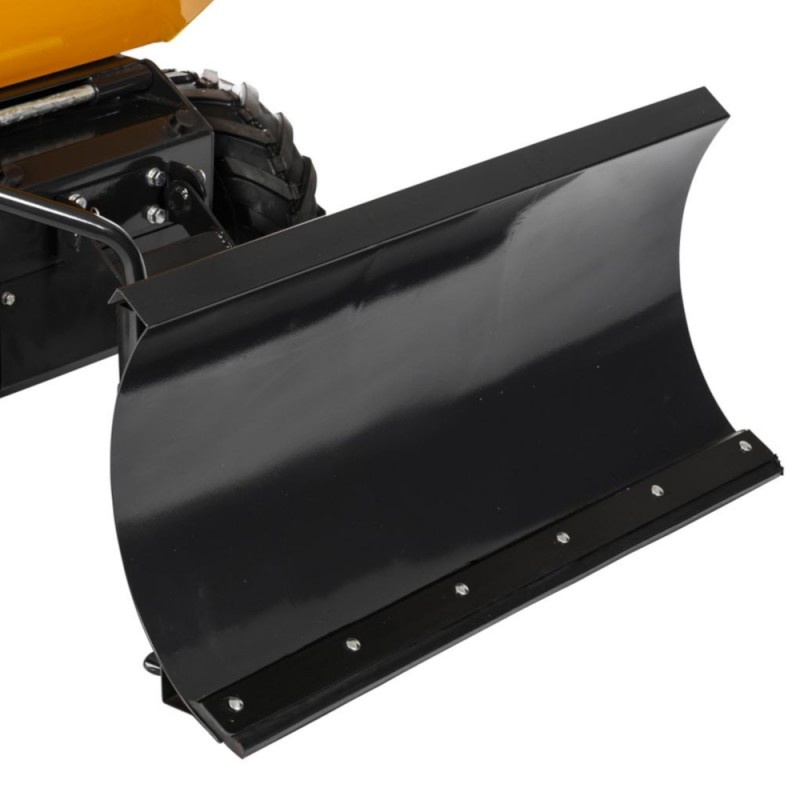

The snow plow shown is available as an accessory.
Other attachments are also available.
You can replace the tipper body with, for example, a flat loading platform.

Type Engine
Battery electric motor
Engine power
750 Watt
Battery voltage
48 Volts (4 x 12 Volts, 32Ah)
Drive Mechanism
Electric (full)
Drive
Wheel drive
Operating time
max. 8 o'clock
Charging time
max. 7 hours
Working width
86cm - 82cm
Gears forward
1
max. speed forward
5 km/h
Reverse gears
1
max. speed backward
2.5 Km/h
Body dimensions (L x W x H)
1135 x 820 x 380mm
Tipping mechanism
Manual (+ 2 gas springs)
max. payload
500 kg
Bucket contents
350 liters
Handbrake
Electro magnetic brake
Yes, mechanical
max. rate of increase
15%
Tyres
For: 6.50-8; Rear 3.50-4
Noise level (LWA)
93db(A)
Weight Gross (incl. packaging)
192 kg
Weight Net
178 kg
Machine dimensions (L x W x H)
1660 x 820 x 1085mm
Pack sizes (L/W/H)
1660 x 820 x 1085mm
art. no.
MD500EPRO
EAN code
4047424004807
