Art: DIPA100NEOEAN: 9120132140434
DIPA100NEO compressed air inverter plasma cutting system
Show all:
Welding,
Groot assortiment
Scherpe prijzen - Snelle Levertijden
7 dagen per week bereikbaar +31621803866
infomeer naar de lease mogelijkheden
Description Read moreRead less

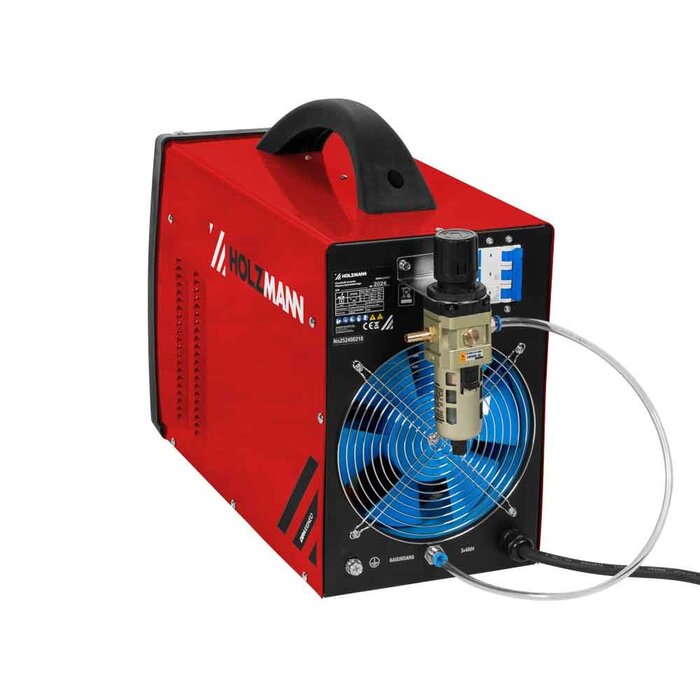

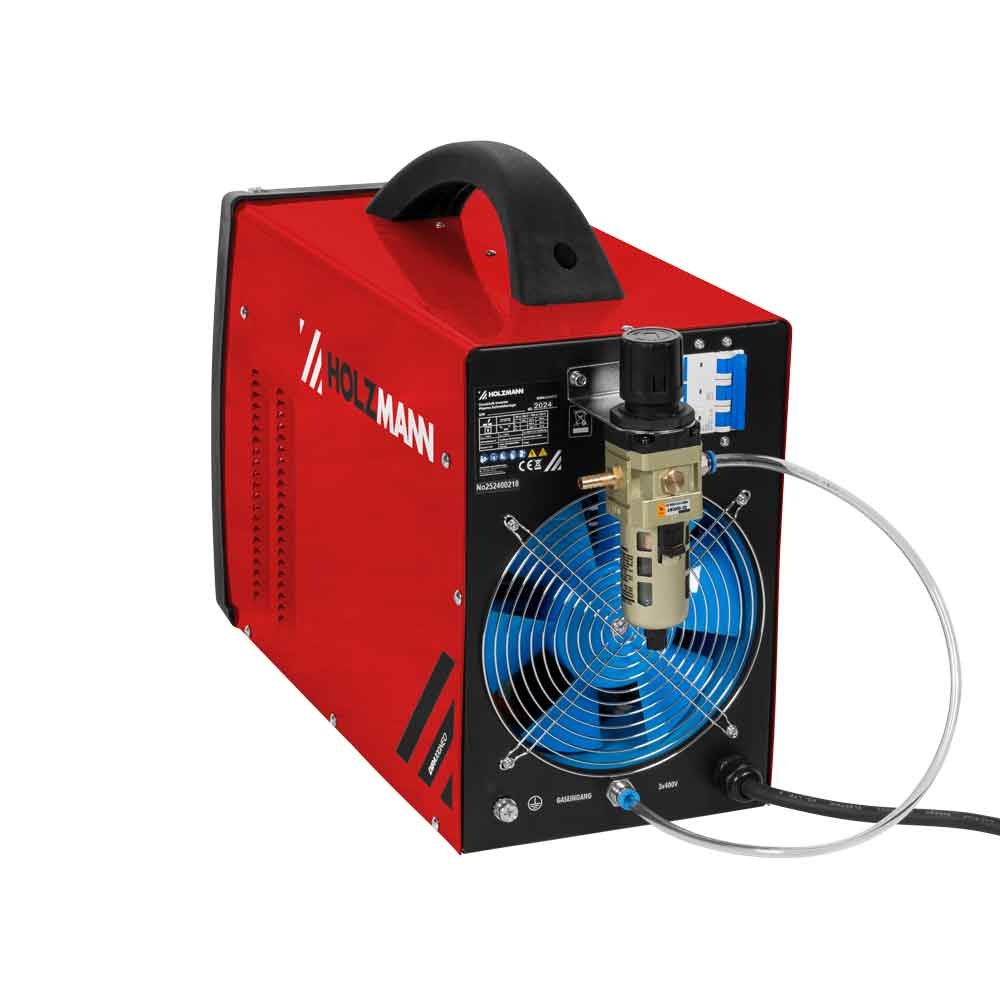

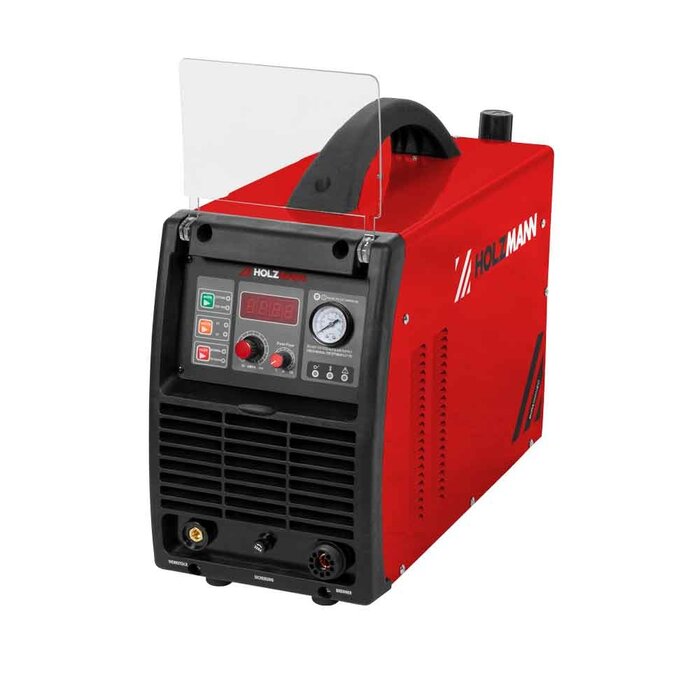

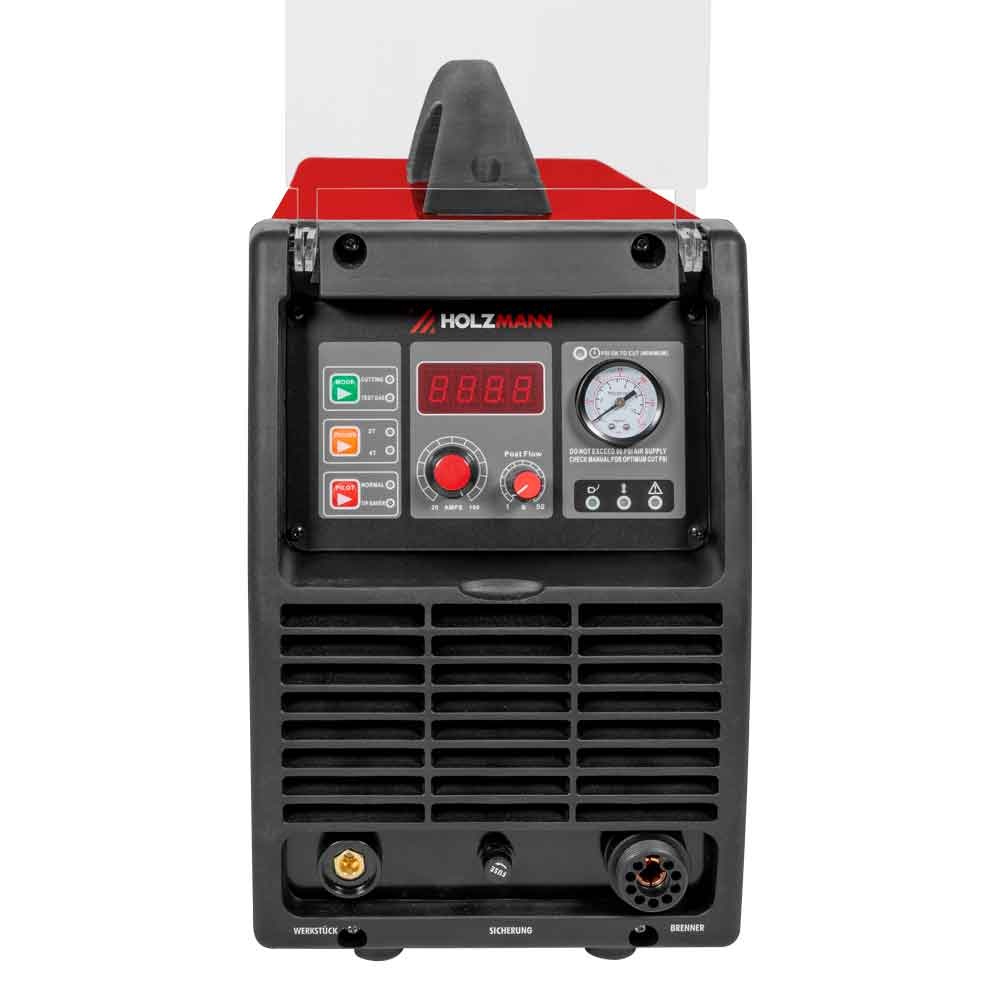

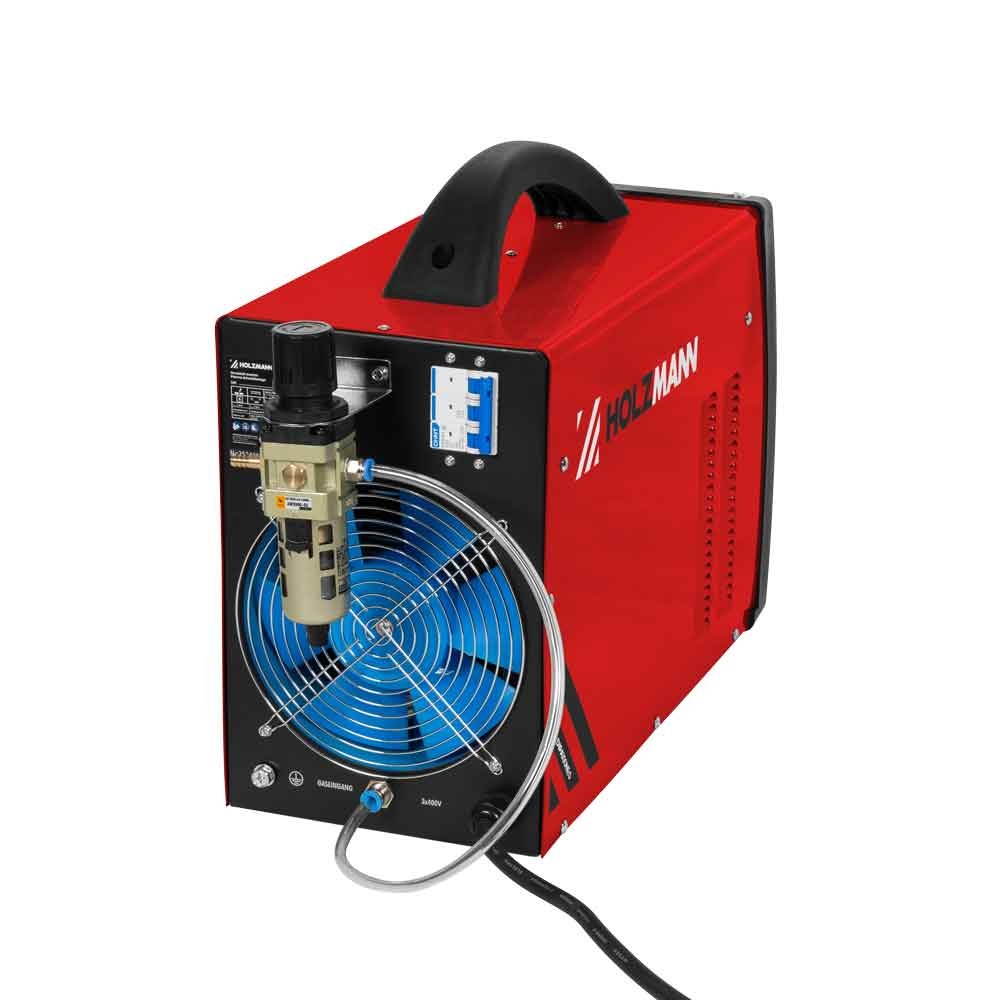

DIPA100NEO compressed air inverter plasma cutting system
The HOLZMANN DIPA100NEO compressed air inverter plasma cutting system enables cutting depths of up to 40 mm with adjustment options for cutting torch mode and post-flow time for optimal cutting results.
Highlights
- max cutting depth of 40 mm
- Operating air pressure 2.5 - 5 bar (0.25 - 0.5 MPa)
- Air flow rate 30 - 100 l/min
- Air post-flow time 1 - 50 s

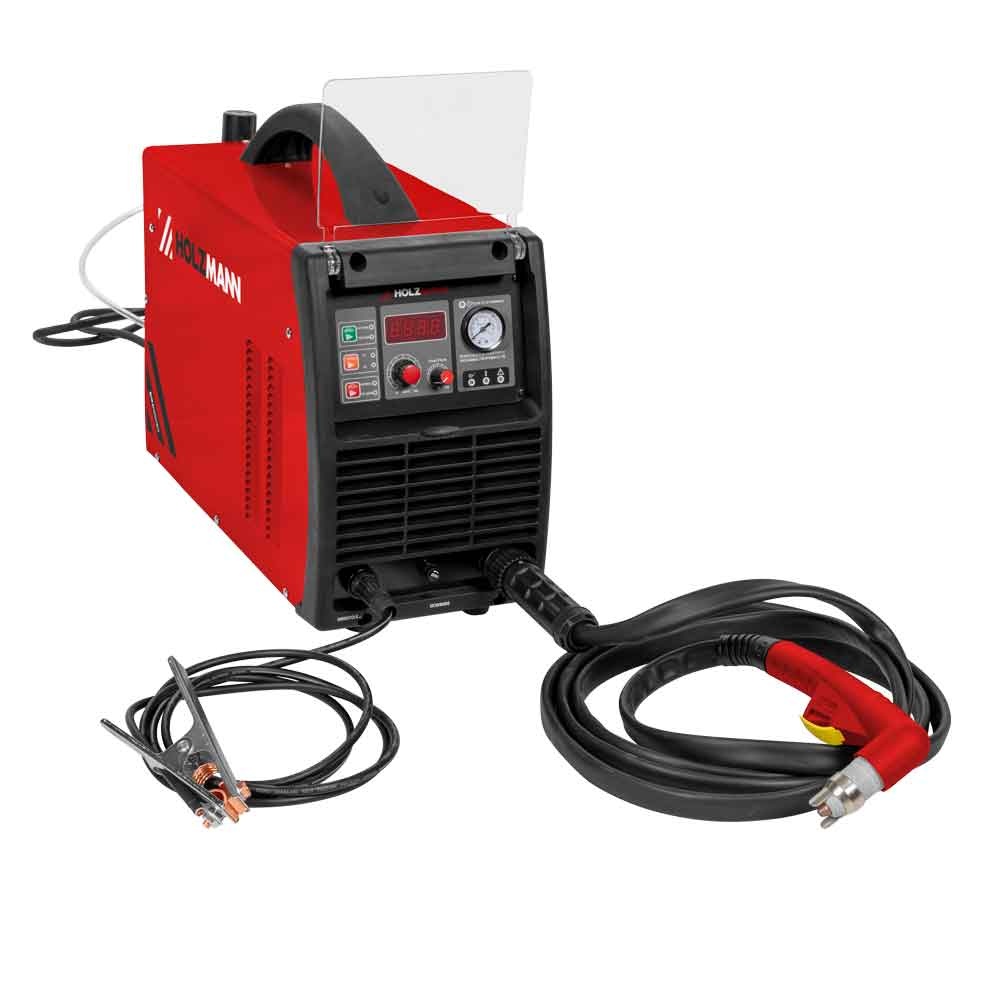

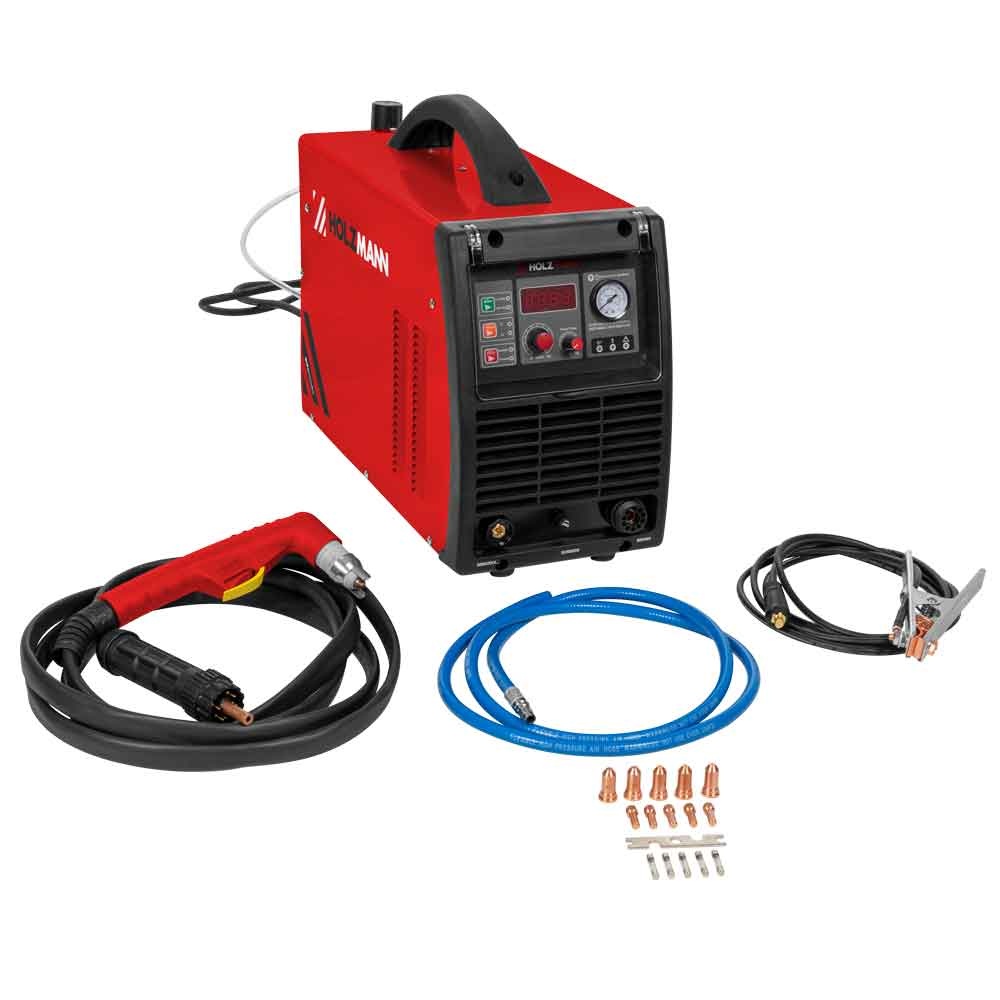

Scope of delivery : ground cable (3m), cutting torch (4m), air hose (0.5m), pressure reducer, spacer
Technical details
Welding technology
Input power capacity in KVA 37
Ground terminal in A 300
Cutting current range 20 - 100 A
max. cutting thickness in mm 40
Input voltage 400 V / 50-60 Hz
Gas post-flow time in s 1-50
Weight
Gross weight in kg 33
Net weight in kg 28
Shipping dimensions
Packaging width in mm 380
Packaging length in mm 650
Packaging height in mm 480
General data
EAN code
9120132140434
