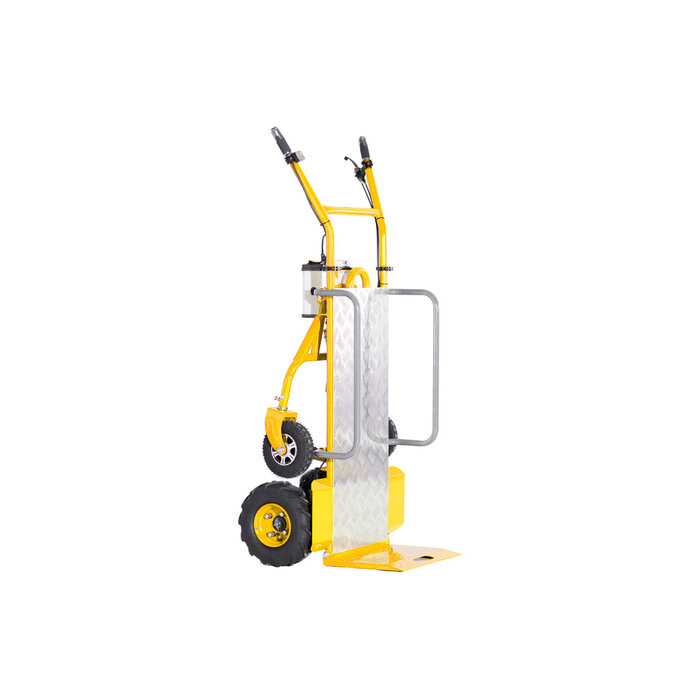

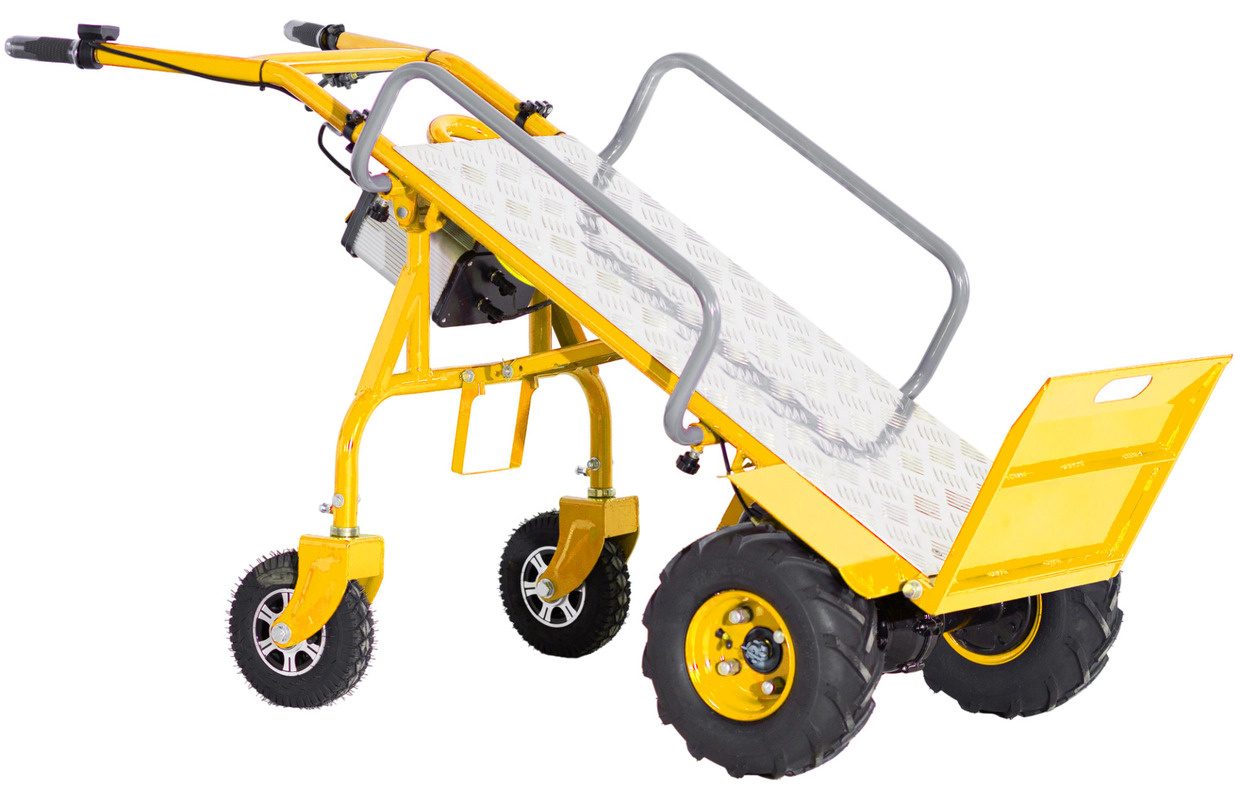

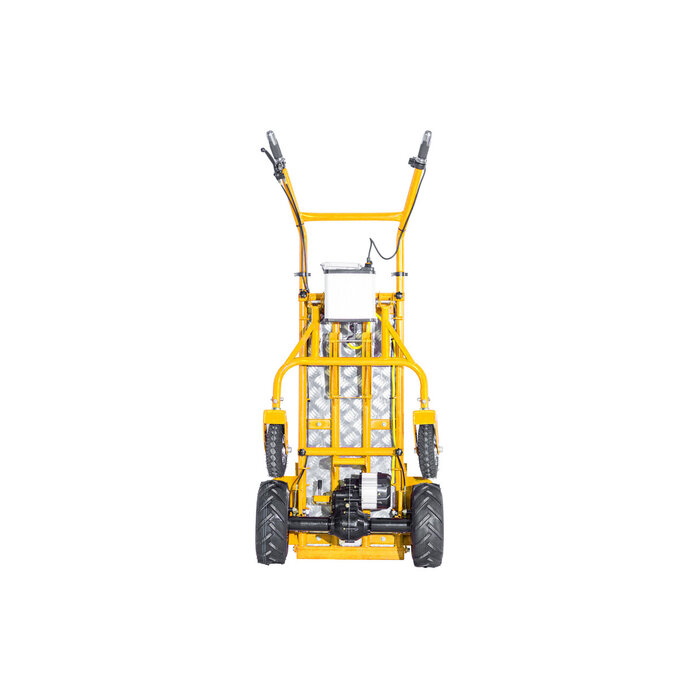

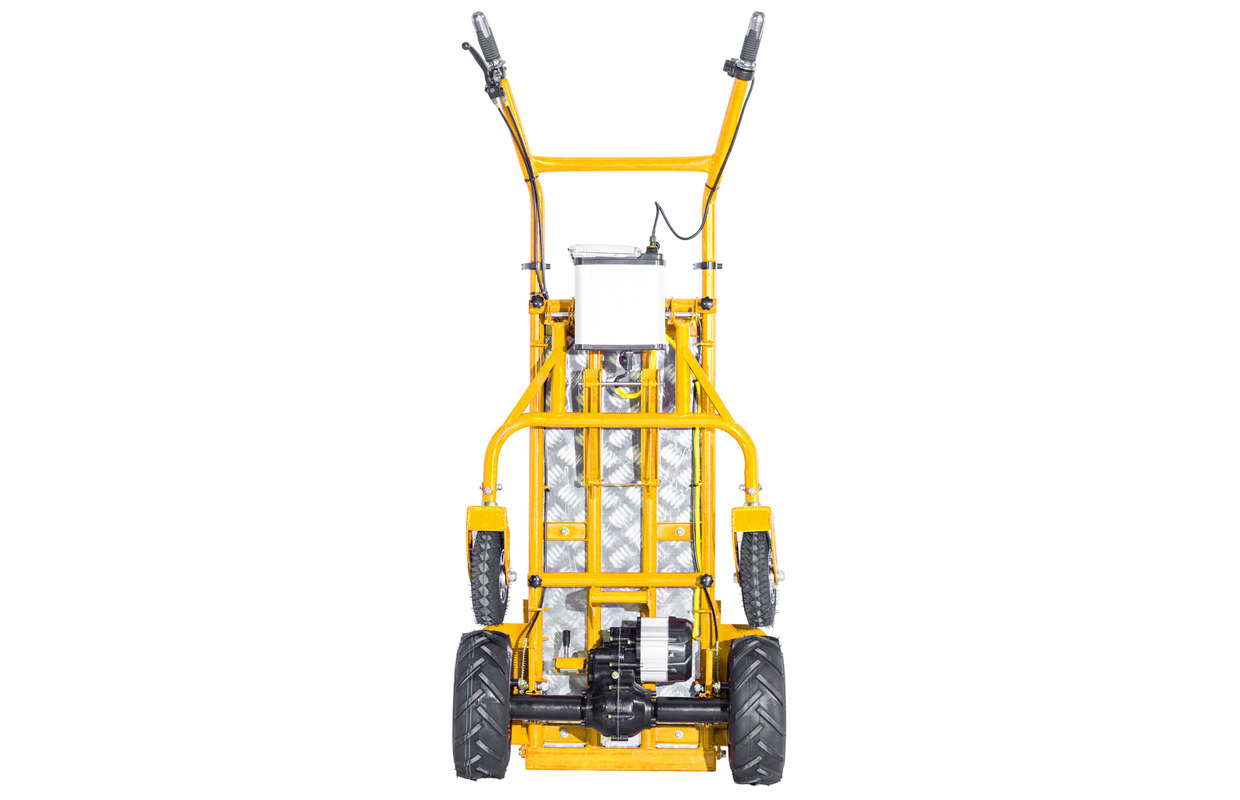

Electric hand truck 260 kg width 676 mm MW Tools

Electric hand truck with a capacity of 260 kg and a width of 676 mm.

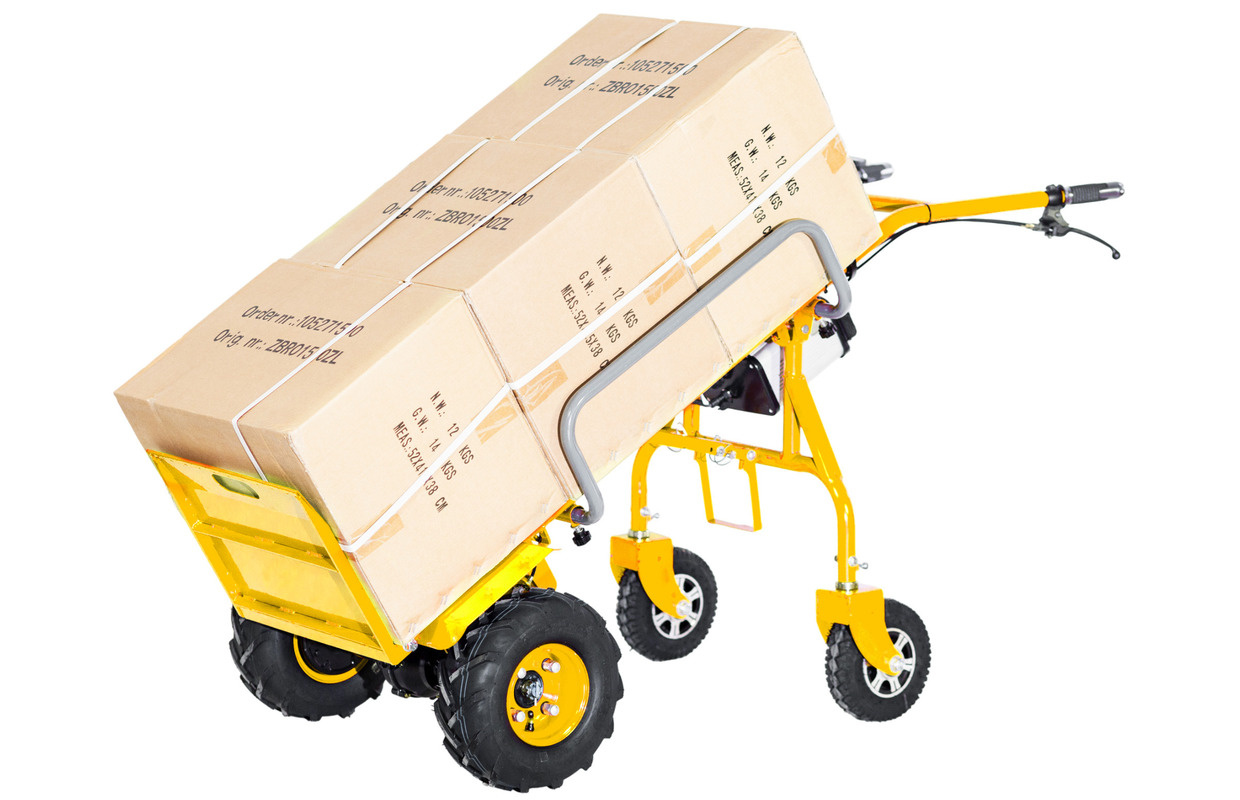

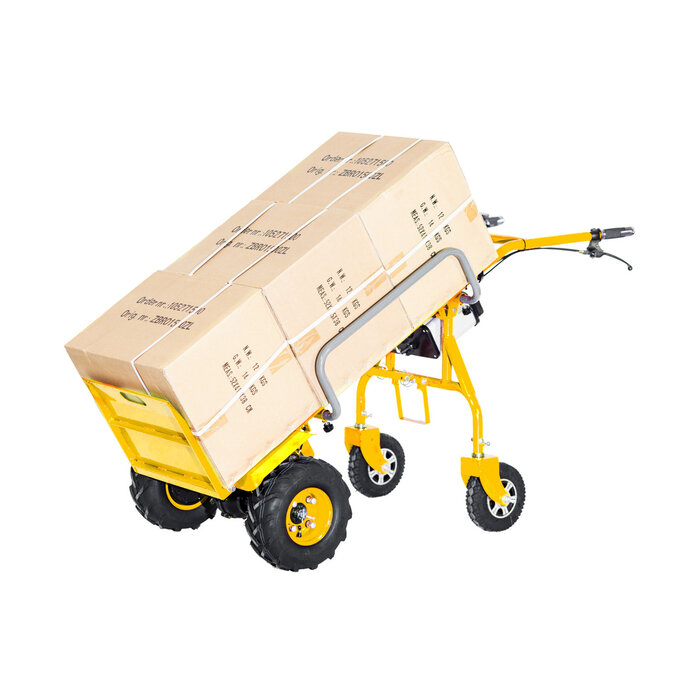

All-round motorized transport trolley with rechargeable lithium battery, for transporting heavy boxes, crates, appliances, white goods, bouncy castles, car tires, garden furniture, etc.

Safe and comfortable driving with large and heavy loads, thanks to the 2 stabilising folding rear wheels, side supports and electronic braking function.

The colour of the hand truck is yellow RAL1003.

Advantages:

• Load capacity of 260 kg
• Fully electric: Variable speed forward and reverse, adjustable on the handle
• Durable aluminum back plate with teardrop anti-slip profile

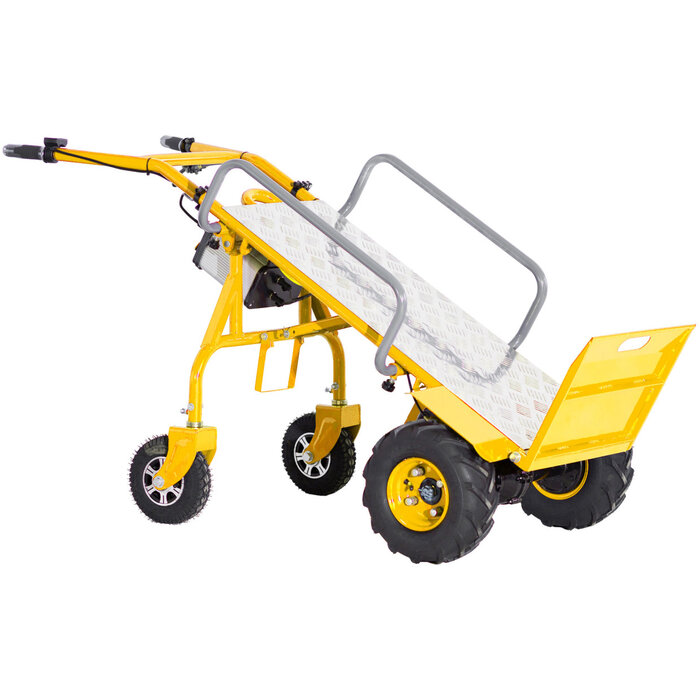

• Very stable thanks to the folding rear wheels. Comfortable and safe riding without effort.
• Electric brake and downhill braking function ensure safe descent of slopes and ramps
• Supplied with a 6 Ah lithium battery. This battery can be charged either in the car or separately at a wall socket.
• Battery life of 1.9 hours at full capacity, 2.5 hours at half capacity and 5 hours without a charge
• 1.5 hours of autonomy at maximum incline and full capacity
• Manual release lever allows to disengage the drive of the hand truck, to move it freely
• Suitable for upward slopes up to 12°, such as driveways, ramps, ascents, uneven terrain, etc.
• Tight turning radius of 1.5 m with rear wheels folded out, this allows you to maneuver in small spaces and aisles and to load/unload with heavy and large loads
• Two adjustable steel brackets up to 800 mm wide provide lateral support for the load. The brackets can be removed when transporting oversized goods.

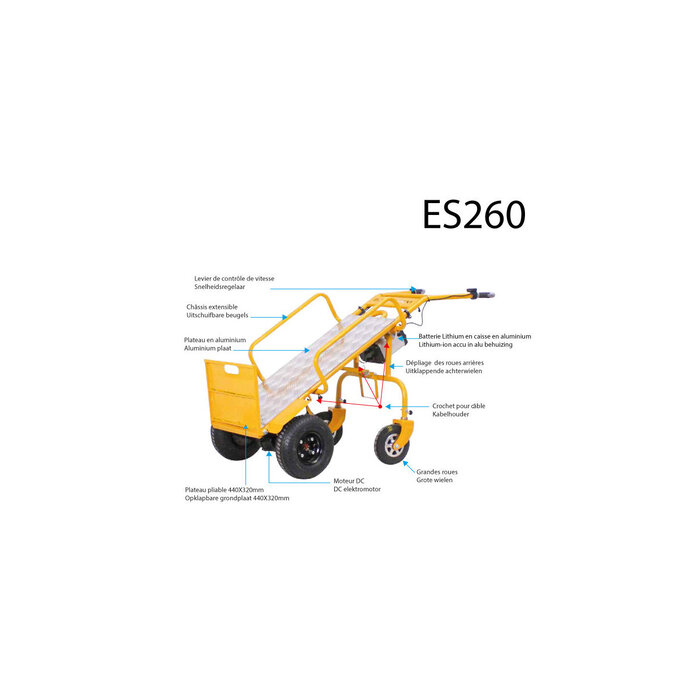

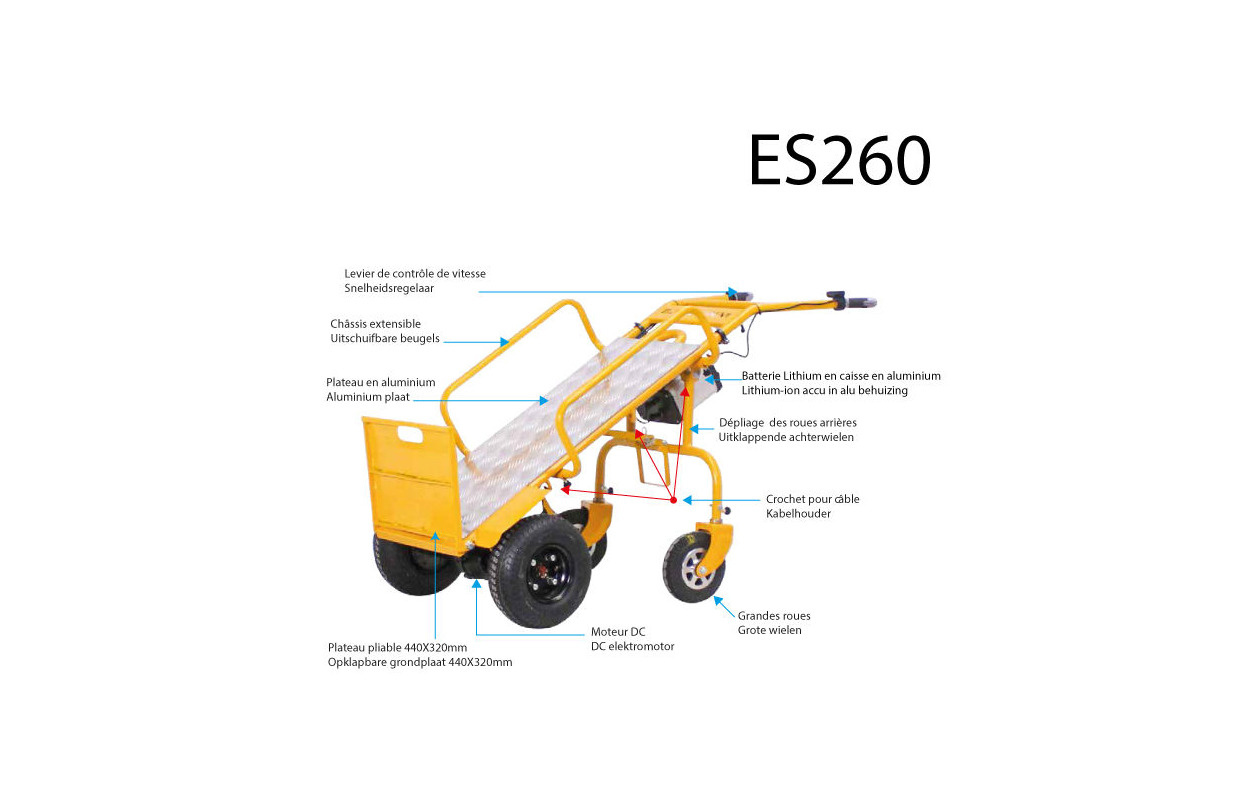

Features:

• Capacity of 260 kg, on a flat surface
• Capacity 150 kg on level ground, slope 12°
• Front axle with differential for smooth cornering and tight turns on the spot
• Double braking function with 100% or 30% braking selector
• 100% braking function: the hand truck brakes completely when you release the handle. This is useful in situations where you want to hold the load steady on a slope, ramp, or other surface, or to secure the hand truck.
• 30% downhill braking function: the vehicle brakes partially, which is recommended when going downhill, so that the load can be transported in a controlled and safe manner.
• Folding steel base plate 440 x 320 mm, with anti-slip teardrop profile and handle for lifting the hand truck
• 6 hooks on the steel frame for securing the load
• At just 676mm wide, the truck can easily pass through exterior and interior doors and past other obstacles in the workplace.

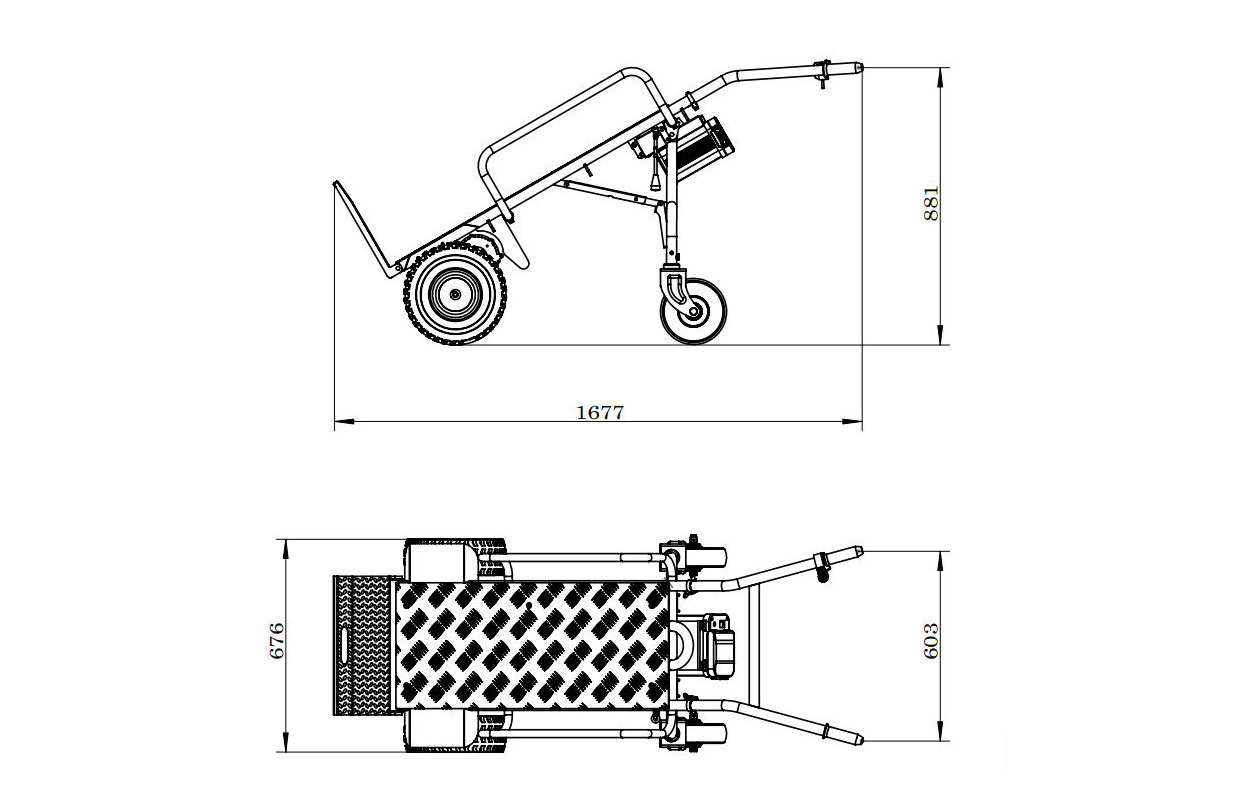

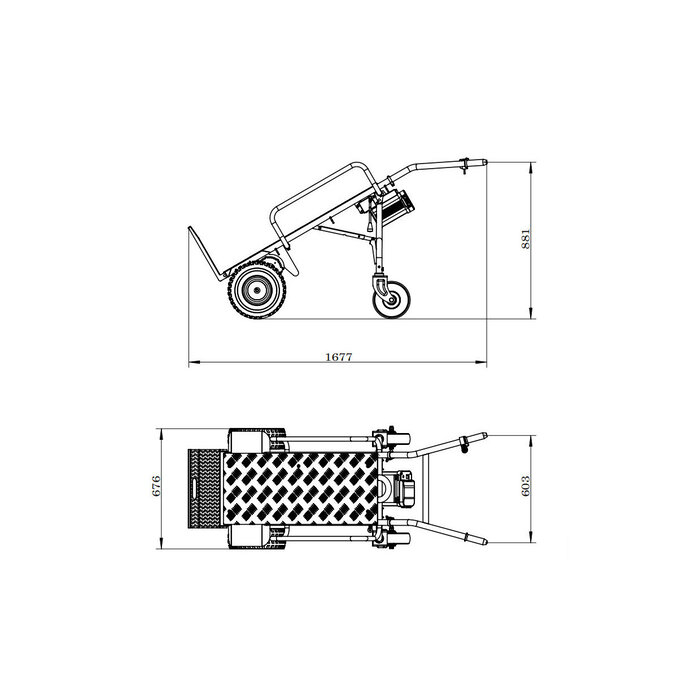

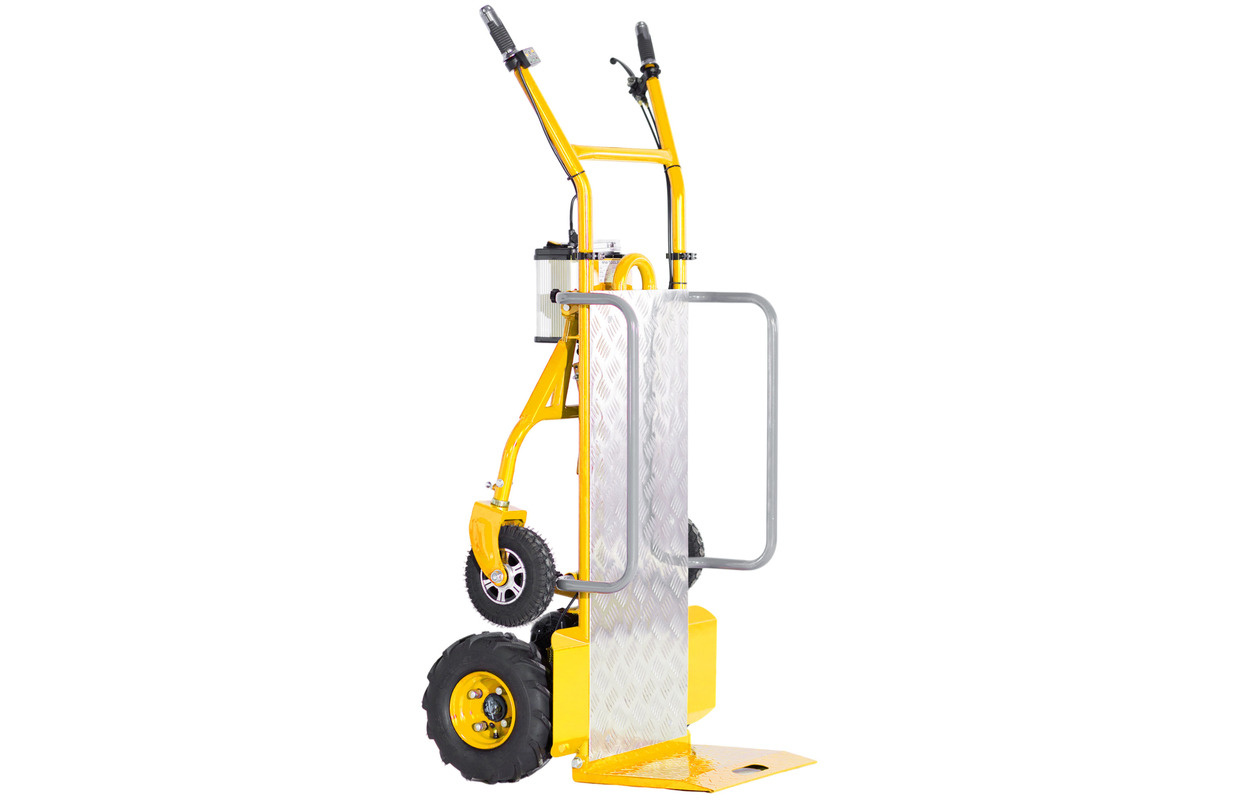

• Transport dimensions of 676 x 368 x 1647 mm. The carrying platform is then folded and the side supports are removed.
• Front wheels: 2 profiled rubber pneumatic tyres 13 x 5.00-6, suitable for transport on uneven and difficult surfaces
• Rear wheels: 2 rubber pneumatic tires 8 x 2.5 - 4, 360° rotatable
• Battery housing splash-proof IP64
• Brushless DC electric motor 350 W with permanent magnet

Supplied with:

• Lithium-ion battery 40 V with capacity 6 Ah
• Battery charger 230 V

Performance:

• 260 kg capacity on a level surface; 150 kg on a 12° incline (driveways, ramps, inclines, uneven terrain)
• Battery life of 1.9 hours at full load, 2.5 hours at half load and 5 hours without a charge
• 1.5 hours of autonomy at maximum slope and full load
• Tight turning radius of 1.5 m with rear wheels folded out, this allows you to maneuver in small spaces and aisles and to load/unload with heavy and large loads
• Tight turning radius of 1.5 m with rear wheels folded out, this allows you to maneuver in small spaces and aisles and to load/unload with heavy and large loads

Option:

• Additional battery lithium-ion 6 Ah (ref. BAT406LI)



Tip: Always choose a sufficiently heavy driving plate, and also take into account the weight of the driver and the fuel (an additional 150 kg in total).
If you want to use the fully loaded dumper on the driving plate, choose a heavier driving plate with a capacity of at least = dumper weight + full load weight + an extra 150 kg.

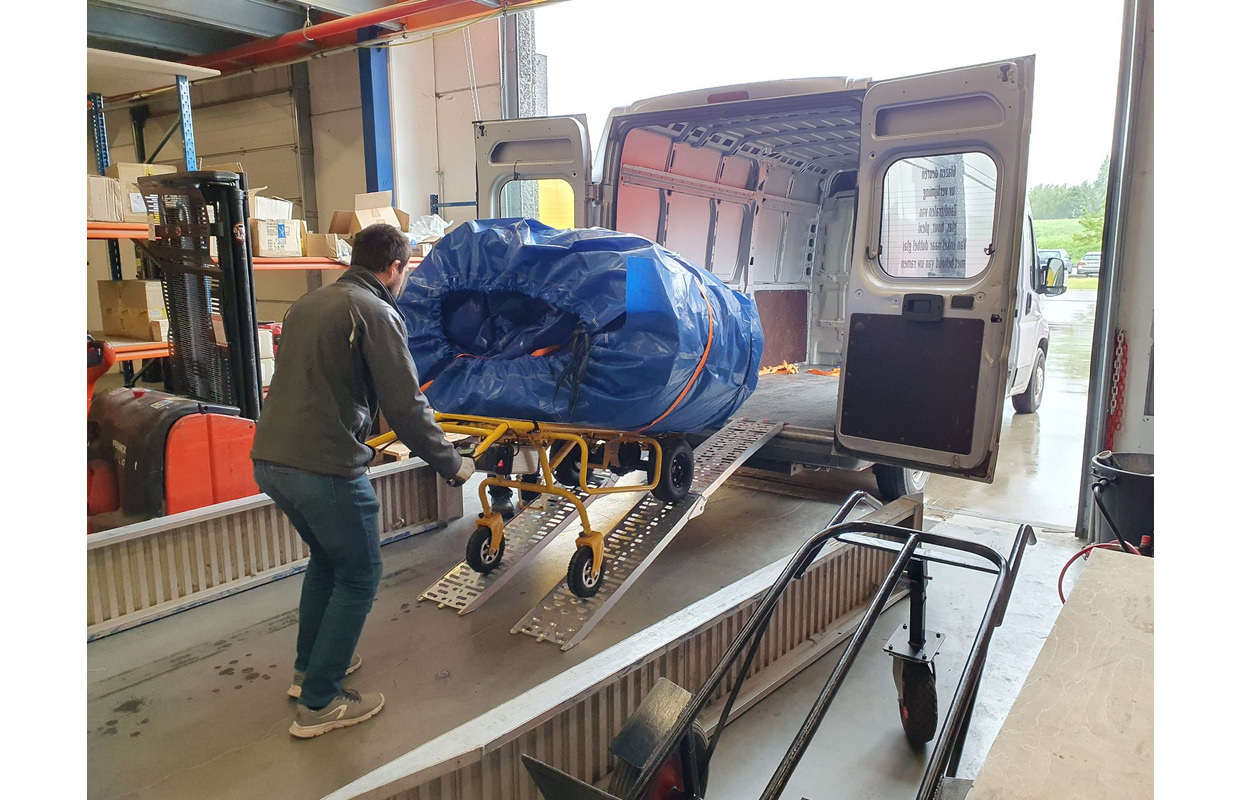

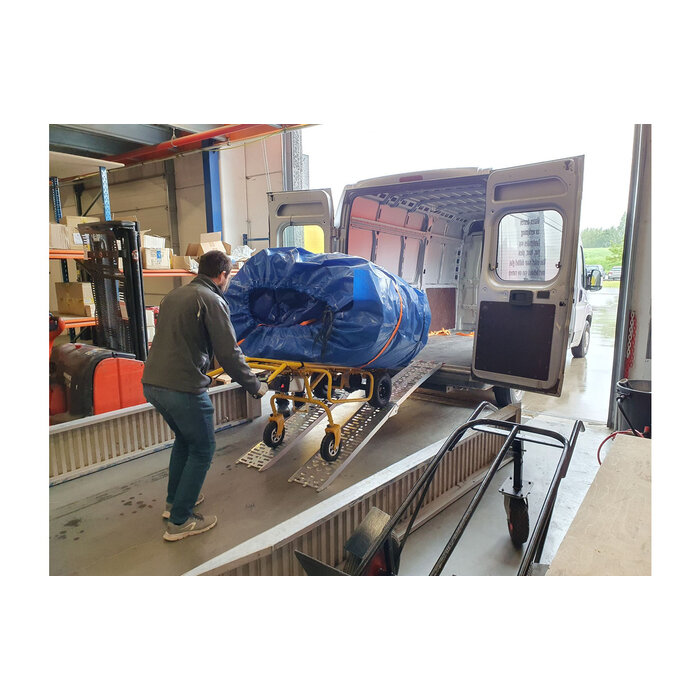

• Alu ramp foldable 400kg 2135 x 700 mm (ref. AOP2003)
• Alu ramp foldable 400kg 2135 x 900 mm (ref. AOP2004)
• Pair of short aluminium ramps, 3000kg, 950 x 300 mm (ref. SOK0800)
• Pair of foldable aluminum ramps, open type, 680kg, 2260 x 280 mm (ref. SOP2200)
• Pair of aluminum ramps 1000kg 1500 x 260 mm (ref. SOR1500)
• Pair of aluminum ramps 1000kg 2000 x 260 mm (ref. SOR2000)
• Pair of aluminum ramps 1000kg 2500 x 260 mm (ref. SOR2500)
• Pair of aluminum ramps 1000kg 2400 x 240 mm (ref. SOP2400)

Note: The color of the hand truck is yellow RAL1003. Photos in other colors are for illustrative purposes only.
