Art: EISA162EAN: 9120039904740

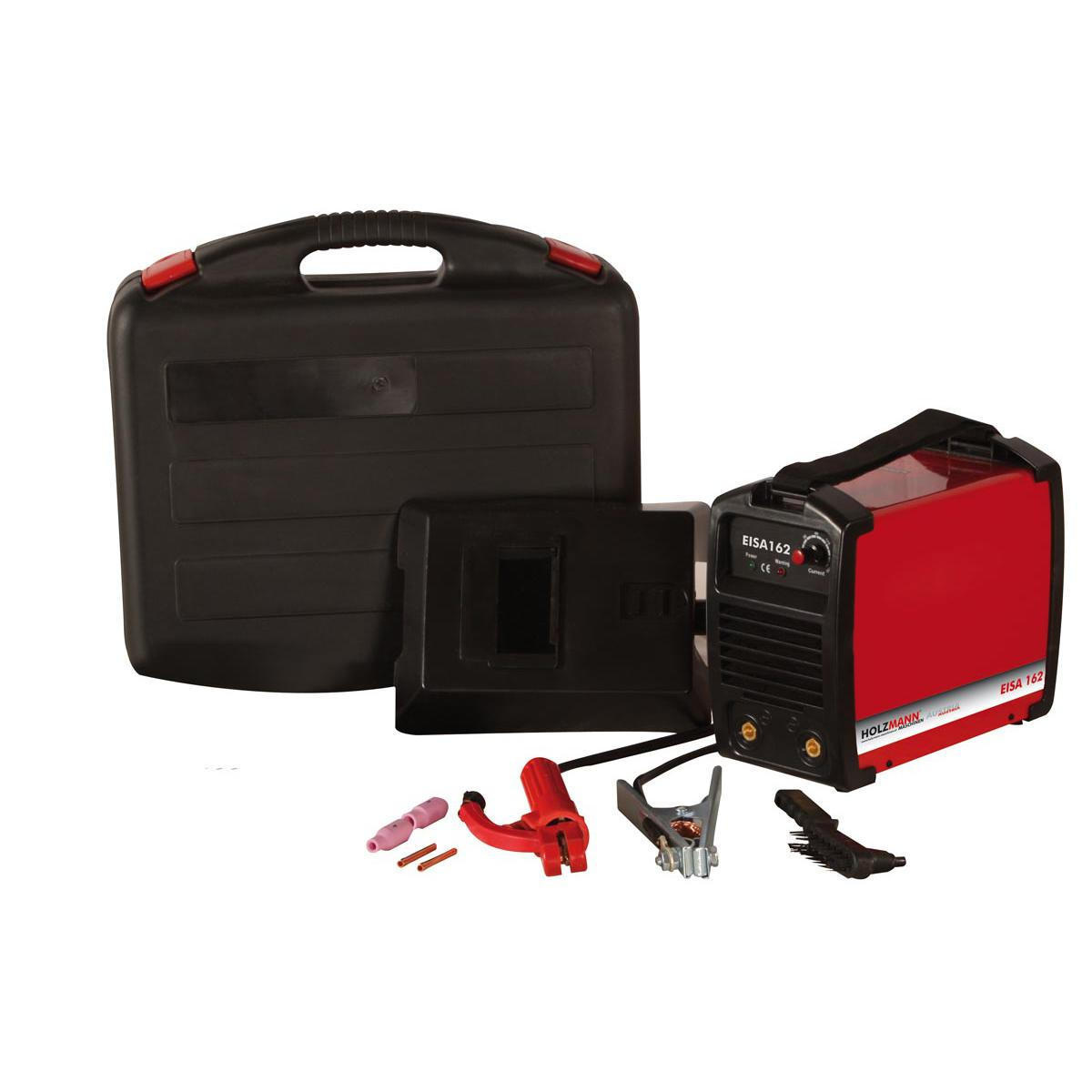

EISA162 electrode inverter welding system
Show all:
Welding,
Groot assortiment
Scherpe prijzen - Snelle Levertijden
7 dagen per week bereikbaar +31621803866
infomeer naar de lease mogelijkheden
Description Read moreRead less
EISA162 electrode inverter welding system
Depending on the design, the work environment, or the surroundings – thanks to inverter technology and the associated connections, the weight requirements of the EISA162 are variable, and ultimately, they can be changed. Thus, many natural materials were lost along with the contaminated puncture electrodes. The compact device poses problems with handling and easy transport. Since there is no gas, it can be changed even when space is available.
Technical details
General measurements
Dimensions in mm 295x220x130
Swiss technology
Input voltage 1x230V 50Hz
Input power capacity in KVA 4.8
Welding current range in A 10-150
Electrode holder in A 200
Welding cable length in m 2.5
Ground terminal in A 200
Duty cycle in % 35
Open circuit voltage in V 70-80
Weight
Net weight in kg 8
Gross weight in kg 10
Shipping dimensions
Packaging height in mm 470
Packaging width in mm 210
Packaging length in mm 510
General data
EAN code
9120039904740
