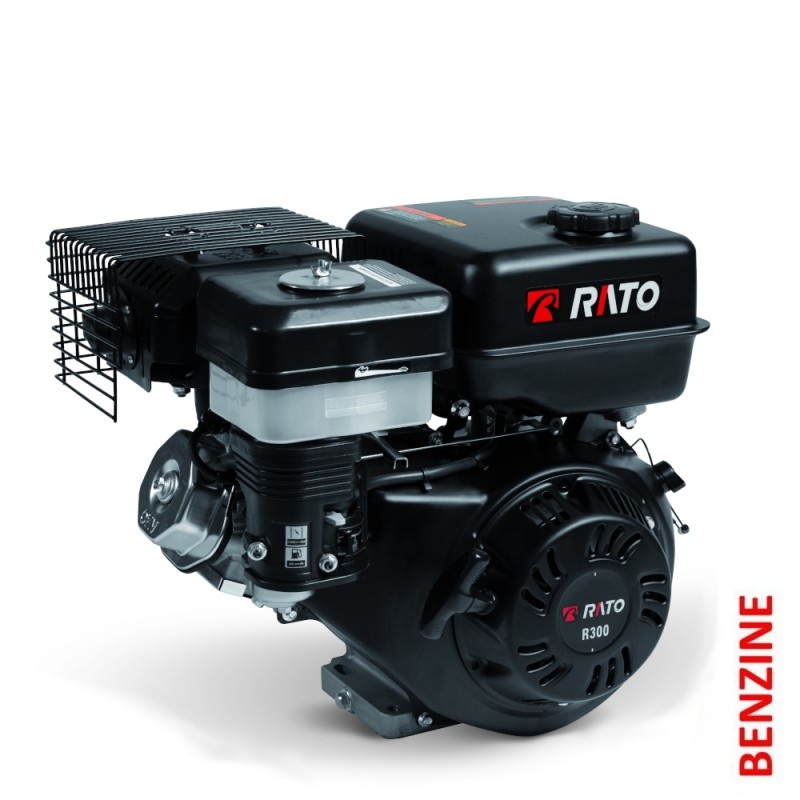

ENGINE EHR300ITBD

RATO MOTOR EHR300ITBD

The RATO EHR300ITBD is a 9 hp motor with an axle size of 25 mm.
The engine is suitable for intensive use.
RATO motors are strong and reliable.

The EHR300ITBD is a 9 hp RATO motor with an axle size of 25 mm.

The engine is suitable for intensive use. RATO motors are strong and reliable.

RATO motors are suitable for intensive use. RATO motors are strong and reliable due to the following important product features:

- Reinforced crankshaft, connecting rod, intake and exhaust valve, ball bearings, manual start mechanism and tight valve springs.
- High quality cylinder bushing, valve guides, heat resistant seals, head gaskets, air filter system and aluminum castings.

Engine type
Air-cooled 1-cyl. 4-stroke OHV petrol engine
max. power
9 hp
Engine capacity
301 cc
Engine manufacturer
RATO
Tank contents
5.4 Liters
Type of fuel
E5 petrol, Aspen 4-stroke (preferably not E10)
Launch system
Pull starter
Crankshaft diameter
25mm
Just. Couple
18 Nm / 2500 rpm
Compression rate
8.5 : 1
Rpm
3600 rpm
Bore x Stroke
80x60mm
Inflammation
F6TC/F6RTC
Engine oil capacity
1.1 liters
fuel consumption
374g/kW/hr
Air filter
Dual (Paper or Foam)
oil type
SAE15W/40
Dimensions (LxWxH)
420x395x430mm
EAN code
6974880290520
Weight
30.5 kg
Art. no.
EHR300ITBD
