ENGINE G270FXE

LONCIN ENGINE G270FXE

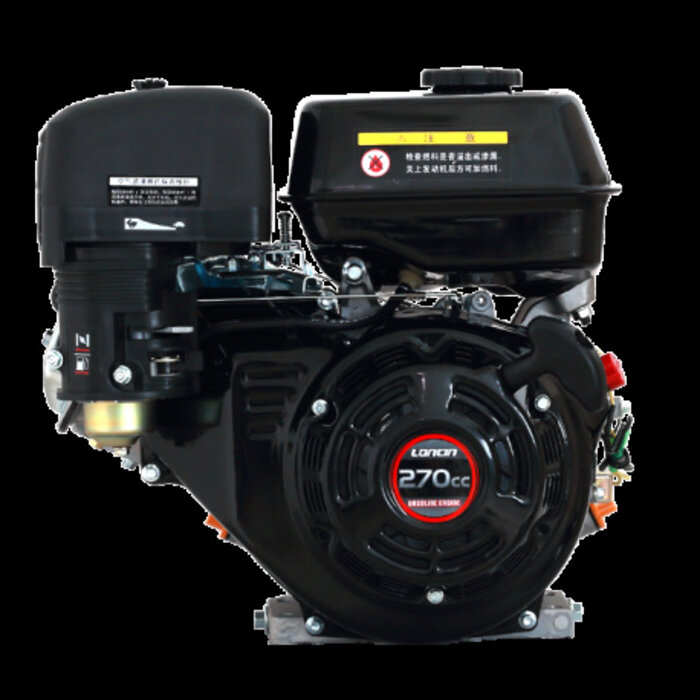

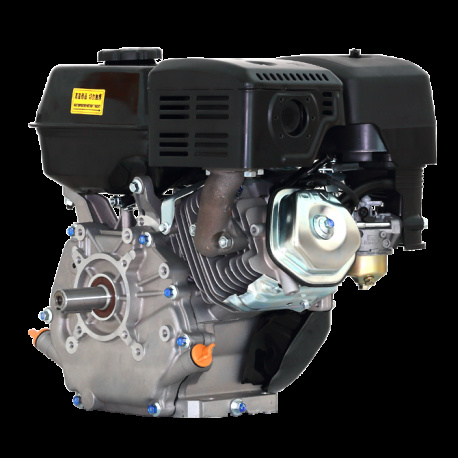

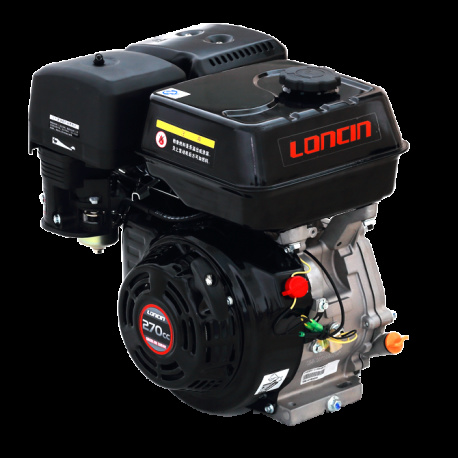

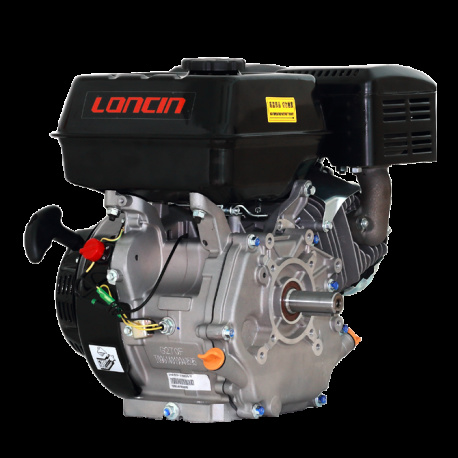

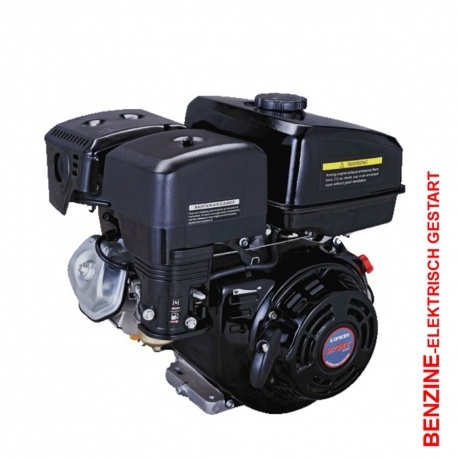

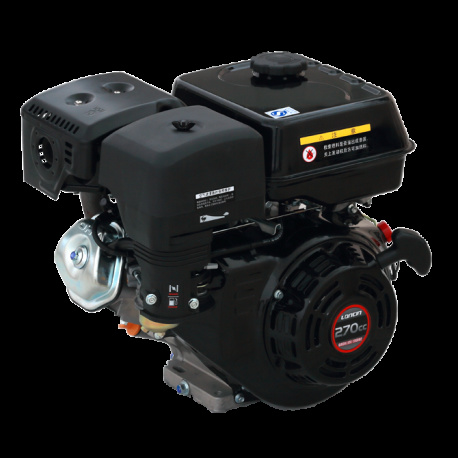

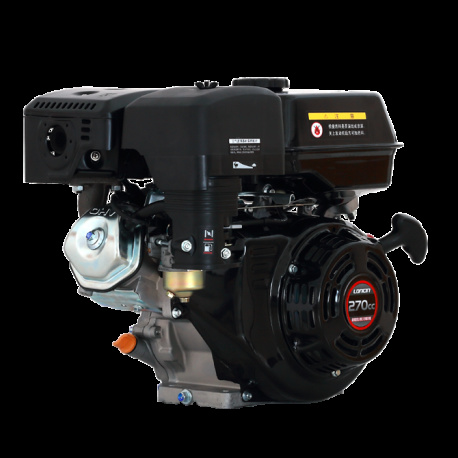

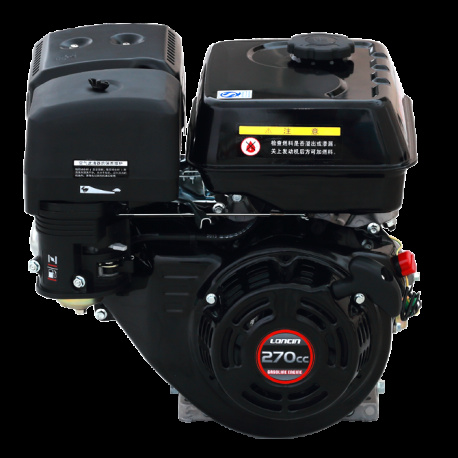

The G270FXE is a 9.0 hp Loncin engine with a shaft size of 25.4 mm and equipped with an electric start.
The engine is suitable for intensive use. Loncin engines are strong and reliable.

The G270FXE is a 9.0 hp Loncin engine with a shaft size of 25.4 mm and equipped with an electric start. An electric start means that the engine is ready to be started electrically.

The motorcycle is therefore equipped with a starter motor, a 12V charging coil for recharging the battery (battery not included) and ignition lock with key.

The engine is suitable for intensive use.

Loncin motors are suitable for intensive use. Loncin motors are strong and reliable due to, among other things, the following important product features:

• Reinforced crankshaft, connecting rod, intake and exhaust valve, ball bearings, manual start mechanism and tight valve springs.
• High quality cylinder bushing, valve guides, heat resistant seals, head gaskets, air filter system and aluminum castings.
• For shaft sizes and other sizes, please refer to the following appendix: specifications G270F series motors

Engine type
Air-cooled 1-cyl. 4-stroke OHV petrol engine
max. power
9 hp, shaft 25.4 mm
Engine capacity
270 cm3
Engine manufacturer
Loncin (3 year warranty!)
Engine oil capacity
1.1 liters
Tank contents
6 liters
Inflammation
TCI
Type of fuel
E5 petrol, Aspen 4-stroke (preferably not E10)
Launch system
Pull starter
Crankshaft diameter
Ø 25.4 mm, M8 x 1.25 internal thread (with keyway)
Just. Couple
16.3 Nm / 2500 rpm
Compression rate
8:2:1
Bore x Stroke
77×58mm
Rpm
4000 rpm
Direction of rotation
Counterclockwise
Sound level LWA
70dB(A)
Direct injection
no
Electric start (F)
no
Dimensions (LxWxH)
450x380x410mm
Weight
25kg
Art. no.
G270FXE
