Excavators GT3000
Excavators GT3000

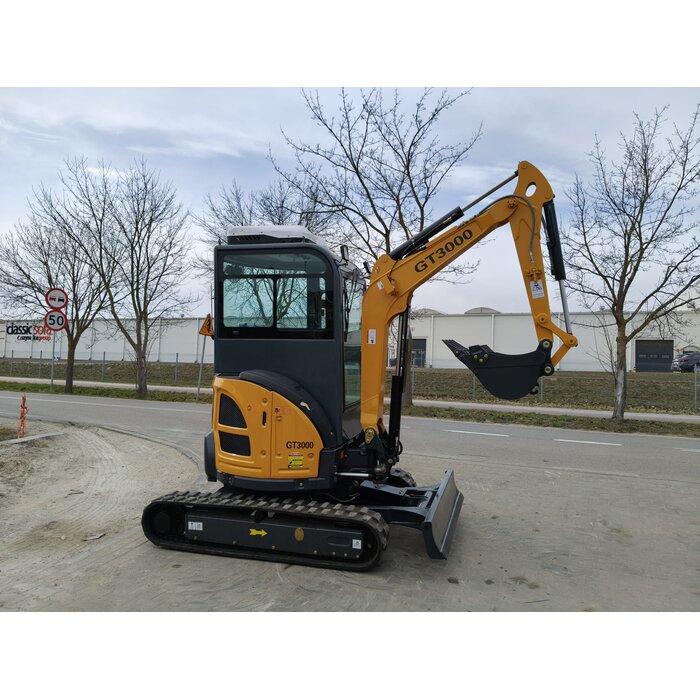

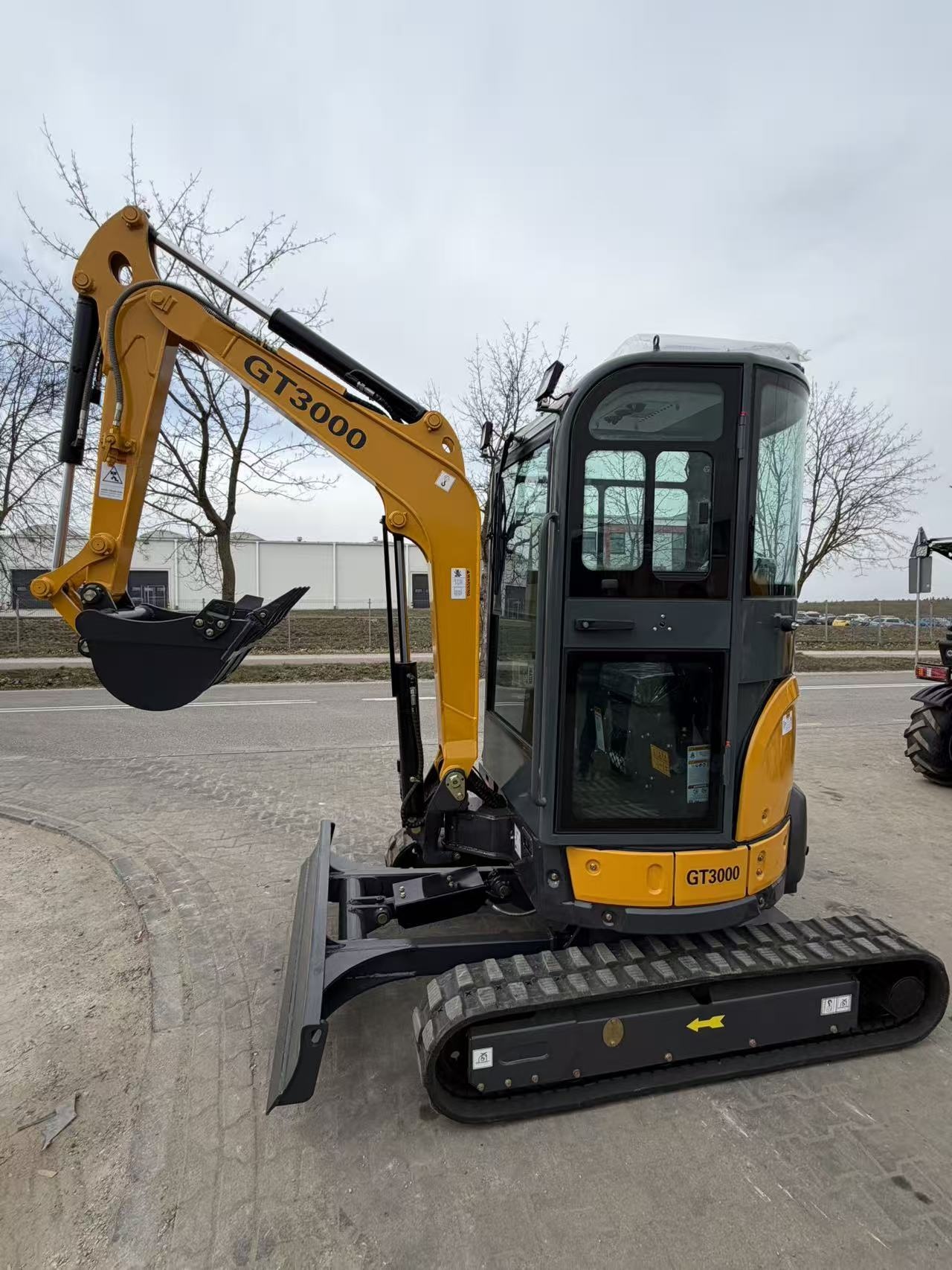

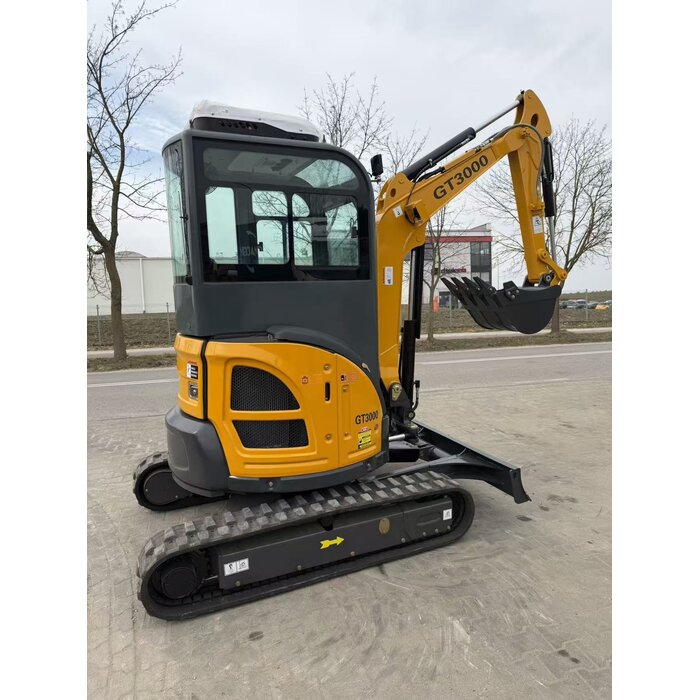

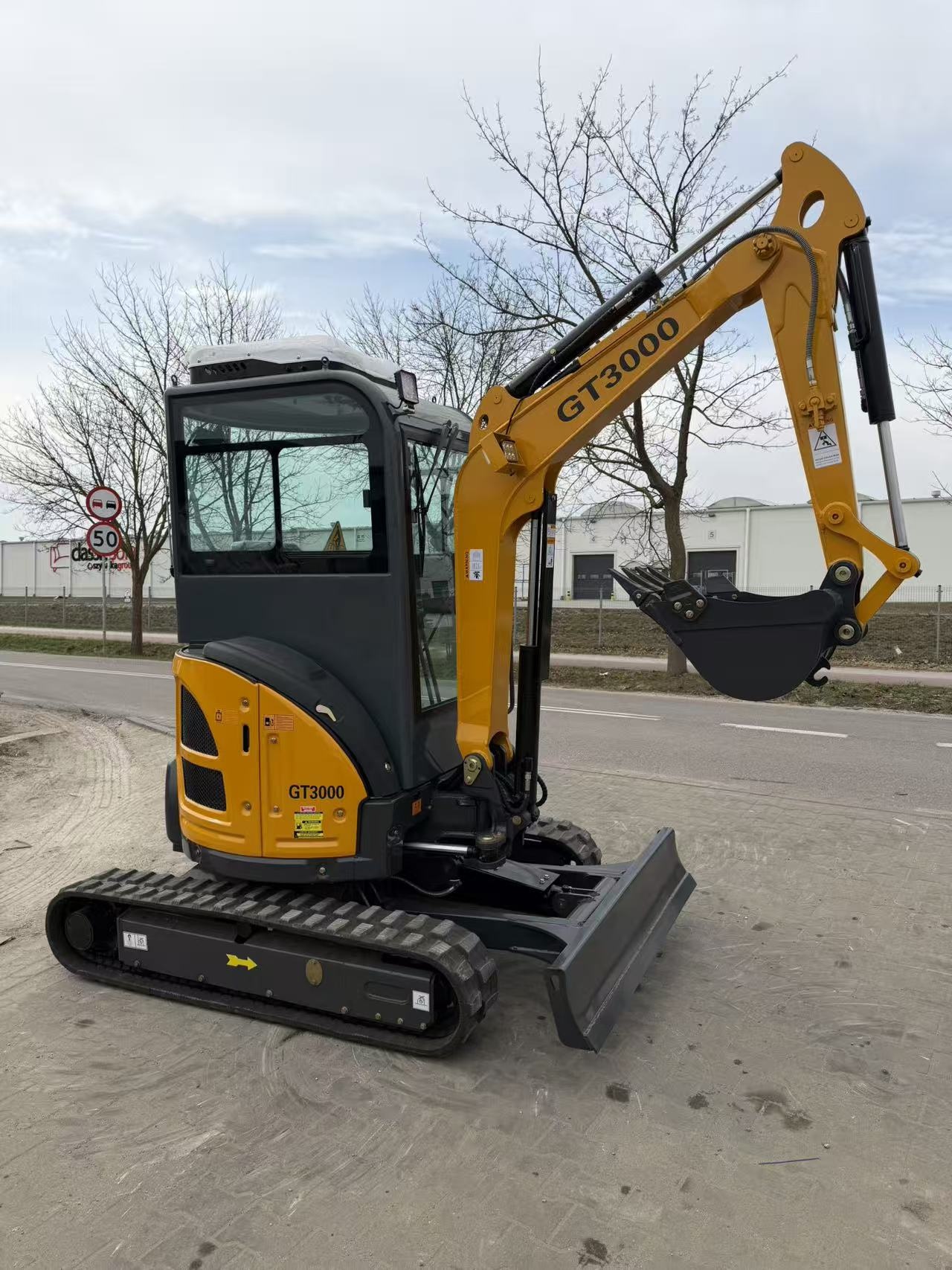

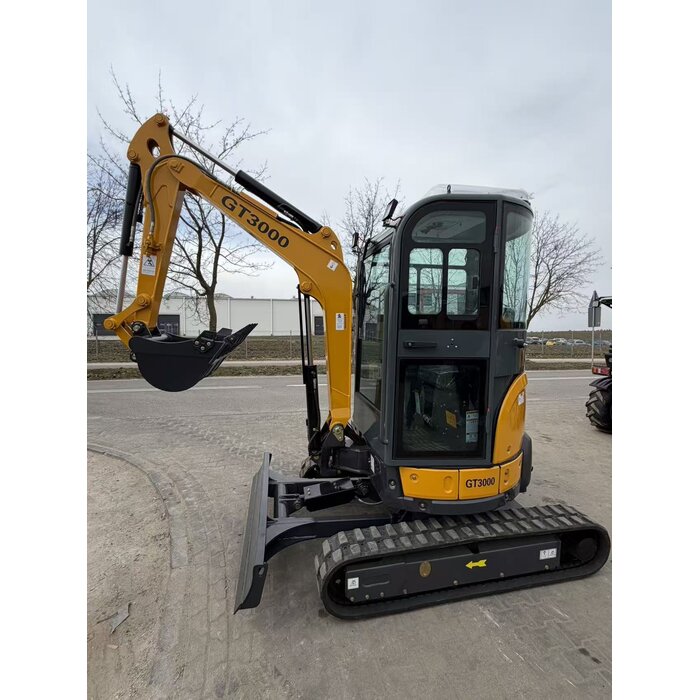

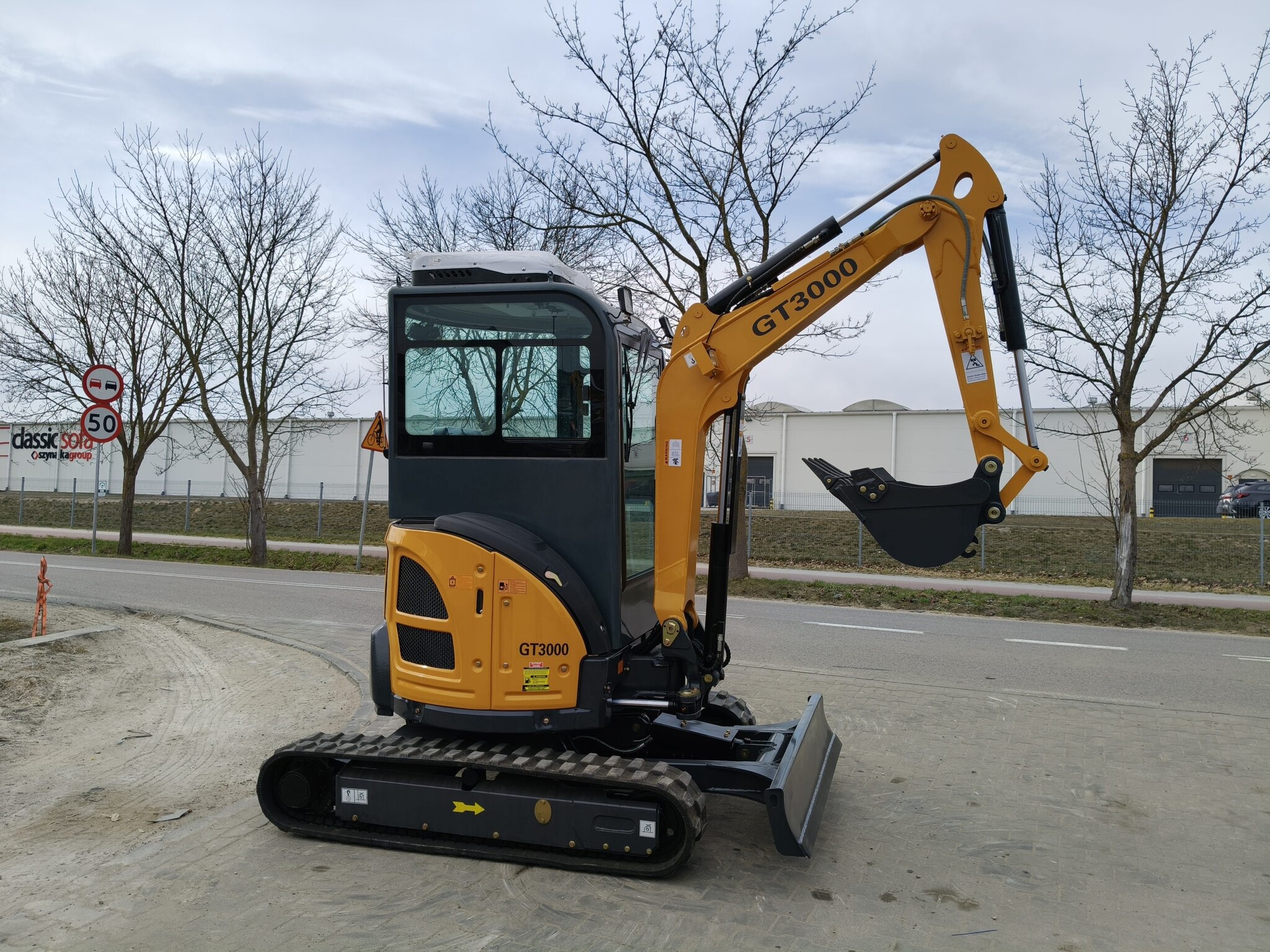

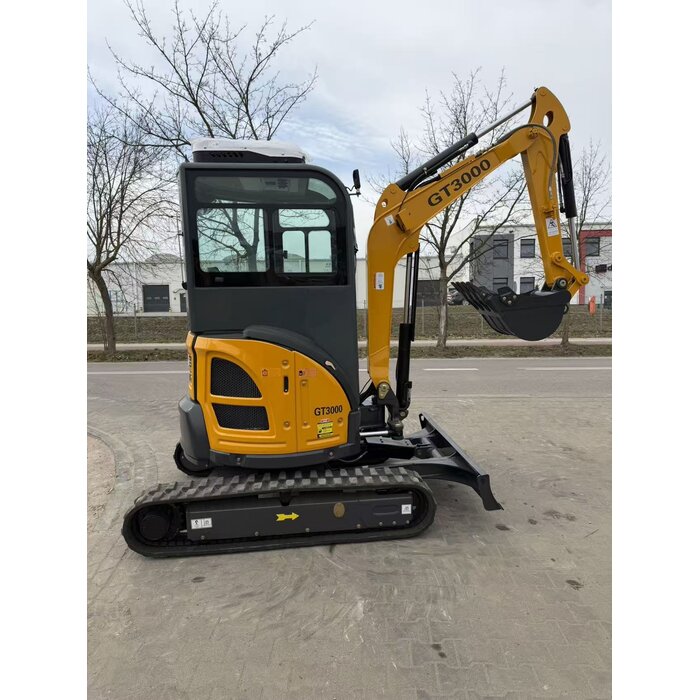

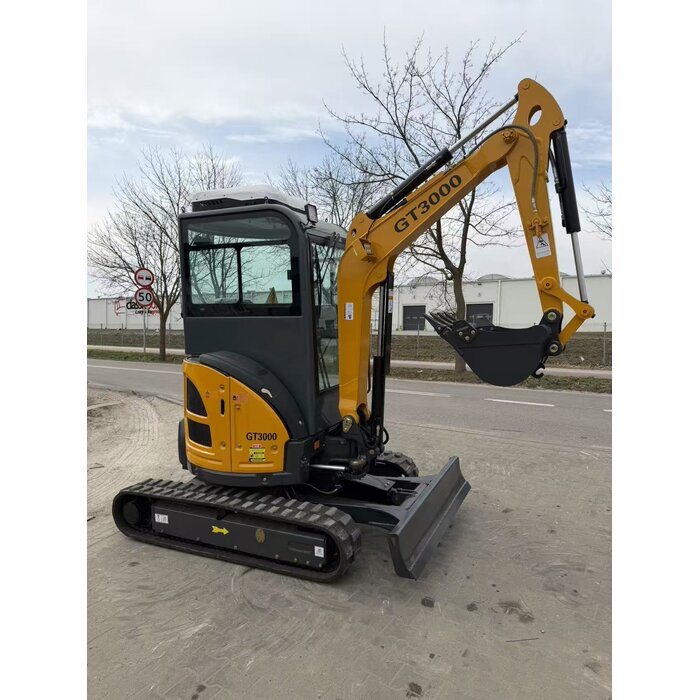

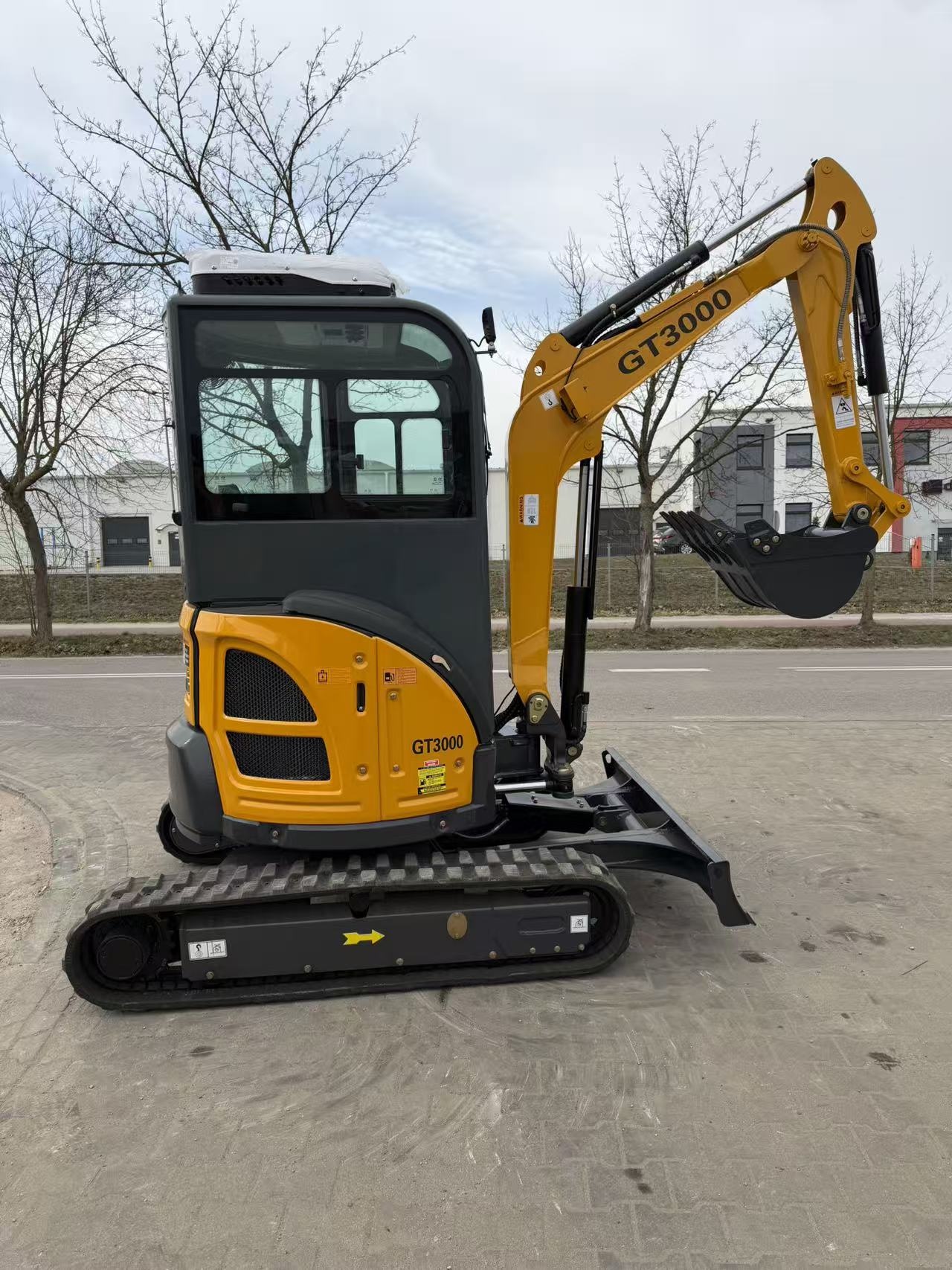

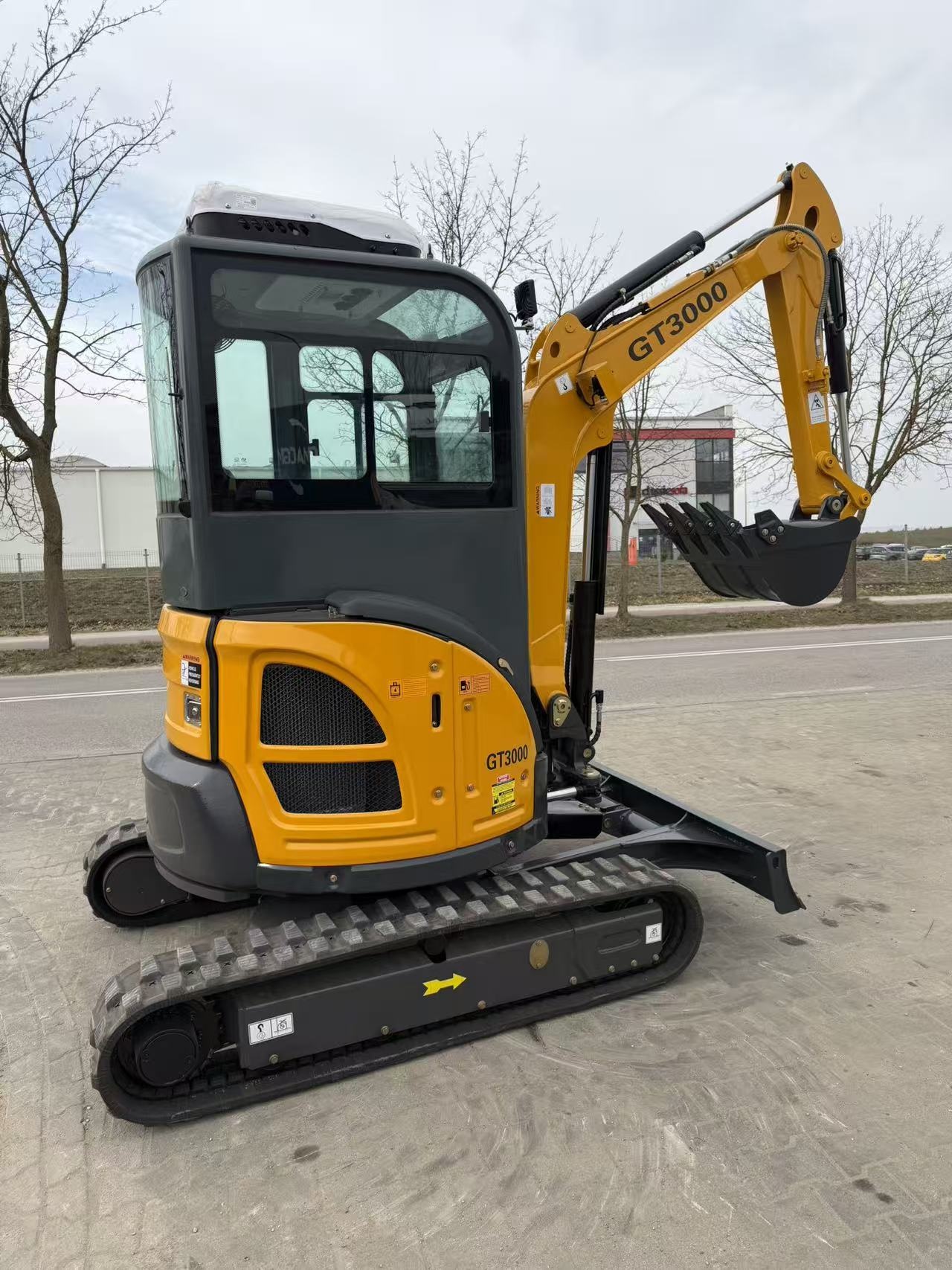

The GT3000 excavator is a modern crawler machine designed for earthworks requiring a good working range, high digging power, and a stable construction. Thanks to its compact dimensions and robust undercarriage, the machine is ideal for foundation work, installation work, municipal projects, and work in areas with limited maneuverability.
Motorcycle

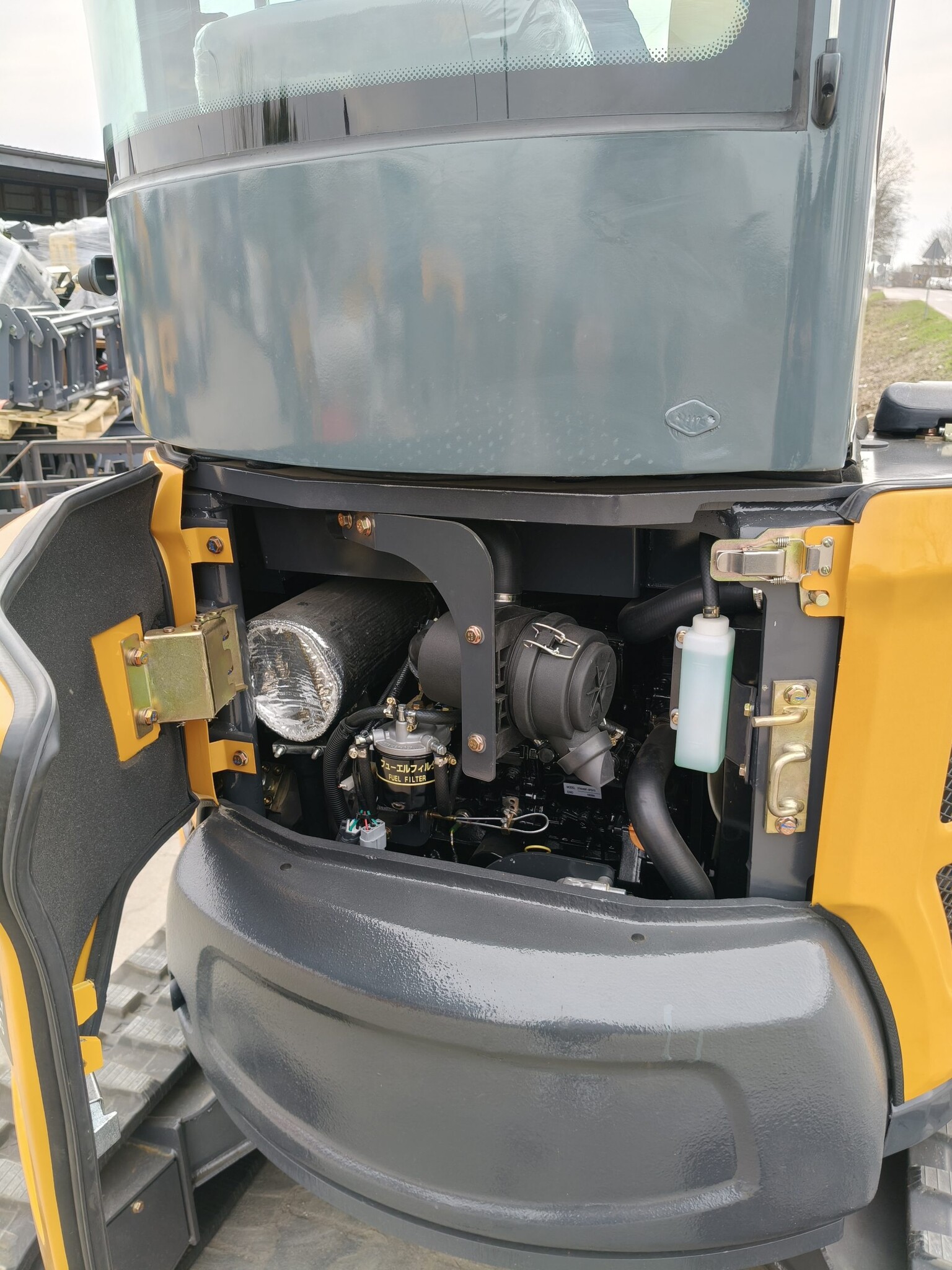

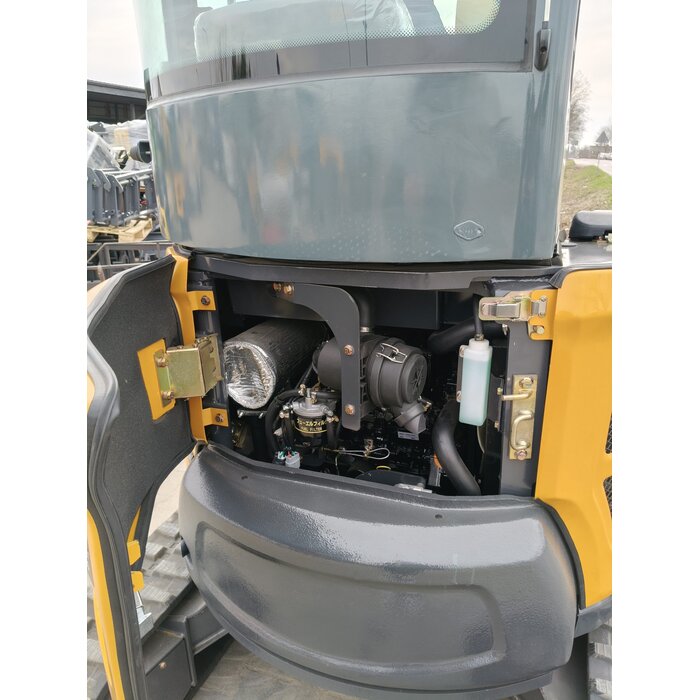

The machine is equipped with a reliable Yanmar 3TNV80F engine with a nominal power of 14.6 kW. This engine ensures stable and economical performance.
Working range
The excavator features a bucket with a capacity of 0.09 m³ and a width of 460 mm. The bucket's digging force of 17.6 kN enables efficient excavation work, even in heavier soil types. The maximum digging depth of 2,810 mm and the maximum digging radius of 4,375 mm offer a large working range without the need to frequently reposition the machine. A digging height of up to 4,510 mm and a dumping height of 2,760 mm make it easy to load material onto transport vehicles.
Dimensions and stability
The total dimensions of the machine are 4010 mm in length, 1540 mm in width, and 2360 mm in height to the top of the cab (1380 mm to the top of the boom). The track contact length of 1530 mm with the ground and a track width of 1510 mm ensure stability during operation. The track plates with a width of 250 mm and the low ground pressure of 26.7 kPa enable safe operation on less compacted surfaces.
Mobility and agility

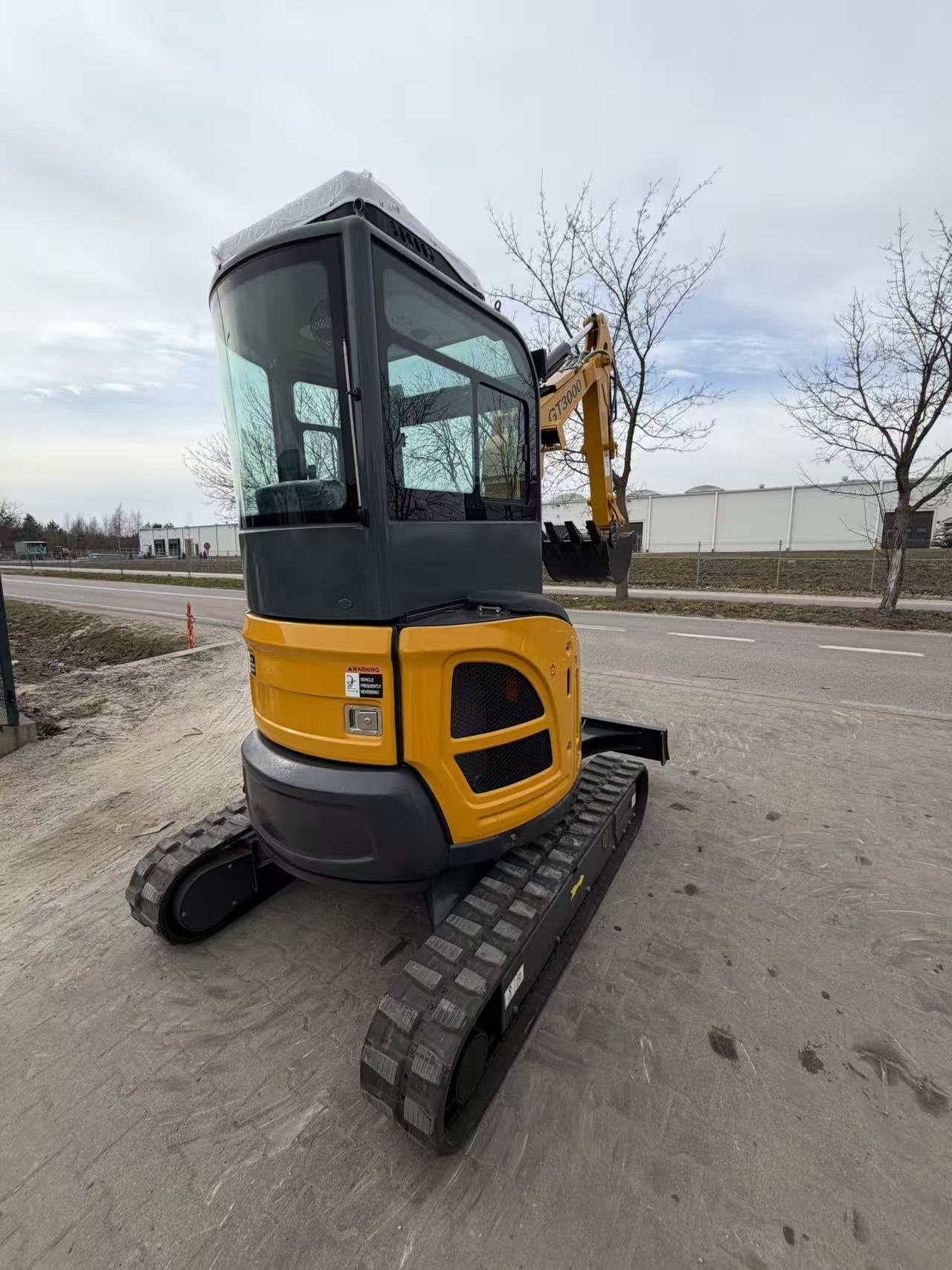

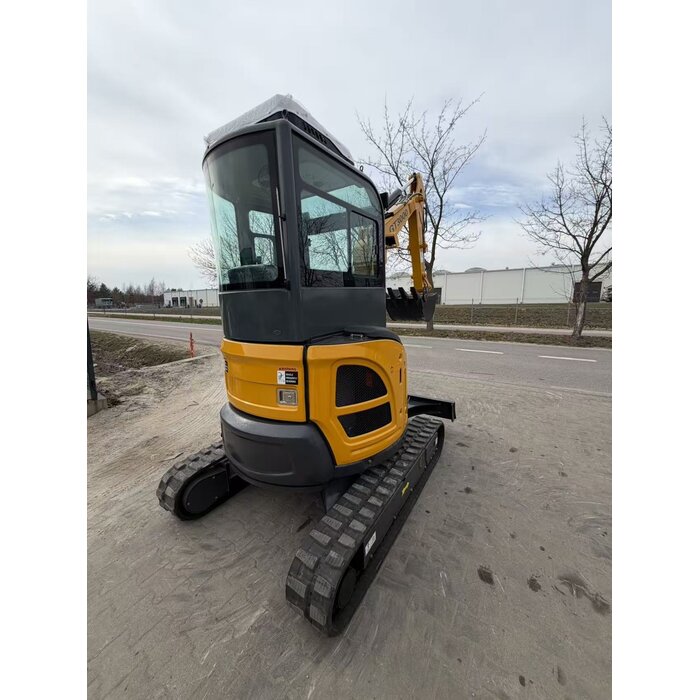

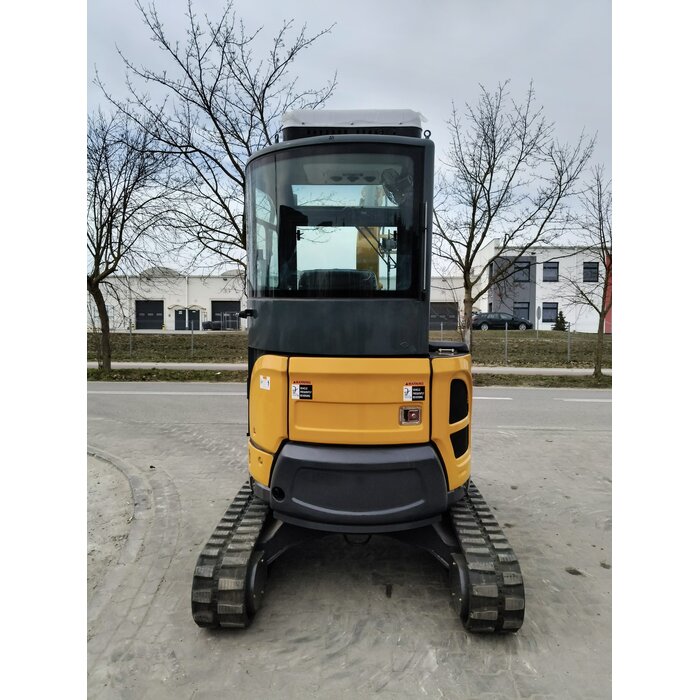

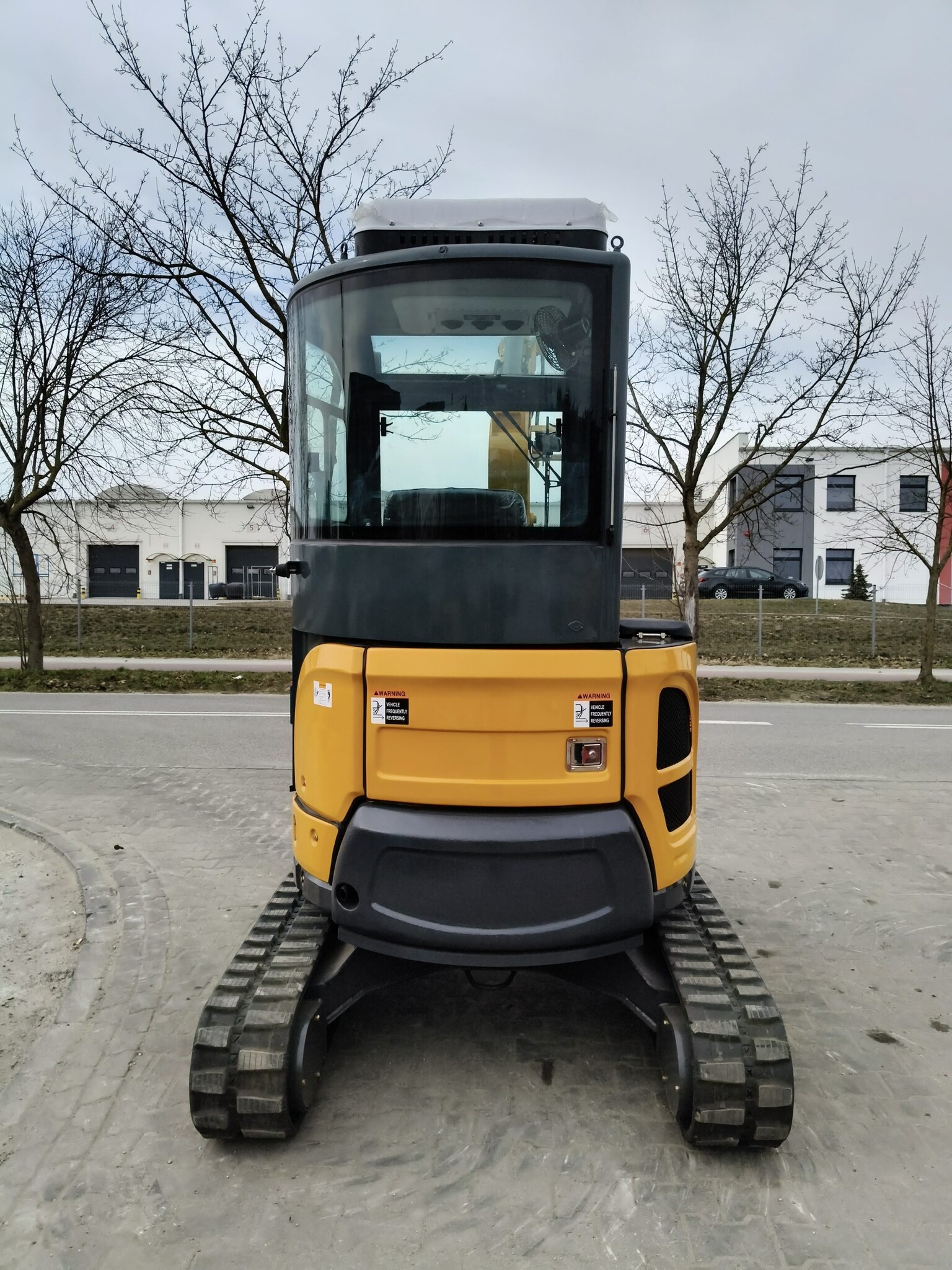

The rear turning radius of 710 mm enables comfortable working in confined spaces. The slewing frame width of 1,350 mm and a counterweight clearance of 485 mm, as well as a minimum ground clearance of 255 mm, ensure smooth movement on uneven terrain. The robust undercarriage with a track length of 1,895 mm guarantees good grip and safe operation.
Technical specifications
Total weight 3000 kg
Yanmar 3TNV80F engine
Number of cylinders 3
Nominal power 14.6 kW
Tank capacity 0.09 m³
Bucket width 460 mm
Digging force of the bucket 17.6 kN
Swivel arm present

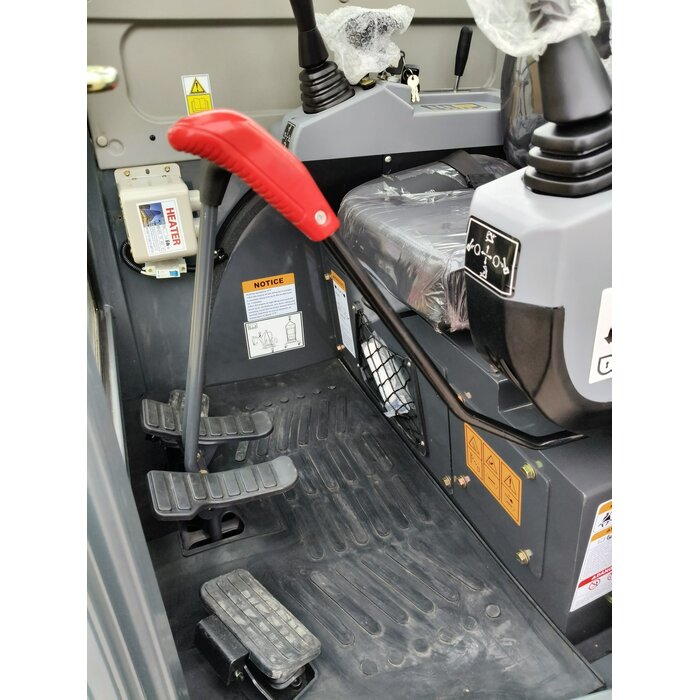

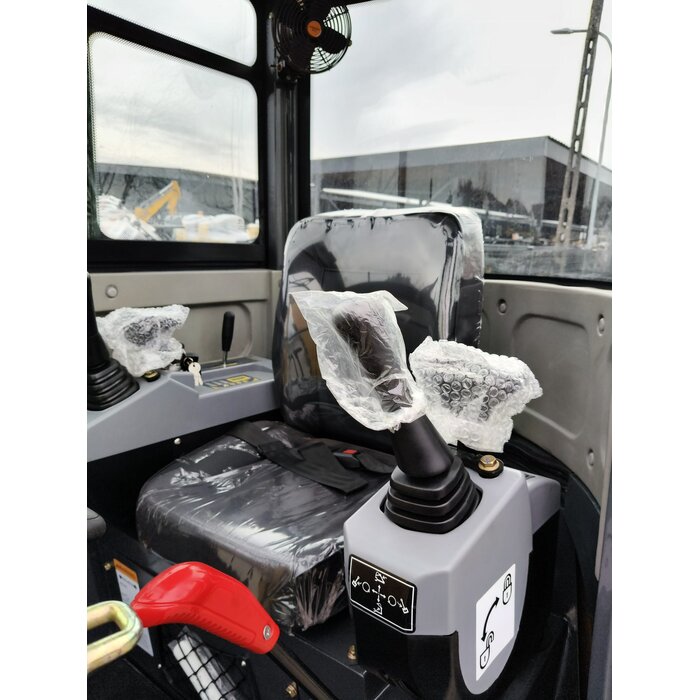

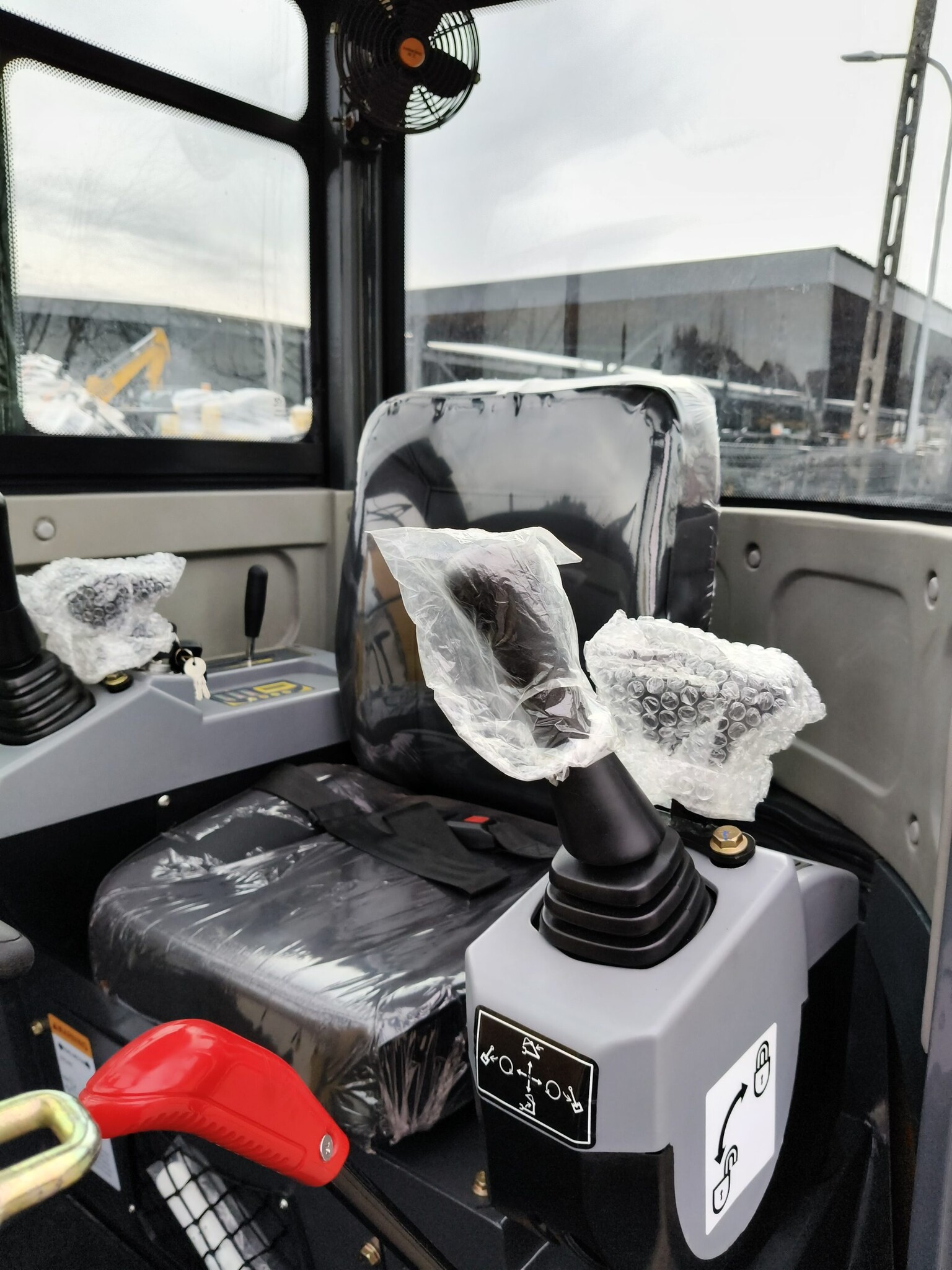

Joystick Present
Rotation speed of the excavator 13 rpm
Maximum digging height 4510 mm
Maximum pouring height 2760 mm
Maximum digging depth 2810 mm
Maximum digging radius 4375 mm
Rear turning circle 710 mm
Track contact length with the ground 1530 mm
Total track length 1895 mm
Track spacing (track width) 1510 mm
Track plate width 250 mm
Swivel frame width 1350 mm
Ground pressure 26.7 kPa
Total length 4010 mm
Total width 1540 mm
Total height (to top of boom) 1380 mm
Total height (to top of cabin) 2360 mm
Counterweight clearance 485 mm
Minimum ground clearance 255 mm
