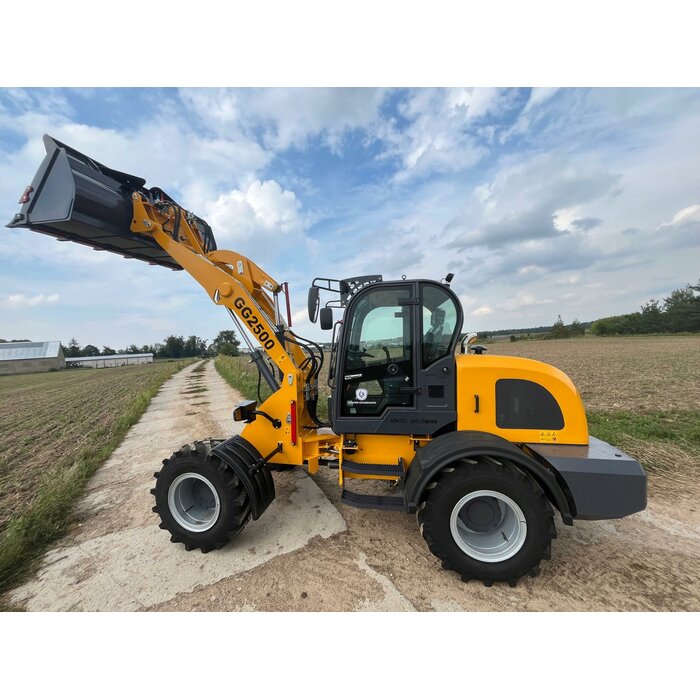

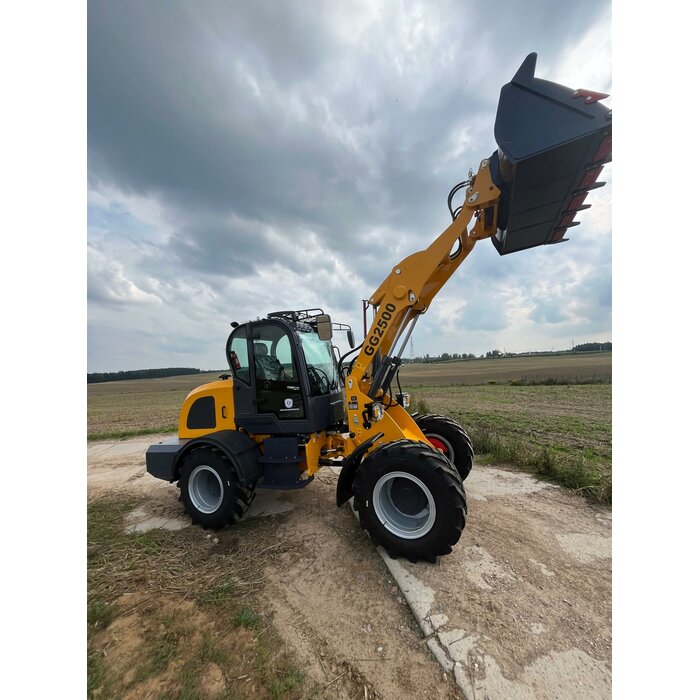

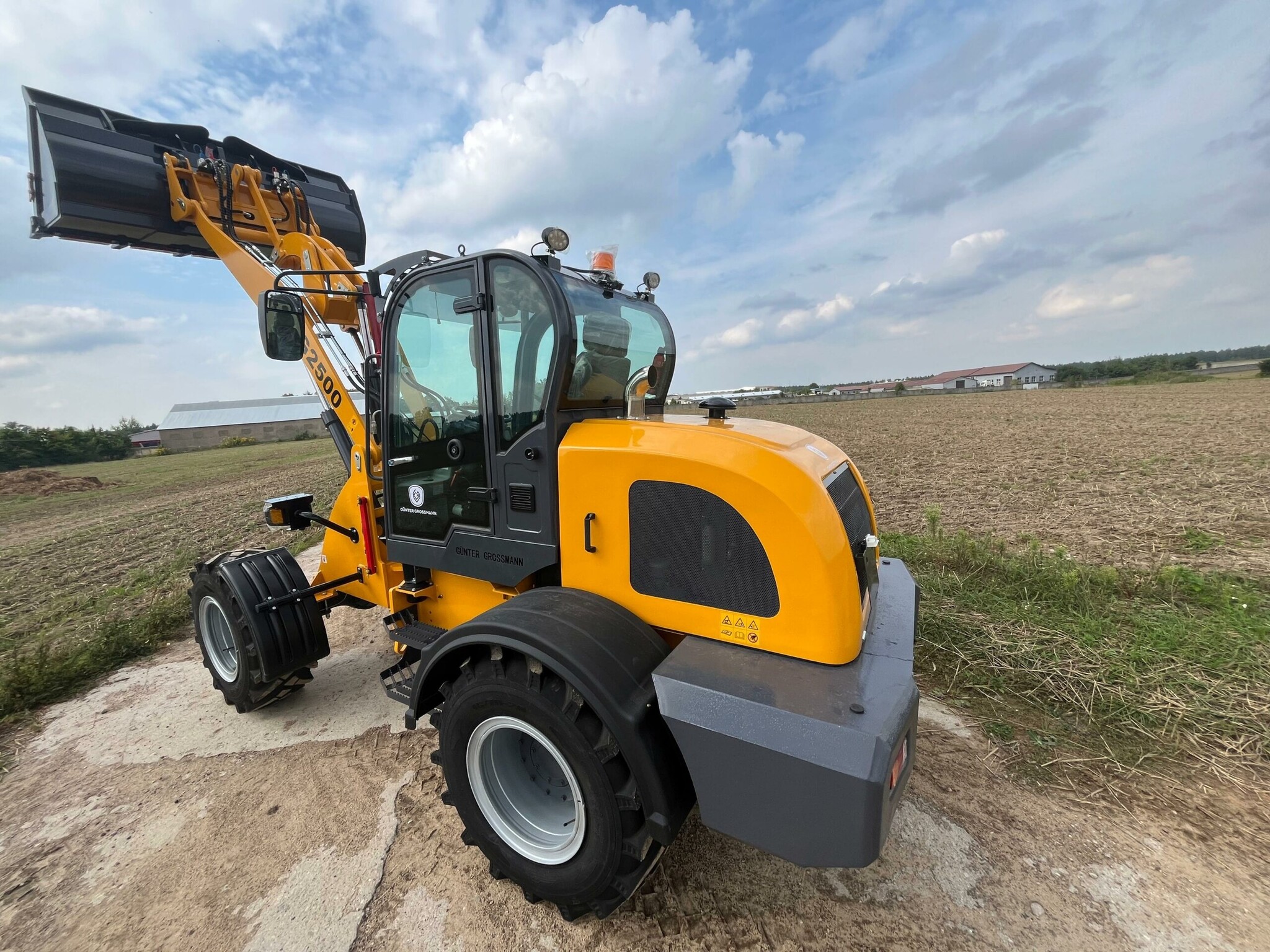

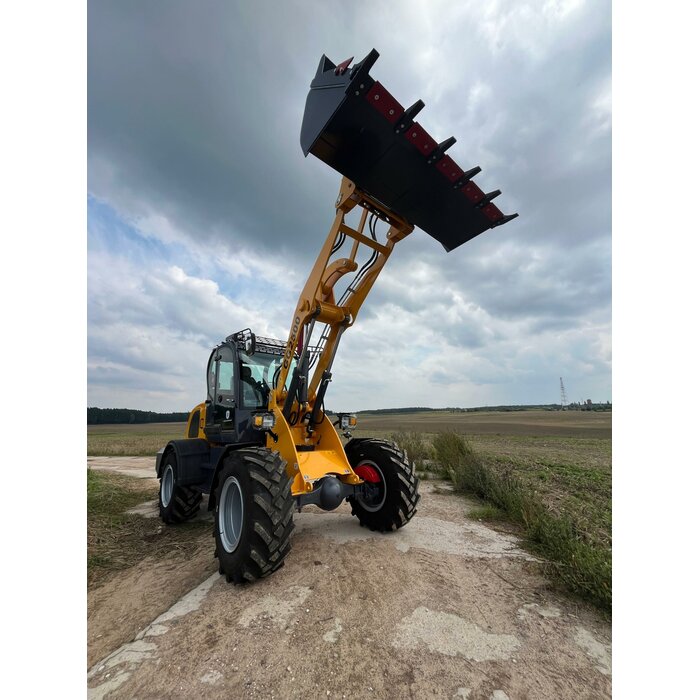

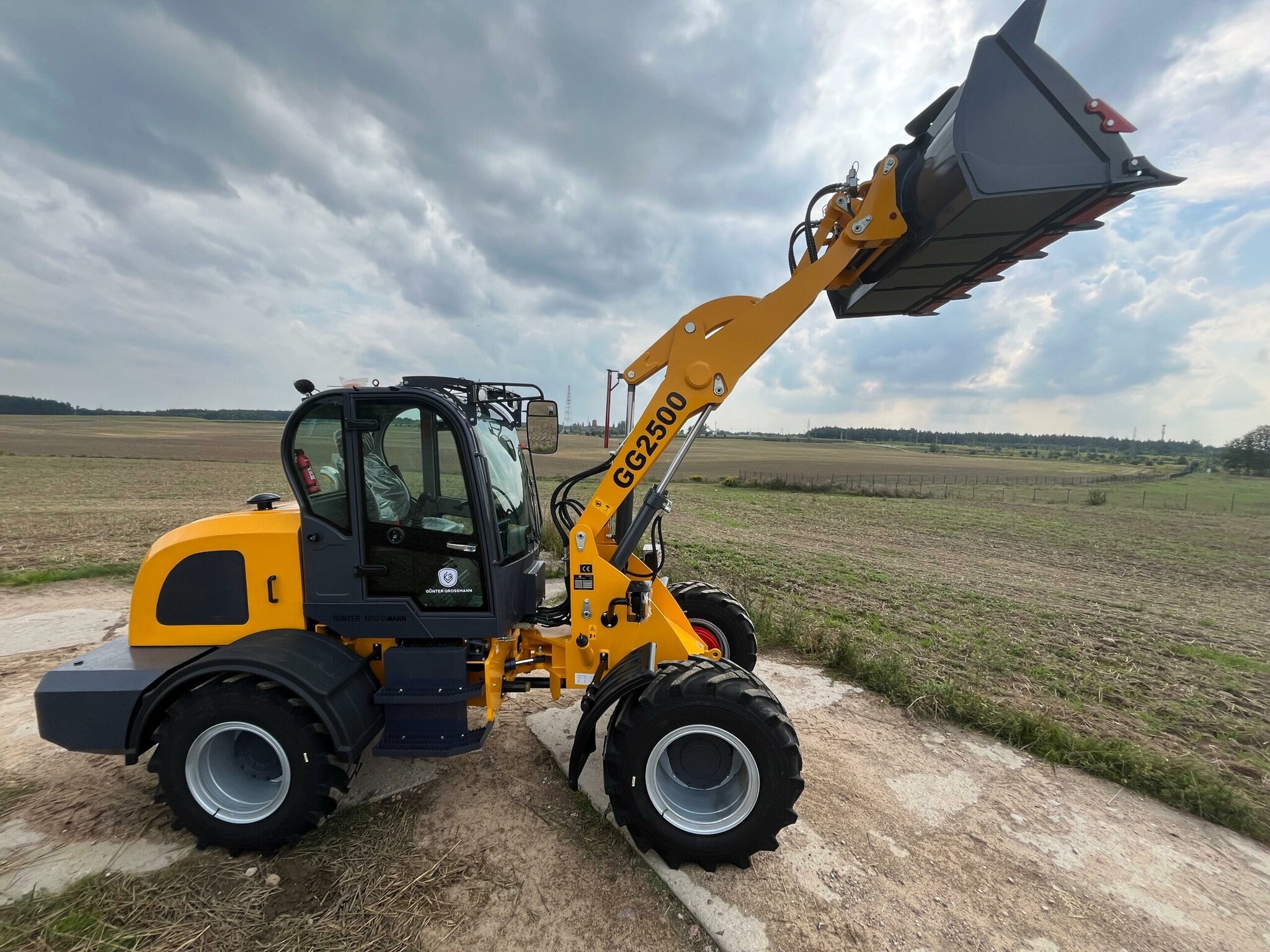

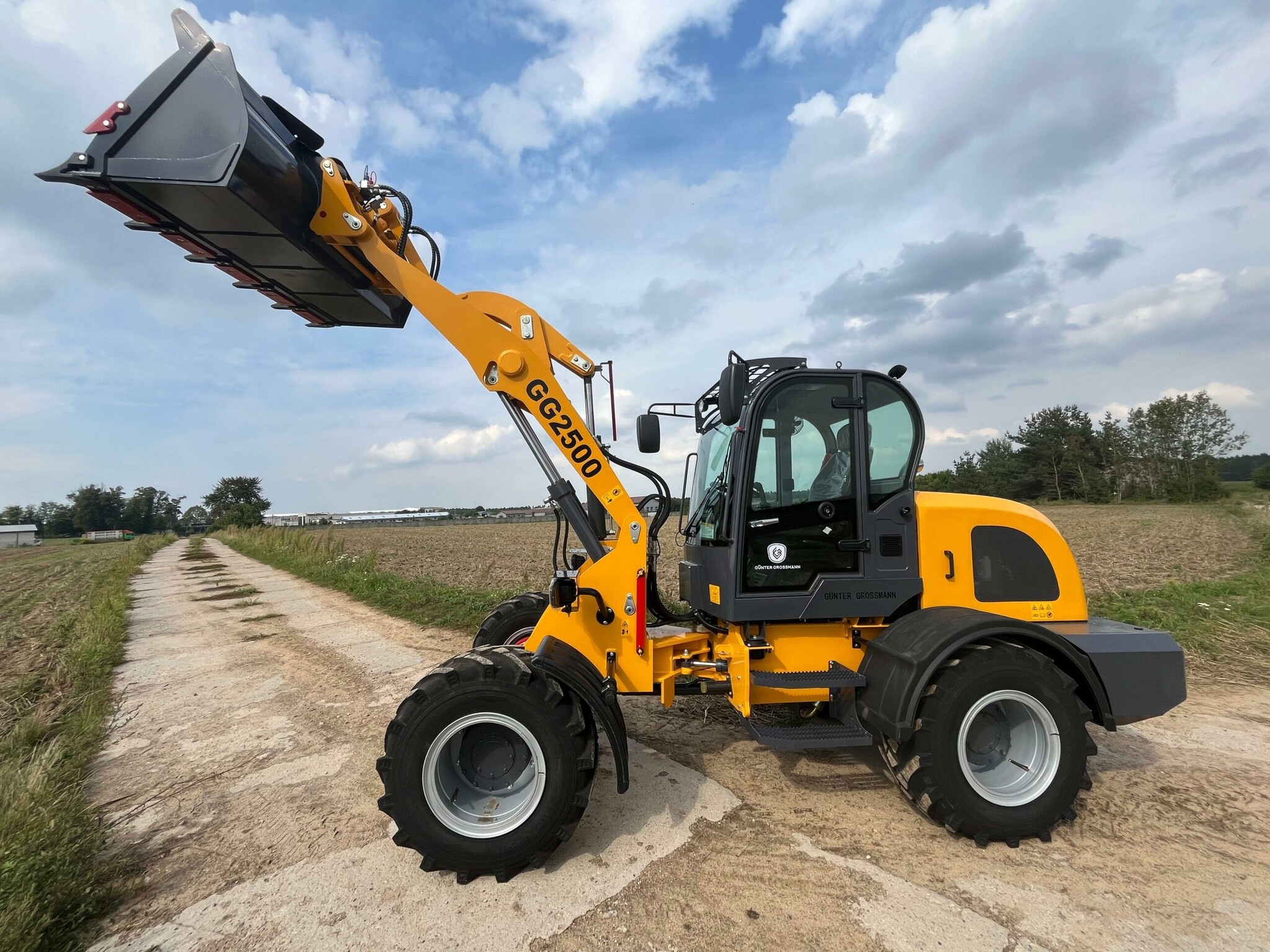

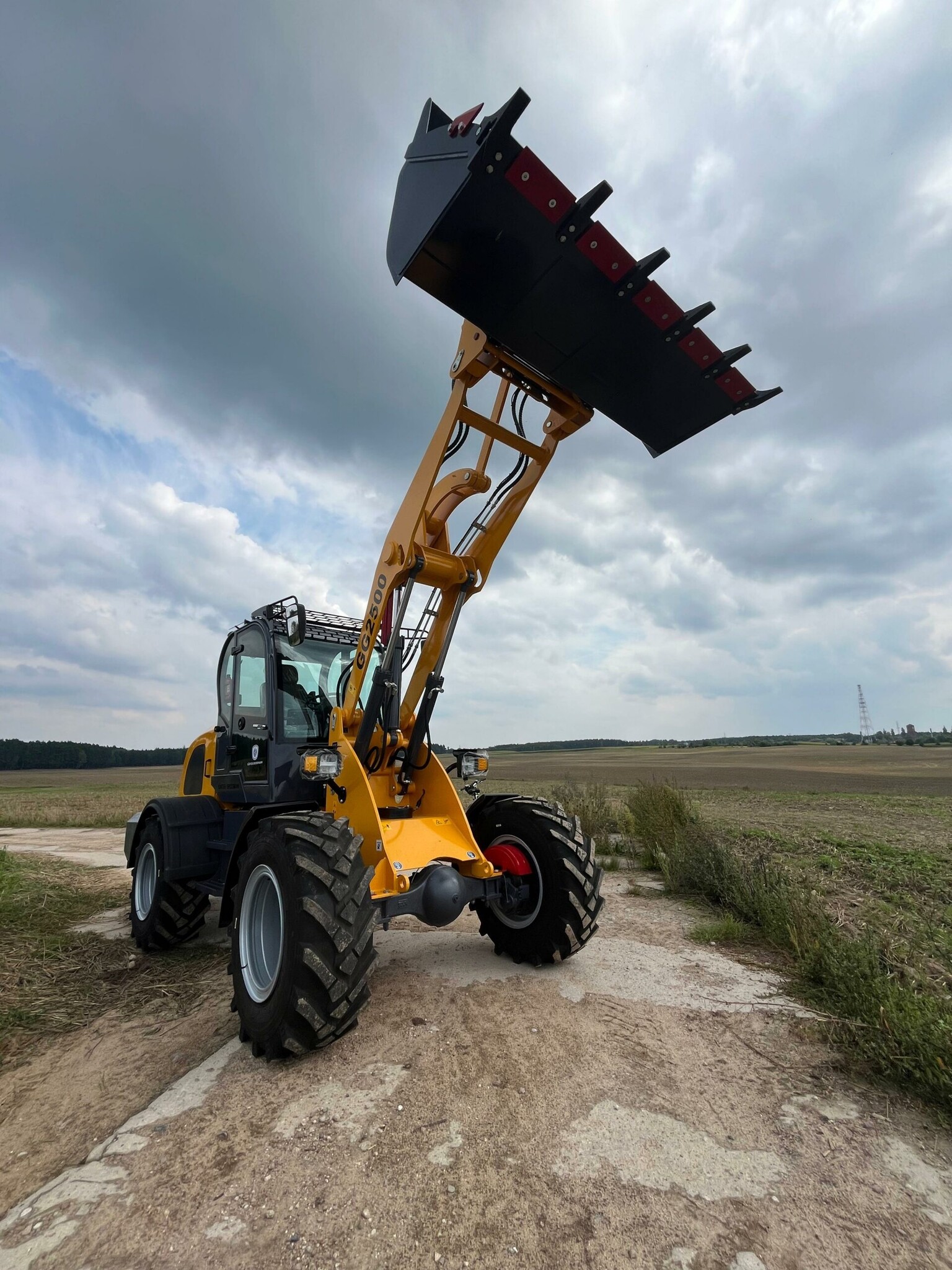

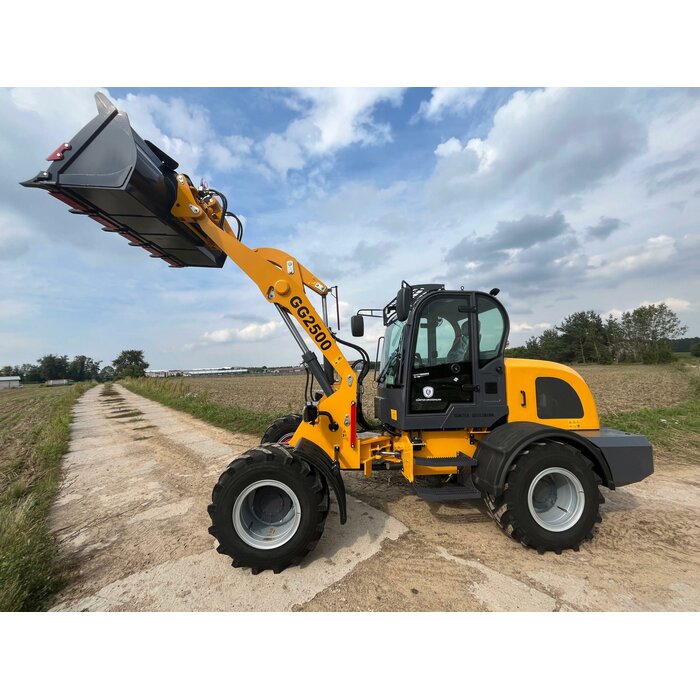

GG2500
Articulated loader

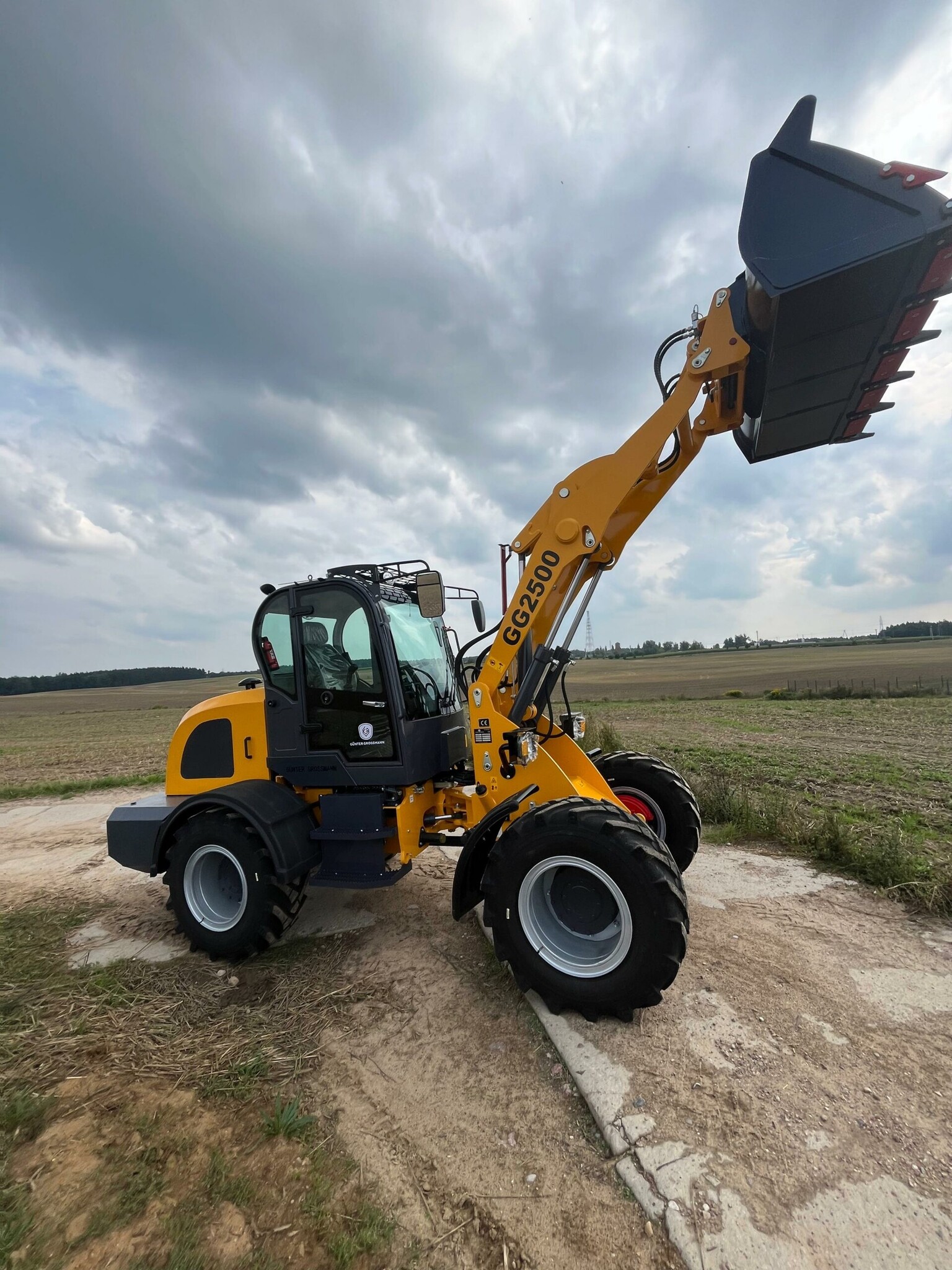

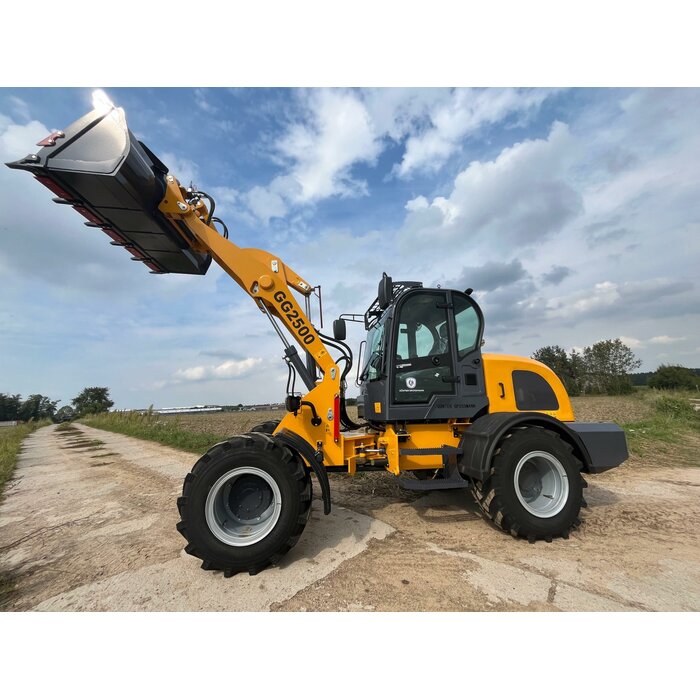

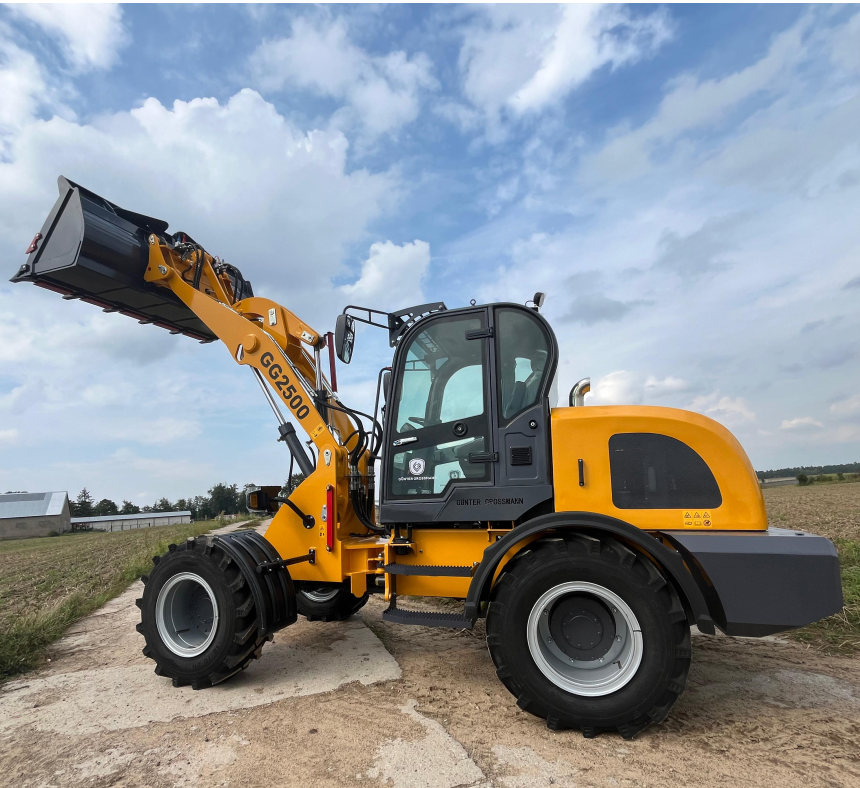

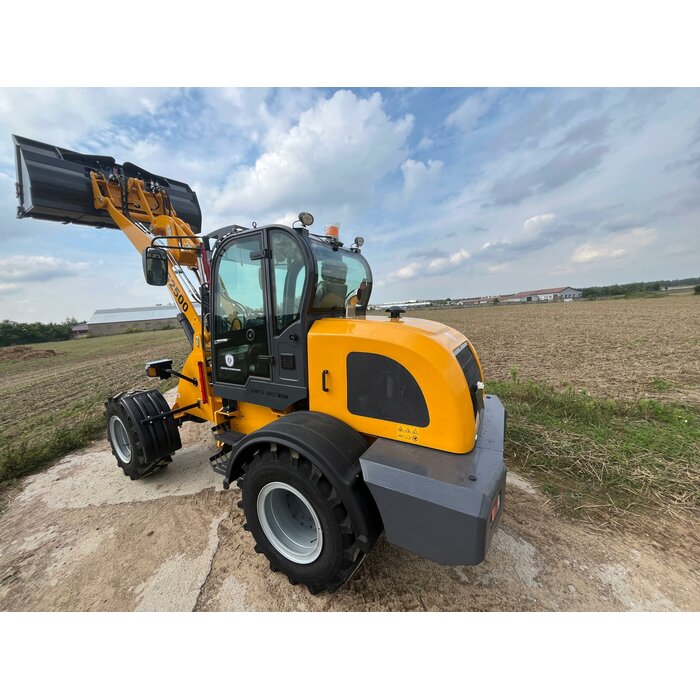

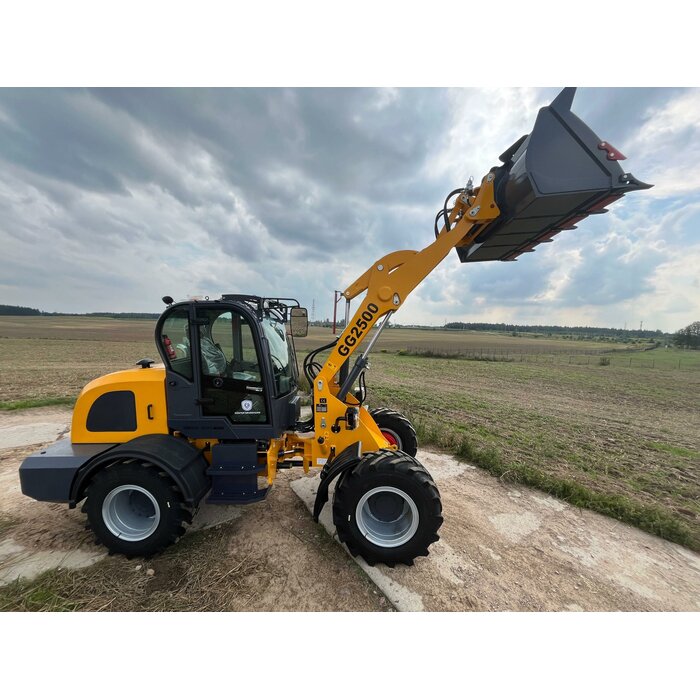

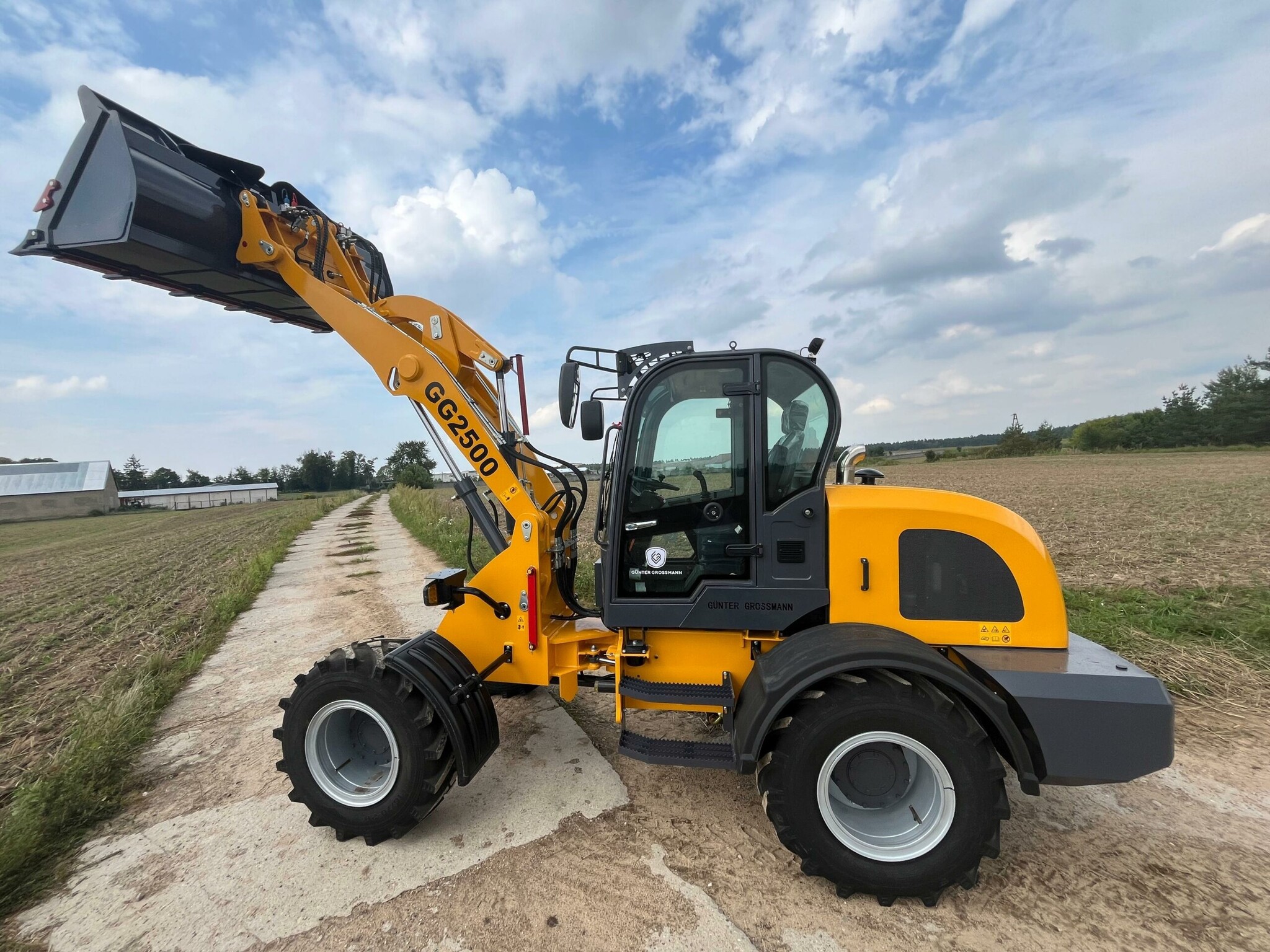

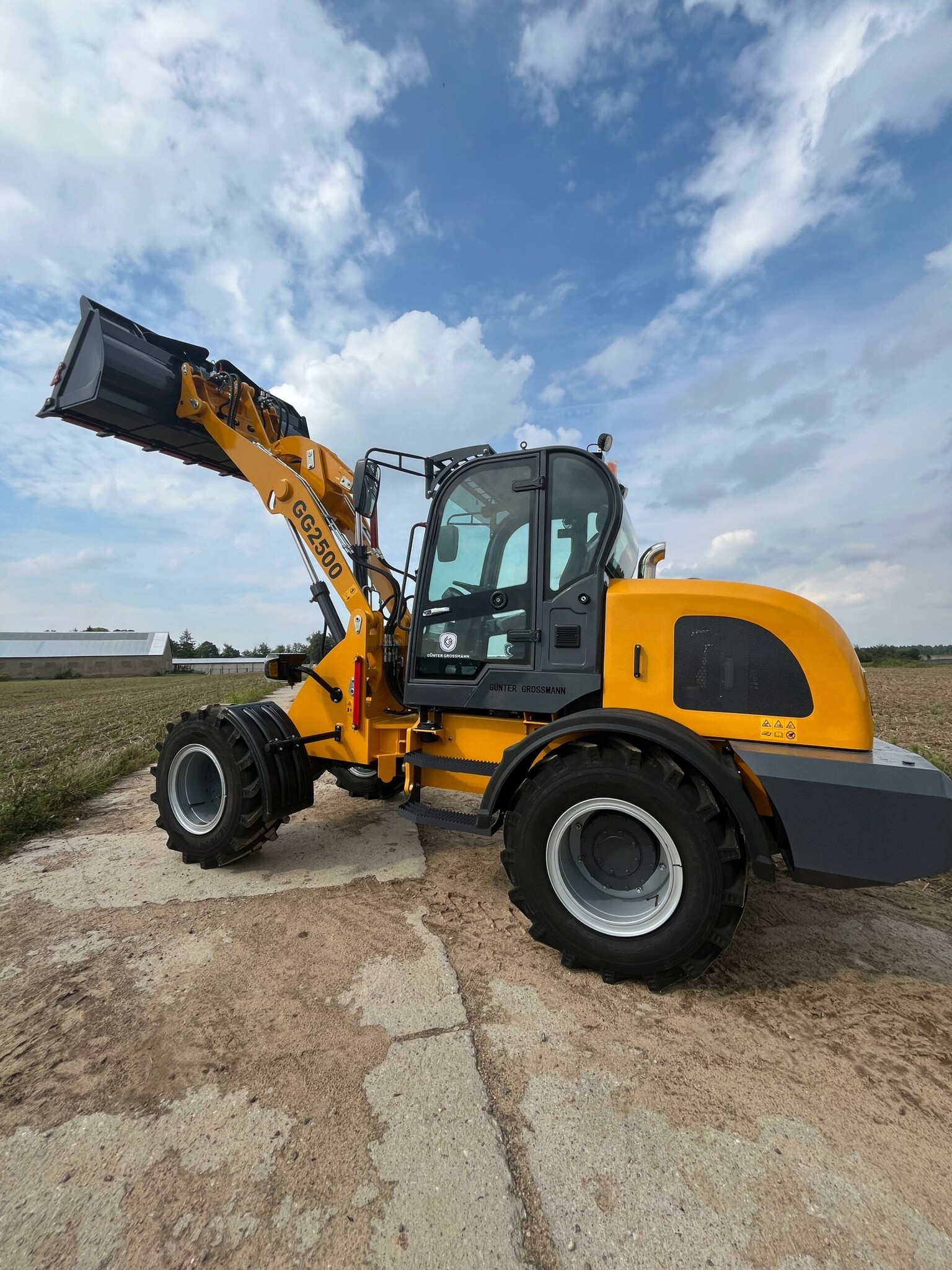

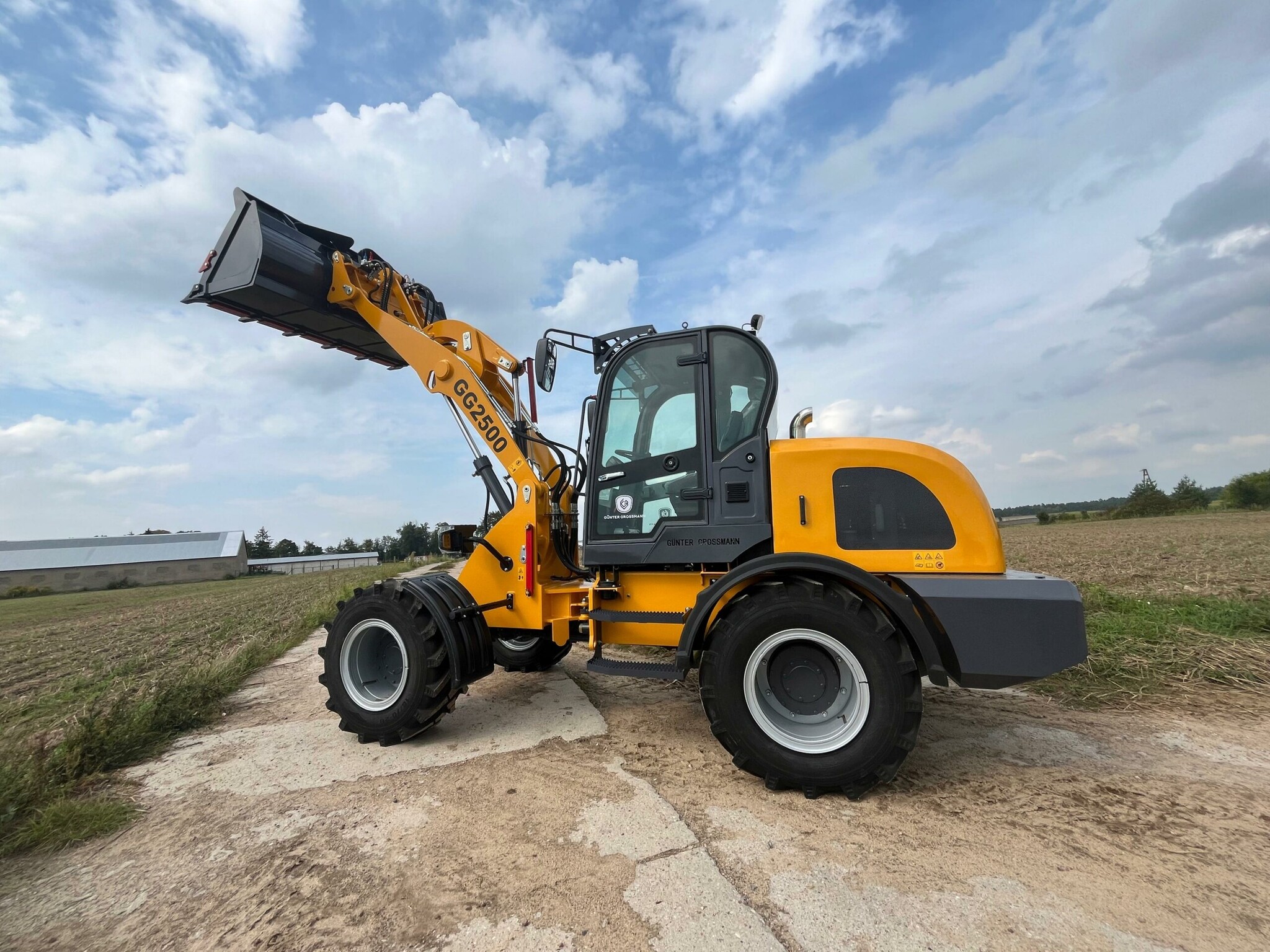

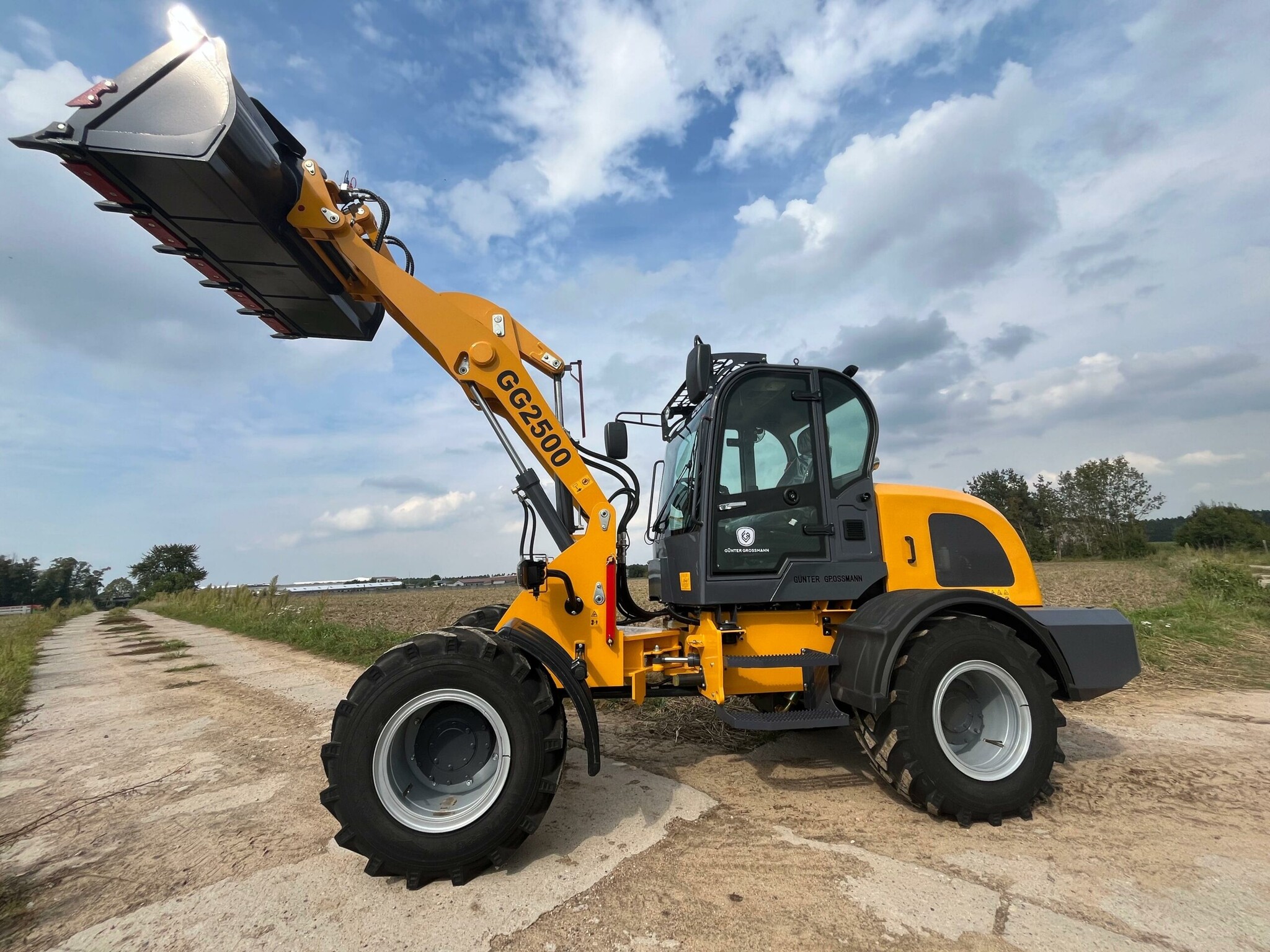

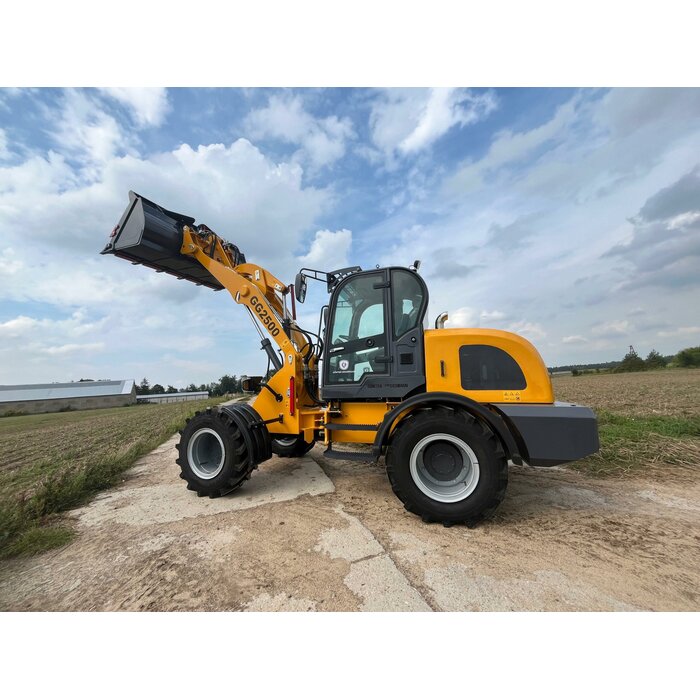

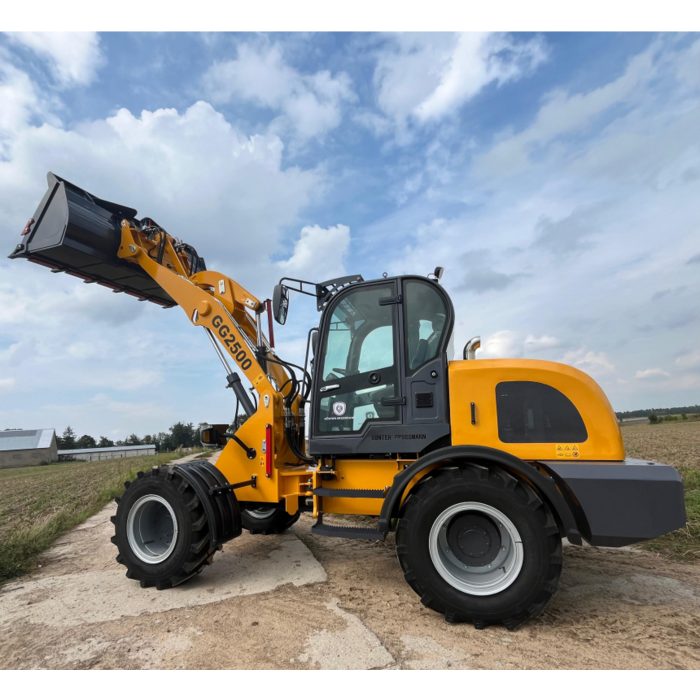

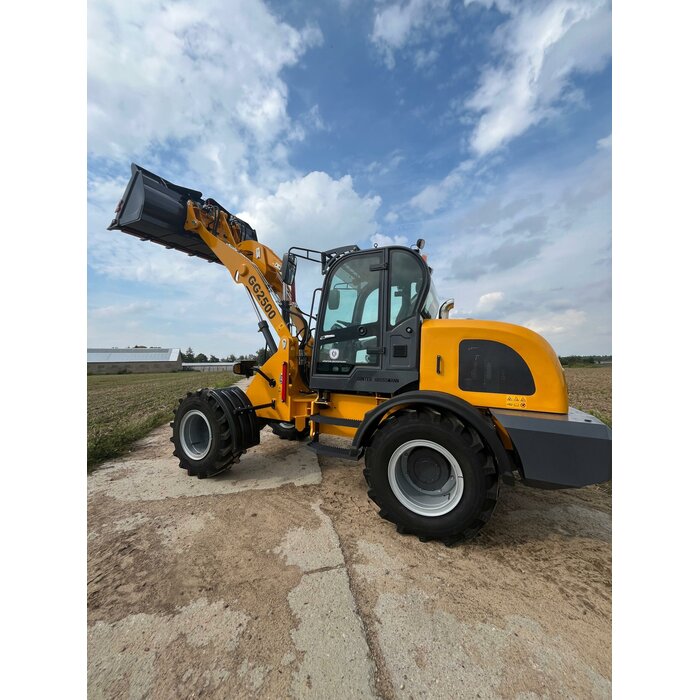

The Gunter Grossmann GG2500 is a powerful, mid-range articulated loader developed for intensive use in construction, agriculture, and municipal industries. It is characterized by a robust construction, high breakout force, and precise steering.
Power and sustainability
The payload capacity of 2,500 kg and the operating weight of 5,400 kg ensure efficient and safe handling of heavy loads. It is powered by a 4-cylinder Yunnei DEF20CAF4 diesel engine with 55 kW (75 hp) at 2,400 rpm – this guarantees reliability and high fuel efficiency.
Hydraulics and control
The hydraulic system operates with a pressure of 16 MPa, and the Powershift gearbox (solid shaft) ensures smooth and fast work cycles. The breakout force of 70 kN ensures excellent efficiency when loading even the heaviest materials.
Agility and mobility
Thanks to four-wheel drive and a minimum turning circle of 4,300 mm, the GG2500 is ideally suited for rough terrain and confined spaces.
Working height and reach
The loader offers a maximum working height of 3820 mm and a tipping height of 3600 mm. The discharge distance of 950 mm and the tipping angle of 40–45° enable precise loading.
Thoughtful design
The bucket width of 2,100 mm and the ground clearance of 450 mm ensure good stability and off-road capability. The total length of the machine is 6,000 mm, the width 2,100 mm, and the height 2,580 mm, making it compact considering its power and performance.
Technical specifications
Operating weight 5400 kg
Nominal load capacity 2500 kg
Yunnei DEF20CAF4 Engine
Engine type Diesel
Number of cylinders 4-cylinder
Power 55 kW (75 hp)
Nominal speed at 2400 rpm
Drivetrain Four-wheel drive, full Powershift transmission, intermediate shaft
Gearbox type nFixed-shaft Powershift
Breakaway force 70 kN Fuel tank capacity 60 liters
Hydraulic pressure 16 MPa Bucket capacity 1.2 m³
Minimum turning circle 4300 mm
Maximum working height 3820 mm
Maximum tipping height 3600 mm
Maximum ejection distance 950 mm
Maximum torque 63 Nm
Maximum tilt angle 40–45°
Scoop width 2100 mm
Total length 6000 mm
Total width 2100 mm
Total height 2580 mm
Wheelbase 1050 mm
Wheelbase 1460 mm
Ground clearance 450 mm
