Log splitter HZ30

Lumag log splitter HZ30

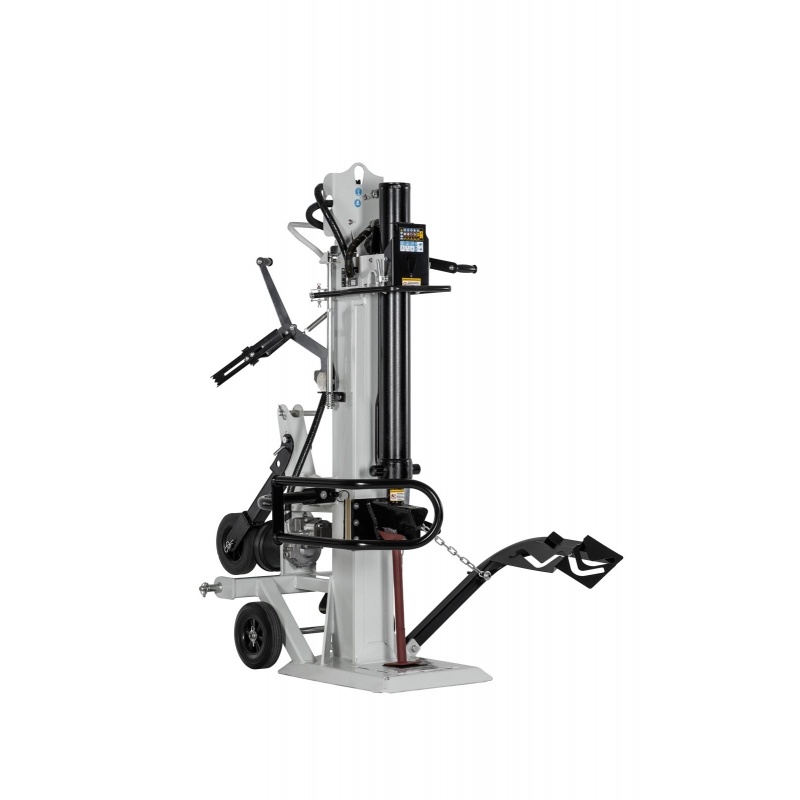

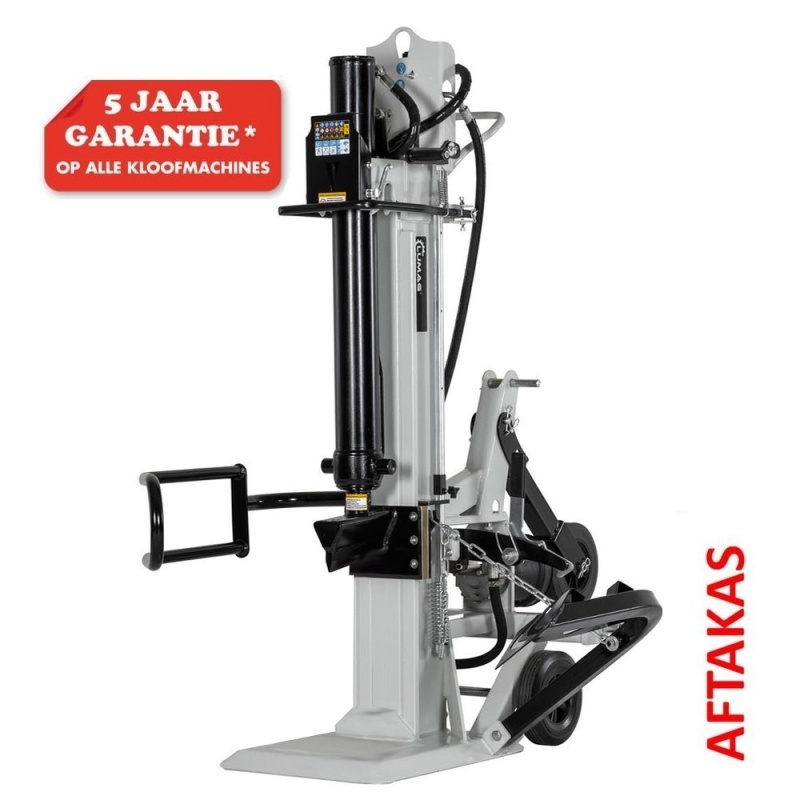

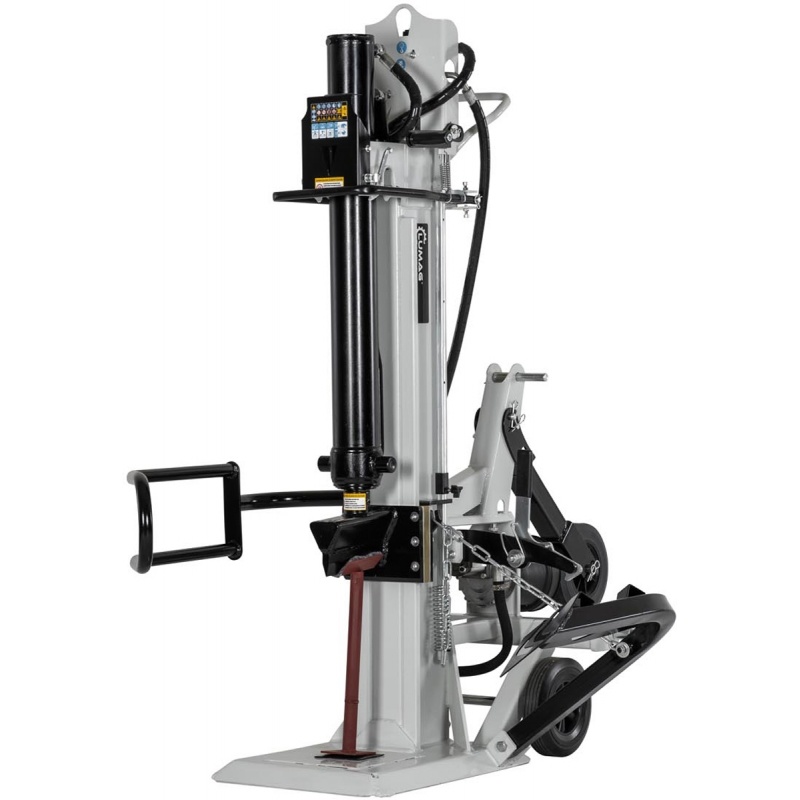

The Lumag HZ30 is a vertical (professional) hydraulic wood splitting machine with a splitting force of 30 tons.
You can use the machine by driving with a PTO shaft.
You can use the machine by using the PTO connection in combination with a tractor (min. 20 hp, PTO speed 540 rpm.).
The machine is designed for professional users, so it is also very suitable for semi-professional users. The robust and heavy construction in combination with the professional construction of this machine guarantees high stability.

You can easily split various lengths up to 1100 mm (1.1 meters).
The big advantage of this type of splitting machines is that the cylinder is located on the outside of the machine. This allows you to split the wood to the bottom plate.
So especially ideal if you want to split longer lengths. You can set the machine at 2 different splitting speeds. The slow speed for more power and the high speed when splitting is easier.
The Lumag HZ30 log splitter is easy to load due to the low bottom plate.
The bracket on the right side can be used as a lever.
This allows you to put a heavy tree trunk upright.
The machine itself ensures that the heavy trunk is put upright.
The splitting machine is equipped with an extra reinforced three-point suspension (Cat. I + II)

The machine has an infinitely adjustable stroke length so you can determine how far the splitting machine goes back.
If you want to split logs of 50 cm long, you can set the splitting machine so that it stops at, for example, 60 cm.
This is a huge time saver.

The PTO itself is not included.

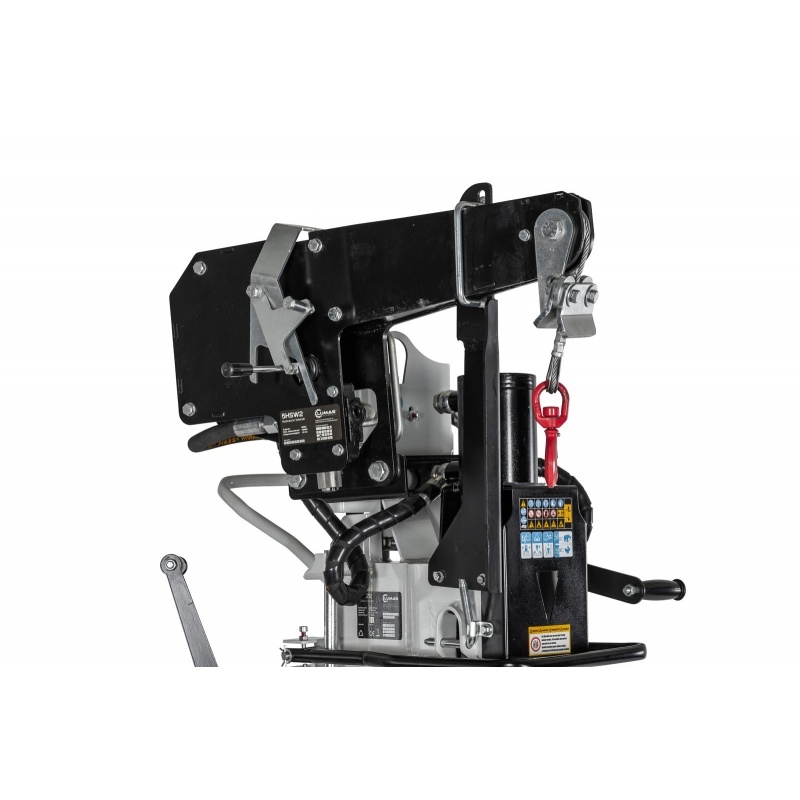

A hoist / winch is also available as an accessory for the log splitter HZ22.
With this you can lift wood (heavy trunks) or hoist in the direction of the log splitter.
The article number of the hoist / winch is 5HSW2.

PTO drive Yes, via tractor with a minimum of approx. 20 hp.
Branch shaft speed 540 rpm
Splitting force 30 Ton (± 10%)
Maximum splitting length 560 - 1100mm
Splitting diameter 80 - 400mm
Max. stroke length cylinder 94.8 cm
Adjustable stroke length Yes
Working speed 3.7 or 12.5 cm per sec.
Return speed 6.7 cm per sec.
Number of working speed settings 2 positions
Three-point suspension Yes, Kat. I + II
Max. hydraulic pressure 26 MPa, max. 30 liters hydr. oil
Extension cable No.
Dimensions (base position) L x W x H 110 x 150 x 250 cm
Packaging sizes (L / W / H) 97 x 68 x 200cm
Net / gross weight 338.4 kg / 351.4 kg
Art. No. HZ30
EAN 4047424009826
