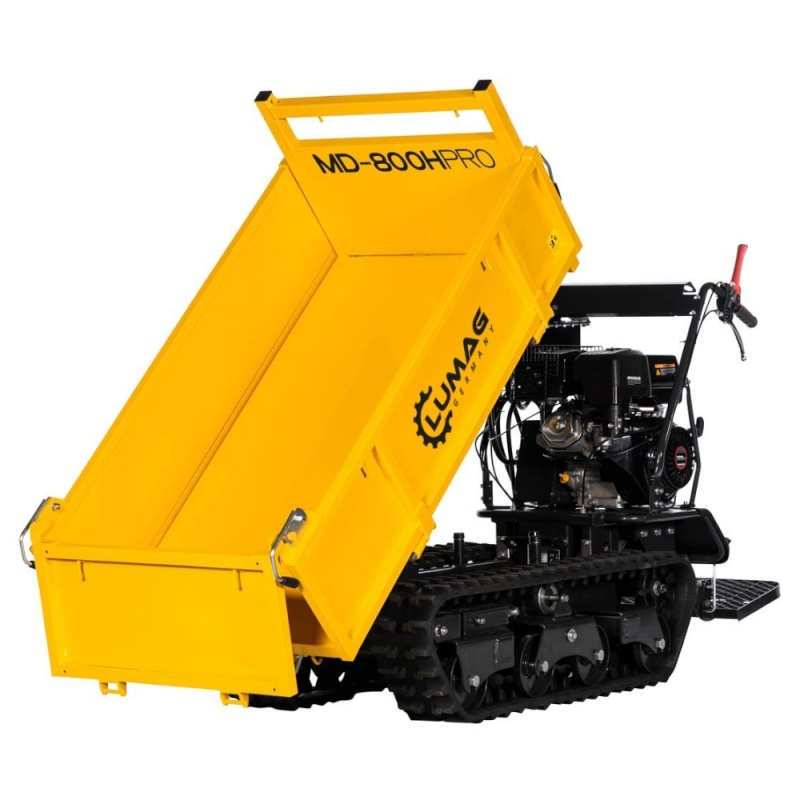

Lumag mini track dumper MD800HPRO
Lumag mini track dumper MD800HPRO
The 13.0 hp (Loncin G390F) motor in combination with the tracks means that no surface is a problem for this 77 cm wide track dumper Lumag MD800HPRO, with a large load capacity of 800 kg.
The machine is 77 cm wide and can therefore go through any door or gate!
In addition, this machine is equipped with a drive box produced in Japan.
This provides extra ground space (11cm) and has 6 forward and 2 reverse gears (of course you determine the gear before you start driving and you do not have to shift up).

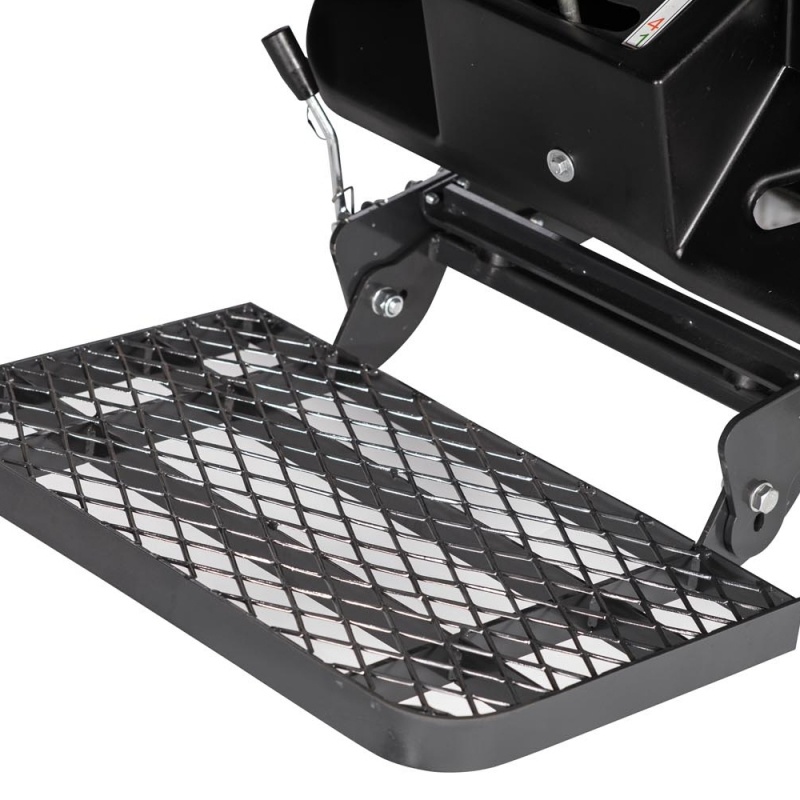

The machine has a folding platform on the back of the machine, so you do not have to walk behind the machine yourself.
The tipper body dimensions are (LxWxH) 148x77x65 cm.

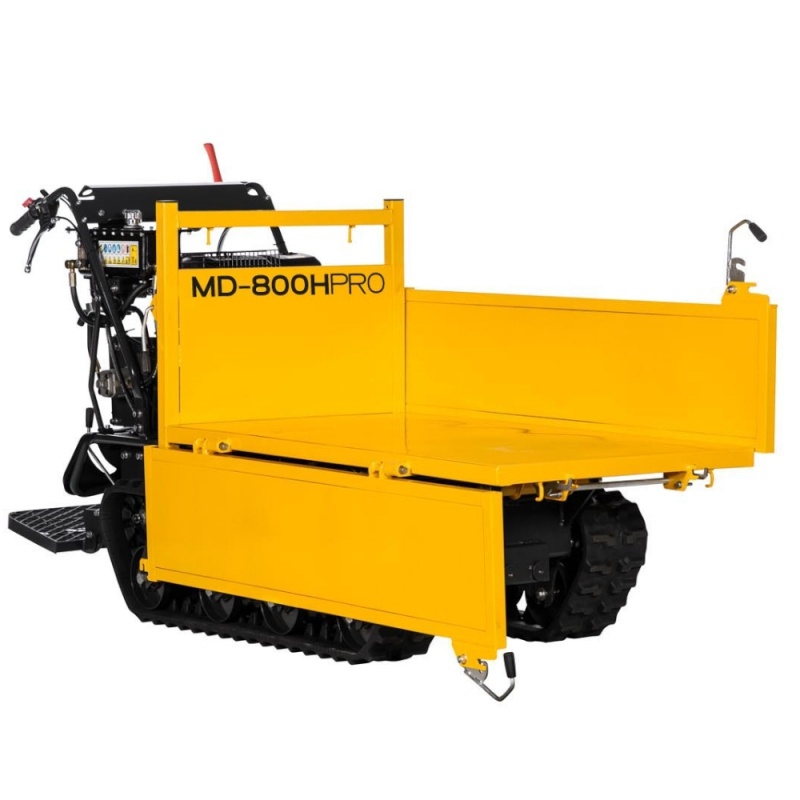

The container has foldable side walls and is suitable for the transport of sand, gravel, but due to the flat bottom also suitable for the transport of tiles, stones, etc.

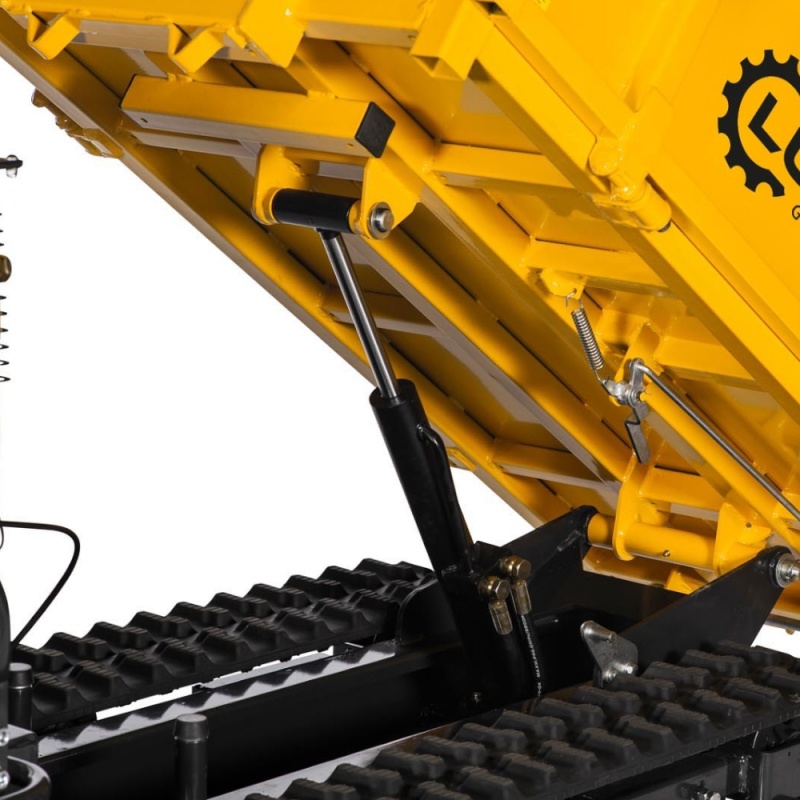

The body is tipped by means of a hydraulic cylinder.
The maximum loading capacity is 800kg.
This means that you have a narrow dumper with a lot of payload.
The own weight of the machine is 395 kg.
The machine is steered by slowing down one of the tracks.
Starting mechanism Pull starter
Engine type Air-cooled 1-cyl. 4-stroke OHV petrol engine
Max. power 13 hp
Cylinder capacity 389 cm³
Engine oil capacity 1.1 liters SAE10W-30 / 10W-40
Motor manufacturer Loncin (3 year warranty!)
Tank capacity 6 liters
Type of fuel Euro unleaded petrol
Start system Pull starter
Cargo box dimensions (L x W x H) 1480 x 776 x 658mm
Side walls fold down Yes
Removable side walls Yes
Front flap can be folded down yes (can remain in place with tipping)
Hinged front cover yes
Max. load capacity 800 Kg
Hydraulic self-loading system No.
Tipping mechanism Hydraulic, forward
Handbrake Automatic safety brake
Speed adjustable Yes, variable
Forward gears 6
Reverse gears 2
Hydraulic pump 12 l / min (at 3000 rpm)
Working pressure max. 200 bar
Hydraulic oil 3 liters HLP46 / Drive 1.5 liters 80W-90
Plateau driver Yes
Sound power level LWA / LPA 92 dB (A) / 101 dB (A)
Ground clearance 12 cm
Machine dimensions (L x W x H) 1706 x 704 x 975 mm
Weight approx. 365 kg, 395 kg (incl.packaging)
Art. No. MD800HPRO
EAN code 4047424007297
