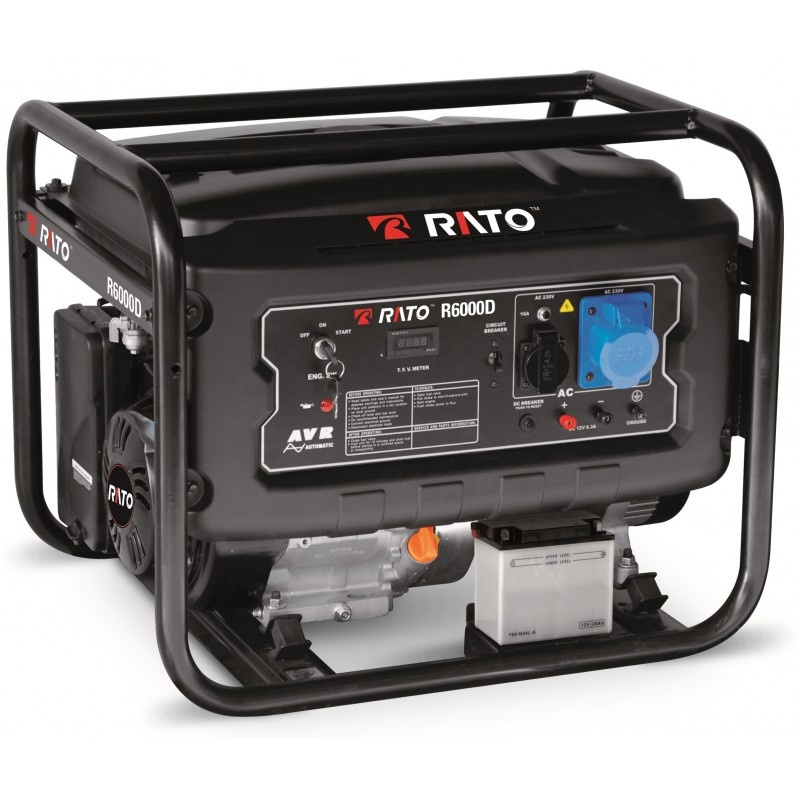

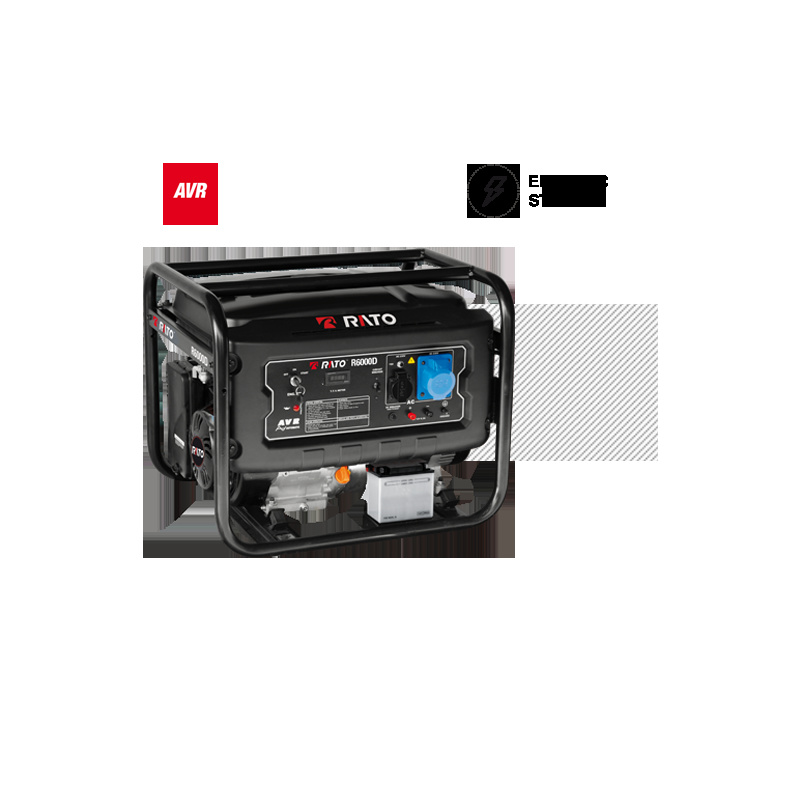

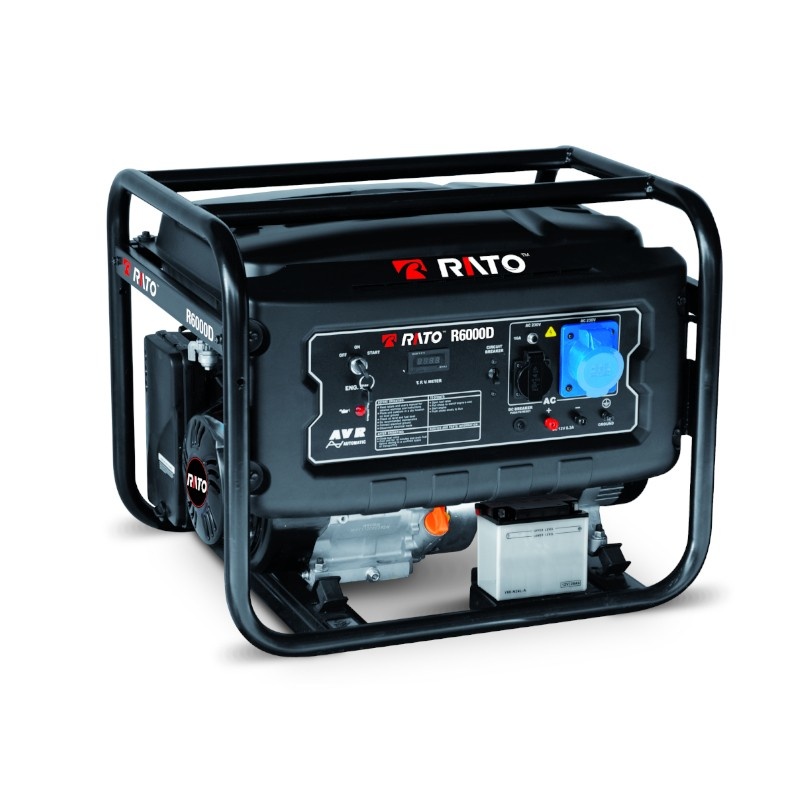

GENERATOR UNIT R6000D
RATO GENERATOR UNIT R6000D
The RATO R6000D is a powerful and compact RATO gasoline generator/aggregate of professional quality. This professional 6000W petrol generator delivers excellent performance and has 2 230 Volt connections.
Very powerful generator 230 Volt generator
The R6000D is a powerful and compact RATO petrol generator/aggregate of professional quality.
This professional 6000W petrol generator delivers excellent performance and has 2 230 Volt connections and a 12 Volt connection (8.3A).
The continuous power is 5500W. This is equipped with a 100% copper winding.
The R6000D has a standard 230 Volt (Schuko) connection and a CCE32A 3-pin connection. The advantage of the CCE32A connection is that you can use tools with a higher start-up value.
The fuse of this connection is namely 32A. An adapter cable CCE32A 3 pole to Schuko 230V is available (Art. no. CEE32A/230).
The generator has an overload protection and the engine can be started manually or electrically.
AVR security
The generator is equipped with AVR security. AVR stands for automatic voltage regulation.
This means a continuous voltage while an overload protection provides the necessary security.
This protects your connected electrical machines against peak voltages.
The generator is equipped with an LCD display with voltmeter and fuel gauge.
The 25 liter tank capacity means that you can use the generator for a long time.
NB! The machine is equipped with 2 x 230 volt connections and 1 x 12 volt connection.
High peak current draw at start-up
Most electrical appliances require a little more power from the generator when starting up. This is called peak current draw.
With a generator there is a risk that the continuous capacity and/or perhaps even the maximum total capacity will be exceeded.
If the maximum power is exceeded during the “start-up”, the generator is 'too light' to be able to start the device.
The R6000D generator then switches itself off automatically to prevent any damage to equipment.
Start-up advice
A solution to the above problem is to connect the equipment in a different order. Always connect the device with the highest power / highest peak current first.
If this works correctly and well, you can also connect the rest, in order of power.
It is important that you never connect all devices at the same time.
Check the devices to be connected
For some devices, the solution described above is not sufficient.
These devices require such a high peak power consumption that you should take this into account when purchasing a generator.
Tools or machines without starting current limiters are a well-known example of this.
You should think of compressors, high-pressure cleaners, angle grinders, demolition/drilling hammers, welding equipment, but also refrigerators and air conditioners.
With these devices you have to multiply the power by a factor of 3 to sometimes as much as 7 to see whether the generator is suitable.
Check this with the supplier of your machines.
Calculation example
Suppose you want to connect a 230 Volt angle grinder without starting current limiter with a capacity of 900 watts to the generator.
In that case, you must therefore multiply the 900 watts by 3.
This results in a peak power consumption of 2700 Watt.
When you choose a generator, it must therefore have a total capacity of at least 2700 Watt (at 230 Volt).
Weight 88 Kg
generator type
Generator with AVR
Engine type
Air-cooled 1-cyl. 4-stroke petrol engine
Engine power
13 hp
Engine capacity
420 cm³
Engine manufacturer
RATO
Rpm
-
Tank contents
25 litres
Type of fuel
gasoline
Starting system
electric
Capacity AC max.
6000 watts
Capacity AC continuous
5500 watts
Connection options
2 x 230 volts, 1 x DC 12 volts
running time half load
11 hours
fully charged term
7 hours
Noise level (LWA)
72db(A) 7m
Frequency
50 Hz
Wall outlet
1x shuko (Normal 230V socket) and 1x 32A ind. Wall outlet
DC output
12V/8.3A
Voltage
230 Volts
Machine dimensions
684 x 562 x 557mm
Packing dimensions (L/W/H)
684x562x557mm
Weight Gross (incl. packaging)
-
Weight Net
88
Art. no.
R6000D
EAN code
6974880290124
