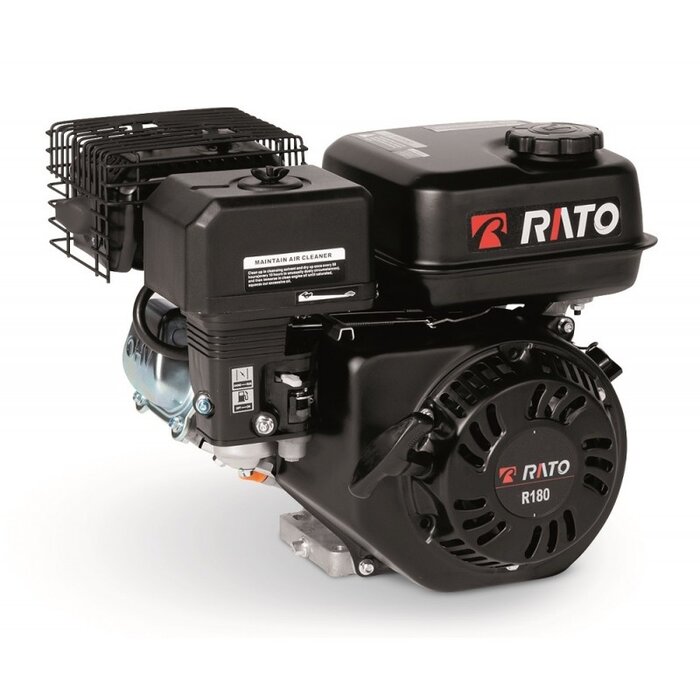

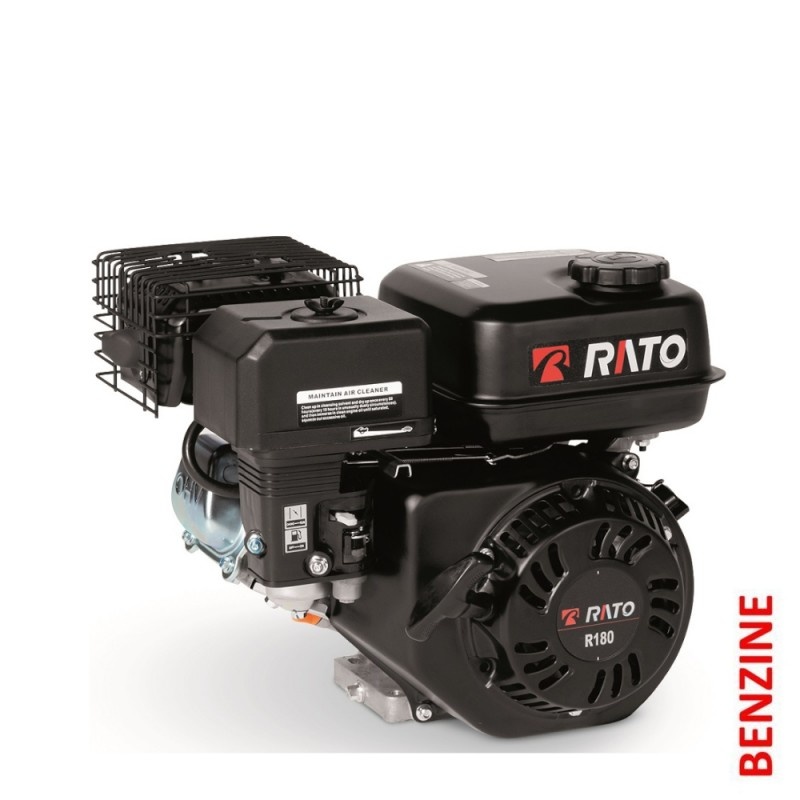

ENGINE EHR180ITBD

RATO MOTOR EHR180ITBD

The EHR180ITBD is a 5.5 hp RATO engine with an axle size of 19.05 mm.
The engine is suitable for intensive use. RATO motors are strong and reliable.

The EHR180ITBD is a 5.5 hp RATO engine with an axle size of 19.05 mm.

The engine is suitable for intensive use. RATO motors are strong and reliable. RATO motors are suitable for intensive use. RATO motors are strong and reliable due to the following important product features:

• Reinforced crankshaft, connecting rod, intake and exhaust valve, ball bearings, manual start mechanism and tight valve springs.
• High quality cylinder bushing, valve guides, heat resistant seals, head gaskets, air filter system and aluminum castings.

oil type
SAE 15W/40
fuel consumption
395g/kW/hr
Engine type
Air-cooled 1-cyl. 4-stroke OHV petrol engine
max. power
5.5 hp
Engine capacity
179 cc
Engine manufacturer
RATO
Engine oil capacity
0.55 liters
Tank contents
3.6 litres
Type of fuel
E5 petrol, Aspen 4-stroke (preferably not E10)
Inflammation
F6TC/F6RTC
Crankshaft diameter
19.05mm
Launch system
Pull starter
Just. Couple
11 Nm / 2500 rpm
Air filter
Dual (Paper or foam)
Rpm
3600 rpm
Bore x Stroke
65x54mm
Compression rate
9.0 : 1
Dimensions (LxWxH)
390x320x345mm
EAN code
6974880290421
Weight
16 kg
Art. no.
EHR180ITBD
