Description Read moreRead less
Metal band saw BS115_400V *

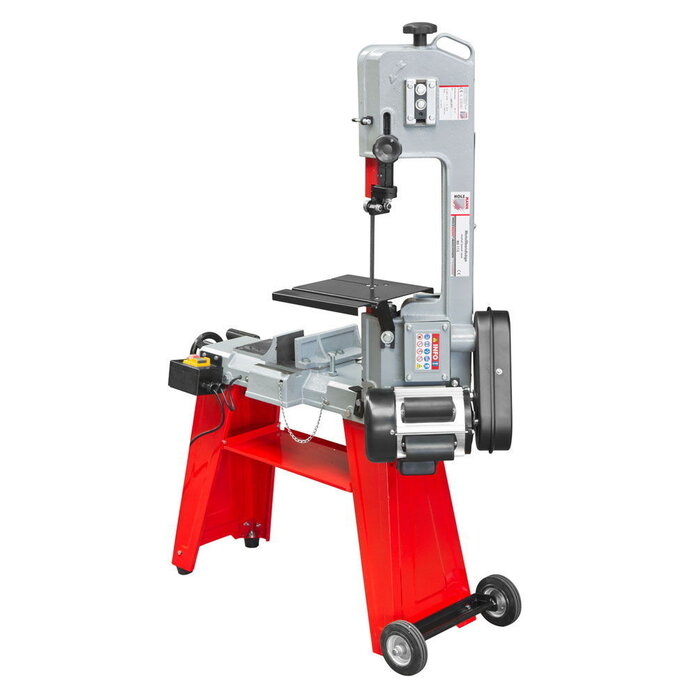

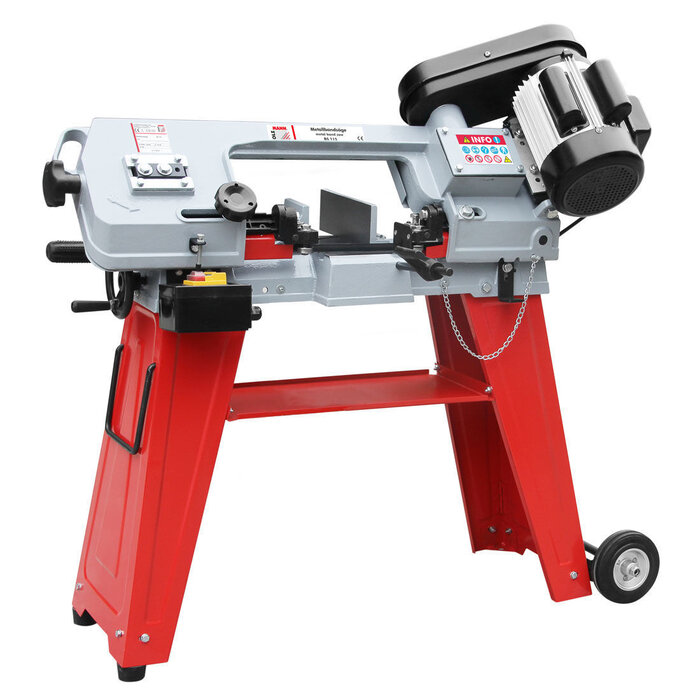

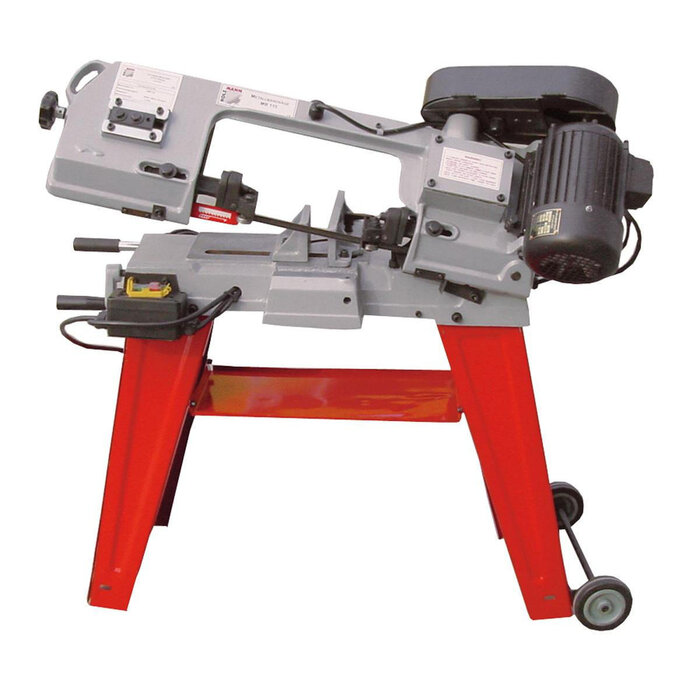

For quick and small metal cuts, we offer the HOLZMANN BS115_400V band saw, a versatile machine in our range. It's very lightweight, and thanks to its integrated transport system, it can be set up on site in no time. The highlight: The saw arm can be swiveled to 90° and locked in this position, allowing the BS115_400V to also be used as a vertical band saw.
Highlights
- Saw band dimensions: 1638 x 0.6 x 13 mm
- solid cast machine with ball-bearing saw blade guide
- automatic limit switch
- Lowering speed of the saw arm adjustable via spring
- swivel vice (0° - 45°)
- Storage compartment for various tools
Scope of delivery: saw band, transport device, automatic limit switch, vertical table
Technical details
Engine data
Motor power S1 in W 550W
Voltage 400V / 3 / 50Hz
General dimensions
Swivel range 0°-45°
Cutting performance
Cutting capacity round Ø 90° in mm 110
Cutting capacity round Ø 45° in mm 75
Cutting capacity LxH 90° in mm 110x140
Cutting capacity LxH 45° in mm 110x75
Band saws
Saw band in mm 1638x12.5x0.6
Saw band speed in m/min 20/29/50 m/min
Weight
Net weight in kg 56
Gross weight in kg 60
Shipping dimensions
Packaging height in mm 385
Packaging width in mm 382
Packaging length in mm 1,020
General data
EAN Code 9120058372827
