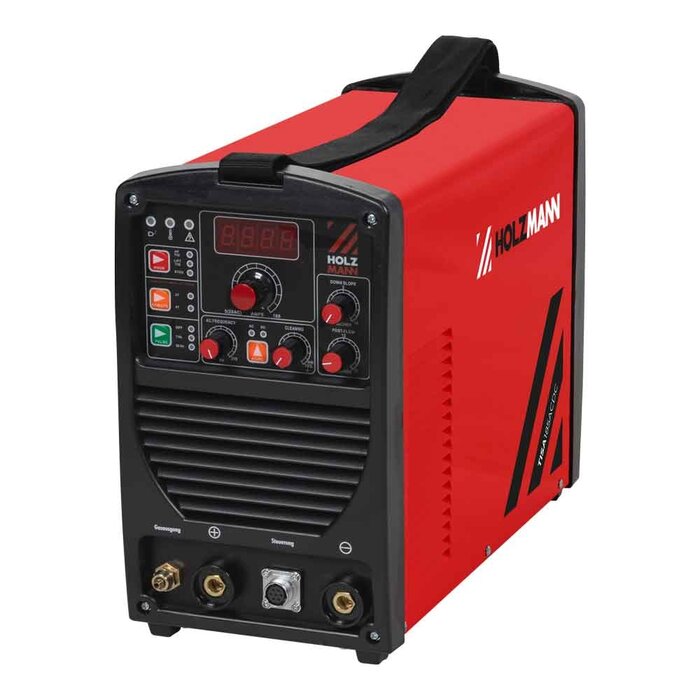

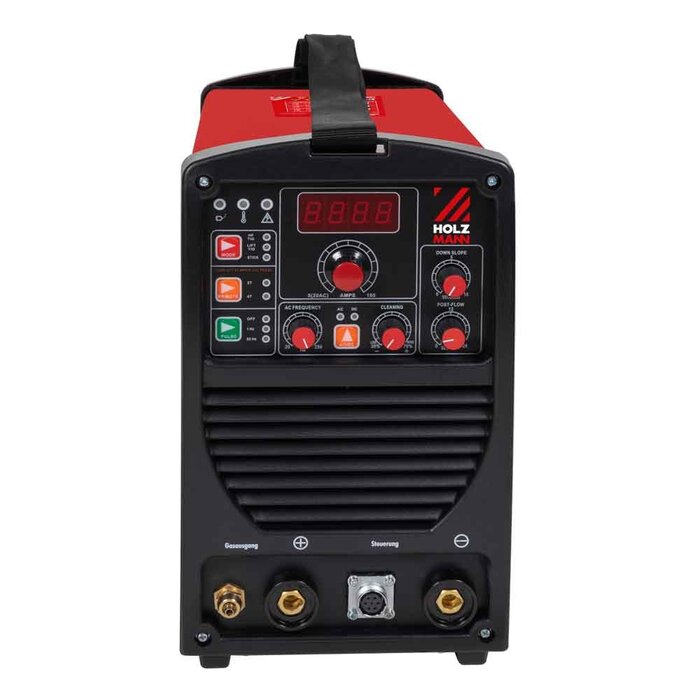

TISA185ACDC WIG/TIG inverter welding system

The HOLZMANN TISA185ACDC TIG/MMA welding system can be used as a DC MMA (STICK), AC TIG, and DC TIG (PULSE TIG) machine. It can weld all ferrous metals, including copper, aluminum, titanium, and stainless steel.

Highlights

• Gas post-flow time: 0 - 25 s
• MMA (electrode) welding
  • Welding current range 10 - 125 A
• TIG welding
  • Welding current range (DC): 5 - 160 A
  • Welding current range (AC): 20 - 180 A
  • Current increase/decrease time: 0 - 10 s
  • Pulse frequency DC: 1 or 50 Hz
  • Pulse frequency AC (square wave): 20 - 250 Hz
  • Pulse time on: 0.5 s
  • TIG arc ignition: HF/Lift

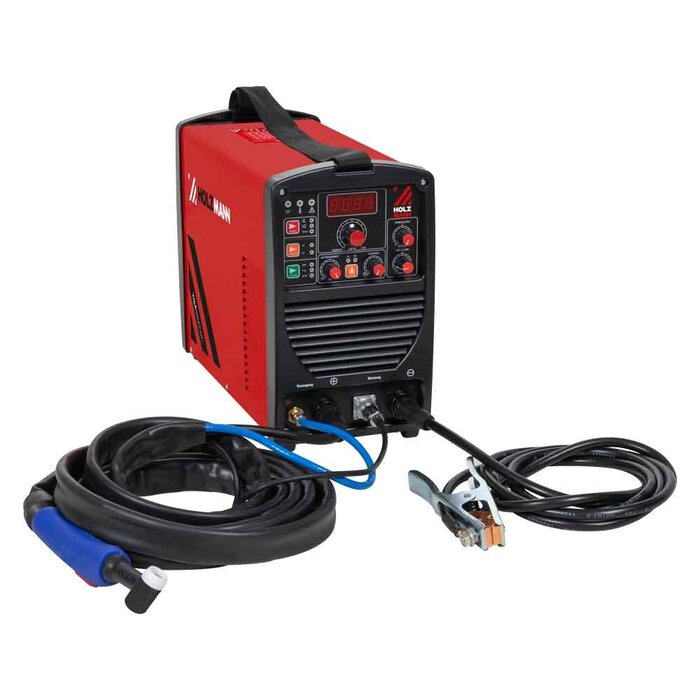

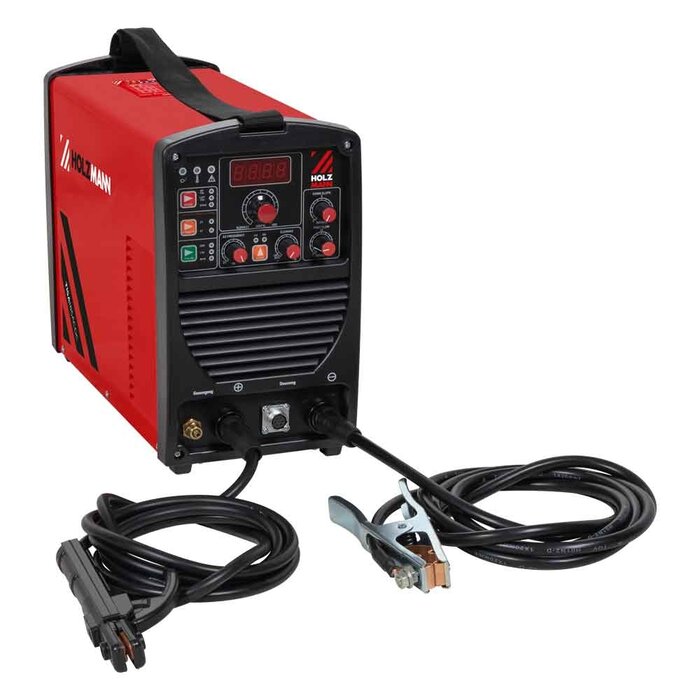

Scope of delivery : TIG welding torch, electrode holder, torch cap (short/long), gas nozzles, collet housing and collet, gas hose, earth cable, pressure reducer

Technical details
