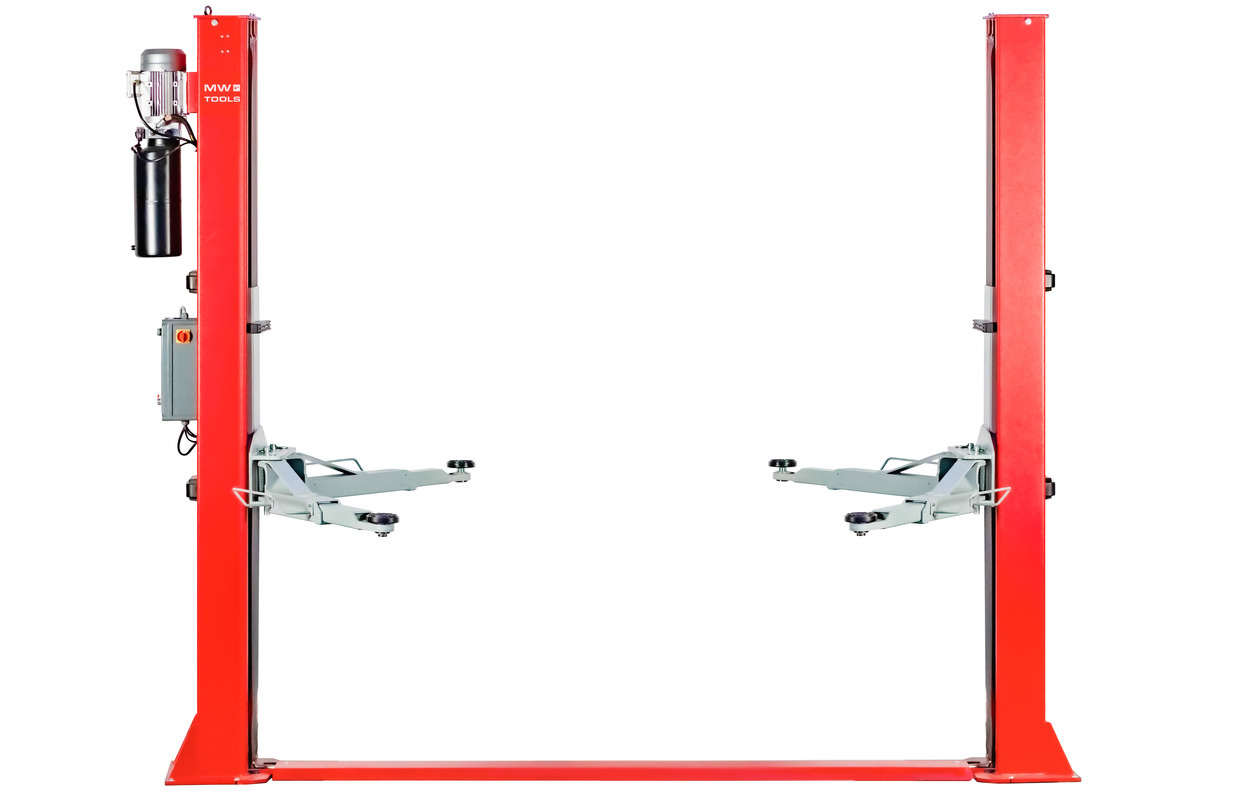

2-column hydraulic lift 4 t 230V with electric release MW Tools

Hydraulic two-column lift 4 tons with electric release, 230V motor

Suitable for maintenance and repairs on passenger cars and light commercial vehicles – this bridge combines ease of use, safety and reliability in one.

Advantages:

• Easy connection to standard 230V mains power (single phase)
• Fully electric operation: up/down and electric release without manual work
• Low threshold (40 mm) between the columns

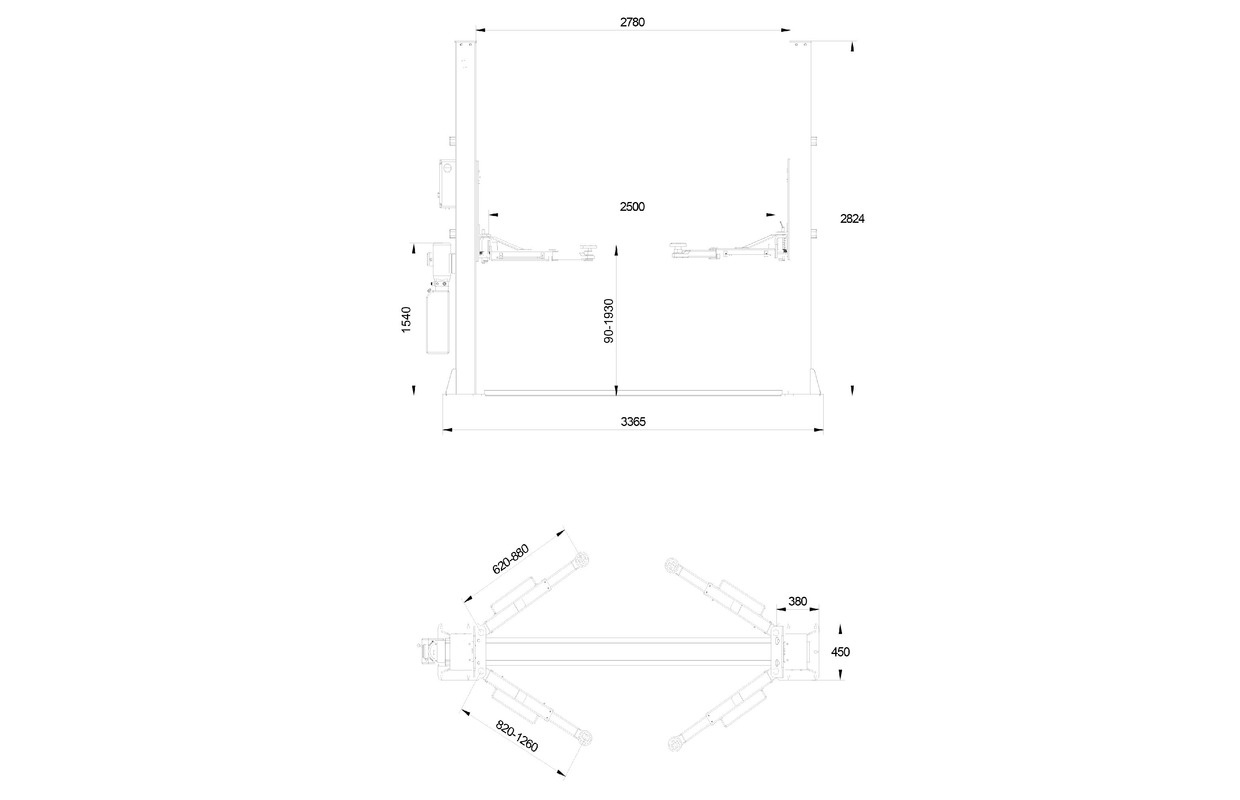

• High lifting height of 1,930 mm – comfortable working, even for taller mechanics
• No top bar – no vehicle height restriction

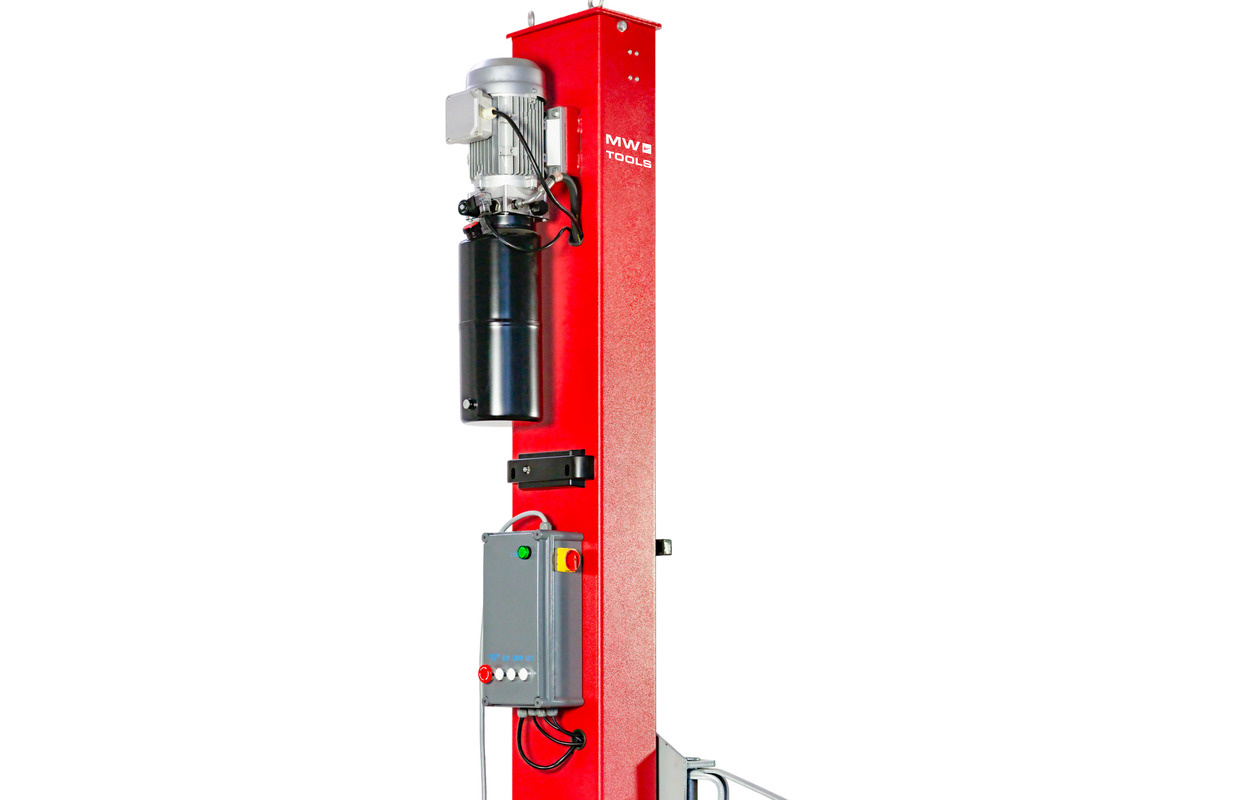

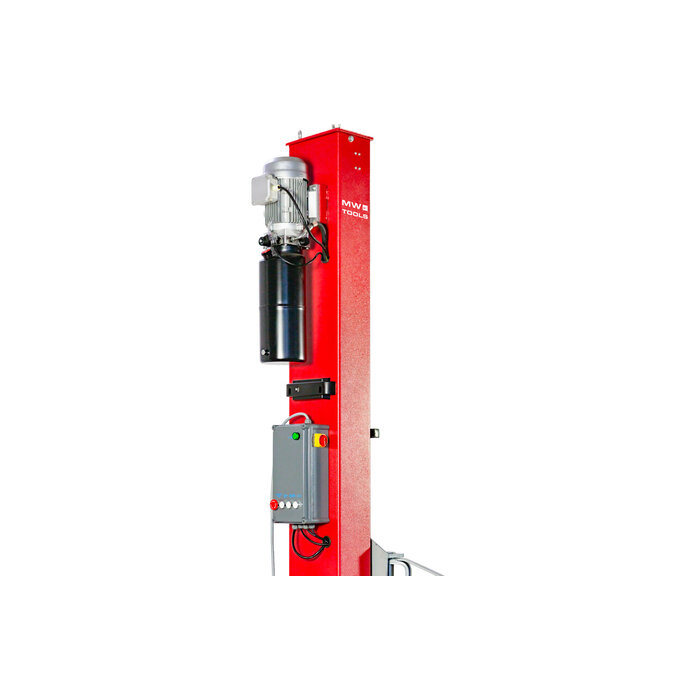

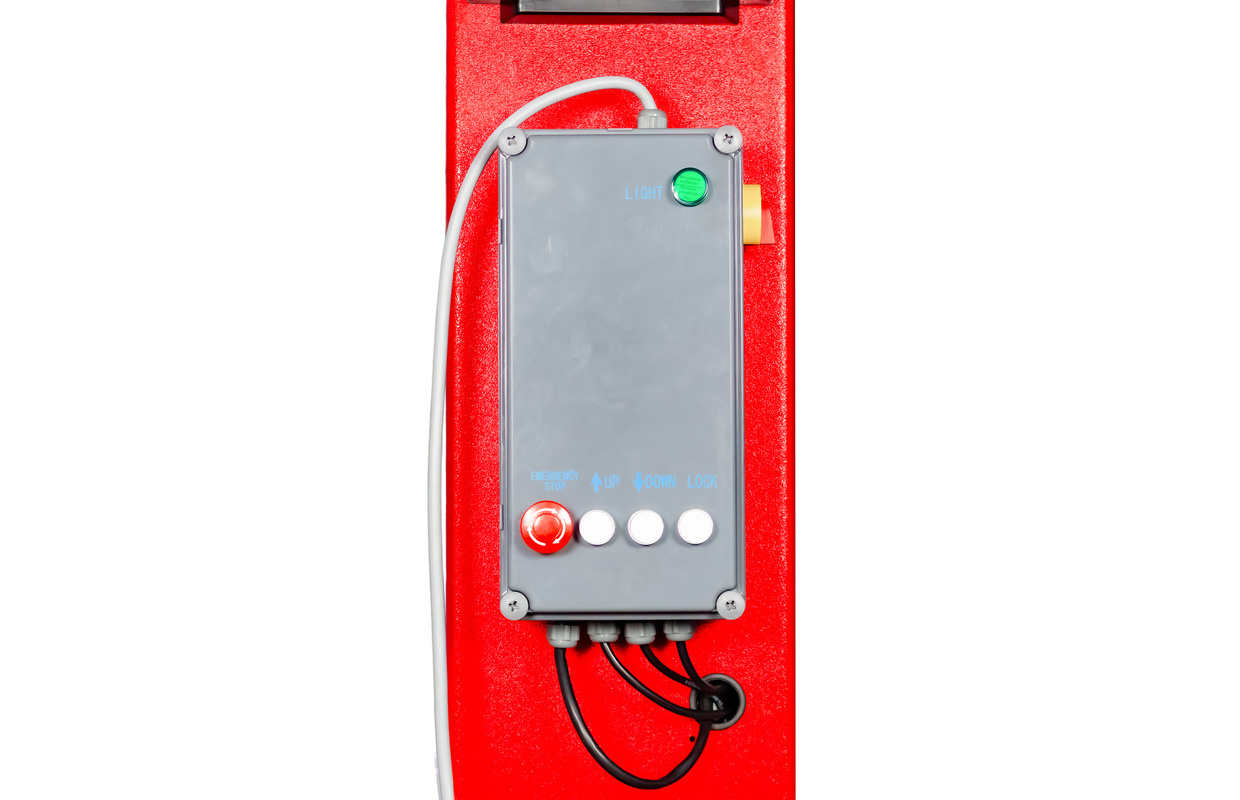

• Control panel with compressed air connection and 230V power point – handy for tools
• Strong steel construction and reliable hydraulics with steel oil tank

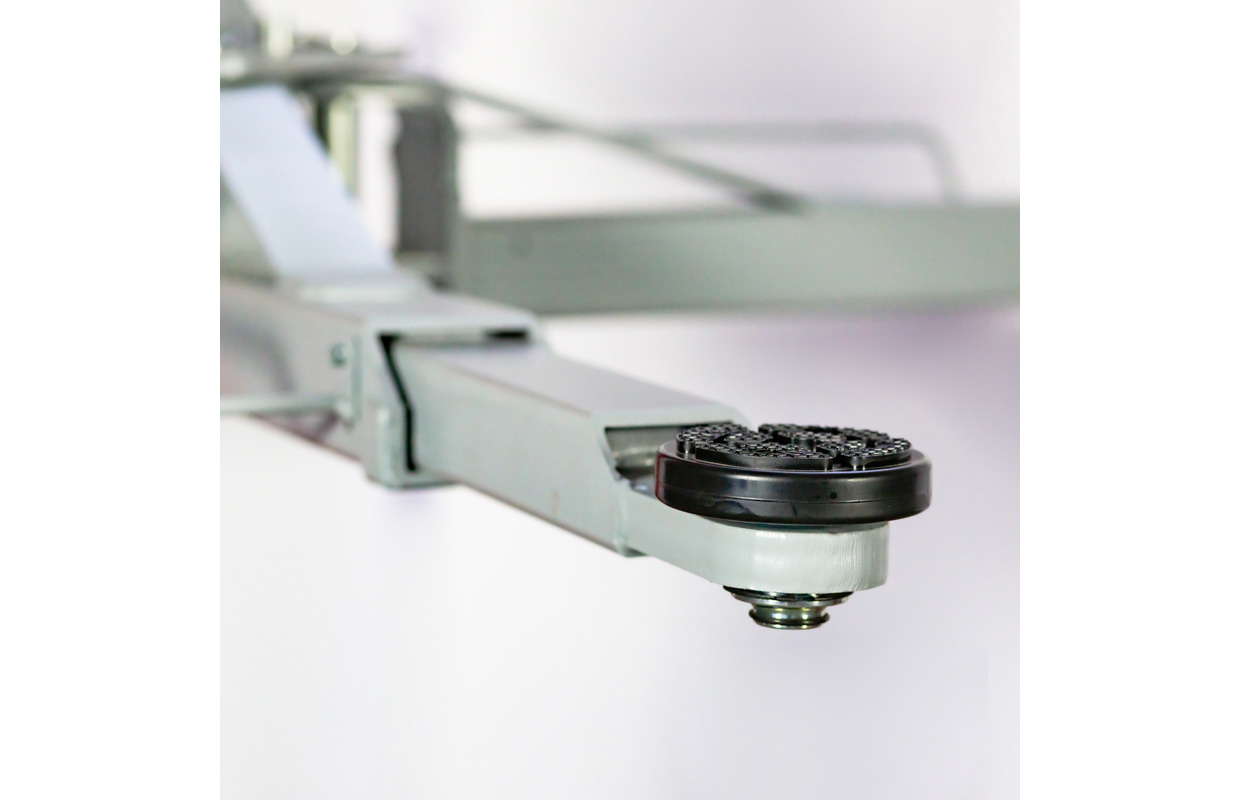

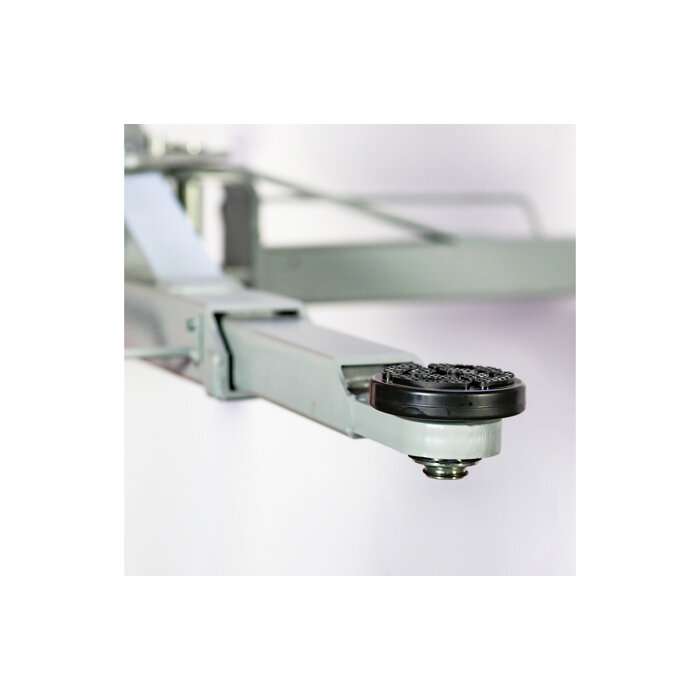

• Adjustable rubber support brackets with screw thread, minimum height of 90 mm

Features:

• Industrial motor with copper windings and thermal overload protection
• Motor and control panel are splash-proof IP54
• Stable column construction made of high-quality steel

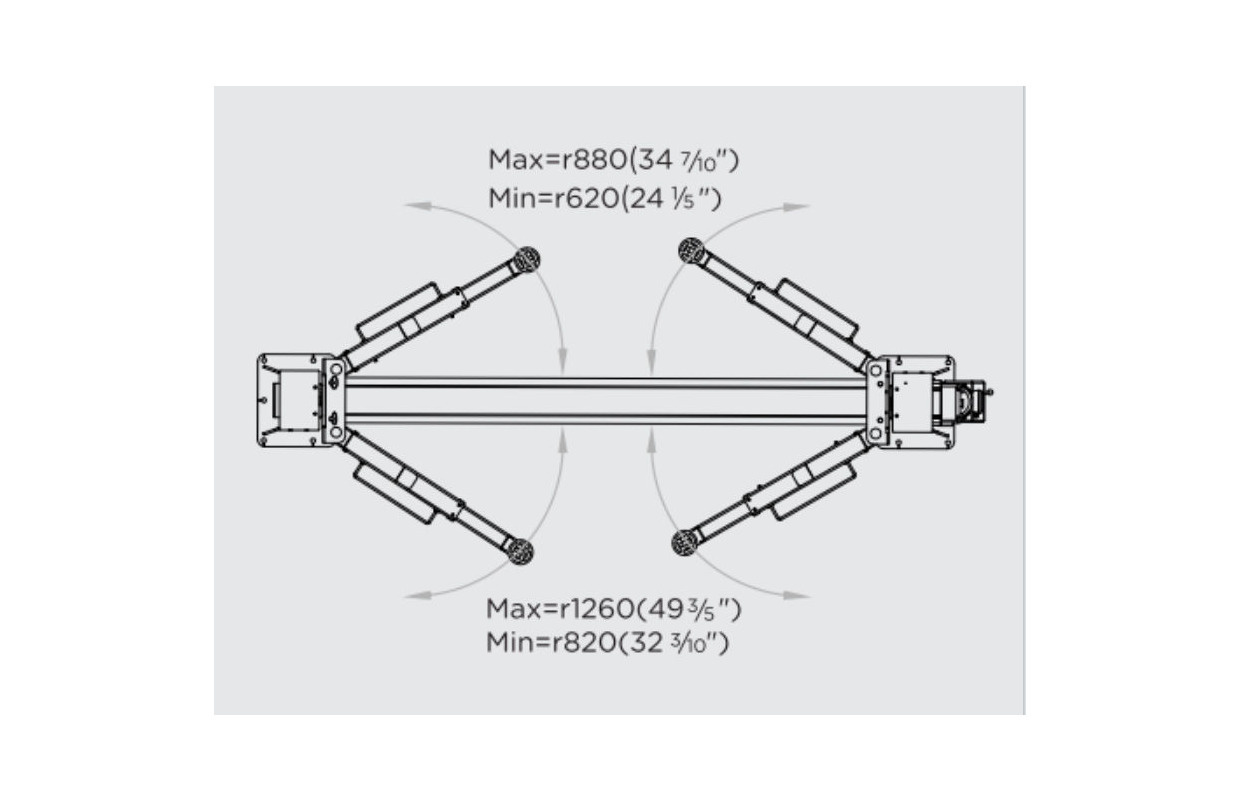

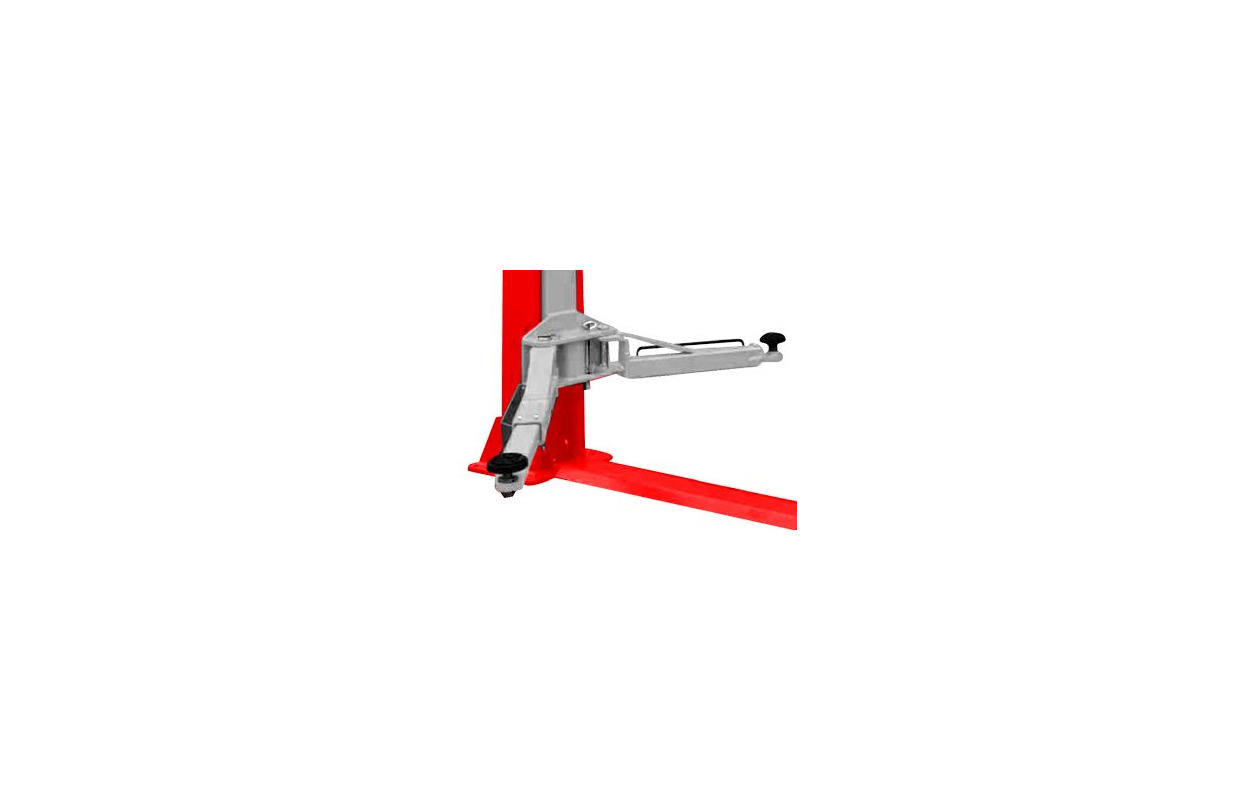

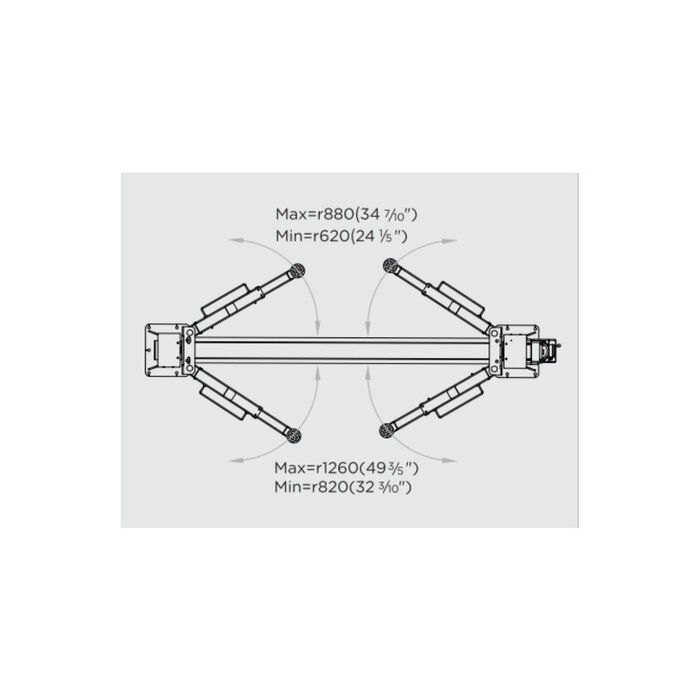

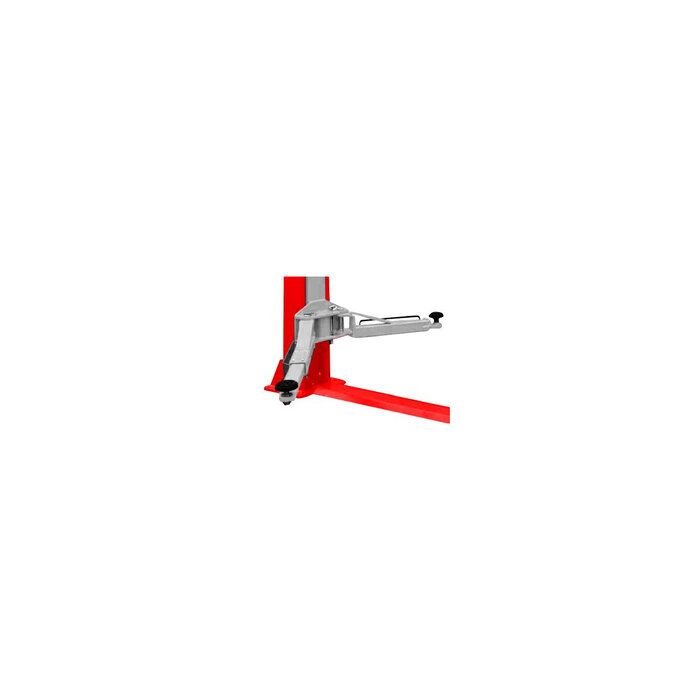

• Adjustable telescopic lifting arms with automatic locking of their position under the carriage
• Foot protection around the lifting arms
• Rubber door protections on both columns
• Rubber column shielding
• Mechanical limit switch when reaching the highest position
• Automatic fall protection at any position of the bridge
• Compliance with standards: This lift is CE certified and complies with applicable European standards.

Options:

• Hydraulic oil. The required amount of oil is 10 liters (art. HYDRO 46 5).
• Installation is possible through our service team. Contact us for a customized quote.

Note: This bridge is delivered in a steel transport frame. Please provide a forklift for delivery.

Note: For safe installation of the lifting bridge, a reinforced concrete base of at least 25 cm thick is required.
