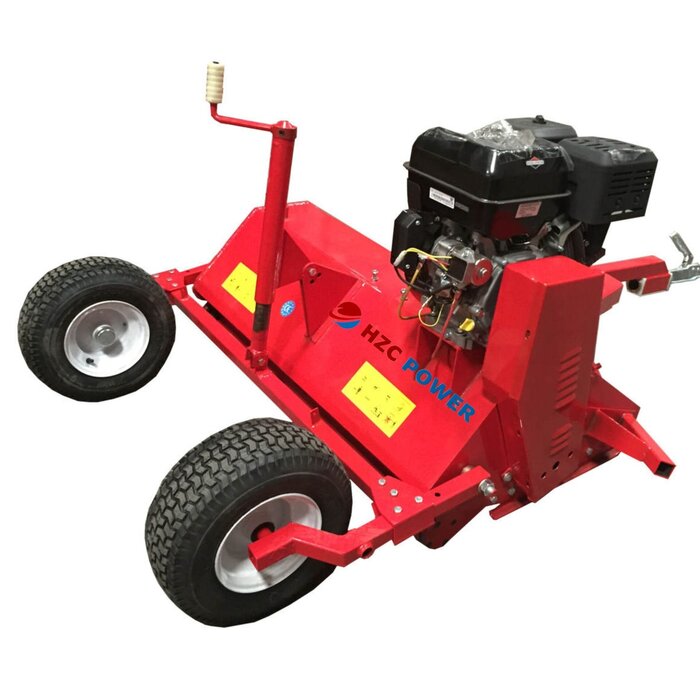

Flail mower, 99 cm working width, 13 HP with petrol engine, ATV tractor, mower, with trailer hitch for towing vehicles (AT101ZF)
Flail mower, 99 cm working width, 13 HP with petrol engine, ATV tractor, mower, with trailer hitch for towing vehicles (AT101ZF)
<a class="pb btn btn1 " title="Direct contact opnemen" href="/nl/service/">Vraag offerte aan</a>
Our AT101ZF with ATV mulching deck offers you maximum flexibility. Equipped with a powerful 13 hp gasoline engine, this deck is extremely versatile. It can be easily attached to a riding lawnmower, narrow-track tractor, quad/ATV, car, or similar towing vehicle. Ideal for trimming meadows and mulching lawns, the mulcher also proves extremely useful after storms when debris is scattered across areas normally maintained with conventional mowers. Furthermore, the mulcher is perfect for mulching thick grass, sticks, undergrowth, and light vines, as well as for maintaining vegetable plots and pastures, verges, and roadsides. The trailing roller ensures a clean, even cut surface.
Important: The mower is not approved for road use.
The mower can be easily connected to the towing vehicle using a conventional ball head coupling.
The cutting height can be individually adjusted using side-mounted skids. The mower also features safety flaps to prevent stones, debris, and other foreign objects from escaping. The wheels can be mounted either on the sides or behind the flail mower to reduce the overall width of the mower as needed.
The powerful 13-hp gasoline engine drives the mower via two V-belts and is easily started via an electric starter. A 12-volt battery is included.
The 24 hammer flails shred the grass clippings to a minimum. Even tall grass, bushy, or strawy material are no problem. Thanks to the robust, large pneumatic tires, the mower can be moved easily even on uneven terrain. The rear cover can be removed for easy maintenance or replacing the hammer flails.
Technical data
Model: AT101ZF
Engine: Petrol engine from Jiandong, 13 HP, petrol, 1 cylinder, 4-stroke engine, 420cc
Fuel: gasoline (regular gasoline, Super E5 or Super E10)
Starter: Electric starter
Mower drive: 2 V-belts
Cutting height: 15 – 70 mm
Working width/cutting width: 990 mm
Knife type: hammer flail, Y-knife
Number of hammer flails: 24
Weight of hammer flail: 0.2 kg
Flail shaft Ø: Ø108mm
Follower roller Ø: Ø102mm
Towing device: ball head towing coupling
Tank capacity: 6.6 liters
Engine oil: 1.1 liters
Total weight: 230 kg
Dimensions assembled: 1020 x 760 x 400 mm (LxWxH)
Packaging dimensions: 1600 x 860 x 1020 mm (LxWxH)
Weight including packaging: 265 kg
