mini-rowing machine GT2000J

Mini-grinder GT2000J

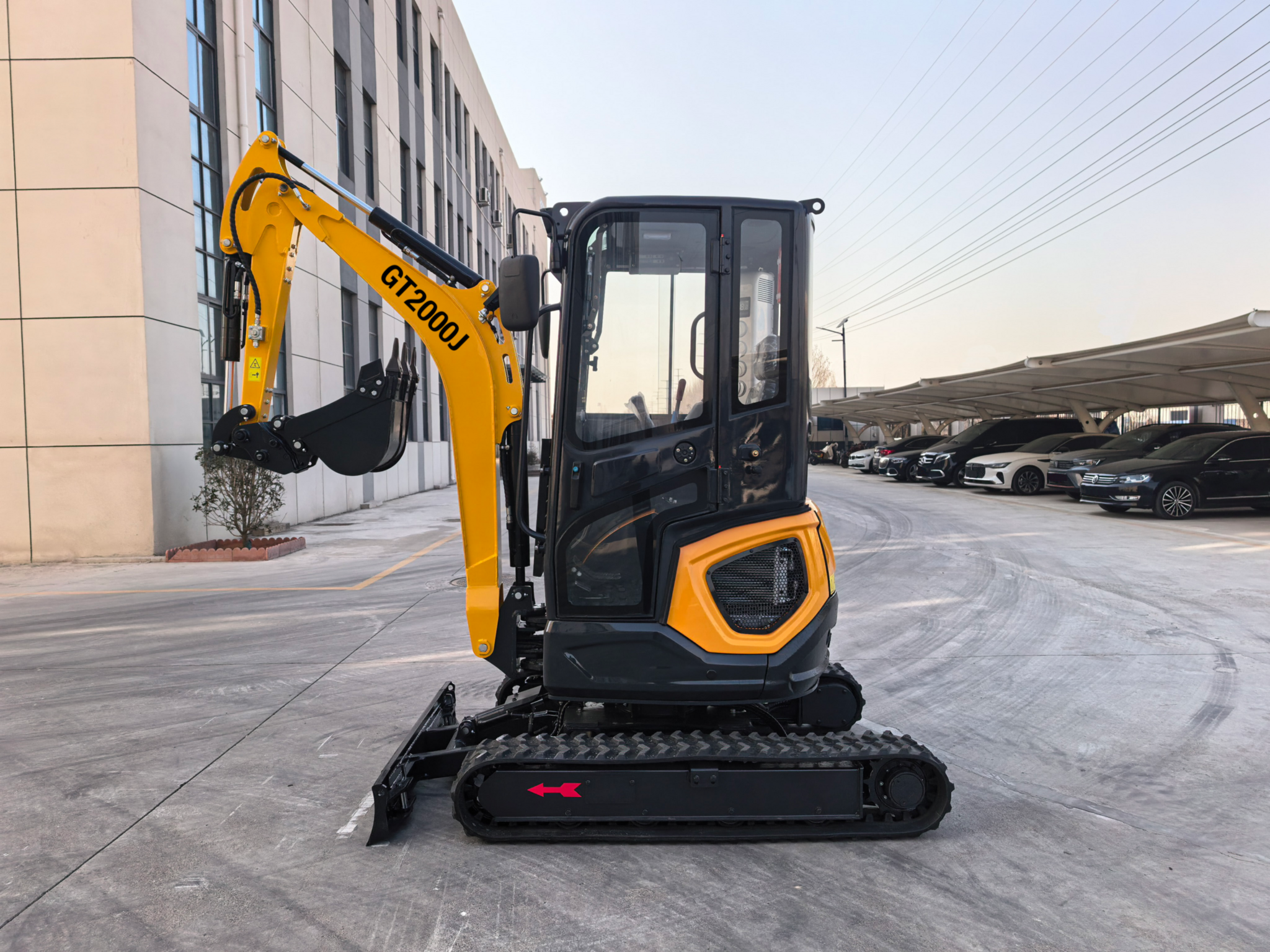

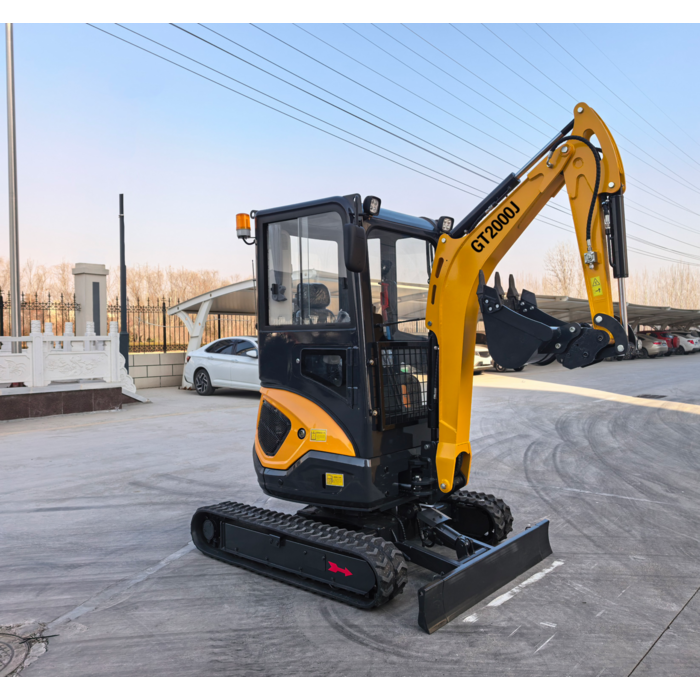

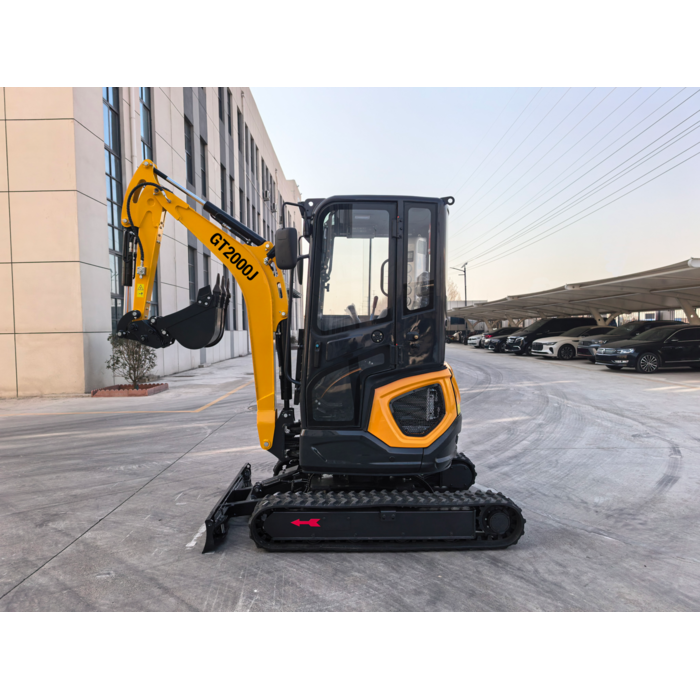

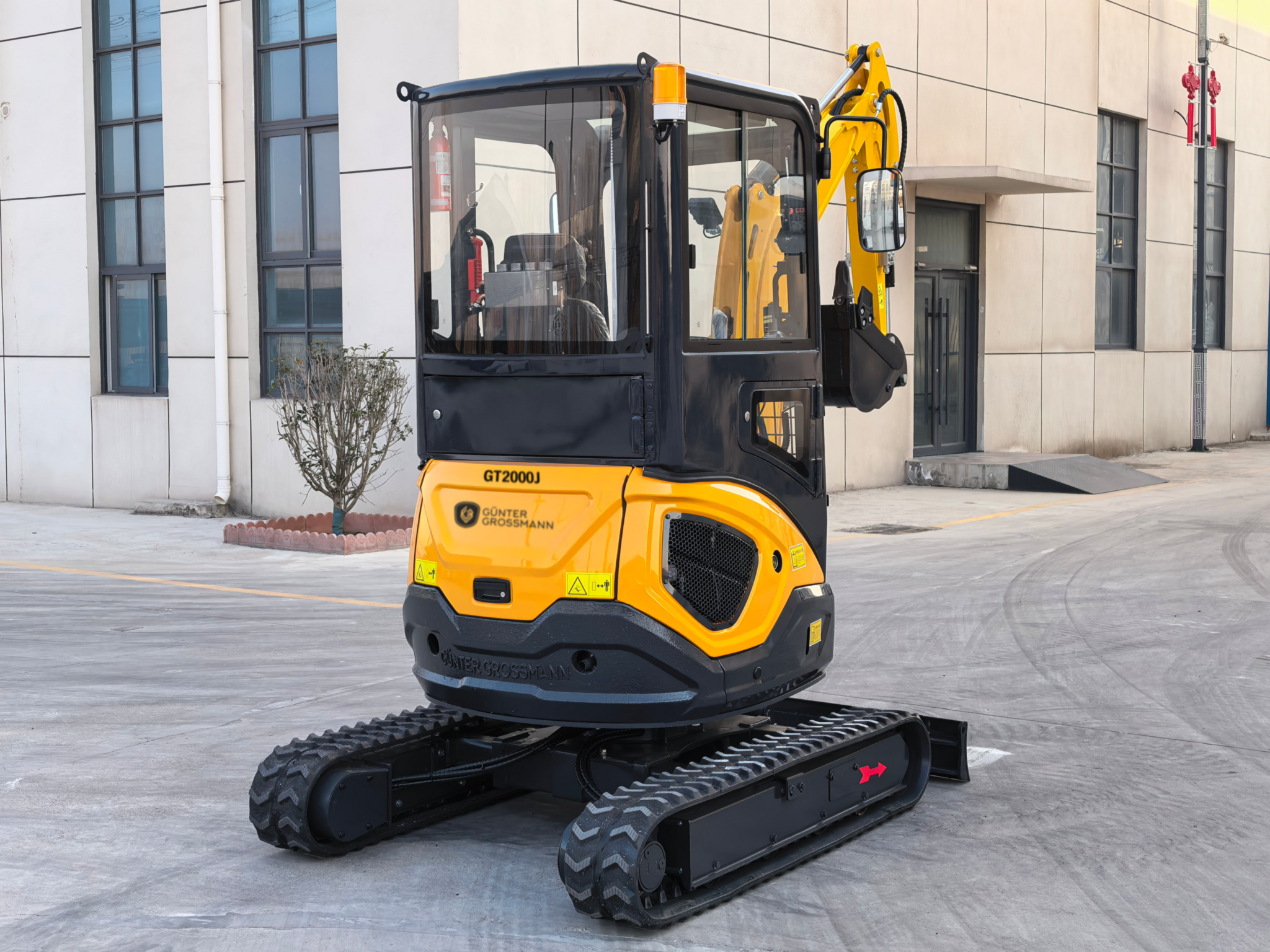

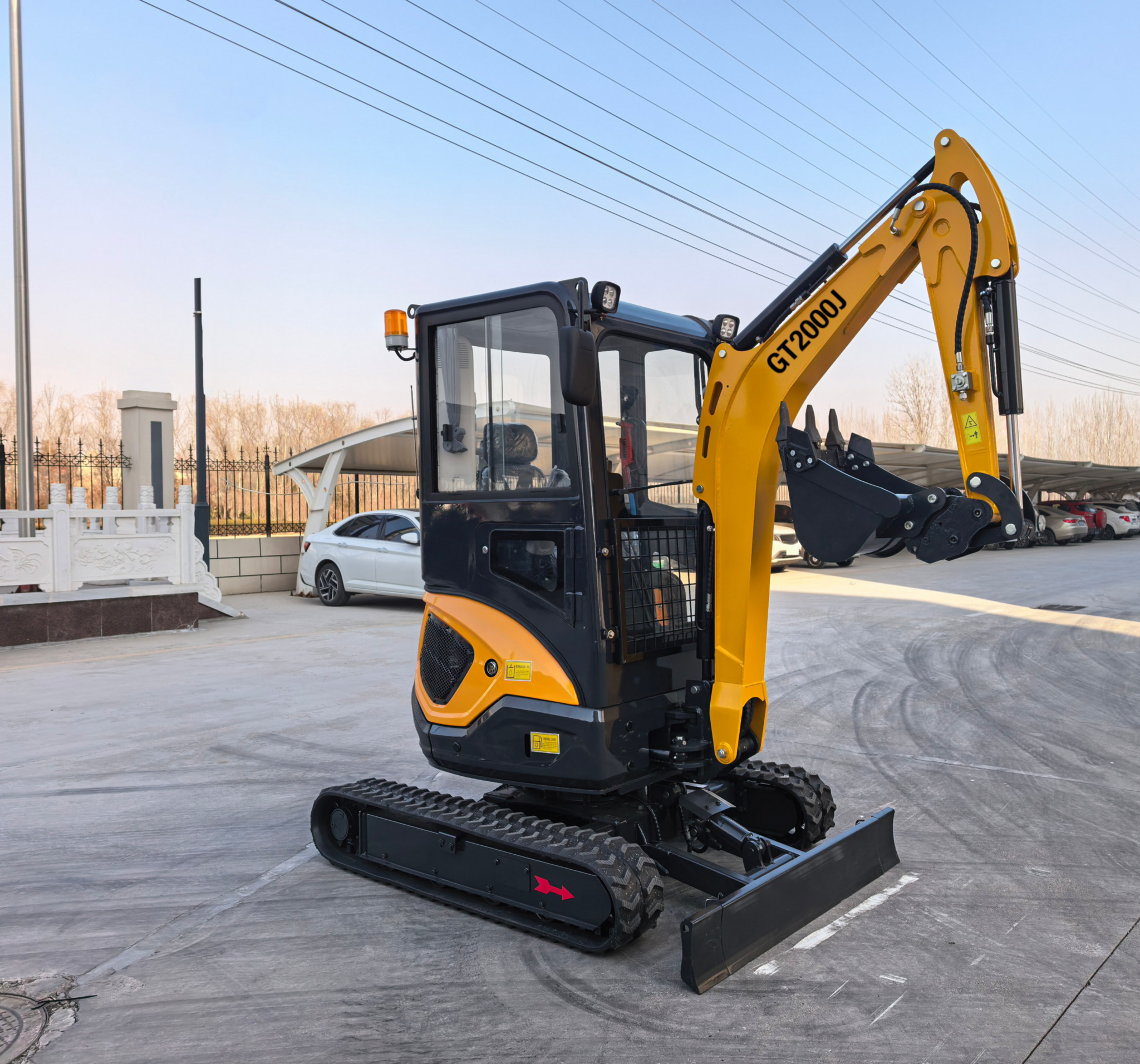

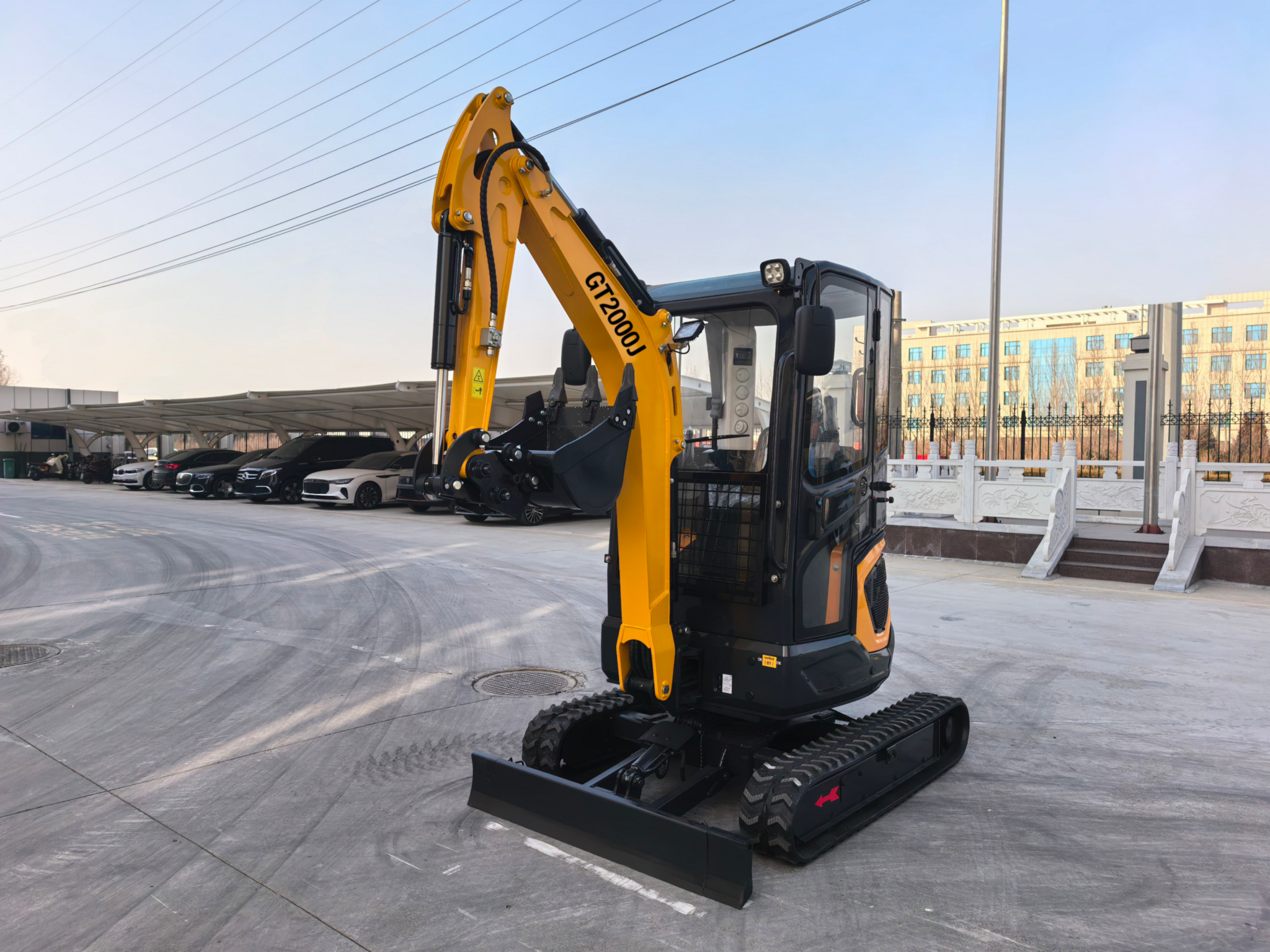

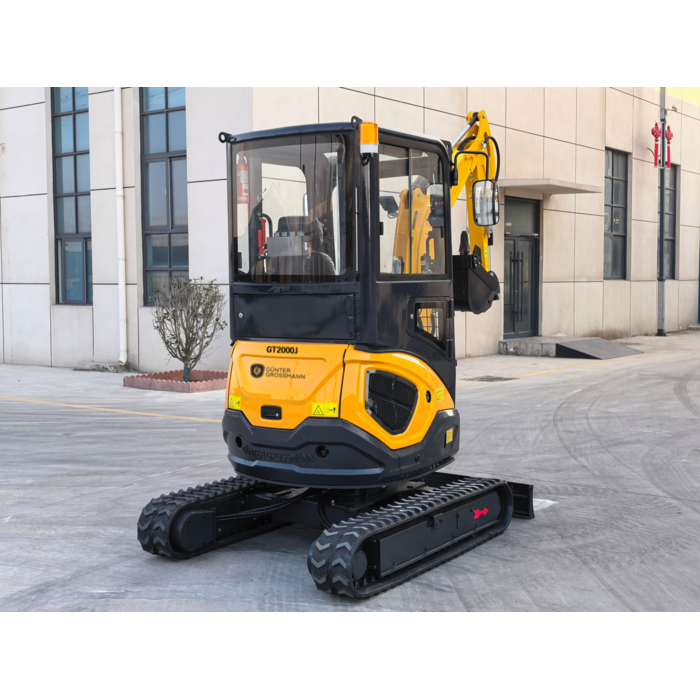

The GT2000J crawler excavator is a compact and robust 2200 kg work machine, suitable for earthmoving, construction, and installation work. Thanks to its stable construction and precise hydraulic system, it performs well both on construction sites and in confined spaces.

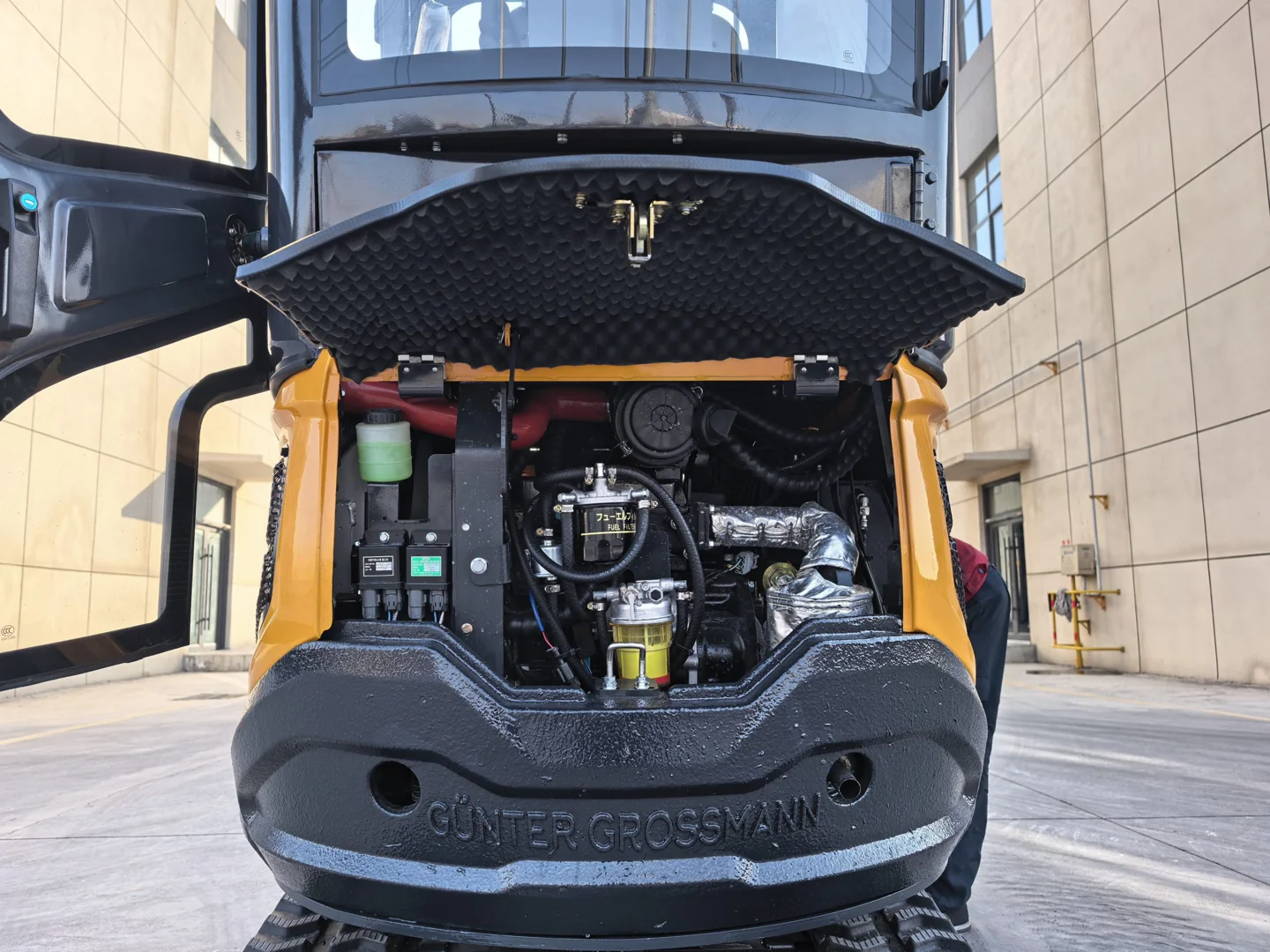

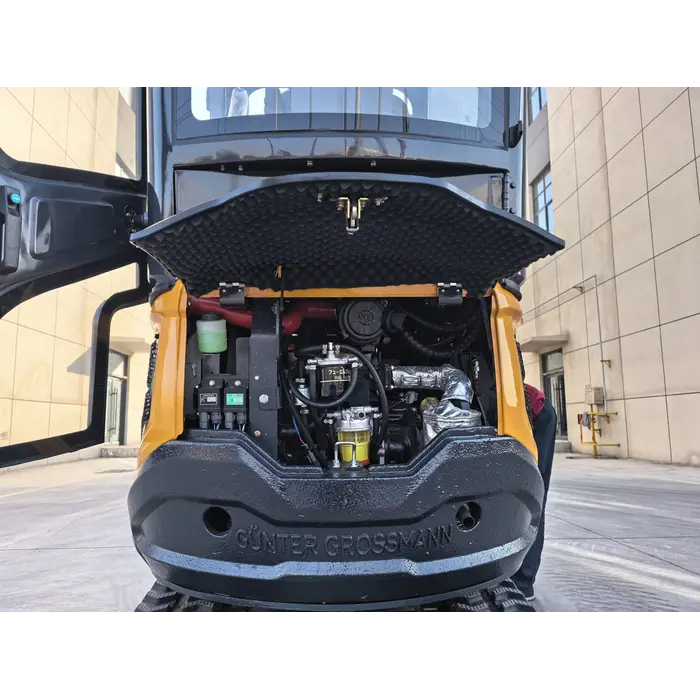

Engine and drive

The machine is equipped with a reliable Yanmar 3TNV80F engine with a rated power of 15.2 kW, which ensures stable performance, low fuel consumption, and a long service life. Its maximum slope angle is 35°, allowing it to work on uneven terrain.

Hydraulic system

The hydraulic system operates under a pressure of 18 MPa, guaranteeing high efficiency and precision during work movements. The maximum digging force of the bucket is 14 kN and that of the arm 10 kN, enabling effective digging in various soil types.

Working range

The GT2000J offers a maximum digging depth of 2050 mm, a vertical digging depth of 1955 mm, and a maximum dumping height of 2385 mm. The maximum digging reach is 3860 mm, and the minimum digging height is 3365 mm.

Turning and maneuverability

The upper structure's rotational speed is 10–12 rpm, ensuring smooth and fast work cycles. The minimum and rear turning radiuses are 1125 mm, increasing the machine's maneuverability.

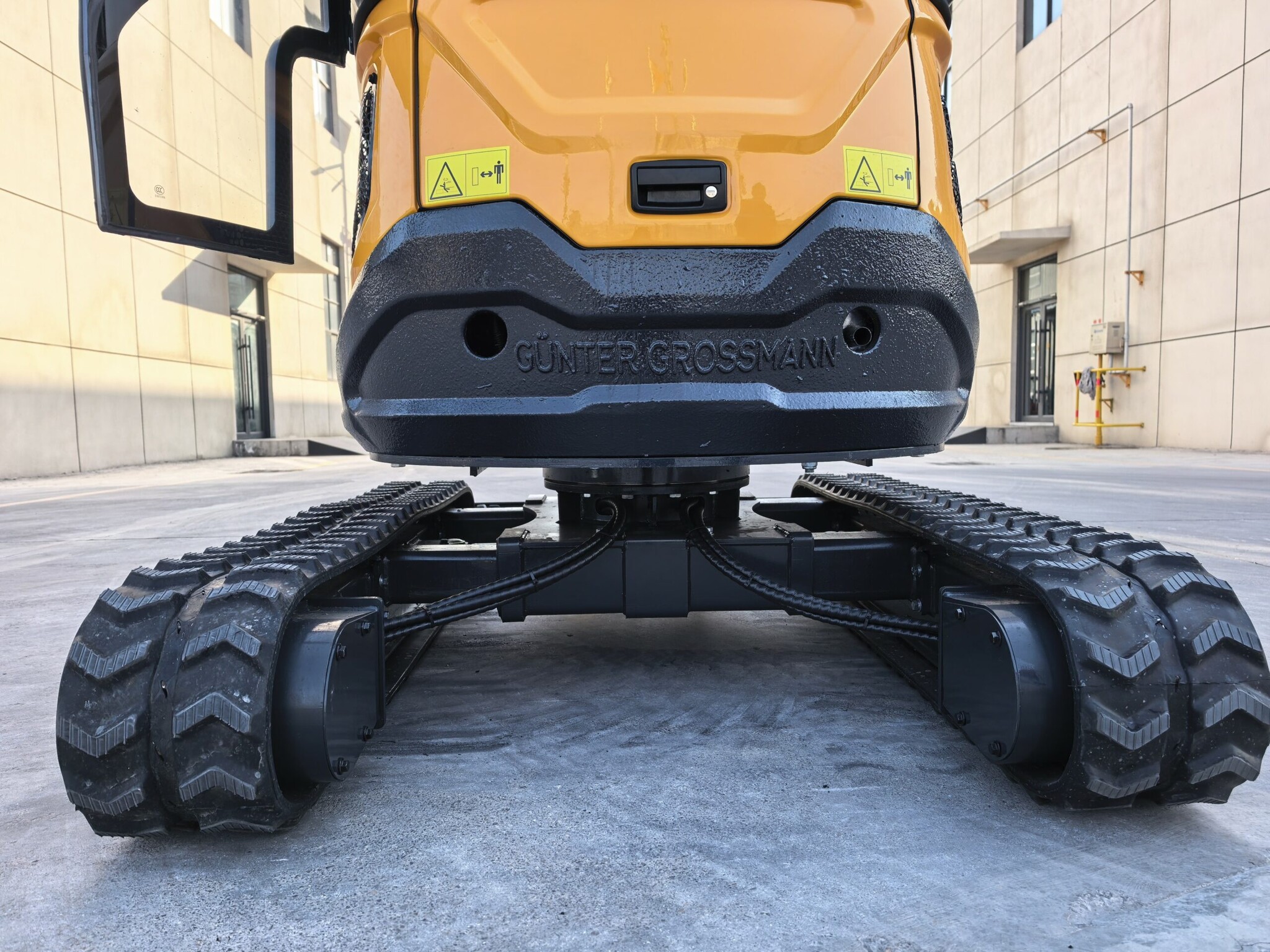

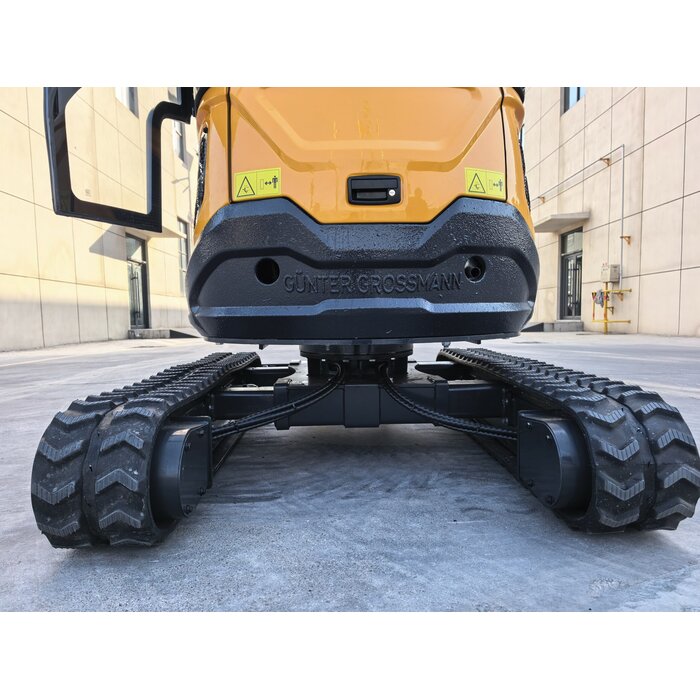

Chassis and stability

The excavator has a tracked chassis with a track spacing of 820 mm, a minimum ground clearance of 210 mm, and a bulldozer blade clearance of 230 mm. The maximum blade digging depth is 275 mm, which increases stability during operation.

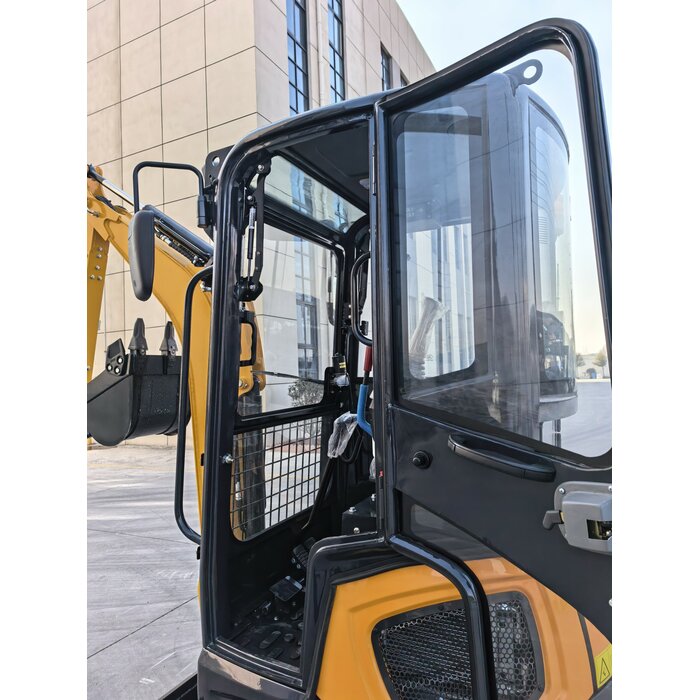

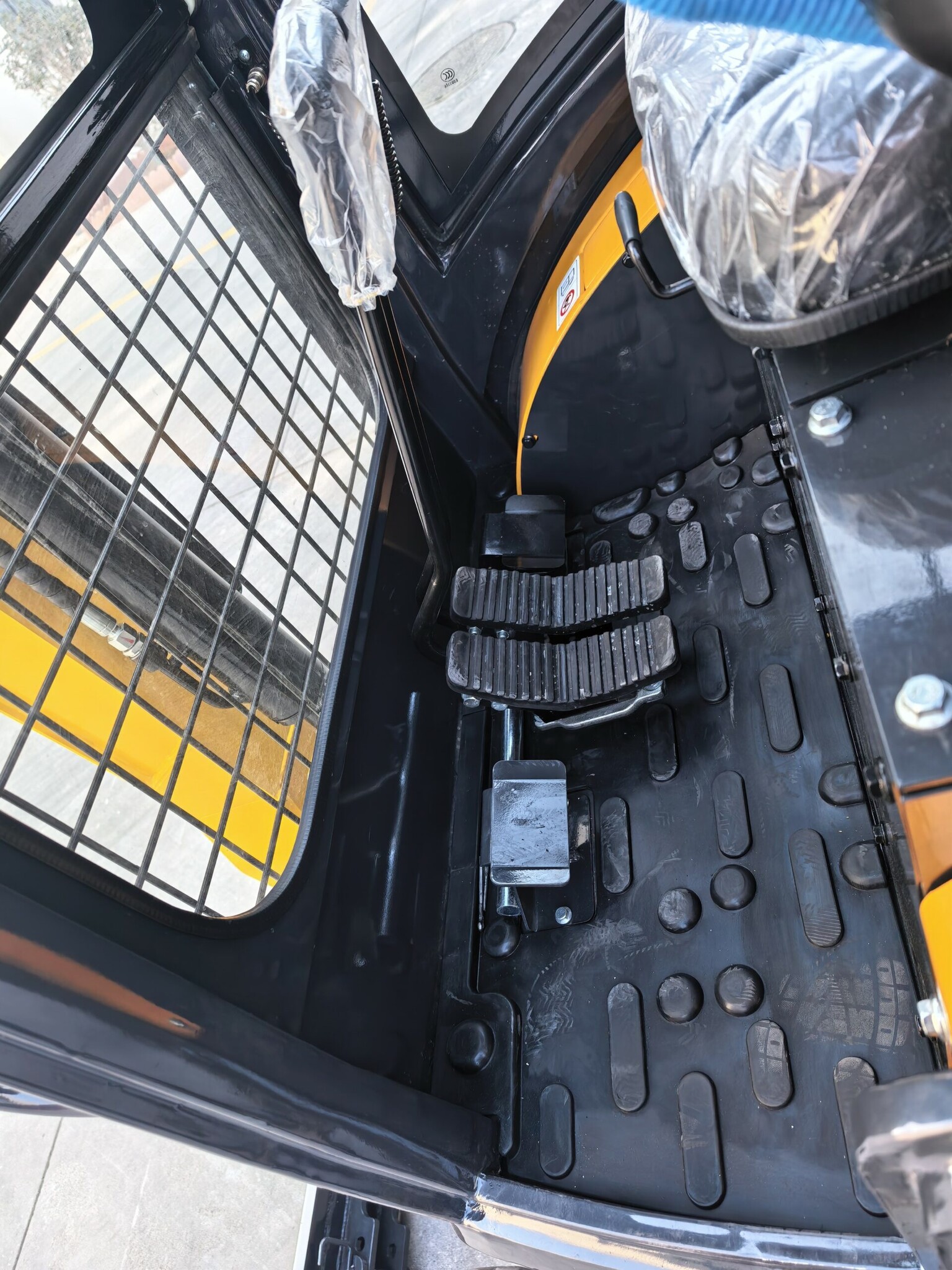

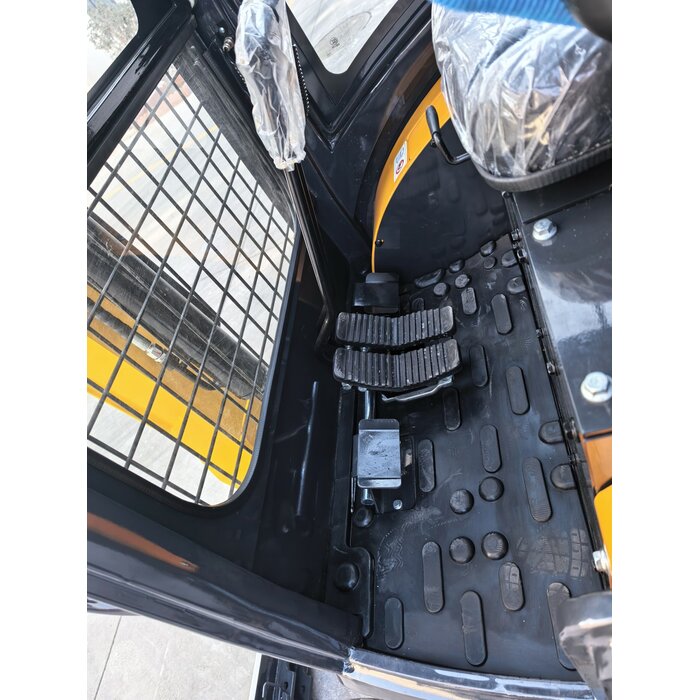

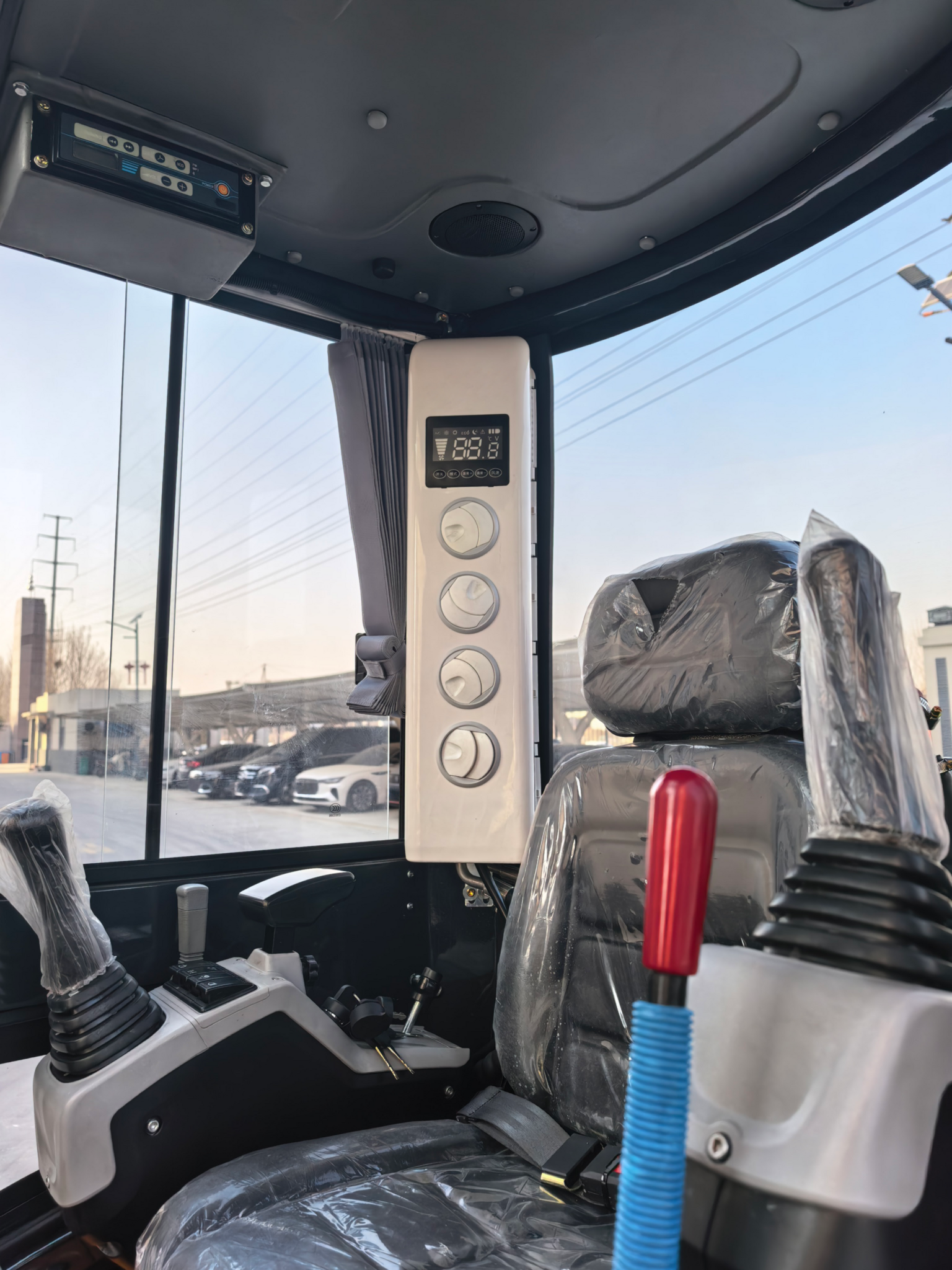

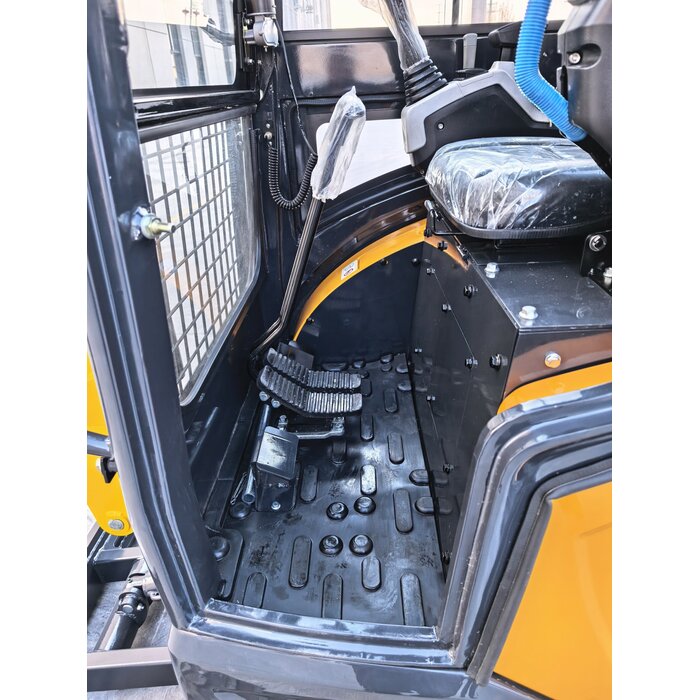

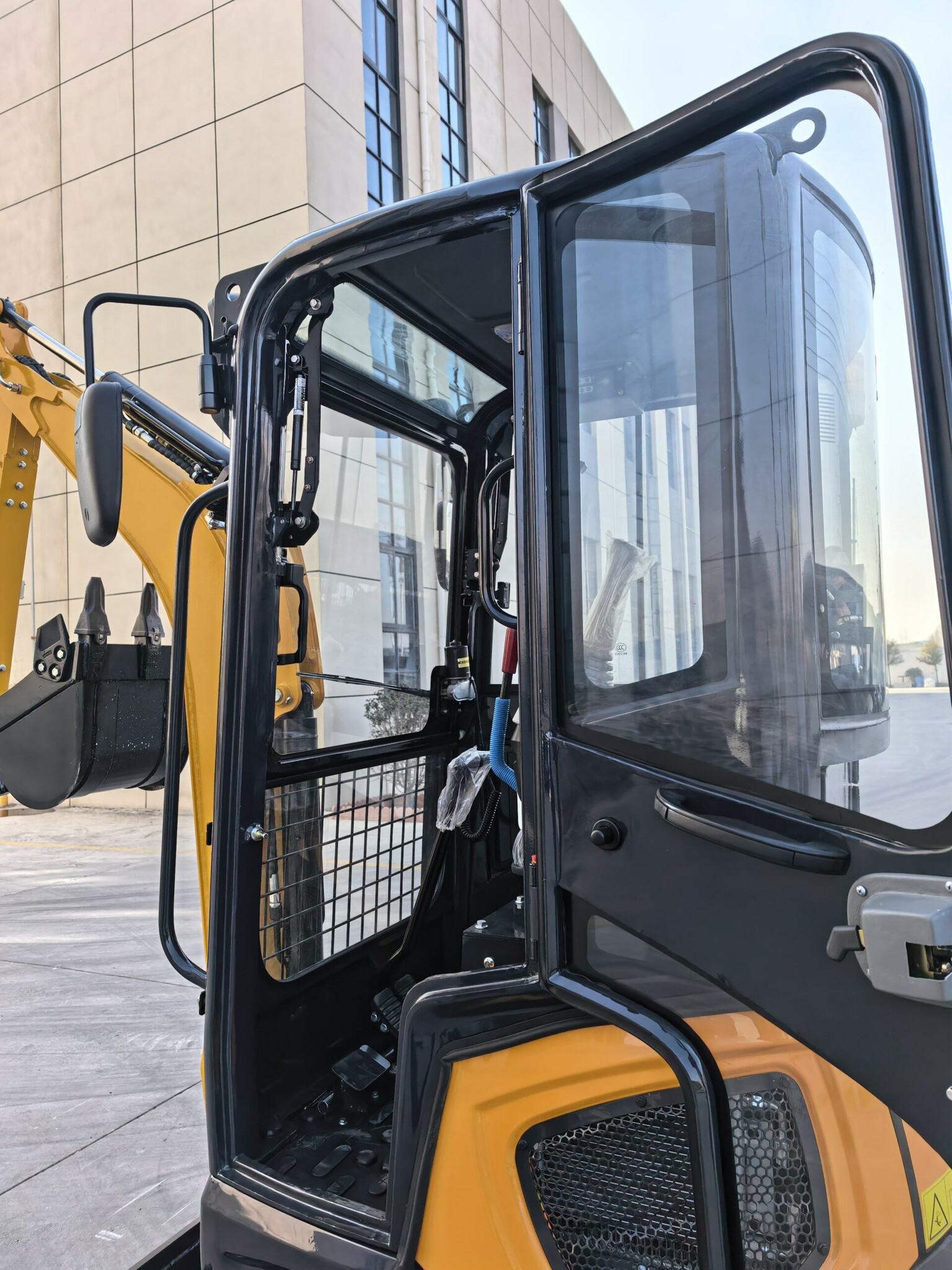

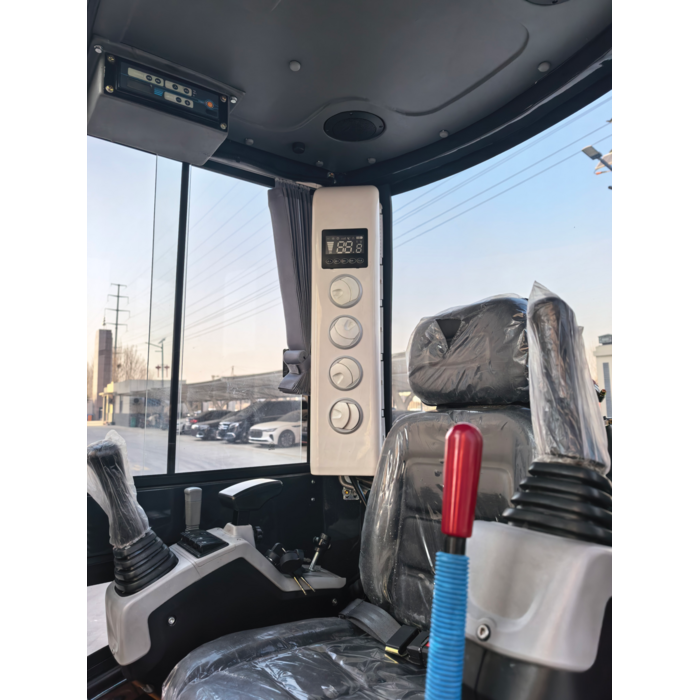

Rotating arm and cabin

The rotating arm can be extended 75° to the left and 45° to the right, increasing operational flexibility. The cab height is 2270 mm, offering the operator excellent visibility and comfort during operation.
