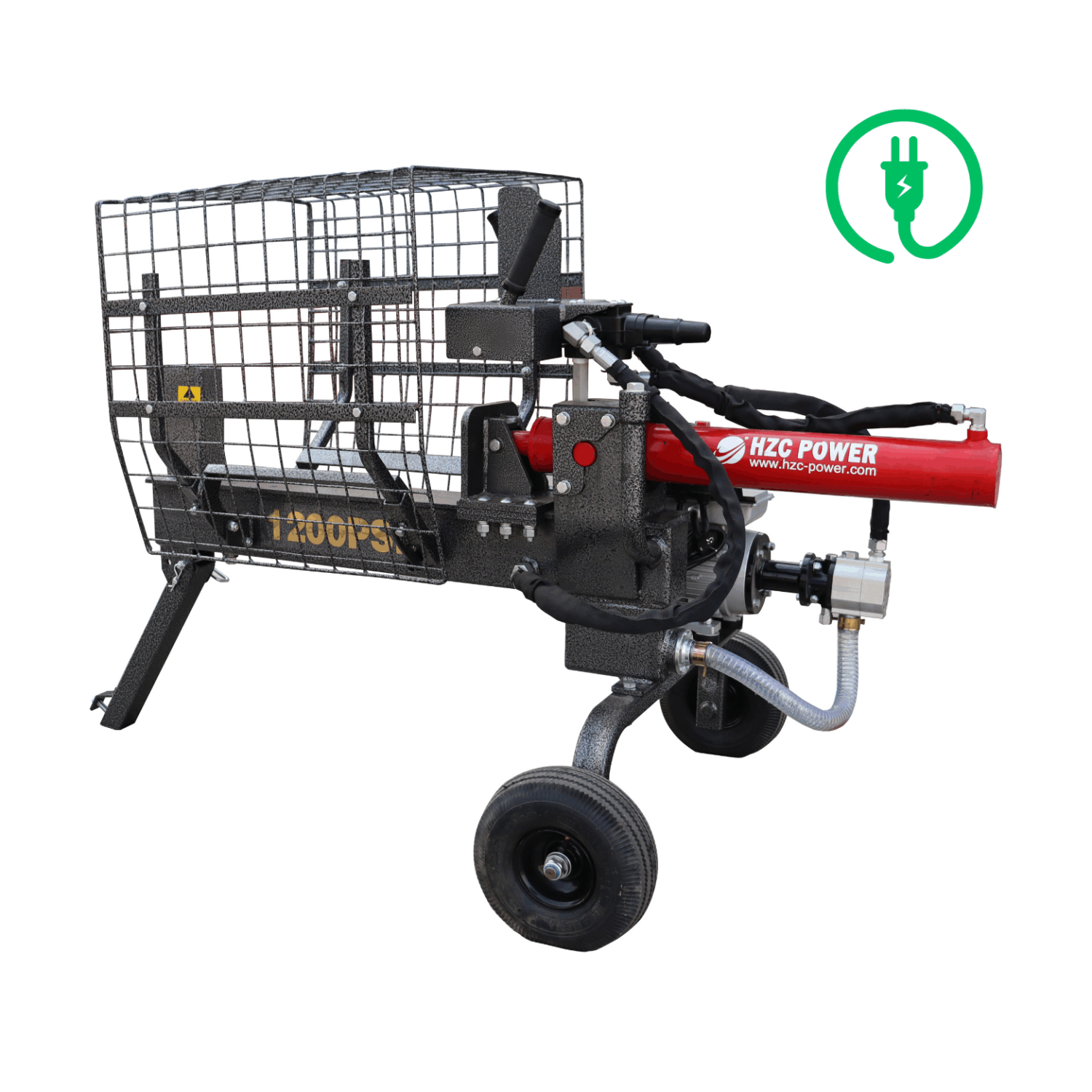

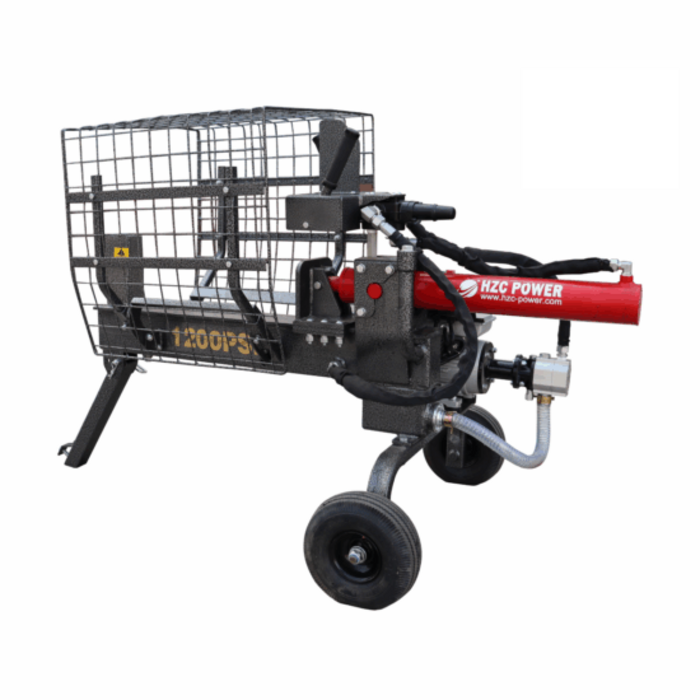

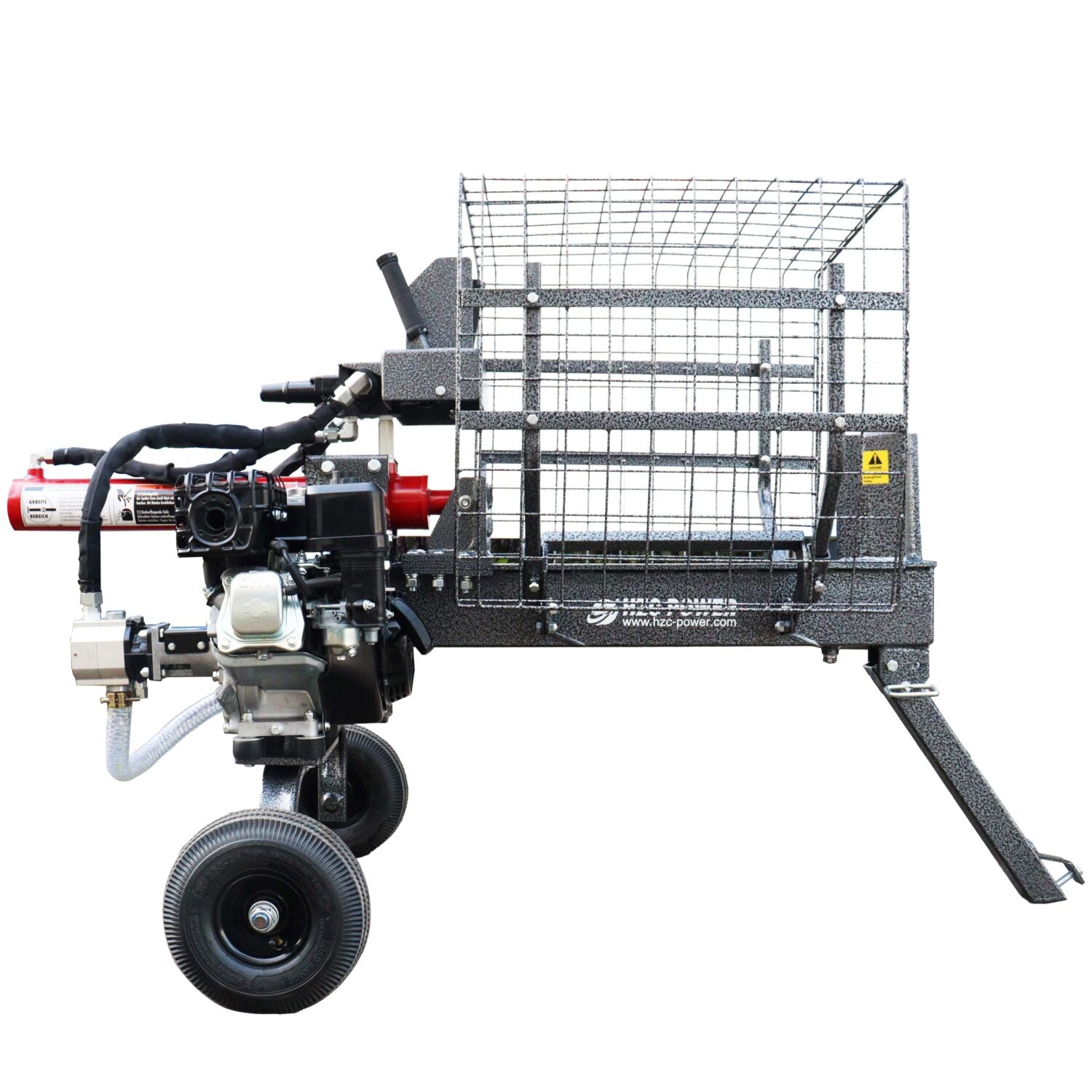

log splitter HS12288, 12 tons, 53 cm, horizontal, petrol engine - Copy

• General information:
  •
  • Model:HS12288
  • Splitting force:12 t
  • Maximum gap length:530 mm
  • Fission cycle:11 s
  • Oil pressure:270 bar
  • Hydraulic oil content:10 l (HLP46)
  • Product weight:113 kg
  • Shipping weight:140 kg
  • Dimensions after assembly (L x W x H):175 cm x 84 cm x 92 cm
  • Dimensions including packaging (L x W x H):110 cm x 54 cm x 80 cm

  Special features:

  • Splitting knife:15 cm x 20 cm (LxW)
  • Working position:Horizontal

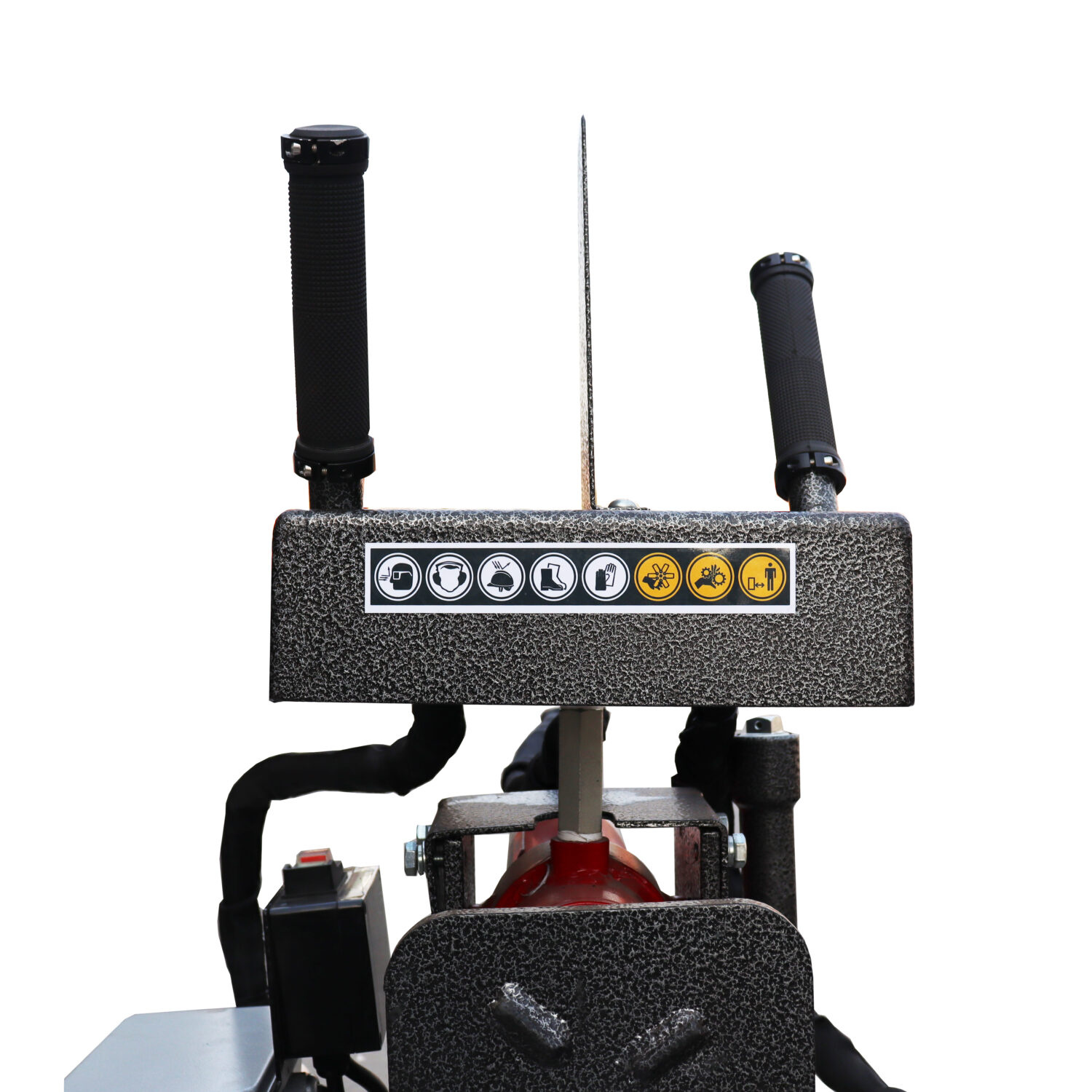

  • Operation:two-hand safety operation
  • Splitting wedge/splitting cross:Fixed fastening, the wood is pressed against the splitting wedge by means of a cylinder.

  ---

  Engine:

  • Manufacturer:Jiao
  • Model:6.5 hp / 208 cc
  • Engine technology:Single-cylinder, 4-stroke, air-cooled, OHV (overhead valves)
  • Cylinder capacity:208 cc
  • Cylinder:Cylinder with cast iron sleeve
  • Bore:68.3 mm
  • Pitch:55.9 mm
  • Fuel tank capacity:3.1 l
  • Oil capacity:0.6 l
  • Weight of the motor:16 kg
  • Dimensions (W x L x H):321 x 376 x 346 mm

• Splitting force:12 tons – For effortlessly splitting wood up to 530 mm in length and a maximum diameter of 50 cm.
• Recoil starter:Starts the engine easily, even in cold temperatures.
• Splitting wedge/splitting cross:Fixed mounting, ensures effective splitting without constant adjustment.
• Hydraulic system:High-quality system with an oil pressure of 270 bar, ensuring high efficiency and a long service life.
• Working position:Horizontal – enables comfortable working in a reclining position.
• Two-hand operation:For maximum safety when using the log splitter.
• Oil filter:Integrated oil filter for a longer device lifespan.
• Sturdy frame:A stable frame ensures that the material to be split remains firmly in place during the splitting process.
• Compact dimensions:With a width of 84 cm, the log splitter can easily be transported on a trailer.
• Engine:6.5 hp petrol engine with a displacement of 208 cc for powerful performance.
• Integrated tabletop:Provides extra space for storing pieces of wood during work.

• HS12288 log splitter:Pre-assembled, with a splitting force of 12 tonnes and a maximum splitting length of 530 mm.
• Jiao petrol engine (6.5 hp, 208 cc):Powerful 6.5 hp engine, already integrated and ready for use.
• Splitting wedge/splitting cross:Permanently mounted for efficient and fast splitting.
• Two-hand safety operation:for safe operation during use.
• Tow bar:Enables easy transport on the farm or private land (note: not permitted on public roads).
• Hydraulic oil (HLP46):Already partially filled, easy to top up if necessary.
• User manual:Detailed and easy to understand, with all important information regarding assembly, operation, and maintenance.
• Transport packaging:The log splitter is securely packaged and transported by truck to prevent transport damage.

Should you have any questions regarding the scope of delivery or commissioning, our customer service team is always at your service!
