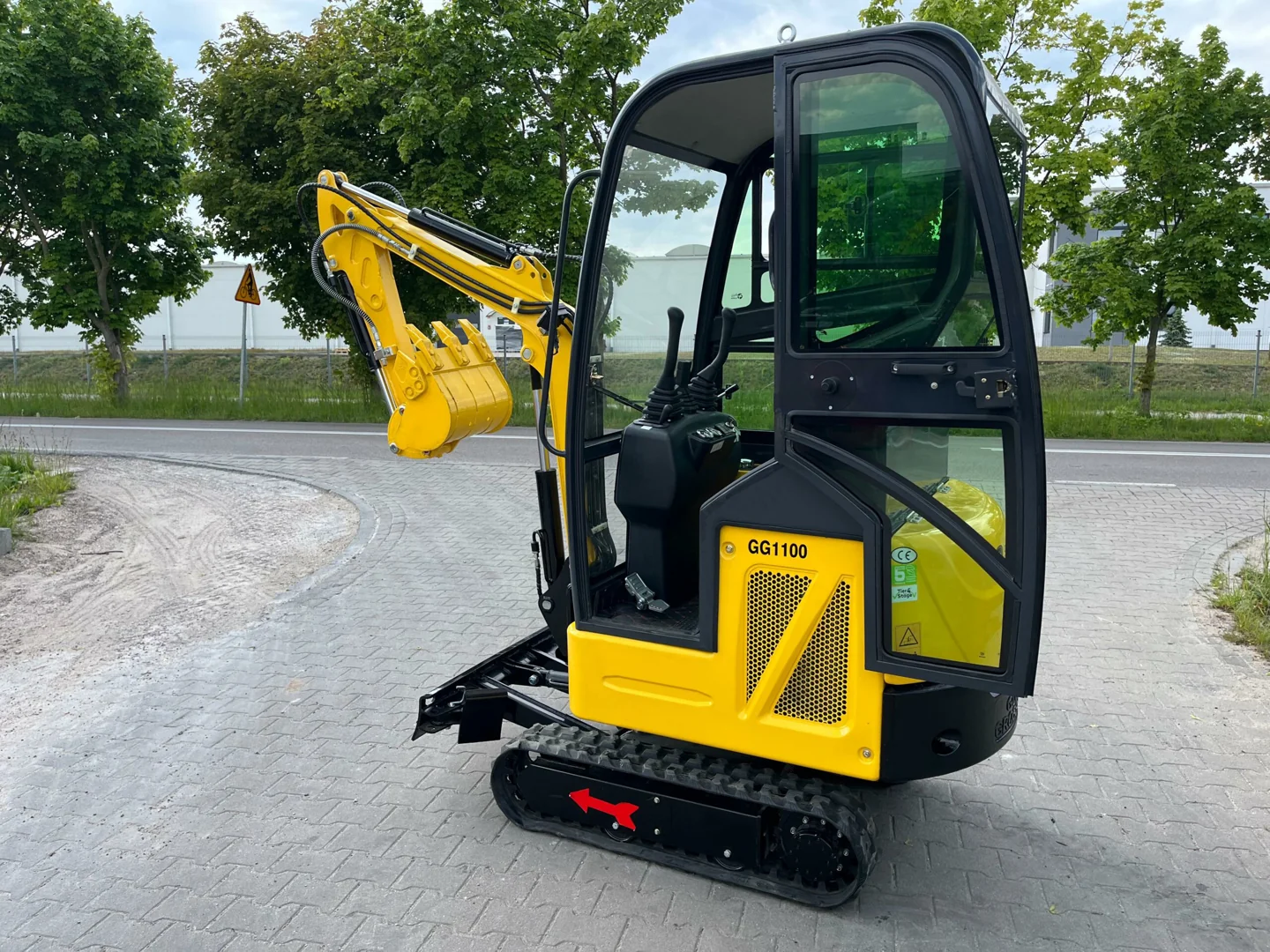

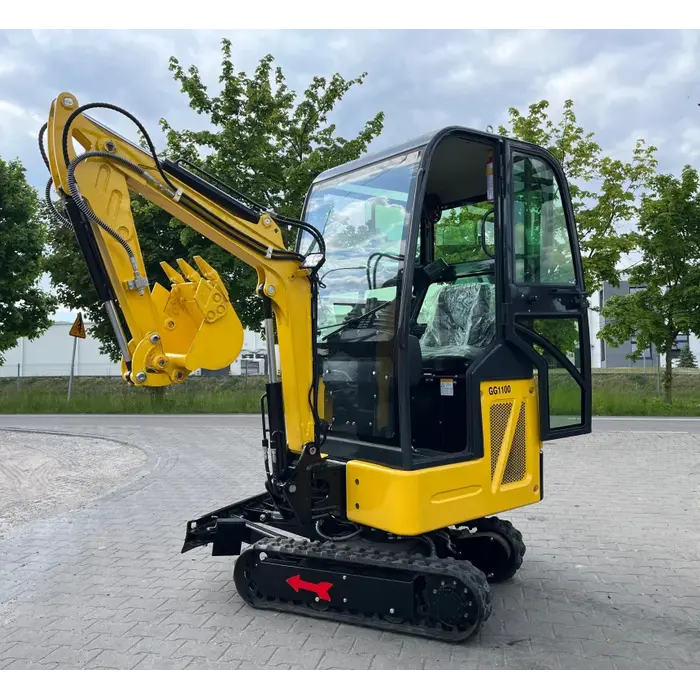

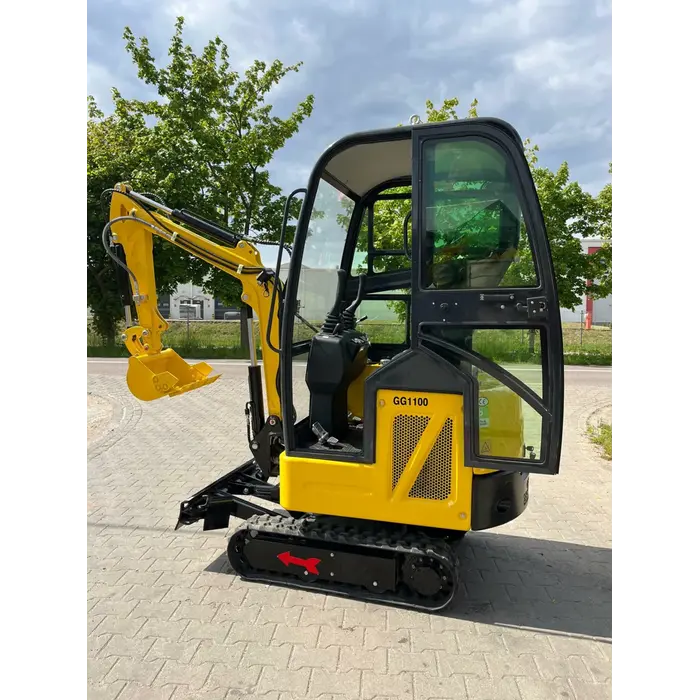

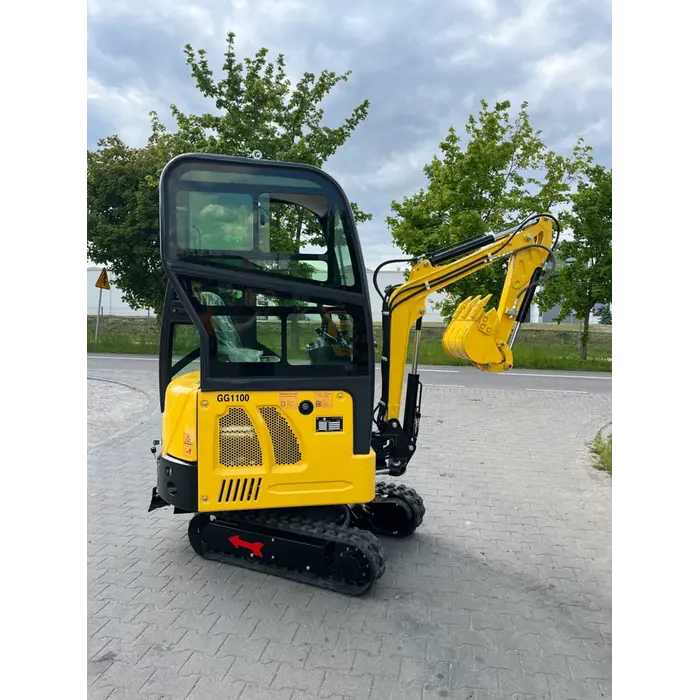

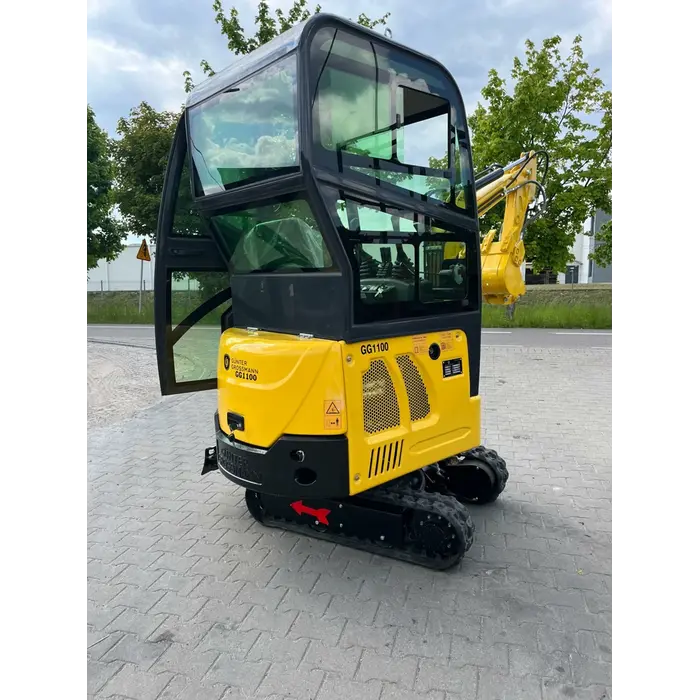

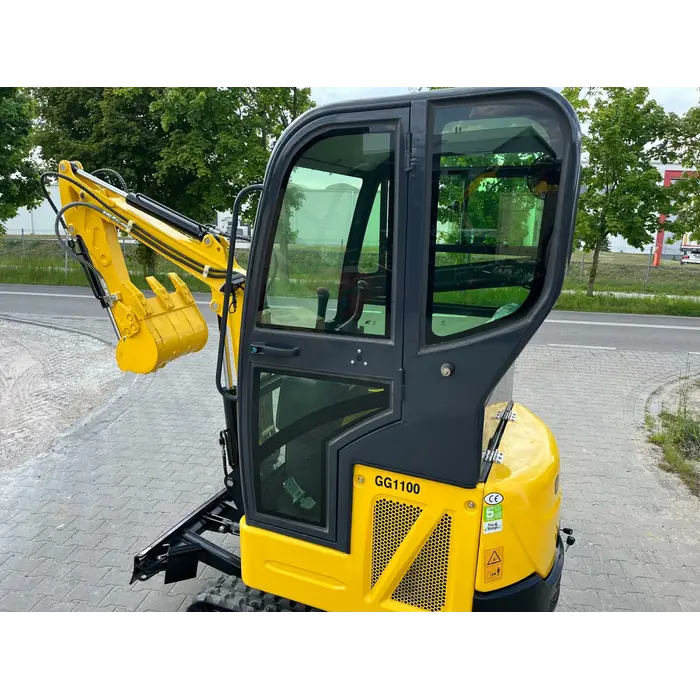

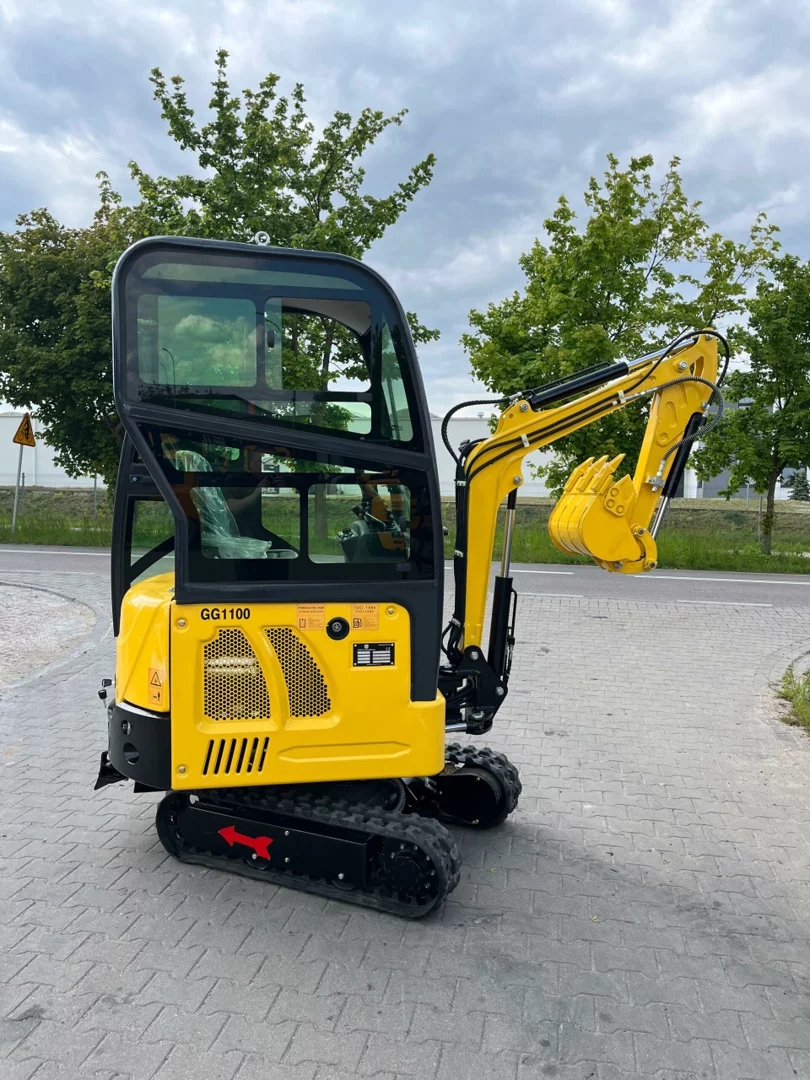

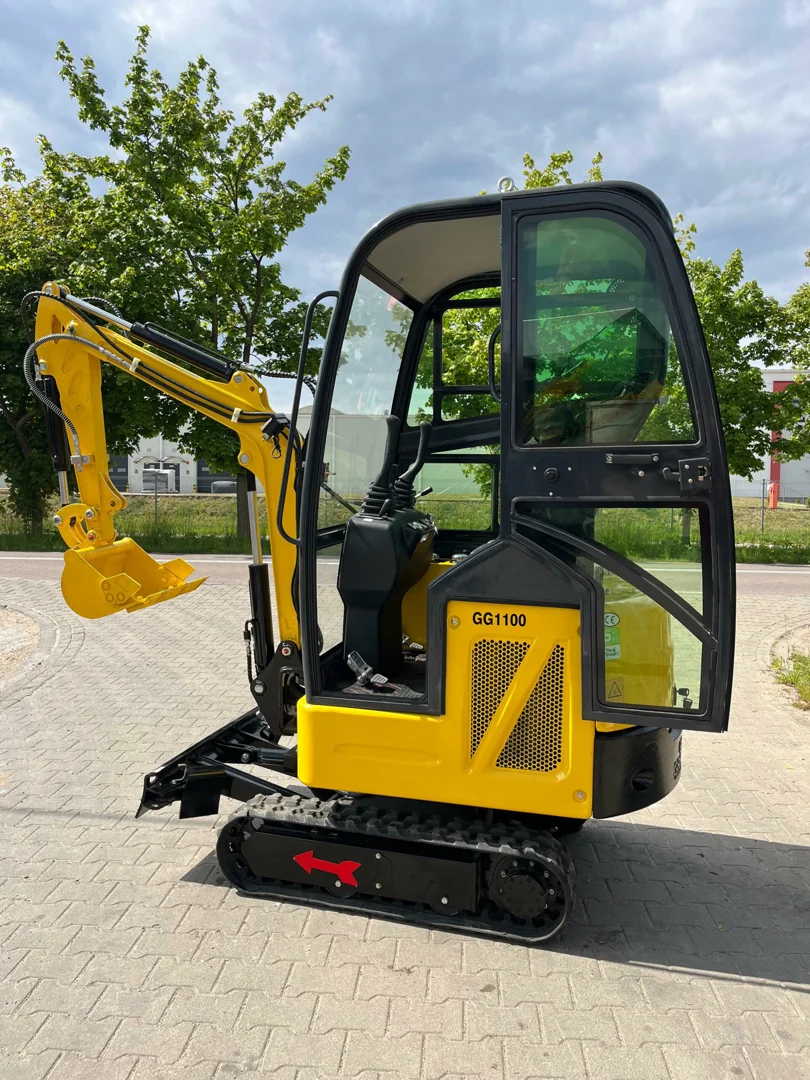

mini Excavator GG1100C
mini Excavator GG1100C

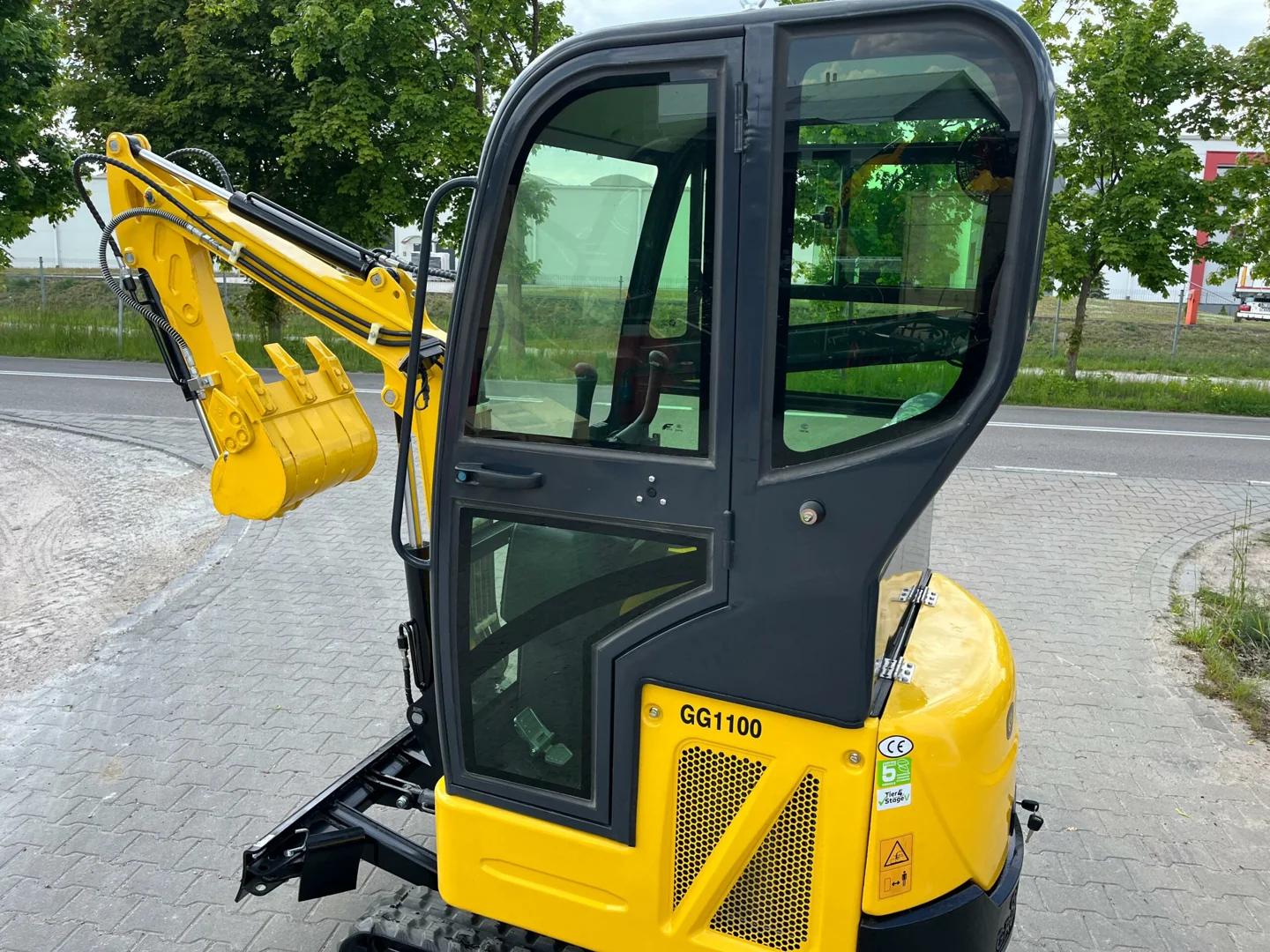

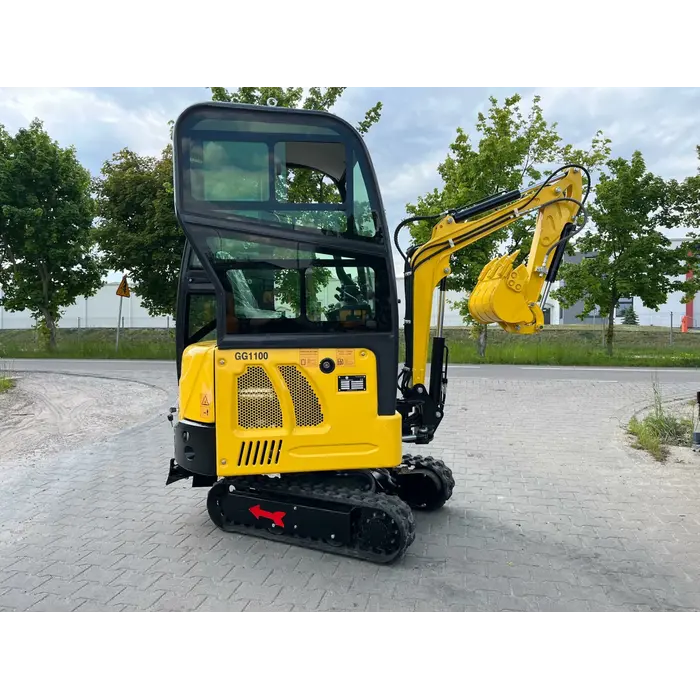

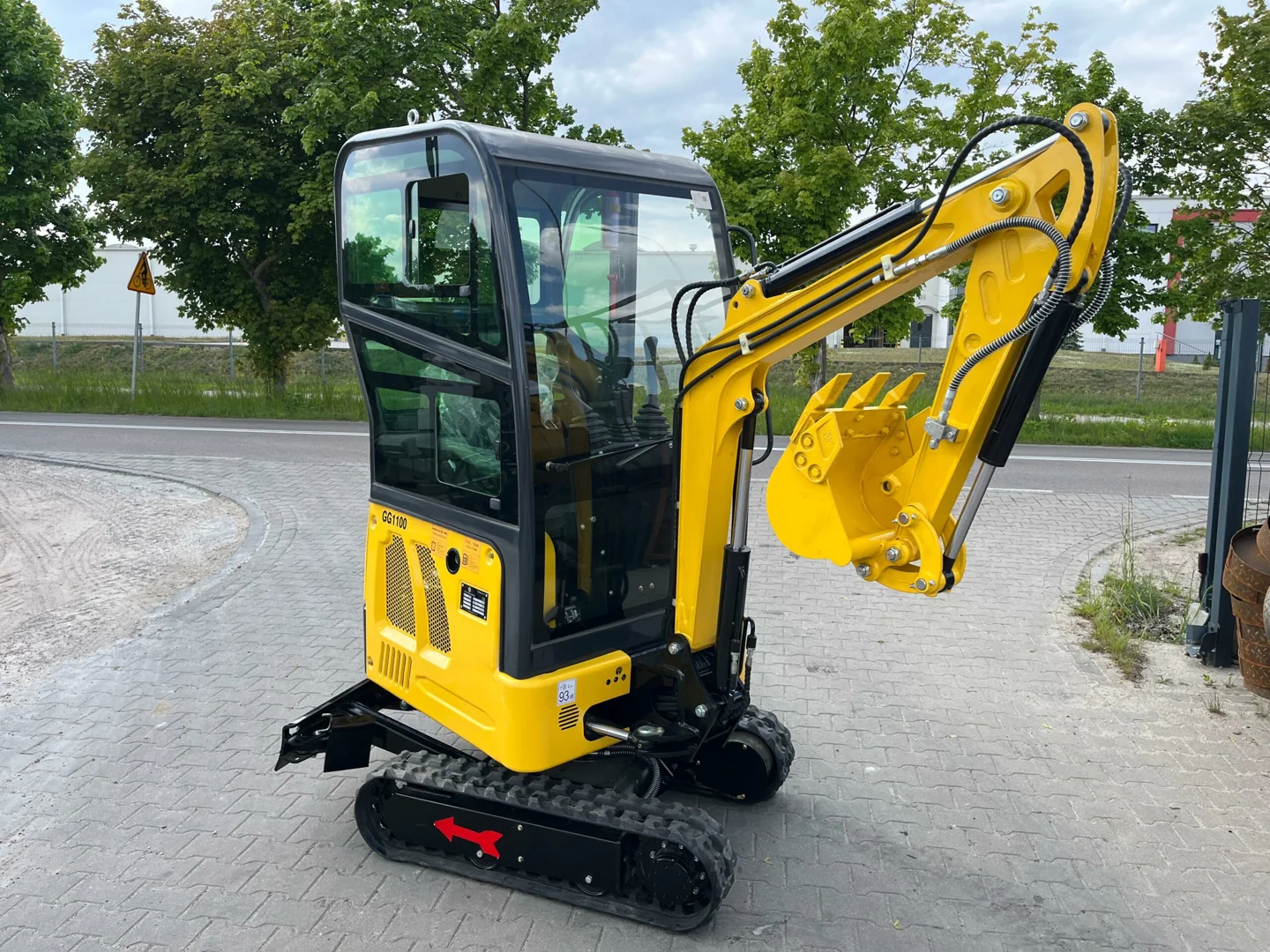

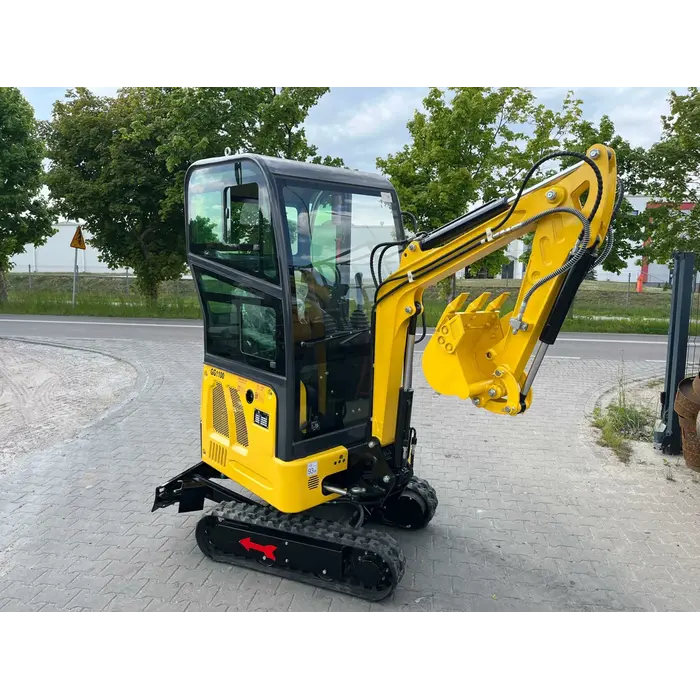

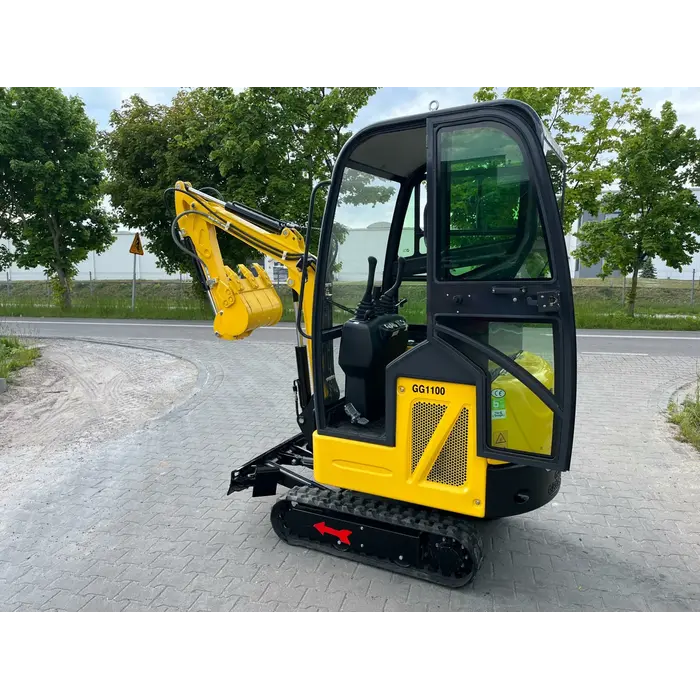

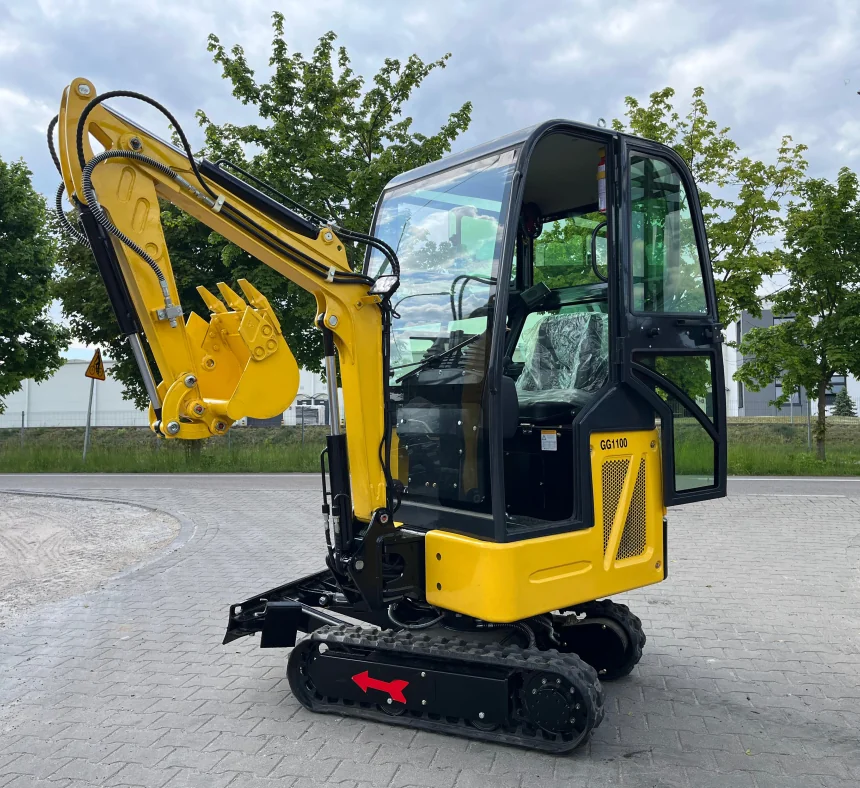

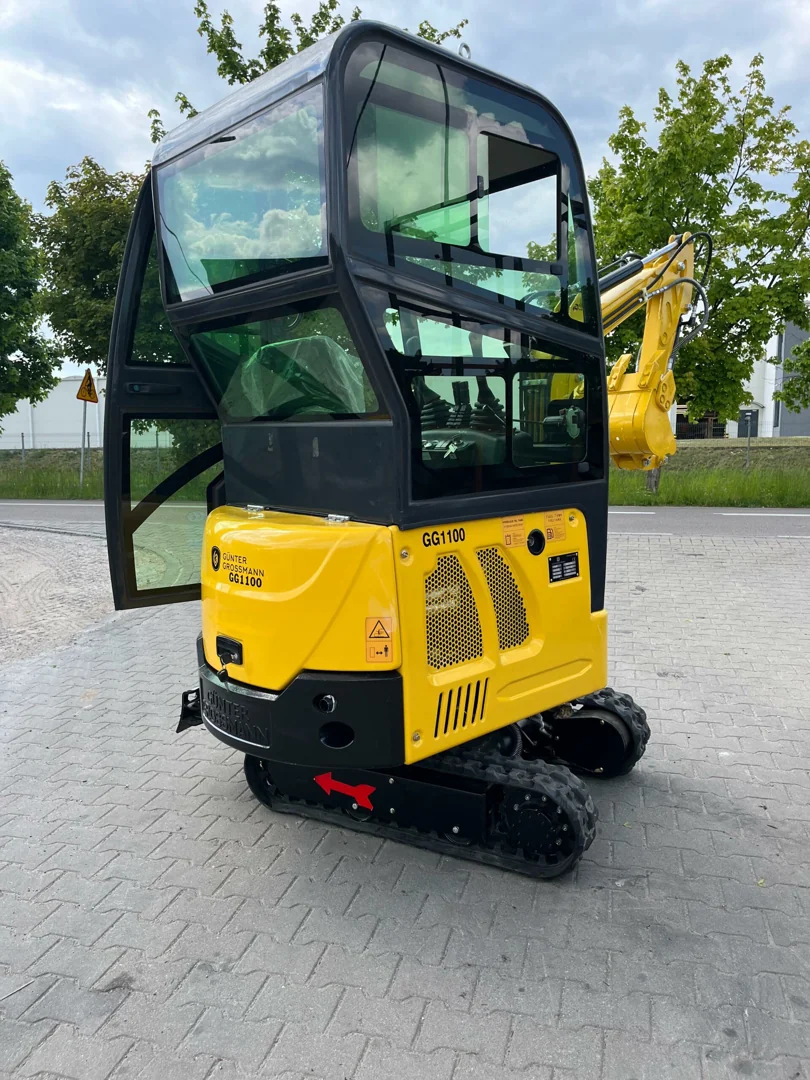

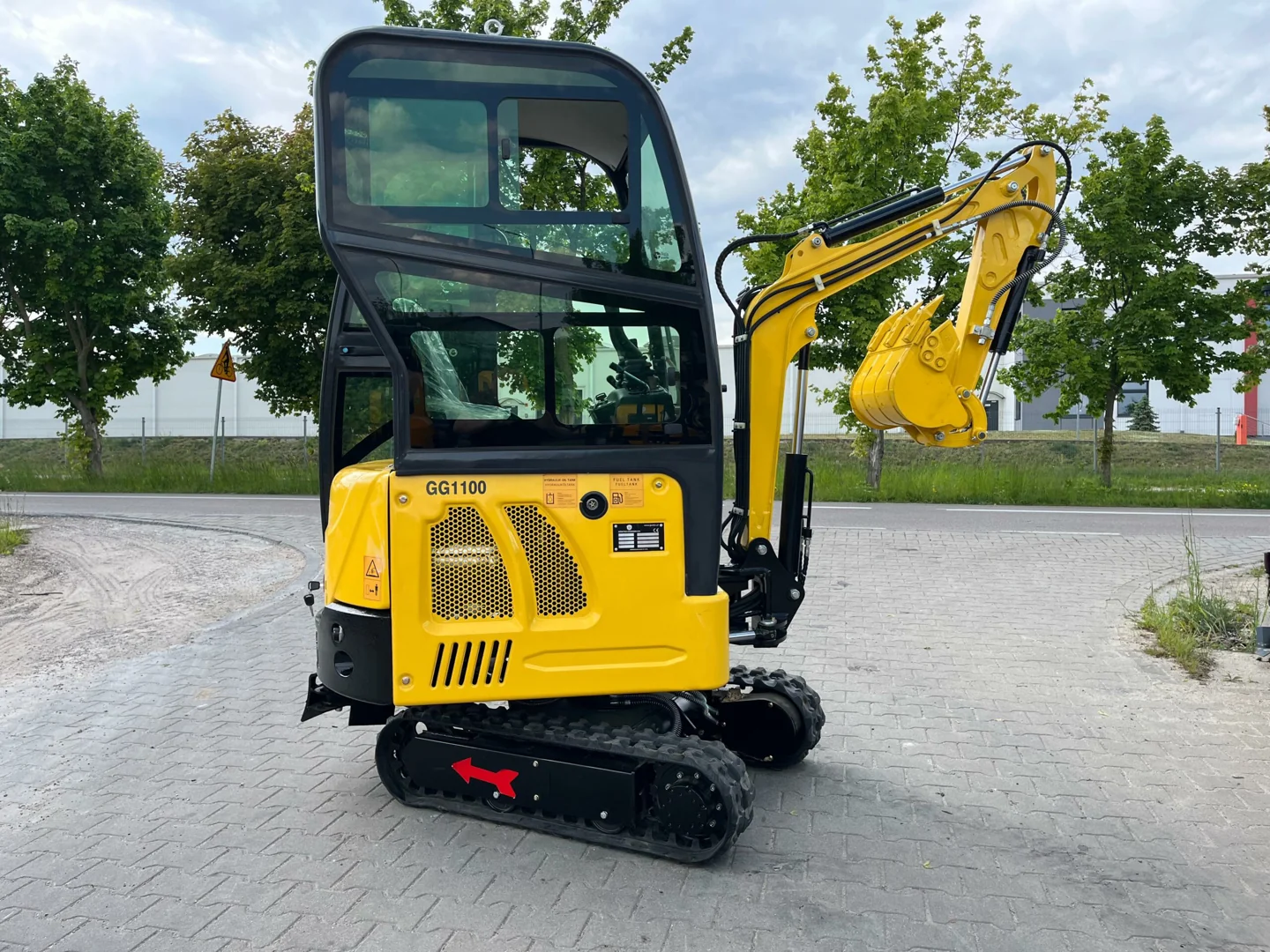

The GG1100C is a compact and powerful mini excavator with a fully enclosed cab for comfort and safety in all weather conditions. Equipped with a 15 hp Kubota engine and advanced hydraulics, it is ideal for demanding construction tasks in confined or heavy environments.
The GG1100C is a compact and powerful mini excavator with a fully enclosed cab for comfort and safety in all weather conditions. Equipped with a 15 hp Kubota engine and advanced hydraulics, it is ideal for demanding construction tasks in confined or heavy environments.
Kubota engine – Reliable & Fuel-efficient

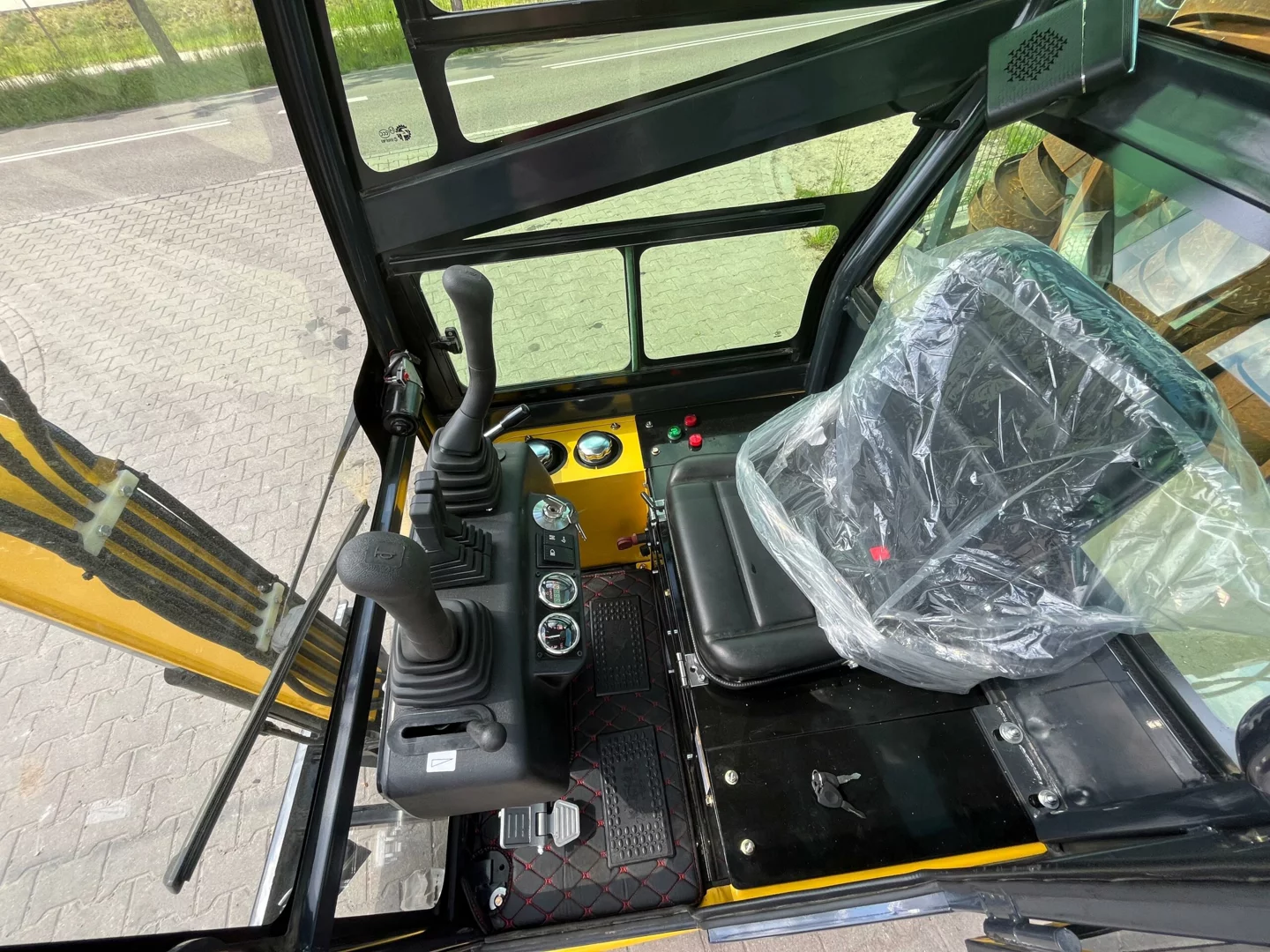

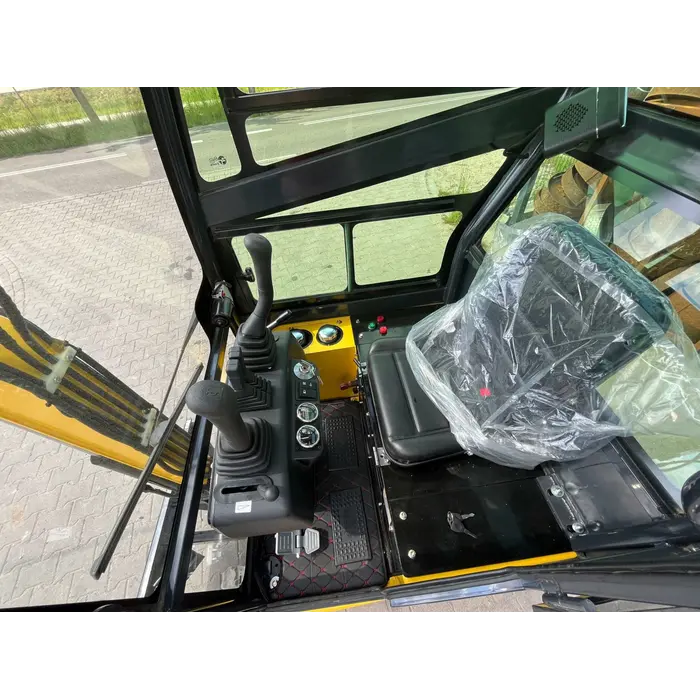

Powered by a 15 hp Kubota engine, the GG1100C delivers strong, fuel-efficient performance. The enclosed cab protects the operator from weather, dust, and noise—perfect for year-round work.
Mobility – Swing Boom & Extendable Tracks
The swing boom and extendable tracks ensure superior maneuverability and stability, enabling work in narrow or uneven terrain while maintaining full cab comfort.
Hydraulic Force – 16 MPa Precision
The Wanye hydraulic pump delivers 16 MPa for powerful and precise digging performance—ideal for tasks such as foundation work, trenching, and leveling.
Working range – Designed for versatility
The GG1100C offers a digging depth of 1,650 mm, a digging height of 2,610 mm, a digging radius of 2,890 mm, and 360° rotation. The dozer blade lifts up to 345 mm and digs up to 255 mm—perfect for terrain modeling and terrain preparation.
Technical Data
Operating weight: 1100 kg
articulated boom yes
Extendable tracks yes
Bucket capacity for digging: 0.025 cbm / 120 kg
Tray width: 340 mm
Engine: Kubota
Nominal power: 15 hp
Main pump: Wayne Hydraulic
Rotary motor: Dali
Rotary motor: Dali
Driving speed: 1.5 km/h
Maximum digging depth: 1650 mm
Maximum digging height: 2610 mm
Maximum digging radius at ground level: 2890 mm
Rotation range: 360°
Maximum blade lift: 345 mm
Maximum leaf digging depth: 255 mm
Length: 2770 mm
Width: 896 mm
Height: 2100 mm
Wheelbase: 770 mm
Total track length: 960 mm
