Günter Grossmann Günter Grossmann GG800 mini Excavator

GG800
€7.139,00
Günter Grossmann GG800 mini Excavator Very durable, strong new excavator model: GG800 from the international brand Günter Grossmann. Every Günter Grossmann machine is covered by the company guarantee. Model GG800 is a great machine for the most demanding ...More information

Product description

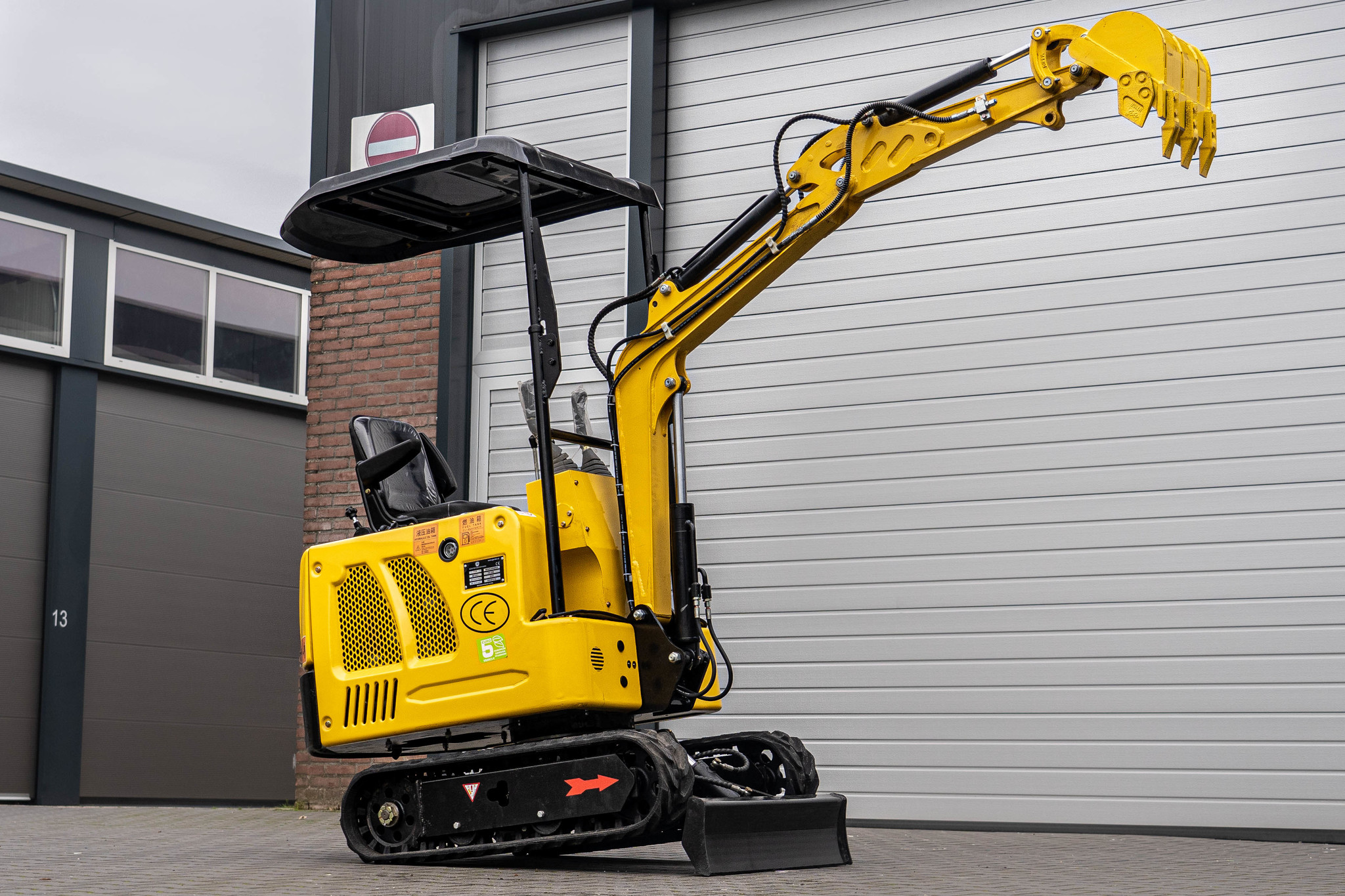

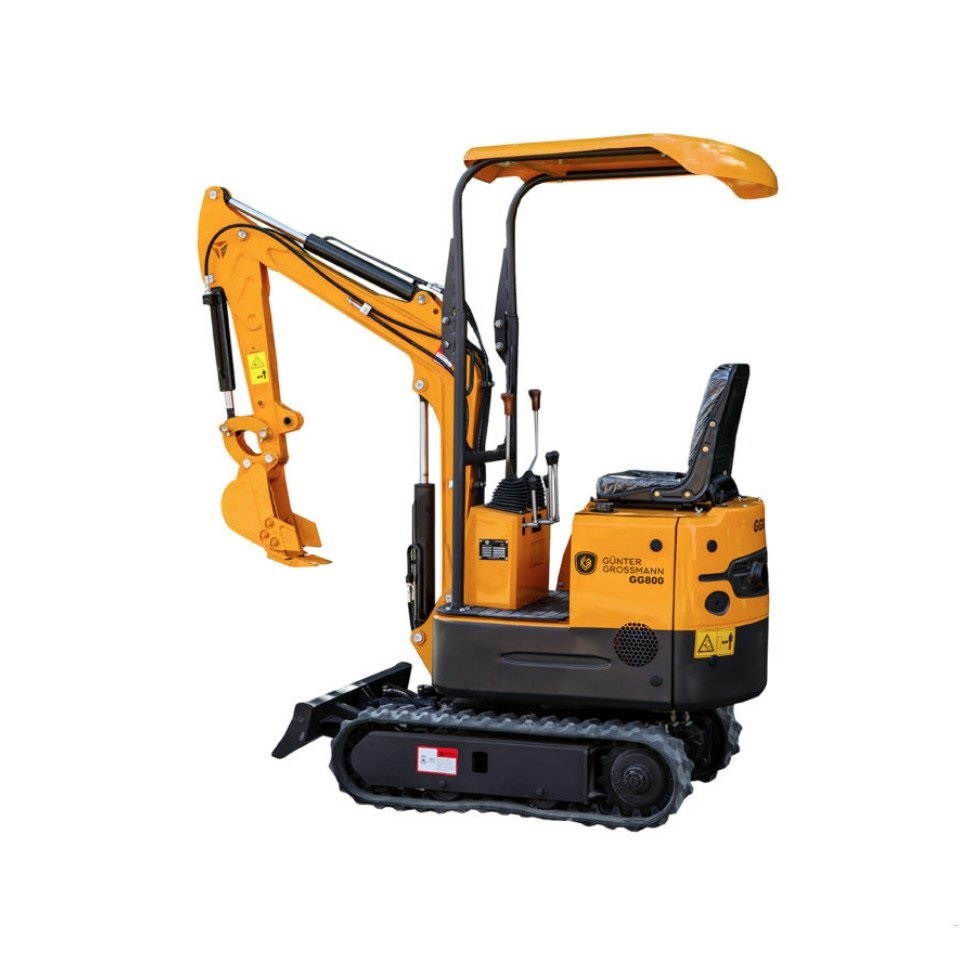

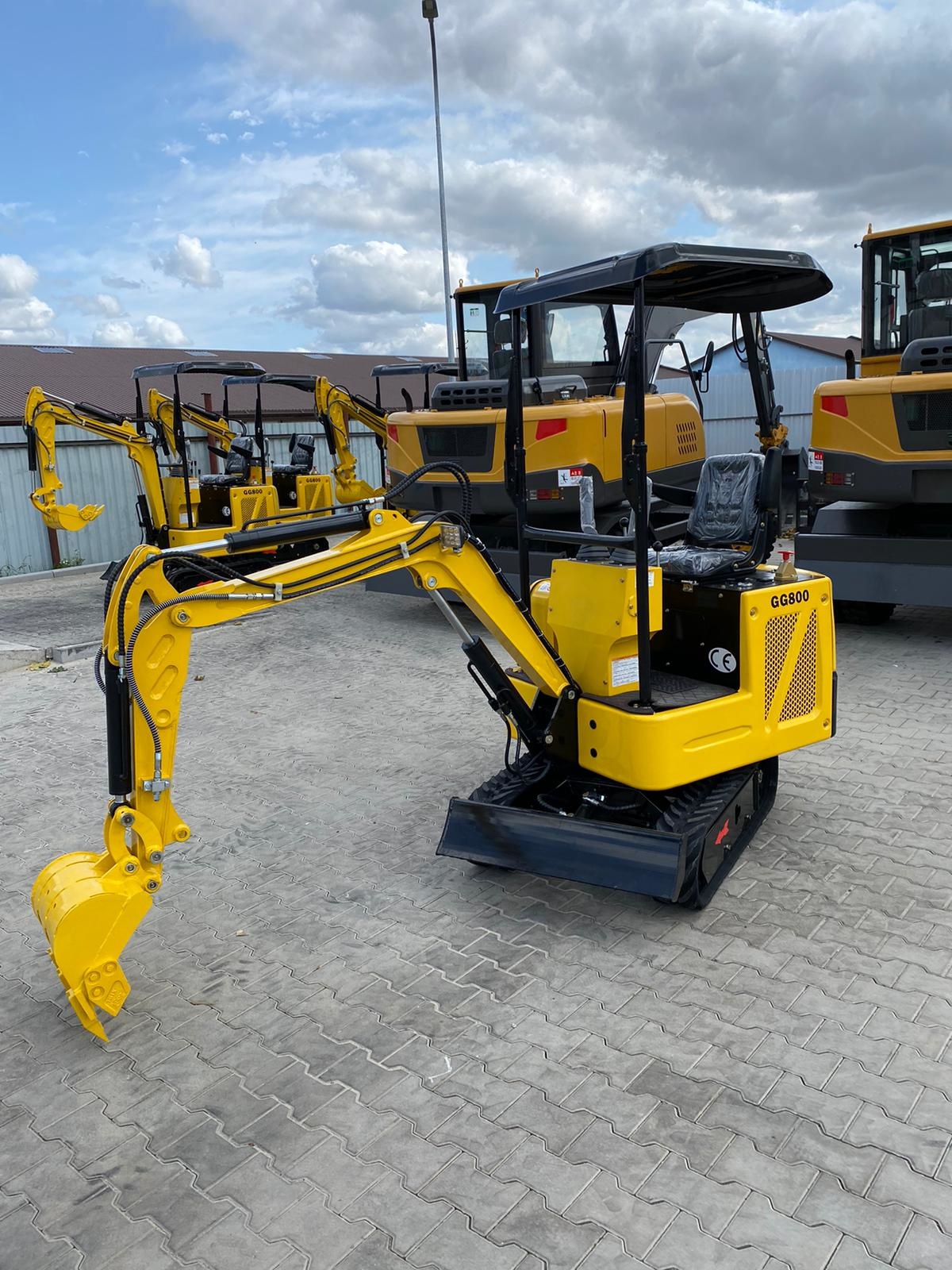

Günter Grossmann GG800 mini Excavator

A Very durable, strong new excavator model: GG800 from the international

brand Günter Grossmann.

Every Günter Grossmann machine is covered by the company guarantee.

Model GG800 is a great machine for the most demanding construction, electrical and plumbing companies.
We guarantee after-warranty service.
The excavator is manufactured on the basis of solid European technology in Asian countries.

It is powered by a 1-cylinder 8.6 kW diesel engine with a consumption of 1-2 liters / hour, depending on usage.

The machine can reach a maximum digging depth of 1650 mm. Its own weight is only 1000 kg.

The machine is equipped with a 1-speed transmission that can reach a speed of 1.5 km / h.

Standard equipment is a 38 cm wide bucket, additional accessories for the machine can be purchased.

SPECIFICATIONS



    • Model: GG800
    • Brand: Günter Grossmann
    • Weight: 1000kg
    • Bucket capacity: 0.025 m³
    • Bucket dimensions: 2000mm, 380mm, 500mm
    • Engine: Diesel Buy Euro 5
    • Motor power: 8.6 kw / 3600r / min
    • Main pump: Wanye Hydraulic
    • Hydraulic pressure: 16mpa
    • Swing motor: Dali
    • Drive motor: Dali
    • Driving speed: 1.5km / h


DIMENSIONS

    • Dimensions (LxWxH): 2770x896x1490 mm
    • Track length: 1230 mm
    • Chassis width: 930 mm
    • Track width: 200 mm
    • Ground clearance: 132 mm
    • Track height: 320 mm


WORKING RANGE

    • Max. dig depth: 1650 mm
    • Max. dig height: 2610 mm
    • Max. dump height: 1850 mm
    • Max. dig radius on the ground: 2890 mm
    • Rotation radius: 360 °
    • Max. Upgrade height of bulldozer blade: 345mm
    • Max. digging depth of bucket: 255 mm



ACCESSORIES

    • ground Drill
    • Grapple
    • Digging tooth
    • Rake
    • Narrow box 200 mm
    • Narrow box 380 mm
    • Leveling tray 500mm
    • Leveling tray 800mm
    • Shortcut
    • demolition hammer
