Hydr. tracked dumper VH500DA (Diesel)
Hydr. tracked dumper VH500DA (Diesel)

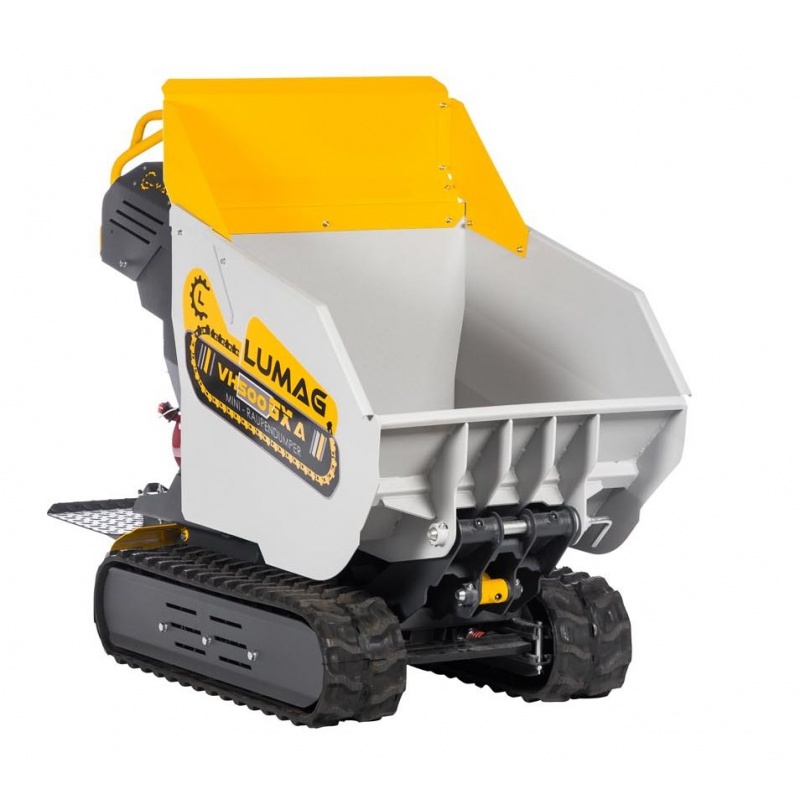

This mini track dumper from the VH500DA series with tipper body is fully hydraulic.

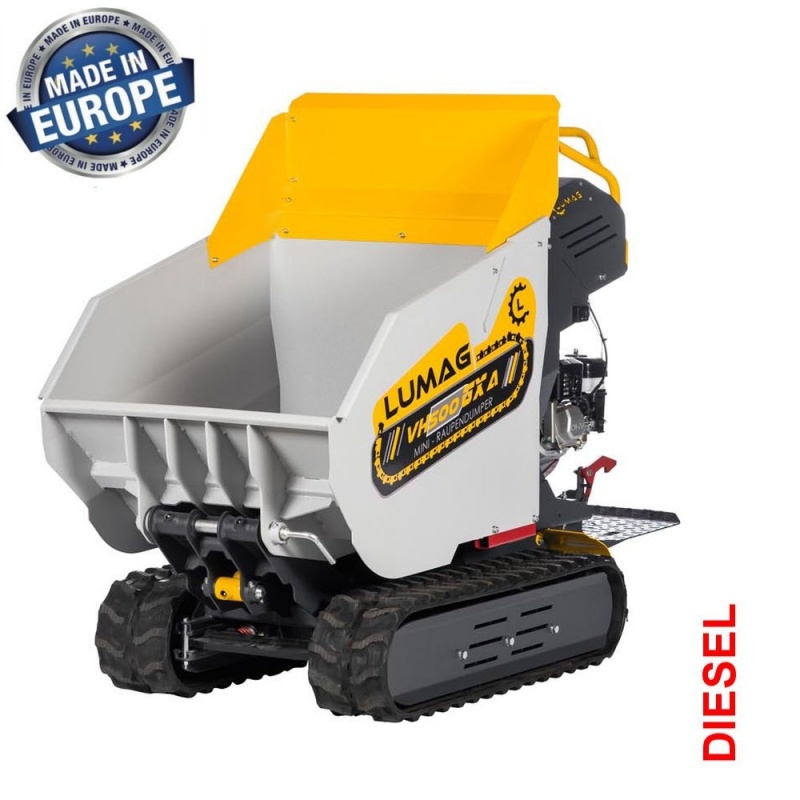

The VH500DA is a quality product produced in Europe.
The track dumpers are available with three different engines.
A Loncin or Honda petrol engine or a Loncin diesel engine.
The VH500DA has a 6.7 hp (349 cm3) Loncin diesel engine.
The maximum loading capacity is 500kg.

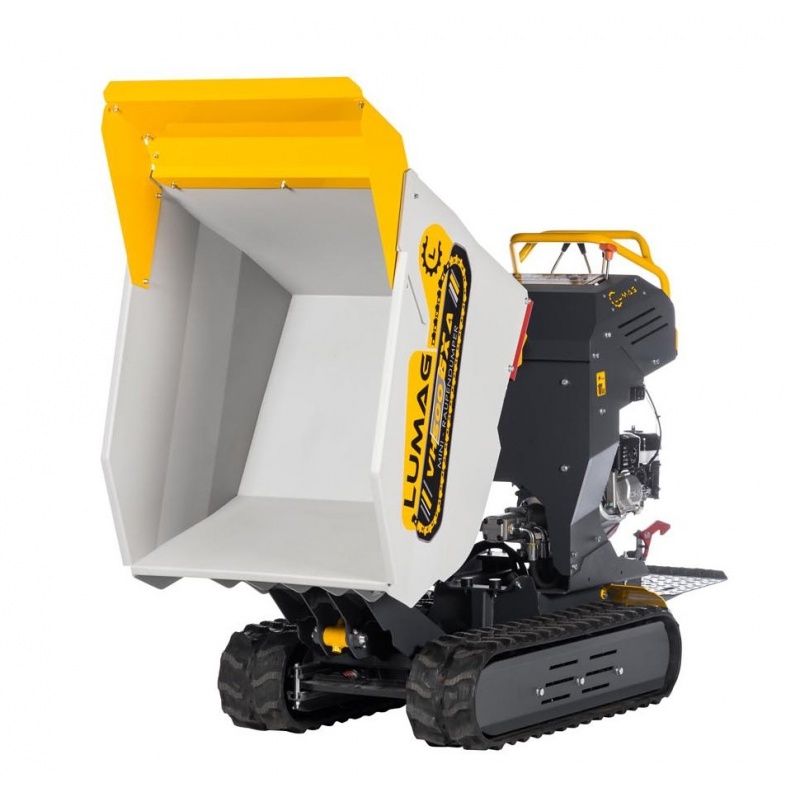

The tipping is completely hydraulic.
The caterpillar drive ensures that you can transport your materials on any surface.
The machine is 73.5 cm wide and can therefore go through any door or gate!
The tipper body dimensions are (LxWxH) 855x680x550 mm.
The own weight of the machine is 310kg.
The drive of the track dumpers is hydrostatic and turning is simple and fully hydraulic. There is a platform on the back of the machine on which you can stand.

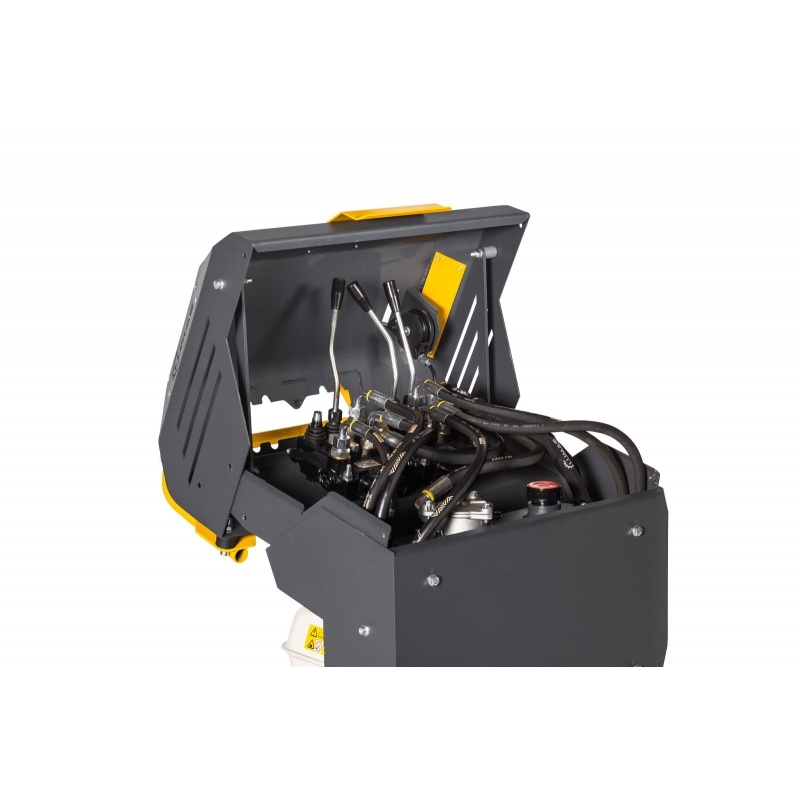

The machine is equipped with a double hydraulic pump (10L / min at 3000 rpm), two hydro motors (both 720 Nm max at 180 Bar).
The maximum working pressure is 180 bar.
The strong and massive construction in combination with a powerful hydraulic pump and an ergonomically developed operating platform make this dumper series your ideal aid.
Engine type Air-cooled 1-cyl. 4-stroke OHV petrol engine
Max. power 6.7 hp
Cylinder capacity 349 cm3
Motor manufacturer Loncin (3 year warranty!)
Max. speed 3,600 min-1
Tank capacity 3.6 liters
Fuel type Diesel
Start system Pull starter
Noise level LWA 106 dB (A)
Cargo box dimensions (L x W x H) 855x680x550mm
Loading capacity approx. 0.25 m3
Max. load capacity 500 kg
Hydraulic self loading system No.
Tilting mechanism Hydraulic, forward
Hydraulic pump yes, 2 pieces 10L / min each. (at 3,000 rpm.)
Drive Hydrostatic
Hydromotors Both 720 Nm at 180 Bar
Rotate full hydraulic / control valve
Handbrake Automatic safety brake
Speed adjustable Yes, variable
Max. reverse speed 3.2 km / h
Max. speed forward 4.5 km / h
Working pressure max. 180 bar
Ground clearance 65mm
Driver's platform Yes
Max. motor inclination 15 degrees
Machine dimensions (L x W x H) 1495 x 735 x 1224mm
Track dimensions (L x W x H) H: 255mm, W 180mm
Packaging sizes (L / W / H) 1550 x 850 x 1250mm
Weight approx. 330 kg
Art. No. VH500DA
EAN code 40447424009284
