Hydr. tracked dumper VH500PRODA (Diesel)

Hydr. tracked dumper VH500PRODA (Diesel)

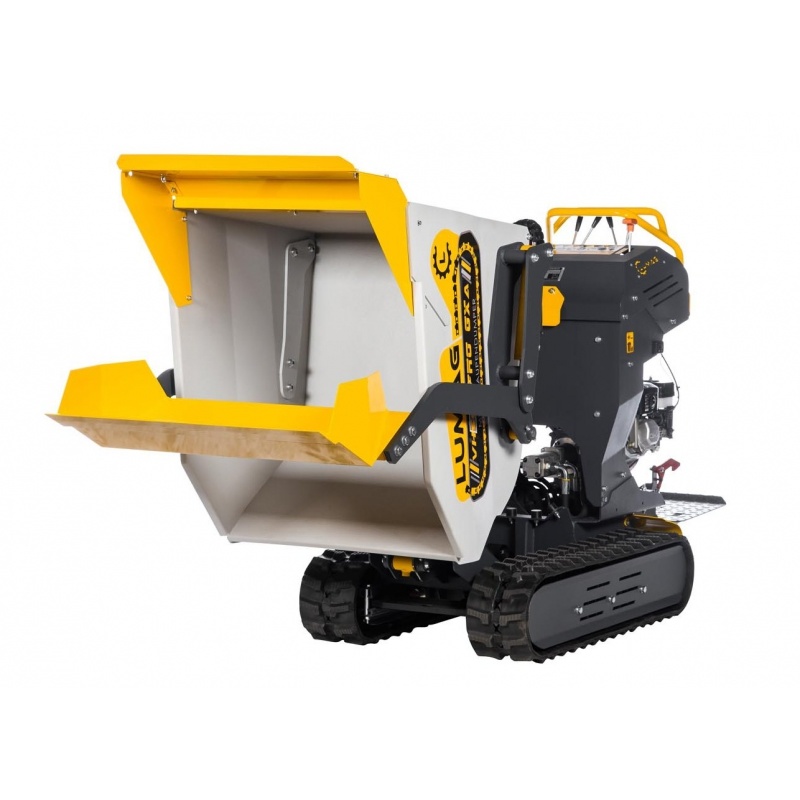

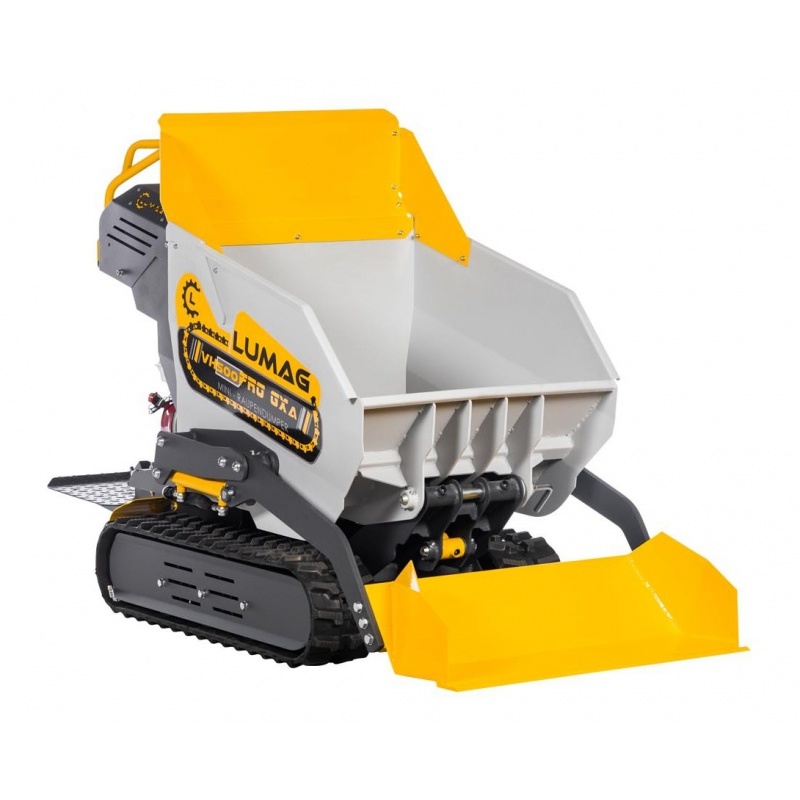

These mini crawler dumper from the VH500PRODA series with a tilting bucket and self-loading bucket are fully hydraulic. The VH500A series is a quality product produced in Europe.

The track dumpers are available with three different engines.

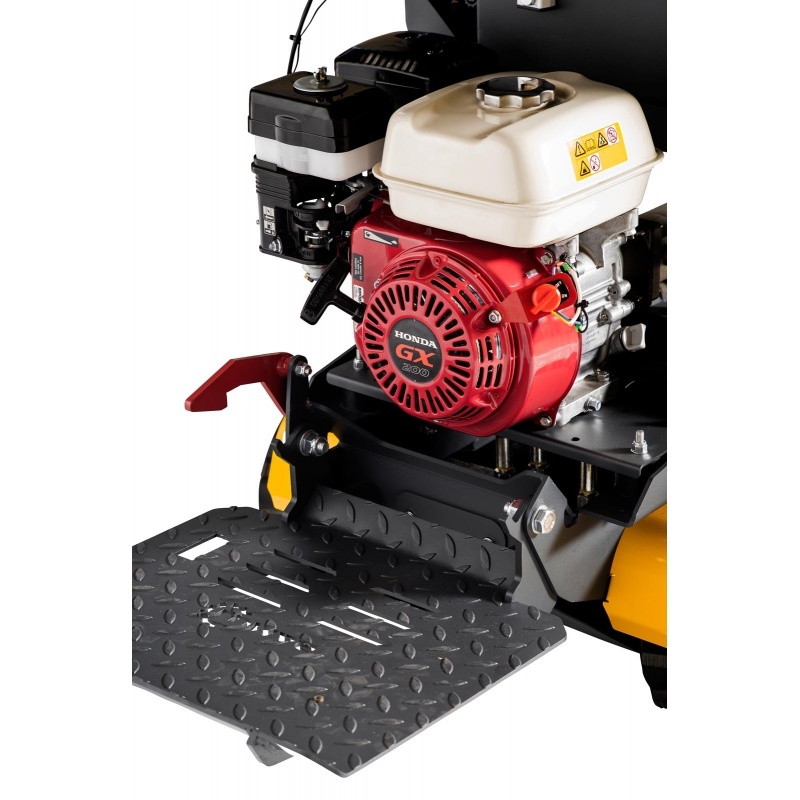

The Lumag VH500PRODA comes with a 6.7 HP LONCIN diesel engine.
The maximum loading capacity is 500kg. The tipping is completely hydraulic.
The loading shovel to load the dumper is also hydraulically operated.
This loading shovel is only suitable for loading the bucket with, for example, sand and gravel.
The caterpillar drive ensures that you can transport your materials on any surface.

The machine is 85 cm wide and can therefore go through a door or gate!
The tipper body dimensions are (LxWxH) 855x680x550 mm.
The own weight of the machine is 380kg.

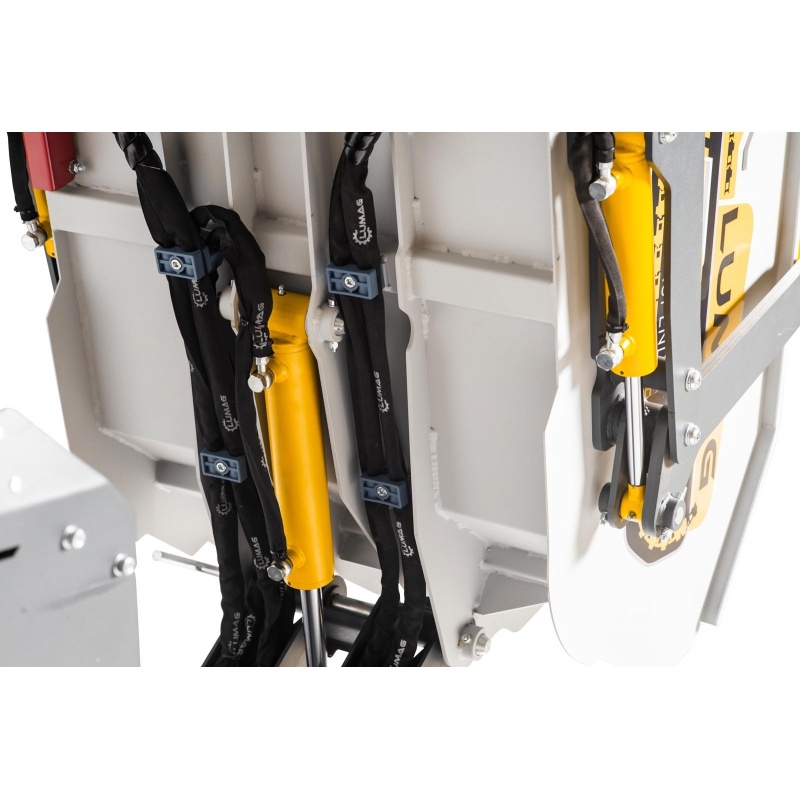

The drive of the track dumpers is hydrostatic and turning is simple and fully hydraulic. There is a platform on the back of the machine on which you can stand.

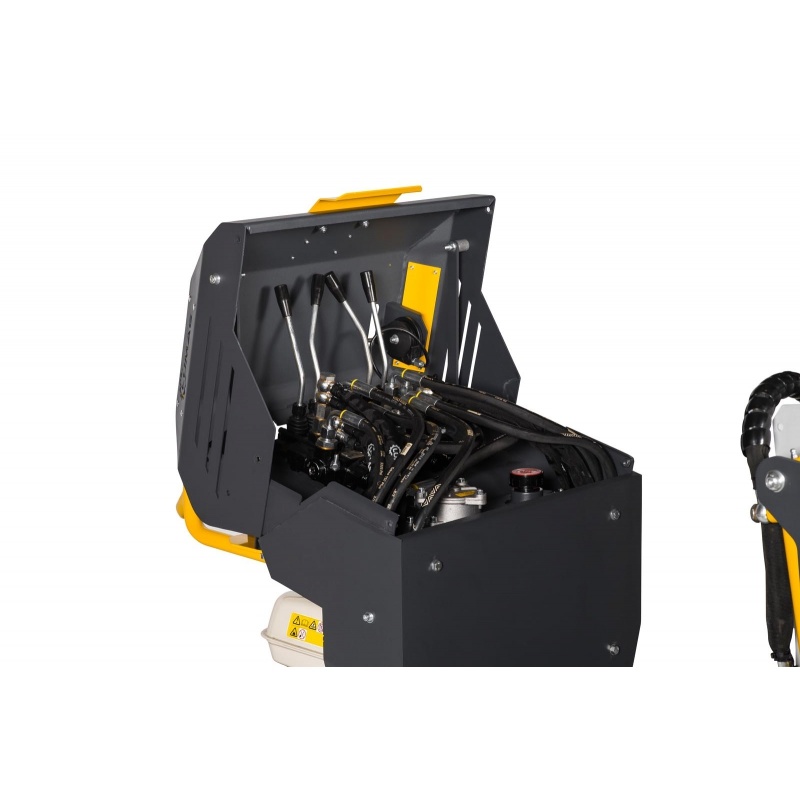

The machine is equipped with a double hydraulic pump (10L / min at 3000 rpm), two hydro motors (both 720 Nm max at 180 Bar).
The maximum working pressure is 180 bar.

The strong and massive construction in combination with a powerful hydraulic pump and an ergonomically developed operating platform make this dumper series your ideal aid.

Engine type Air-cooled 1-cyl. 4-stroke diesel engine
Max. power 6.7 hp
Cylinder capacity 349 cm3
Motor manufacturer LONCIN
Max. speed 3,600 min-1
Tank capacity 3.6 liters
Fuel type Diesel
Start system Pull starter
Noise level LWA 106 dB (A)
Cargo box dimensions (L x W x H) 855 x 680 x 550mm
Loading capacity approx. 0.25 m3
Max. load capacity 500 kg
Hydraulic self loading system Yes, top side
Tilting mechanism Hydraulic, forward
Hydraulic pump yes, 2 pieces each 12L / min. (at 3,000 rpm.)
Drive Hydraulic
Hydromotors Both max. 720 nm.
Oil cooler No.
Rotate full hydraulic / control valve
Handbrake Automatic safety brake
Speed adjustable Yes, variable
Max. speed forward 3.2 Km / h
Max. speed reverse 4.5 Km / h
Ground clearance 65mm
Working pressure max. 180 bar
Climbing ability 15 degrees
Driver's platform Yes
Machine dimensions (L x W x H) 1890x850x1224mm
Weight approx. 380 kg
Art. No. VH500PRODA
Packaging sizes (L / W / H) 1550 x 850 x 1250mm
EAN code 4047424009949
