Lumag Hydr. tracked dumper VH500PROGXA

VH500PROGXA
€6.692,00
Hydr. track dumper VH500PROGXA This mini track dumper from the VH500PROGXA series with tipper body and loading shovel is fully hydraulic. The VH500A series is a quality product produced in Europe. The track dumpers are available with three different engin ...More information

Product description

  • Brand:Lumag
  • EAN:40447424009263
  • Article number:VH500PROGXA

Hydr. tracked dumper VH500PROGXA

This mini crawler dumper from the VH500PROGXA series with tipper body and loading shovel is fully hydraulic.
The VH500A series is a quality product produced in Europe.
The track dumpers are available with three different engines.
A Loncin or Honda petrol engine or a Loncin diesel engine.

The VH500GXA has a 5.5 HP (196 cm3) Honda petrol engine.
The maximum loading capacity is 500kg.
The tipping is completely hydraulic.
The caterpillar drive ensures that you can transport your materials on any surface.
The tipping is completely hydraulic. The loading shovel to load the dumper is also hydraulically operated.
This loading shovel is only suitable for loading the bucket with, for example, sand and gravel.
The caterpillar drive ensures that you can transport your materials on any surface.

The machine is 85 cm wide and can therefore go through any door or gate!
The tipper body dimensions are (LxWxH) 855x680x550 mm.
The own weight of the machine is 360kg.
The drive of the track dumpers is hydrostatic and turning is simple and fully hydraulic. There is a platform on the back of the machine on which you can stand.
The machine is equipped with a double hydraulic pump (10L / min at 3000 rpm), two hydro motors (both 720 Nm max at 180 Bar). The maximum working pressure is 180 bar.

The strong and massive construction in combination with a powerful hydraulic pump and an ergonomically developed operating platform make this dumper series your ideal aid.

Engine type Air-cooled 1-cyl. 4-stroke OHV petrol engine
Max. power 5.5 hp
Cylinder capacity 196 cm3

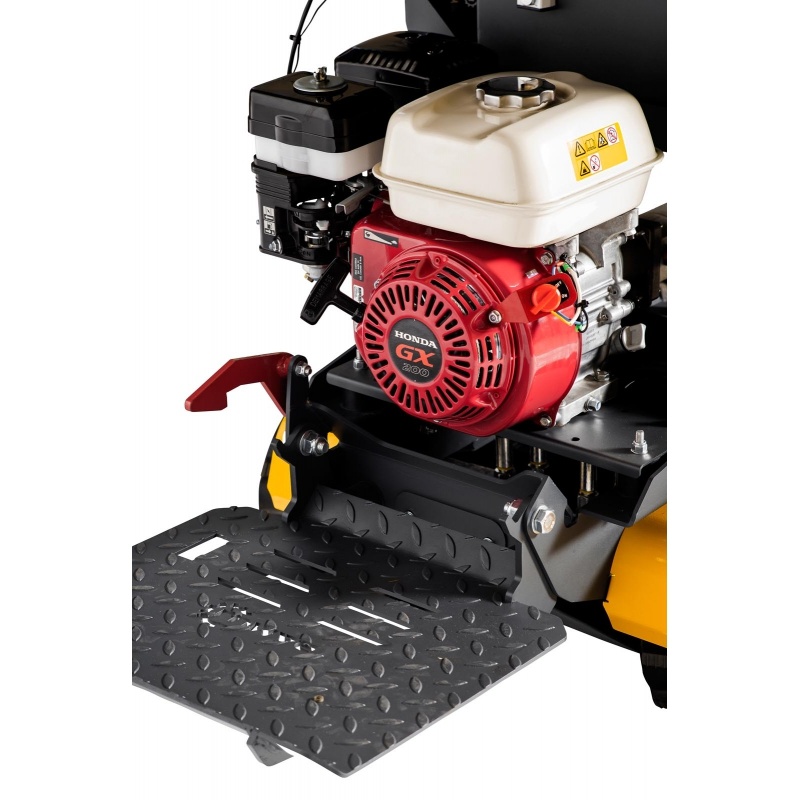

Engine manufacturer Honda (type GX200)
Max. speed 3,600 min-1
Tank capacity 3.6 liters
Fuel type Euro unleaded petrol
Start system Pull starter
Noise level LWA 106 dB (A)
Cargo box dimensions (L x W x H) 855x680x550mm
Loading capacity approx. 0.25 m3
Max. load capacity 500 kg
Hydraulic self loading system No.
Tilting mechanism Hydraulic, forward
Hydraulic pump yes, 2 pieces 10L / min each. (at 3,000 rpm.)
Hydraulic drive
Hydromotors Both 720 Nm at 180 Bar
Rotate full hydraulic / control valve
Handbrake Automatic safety brake
Speed adjustable Yes, variable
Max. reverse speed 3.2 km / h
Max. speed forward 4.5 km / h
Working pressure max. 180 bar
Ground clearance 65mm
Driver's platform Yes
Max. motor inclination 15 degrees
Machine dimensions (L x W x H) 1890 x 850 x 1224mm
Track dimensions (L x W x H) H: 255mm, W 180mm
Packaging sizes (L / W / H) 1550 x 850 x 1250mm
Weight approx. 360 kg
Art. No. VH500PROGXA
EAN code 40447424009263
