Description

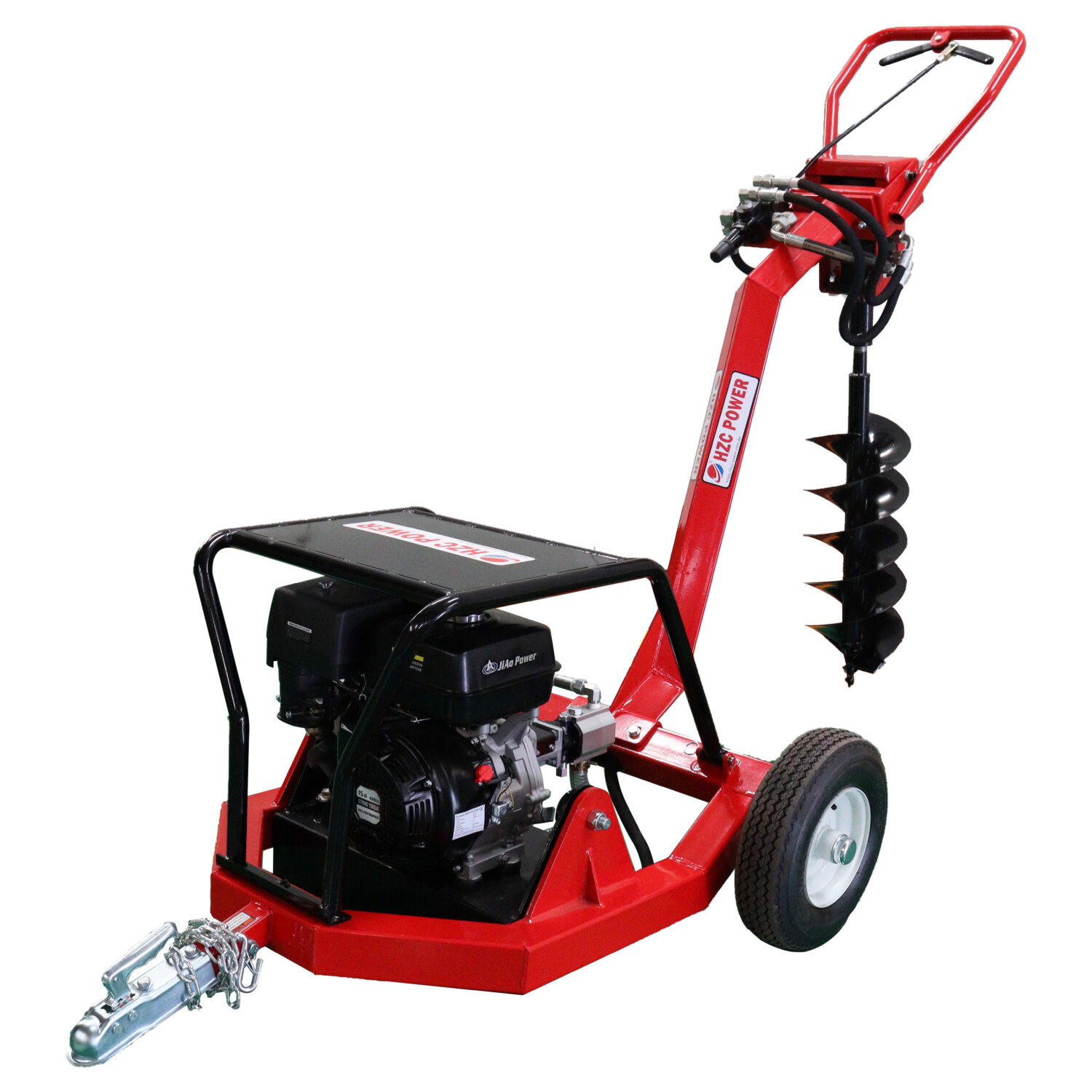

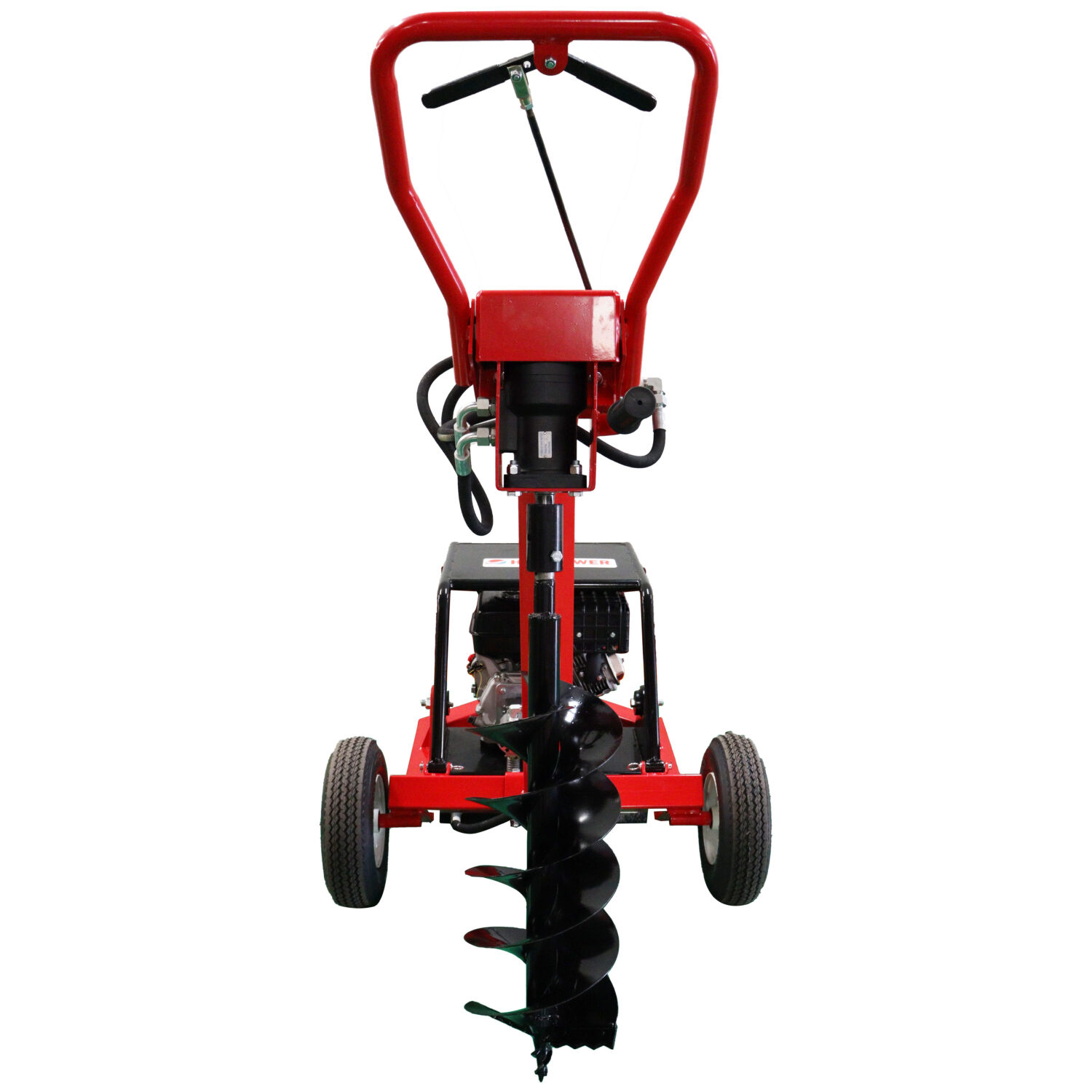

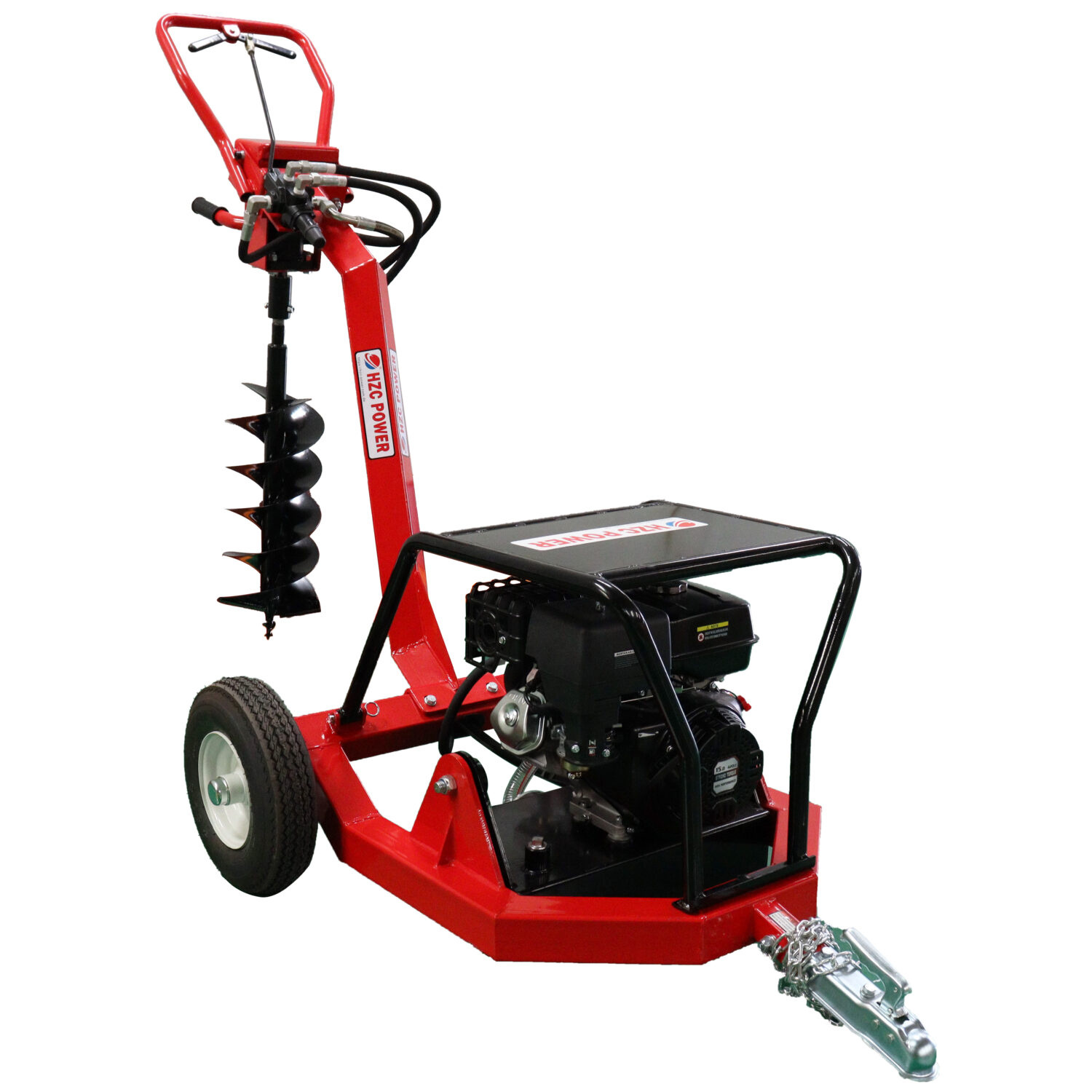

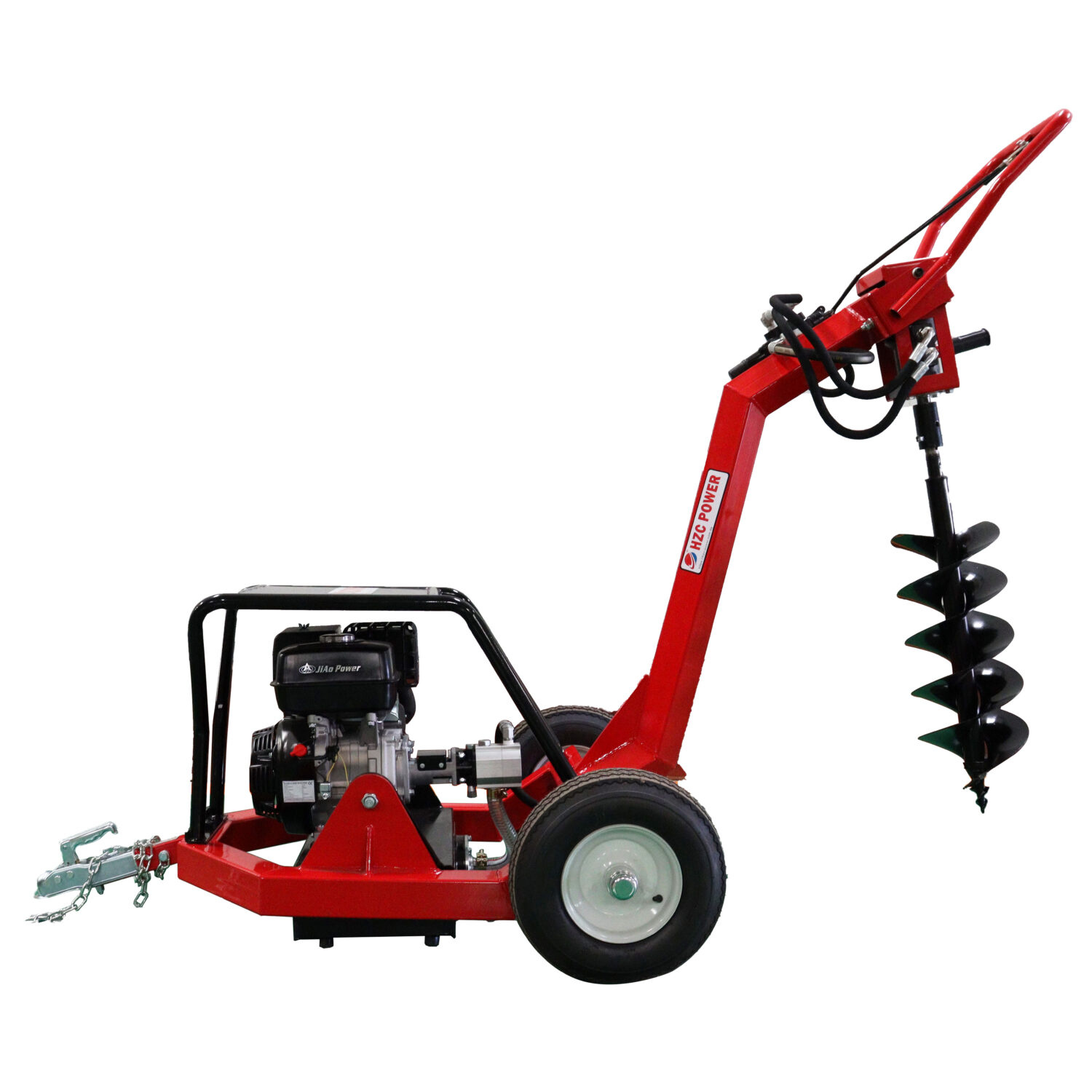

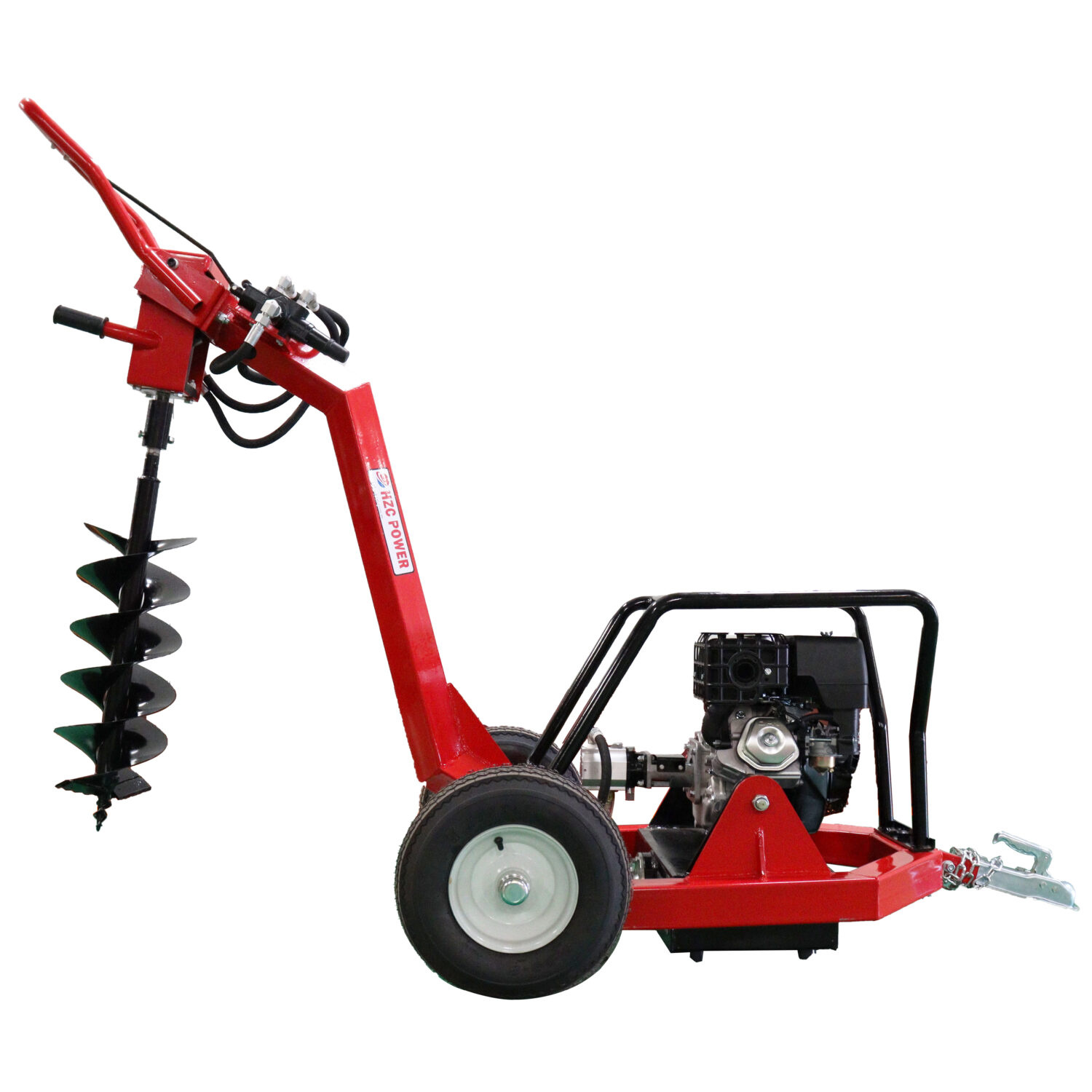

Hydraulic ground drill, pendulum drill with petrol engine & drill set (BEB206)

The BEB206 is a unique commuter. It must be taken into account when maintaining a garden or shed . A maximum of 1 meter is possible.

The pendulum drill has a 15 hp engine, which runs exclusively on petrol.

The auger in the BEB206 embodies the rights of the individual. A rotating motion and pressure from above press the auger into the ground. The HZC Power Pendulum Drill was used with augers with diameters of 125 mm, 150 mm, 200 mm, 250 mm, and 300 mm , making them easily adjustable in length. The rubber tires make the auger flexible yet stable. The machine is easy to assemble and operate .

Model: BEB206
Engine: 15 hp, petrol
Drilling depth: Max. 1 m
Hydraulic oil capacity: 16 l
Weight: 206 kg
Maximum flow rate: 13.64 liters per minute
Pressure relief setting: 137.90 bar
Hydraulic motor speed: 55 revolutions per minute (rpm)
Torque of the hydraulic motors: 429.34 Nm
Product dimensions: 2.92 m x 1.04 m x 1.55 m
Package dimensions: 2.20 m x 1.13 m x 0.87 m
Shipping weight: 226 kg

Scope of delivery

Ground drilling rig BEB206
Drill with a diameter of 300 mm
Drill with a diameter of 250 mm
Drill with a diameter of 200 mm
Drill with a diameter of 150 mm
Drill with a diameter of 125 mm
