HZC log splitter HS12288, 12 t, 53cm, horizontal, petrol engine
HZC log splitter HS12288, 12 t, 53cm, horizontal, petrol engine
HS12288 – 12 t horizontal petrol log splitter with 53 cm splitting length

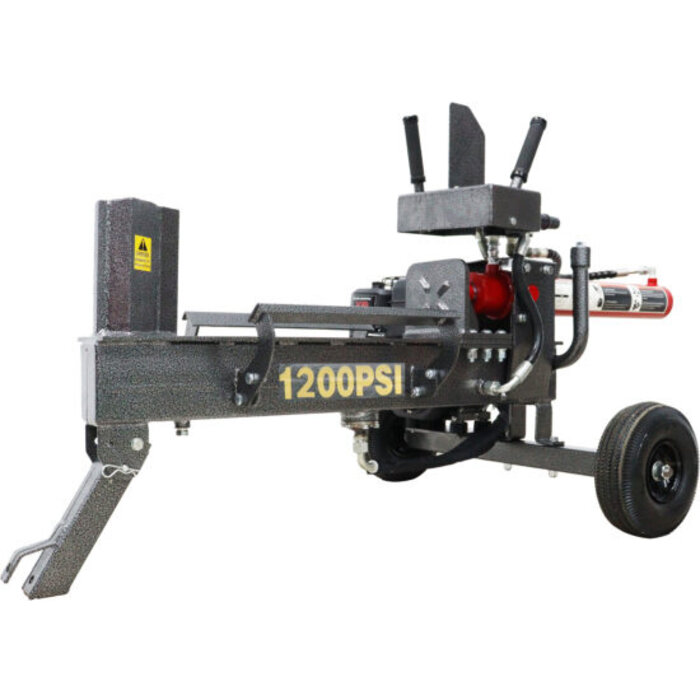

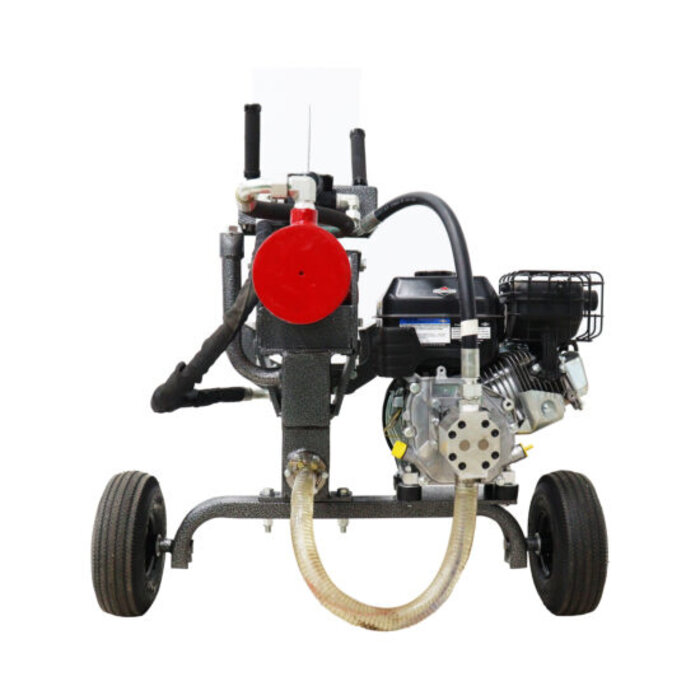

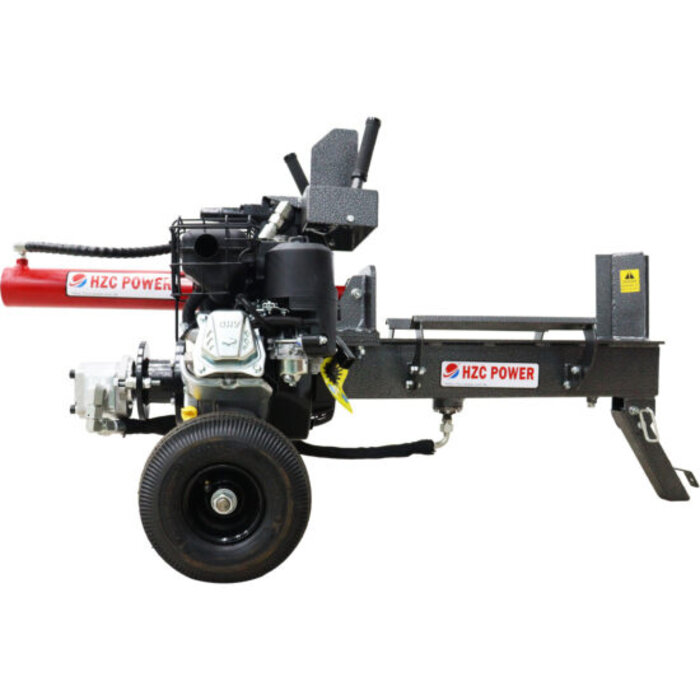

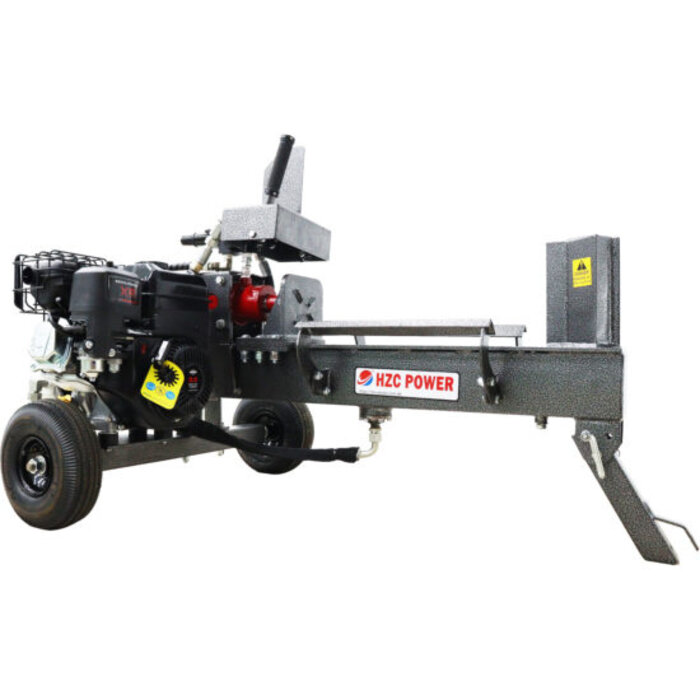

The HS12288 log splitter from HZC Power boasts a splitting force of 12 tons and a maximum splitting length of 530 mm. The 6.5 hp gasoline engine provides ample power and efficient operation, while the splitting cycle of just 11 seconds guarantees rapid wood processing. The machine operates in a horizontal position and is equipped with a fixed splitting wedge/cross, which presses the wood against the wedge via the cylinder. Two-handed operation ensures added safety.
HS12288 – 12 t horizontal petrol log splitter with 53 cm splitting length
The HS12288 log splitter from HZC Power boasts a splitting force of 12 tons and a maximum splitting length of 530 mm. The 6.5 hp gasoline engine provides ample power and efficient operation, while the splitting cycle of just 11 seconds guarantees rapid wood processing. The machine operates in a horizontal position and is equipped with a fixed splitting wedge/cross, which presses the wood against the wedge via the cylinder. Two-handed operation ensures added safety.
Technical data
General data:
Manufacturer: HZC Power
Model: HS12288
Splitting force: 12 t
Maximum gap length: 530 mm
Fission cycle: 11 s
Oil pressure: 270 bar
Hydraulic oil capacity: 10 l (HLP46)
Product weight: 113 kg
Shipping weight: 140 kg
Assembled dimensions (L x W x H): 175 cm x 84 cm x 92 cm
Dimensions including packaging (L x W x H): 110 cm x 54 cm x 80 cm
Special features:
Riving knife: 15 cm x 20 cm (LxW)
Working position: Horizontal
Operation: 2-hand safety control
Splitting wedge/splitting cross: Fixed mounting, wood is pressed against the splitting wedge via the cylinder.
Motor:
Manufacturer: Jiao
Model: 6.5 hp / 208 cc
Engine technology: Single cylinder, 4-stroke, air-cooled, OHV (overhead valves)
Engine displacement: 208 cc
Cylinder: Cylinder with cast iron sleeve
Bore: 68.3 mm
Pitch: 55.9 mm
Fuel tank capacity: 3.1 l
Oil capacity: 0.6 l
Motor weight: 16 kg
Dimensions (W x L x H): 321 x 376 x 346 mm
Standard equipment
Splitting force: 12 t – For effortless splitting of wood up to 530 mm in length and a maximum diameter of 50 cm.
Recoil starter: Easy starting of the engine, even in cold temperatures.
Splitting wedge/splitting cross: Fixed mounting, ensures effective splitting without constant readjustment.
Hydraulic system: High-performance system with 270 bar oil pressure, ensuring high efficiency and durability.
Working position: Horizontal – allows for comfortable working while lying down.
Two-hand operation: For maximum safety when operating the log splitter.
Oil filter: Integrated oil filter for a longer service life of the device.
Robust frame: A stable frame ensures that the material to be split is held securely during the splitting process.
Compact dimensions: With a width of 84 cm, the log splitter can easily be transported on a trailer.
Engine: 6.5 HP petrol engine with 208 cc displacement for powerful splitting.
Integrated table surface: Provides additional space for storing pieces of wood during work.
Scope of delivery
The HS12288 from HZC Power comes with a comprehensive package to ensure a smooth start:
HS12288 log splitter: Pre-assembled, with a splitting force of 12 tons and a maximum splitting length of 530 mm.
Jiao gasoline engine (6.5 hp, 208 cc): Powerful 6.5 hp engine, already integrated and ready for use.
Splitting wedge/splitting cross: Permanently mounted for efficient and fast splitting work.
Two-hand safety control: For safe operation during use.
Tow hitch: Allows for easy transport on the farm or private property (please note that it is not road legal).
Hydraulic oil (HLP46): Already partially filled, easily refillable if required.
Operating instructions: Detailed and easy to understand, with all important information on assembly, operation and maintenance.
Transport packaging: The log splitter is securely packaged and delivered by freight carrier to avoid transport damage.
