Description

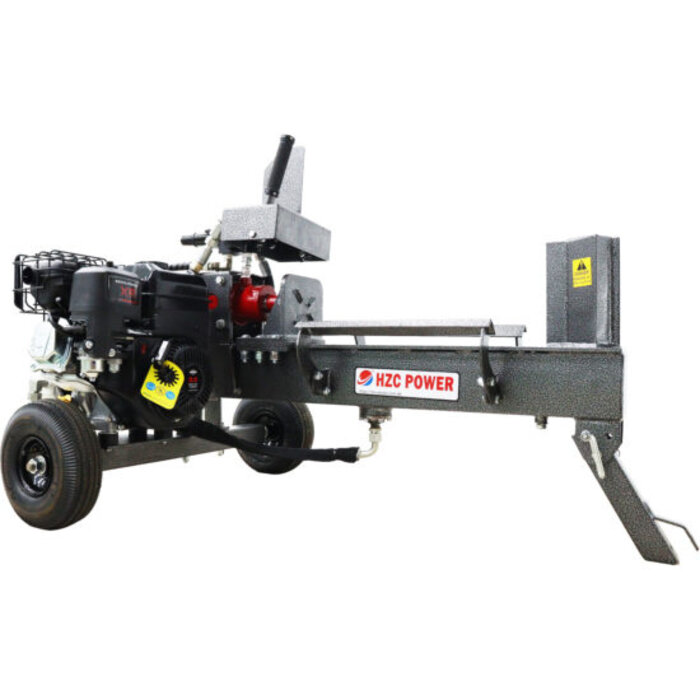

HZC Power log splitter HS20288, 20 t, 60cm, horizontal, petrol engine

20 t horizontal log splitter with petrol engine (HS20288)

The HS20288 log splitter from HZC Power offers an impressive splitting force of 20 tons and is ideal for splitting logs with a maximum length of 600 mm . Equipped with a robust 6.5 hp (208 cc) gasoline engine and a fast 14-second splitting cycle , it enables efficient wood processing. The splitter operates horizontally and features two-handed operation for maximum safety. A convenient trailer hitch allows for easy transport on private property. The integrated frame ensures the logs are held securely. Ideal for both professional and private use.

Technical data

General data:

Manufacturer : HZC Power
Model : HS20288
Splitting force : 20 t
Maximum gap length : 600 mm
Splitting cycle : 14 s
Hydraulic oil capacity : 10 l (HLP46)
Product weight : 131 kg
Shipping weight : 150 kg
Product dimensions (length x width x height): 175 cm x 84 cm x 101 cm

Special features:

Trailer hitch : For easy transport on private property
Splitting wedge/splitting cross permanently mounted : Effective splitting, wood is pressed against the wedge via the cylinder.
Working position : Horizontal
Two-handed operation : For greater safety during operation
Hydraulic system : High oil pressure of 270 bar for powerful splitting.
Oil filter : Extends the service life of the hydraulic system
Integrated frame : Ensures secure support of the splitting material during the work process.

Motor:

Manufacturer : Jiao
Model : Petrol engine, 6.5 hp
Engine technology : Single-cylinder, 4-stroke, air-cooled, OHV (overhead valves)
Engine displacement : 208 cc
Cylinder : With cast iron cuff
Bore : 68.3 mm
Pitch : 55.9 mm
Fuel tank capacity : 3.1 l
Oil capacity : 0.6 l
Motor weight : 16 kg
Dimensions (W x L x H) : 321 x 376 x 346 mm

Standard equipment

The HS20288 log splitter from HZC Power impresses with its powerful features, enabling efficient and safe log splitting:

Splitting force : 20 tons for powerful splitting of logs
Splitting length : Up to 600 mm for various wood sizes
Splitting cycle : Fast 14-second cycle for high working speed
Working position : Horizontal – ideal for comfortable work at low heights
Two-handed operation : Increases safety by requiring both hands to remain outside the gap area at all times.
Fixed splitting wedge/splitting cross : Efficient splitting of wood, which is pressed against the fixed splitting wedge via the cylinder.
Hydraulic system : High oil pressure of 270 bar for powerful wood splitting.
Hydraulic oil : 10 liters of HLP46 oil for stable operation
Oil filter : For a longer service life of the hydraulic system
Trailer hitch : Allows easy transport on private property (not street legal)
Frame construction : Integrated frame for secure holding of the splitting material and stability during operation
Engine : Jiao gasoline engine (6.5 hp, 208cc), powerful and reliable
Recoil starter : Simple and quick engine starting function
Fuel tank : 3.1 l for longer operating times without frequent refueling
Oil capacity : 0.6 l for the engine (10W40 or 15W40)
Fully pre-assembled : The log splitter is already partially assembled and ready for immediate use.

This standard equipment offers you an excellent combination of performance , safety and user-friendliness , so that you can carry out your wood splitting work efficiently and comfortably.

HZC log splitter HS20288, 20 t, 60cm, horizontal, petrol engine
