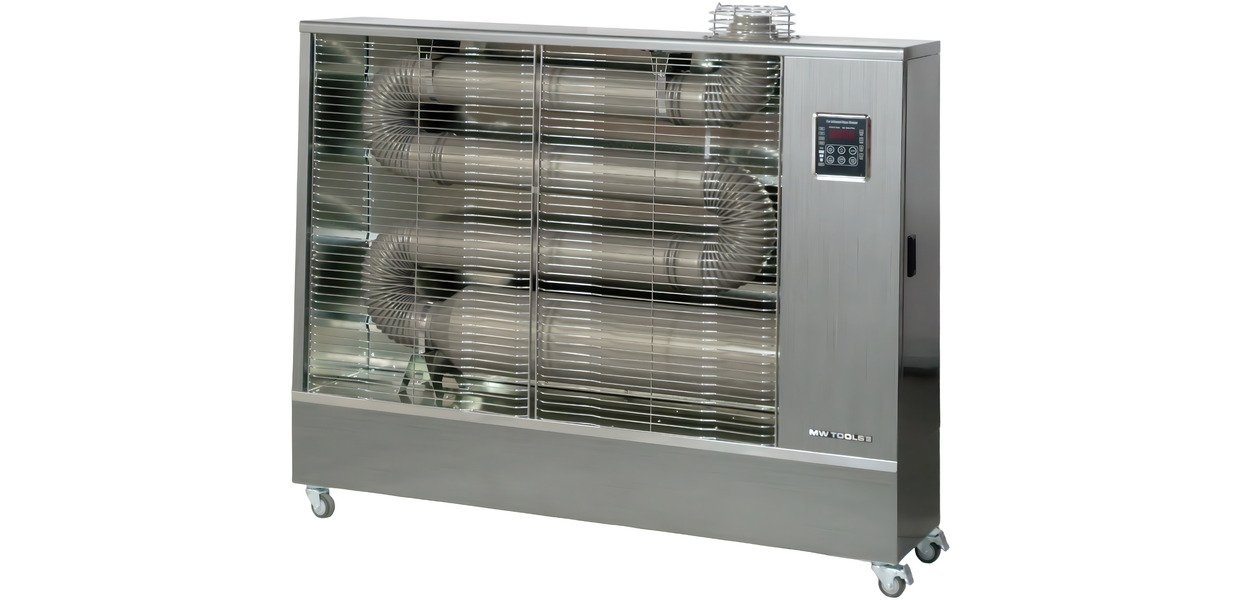

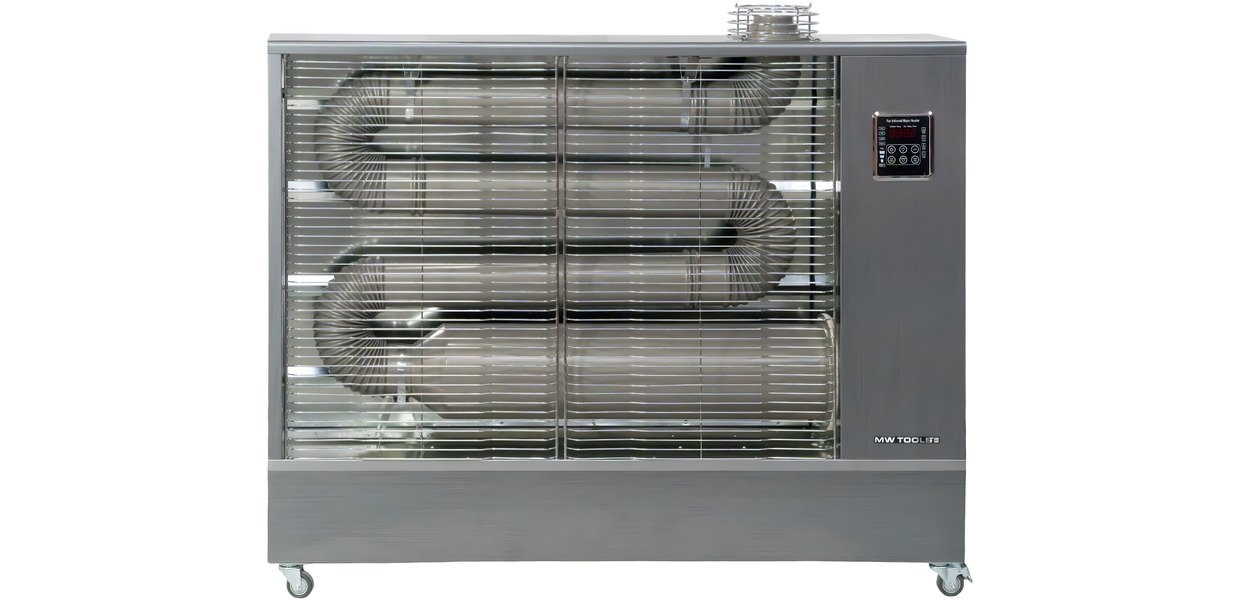

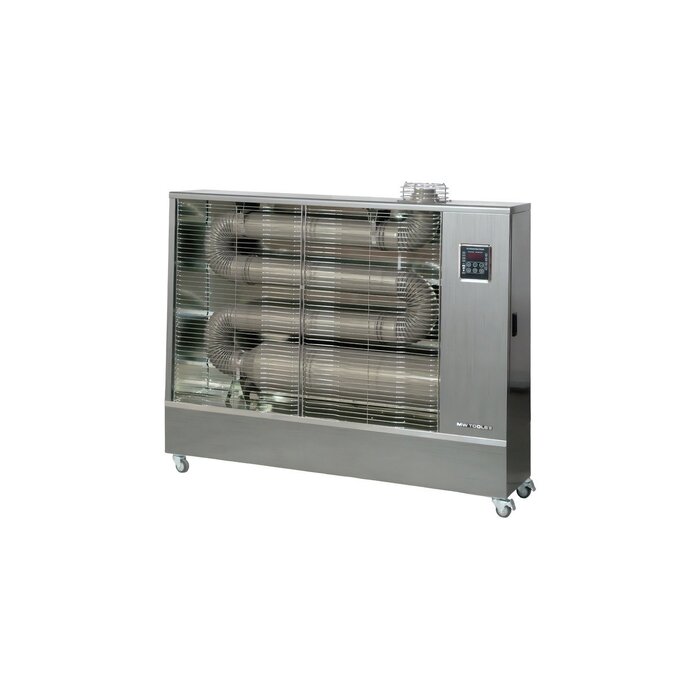

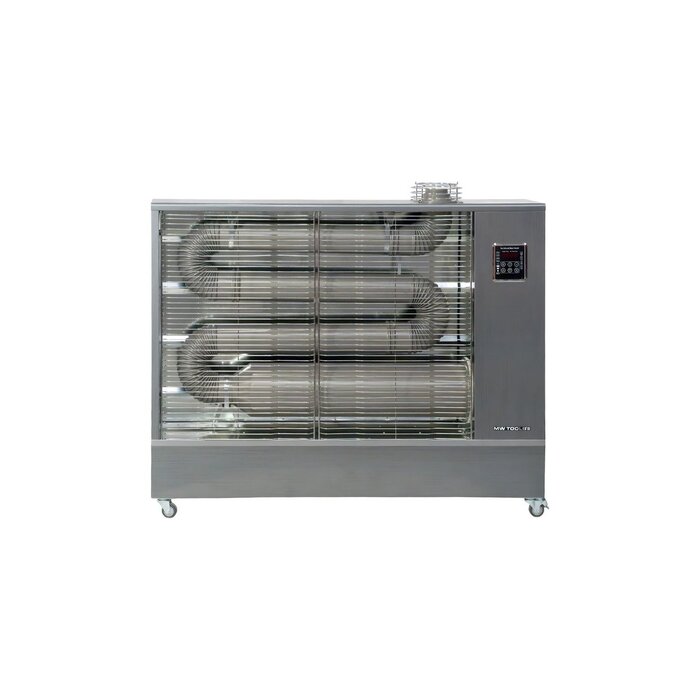

Infrared diesel heater Pro 16 kW silver 180-920 m³
Infrared diesel heater Pro 16 kW silver 180-920 m³
Whisper-quiet 16 kW diesel heater with pleasant infrared heat radiation, for rooms up to 920 m³.
Professional and compact model 'made in Korea', ideal for workshops, garages, showrooms, warehouses and greenhouses, horticulture, mobile yards, tents, public spaces, covered outdoor areas, outdoor winter events such as markets or competitions.
Advantages:
- Top quality heater: production and components made in Korea.
- Model 16 kW, heats areas from 50 to 270 m² and rooms from 180 to 920 m³
- Direct and comfortable heat radiation. Ideal for warehouses and workshops where doors regularly open and cold air enters. Instantly warms people and objects without having to heat the air in the room.

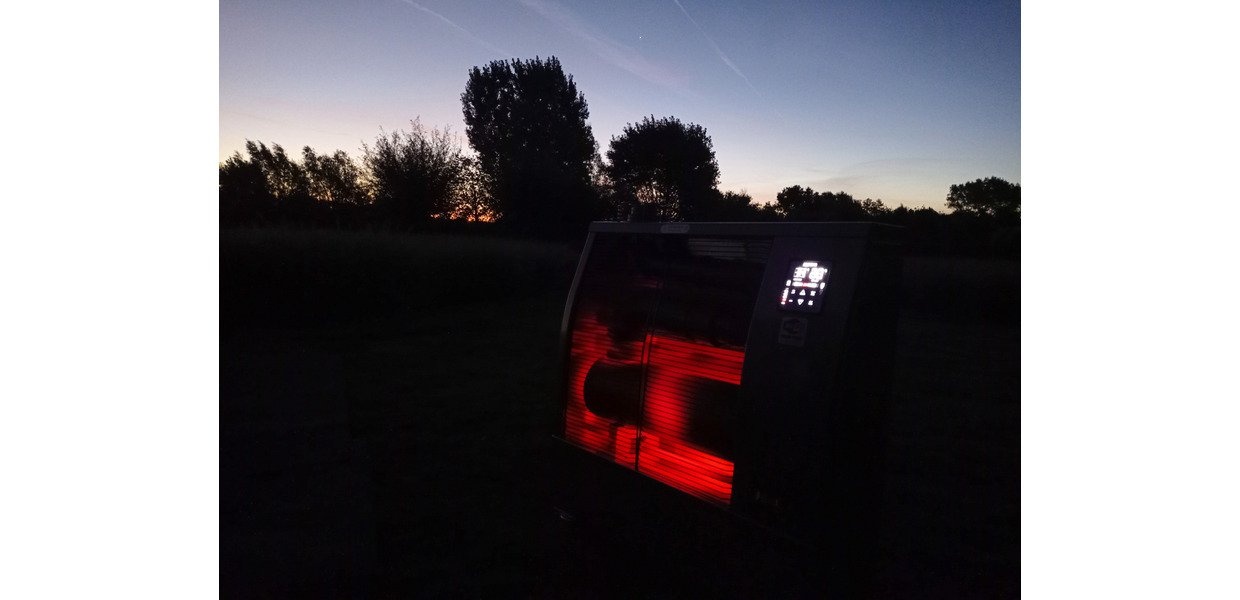

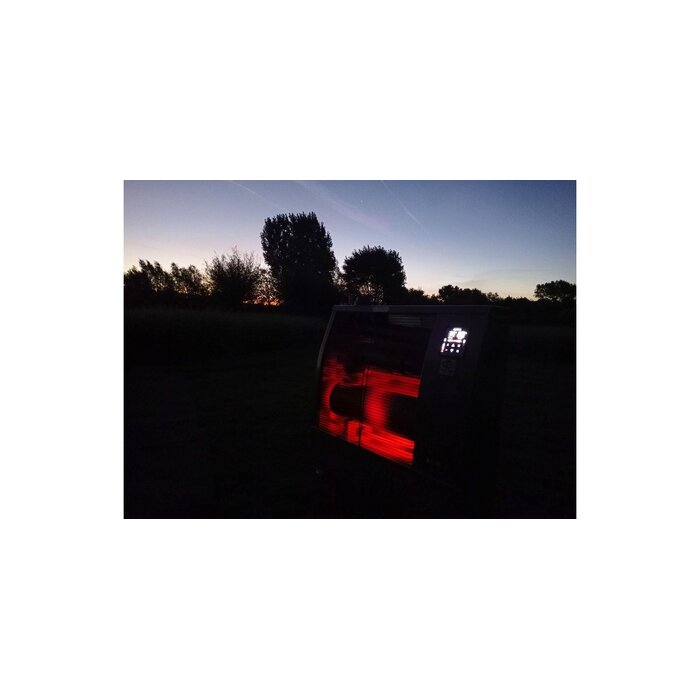

- No air displacement. The heat is distributed by the glow of the steel tubes. There's no fan, so no annoying wind or noise pollution like with traditional hot air blowers.
- Low fuel consumption: 1.5 liters per hour. Runs on diesel.
- At only 56 decibels, this heater works very quietly
- Thanks to its large radiant surface, the heater evenly distributes its heat to the surrounding space at the correct height for both standing and sitting work.
- Complete combustion: 99.9% of the fuel is burned. No smoke development.
- Large tank and long operating time of several working days without refilling.
- Suitable for mobile use (without a chimney) or for semi-permanent use with an optional chimney set. (Optional stainless steel chimney set WDKBS).
Capacity:
- Power: 16 kW
- For surfaces from 50 to 270 m²
- For rooms with a volume of 180 to 920 m³,
- Temperature range: 5-40 °C
- Fuel consumption 1.5 liters / hour

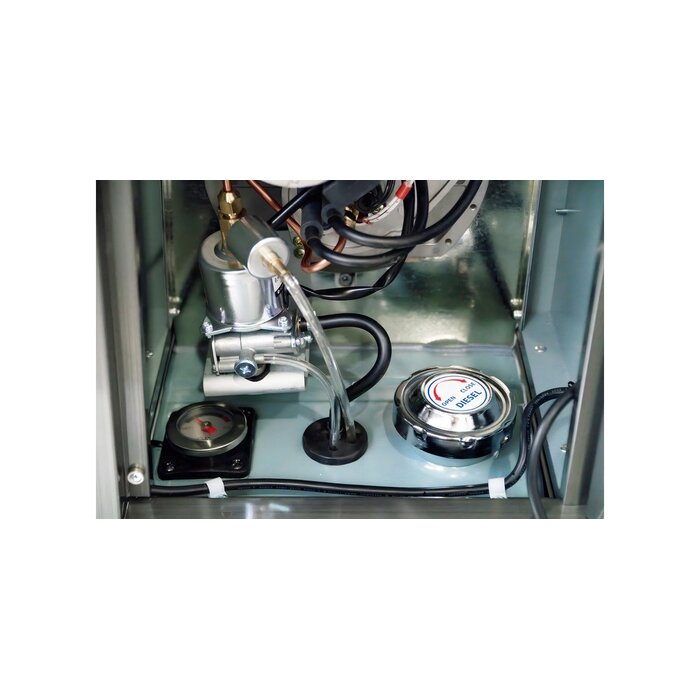

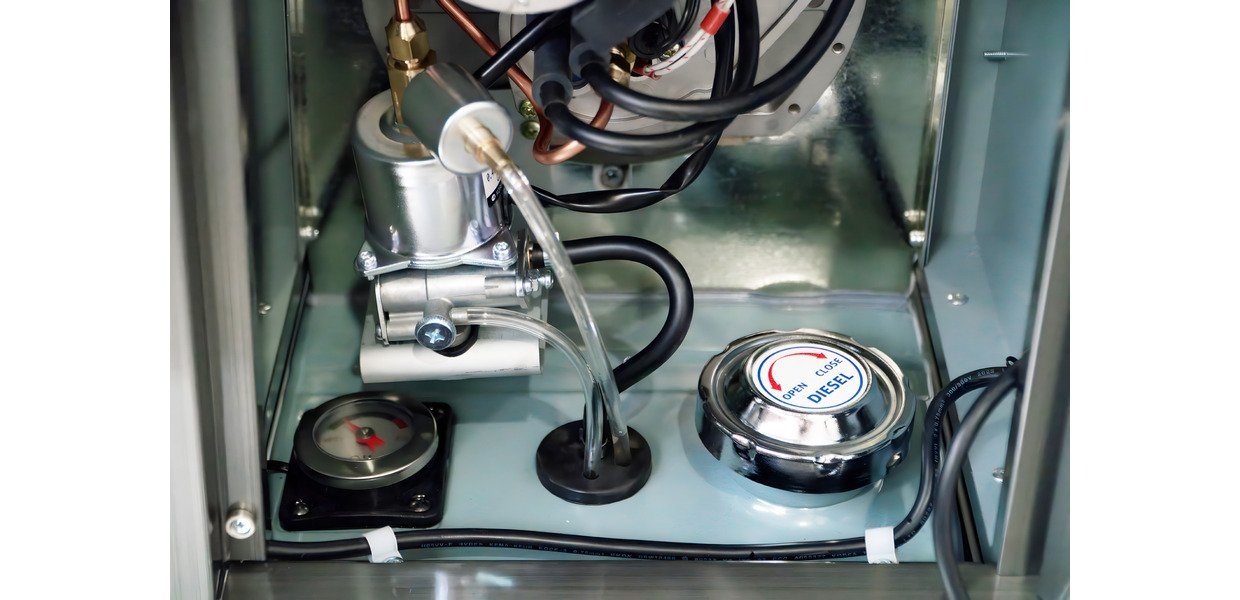

- Fuel tank 45 liters
- Autonomy: 26 hours (continuous)
- Electrical consumption: 58 Watts
Features:

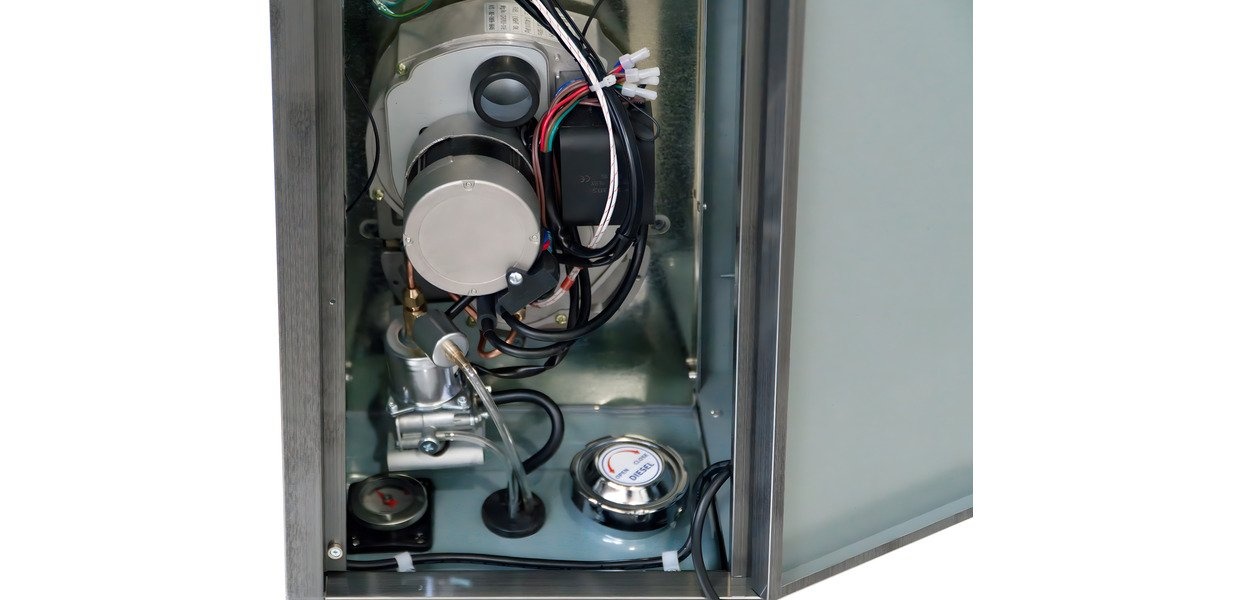

- High quality Danfoss spray head

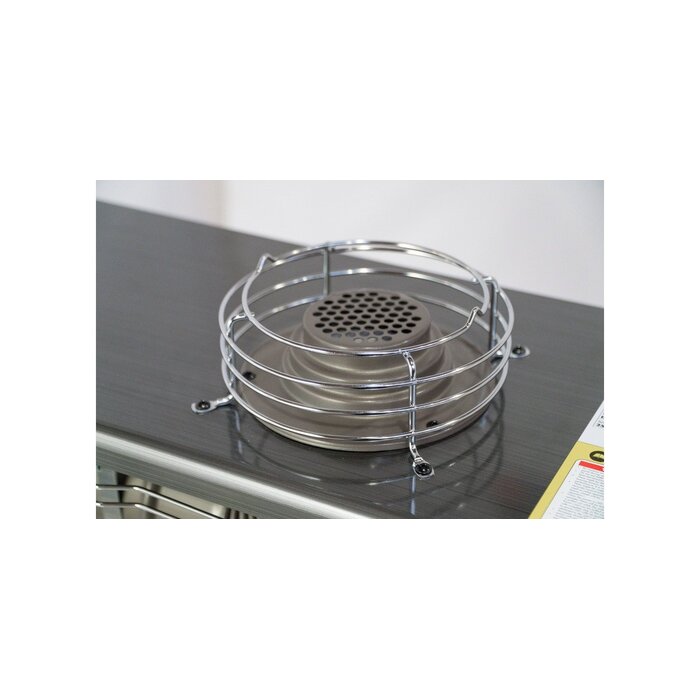

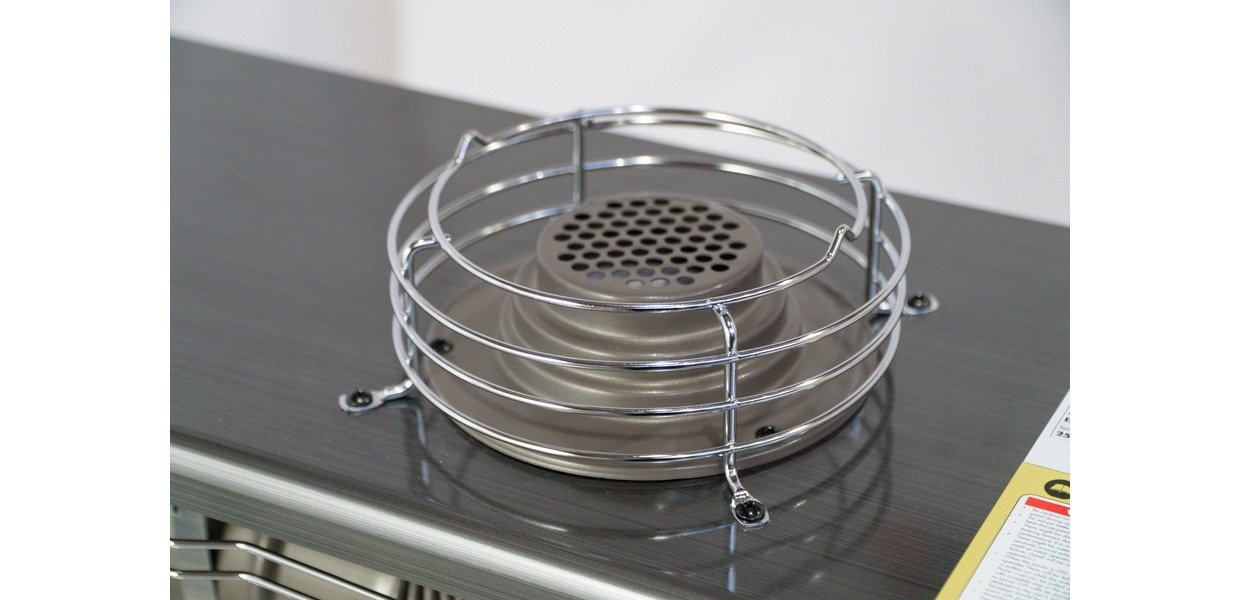

- Stainless steel flue ducts with two ceramic filters for optimal soot particle filtration and noise reduction. Flue thickness: 0.4 mm
- With the optional chimney set, all flue gases are discharged outside
- Maintenance-friendly and impact-resistant housing with silver coating
- Built-in thermostat 5-40°C on the digital control panel

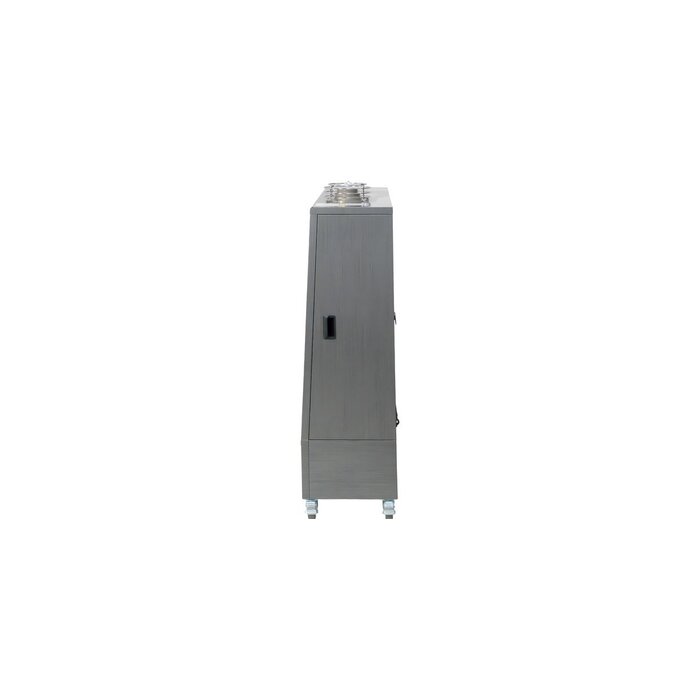

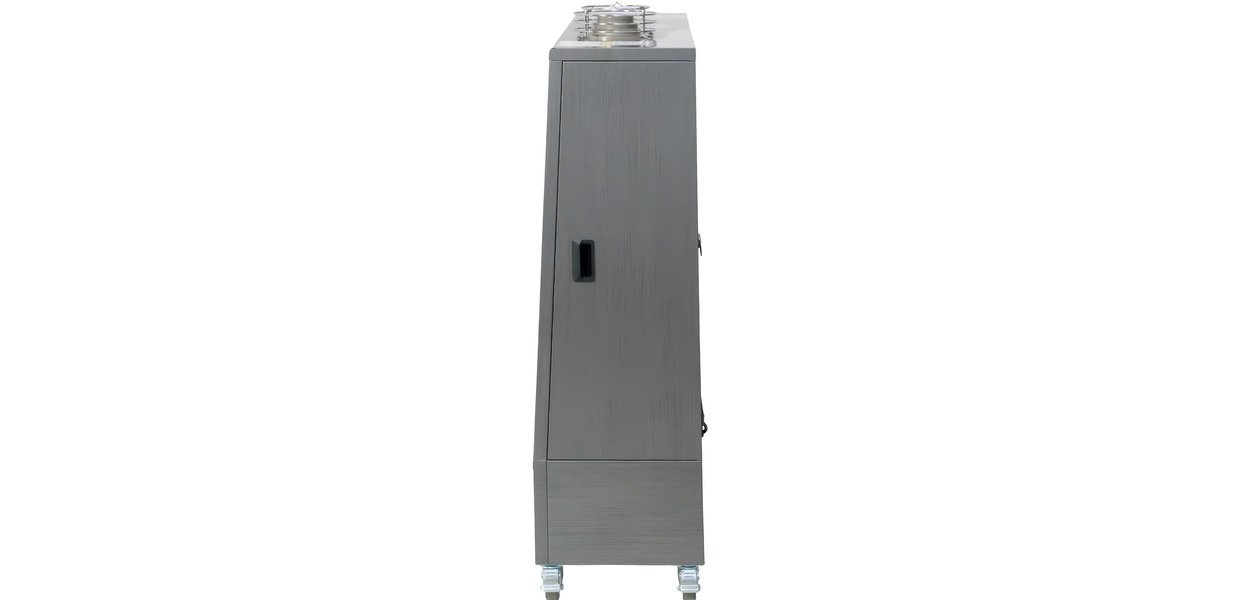

- Compact dimensions: length 1300 mm, depth: 320 mm, height: 1120 mm
- 24-hour timer setting
- Wireless remote control

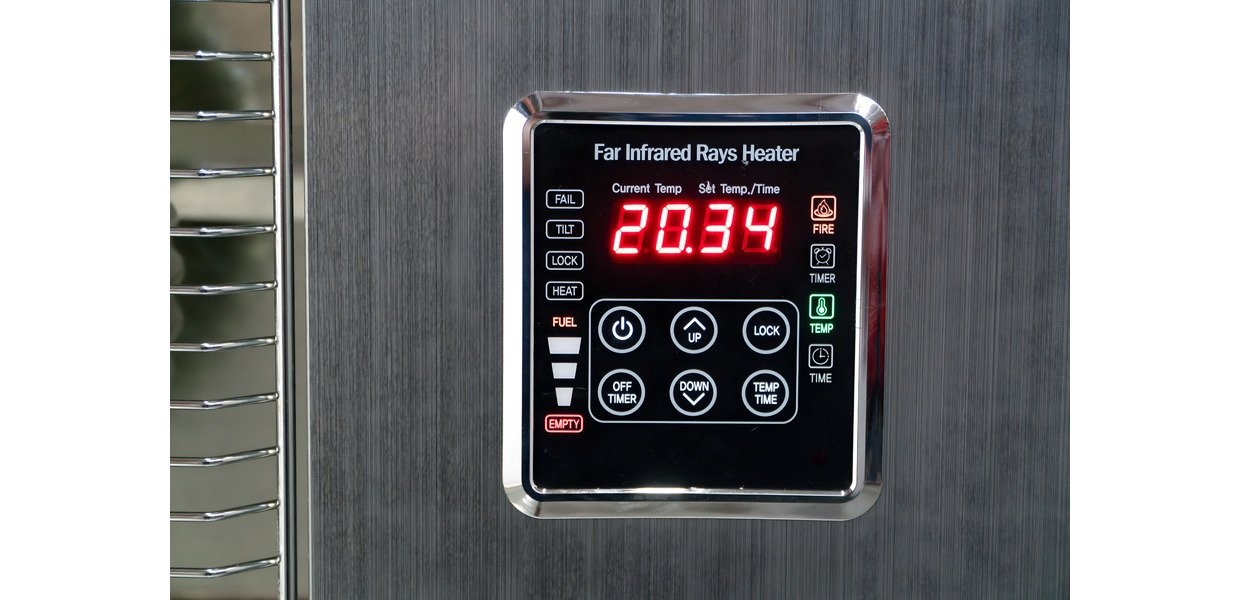

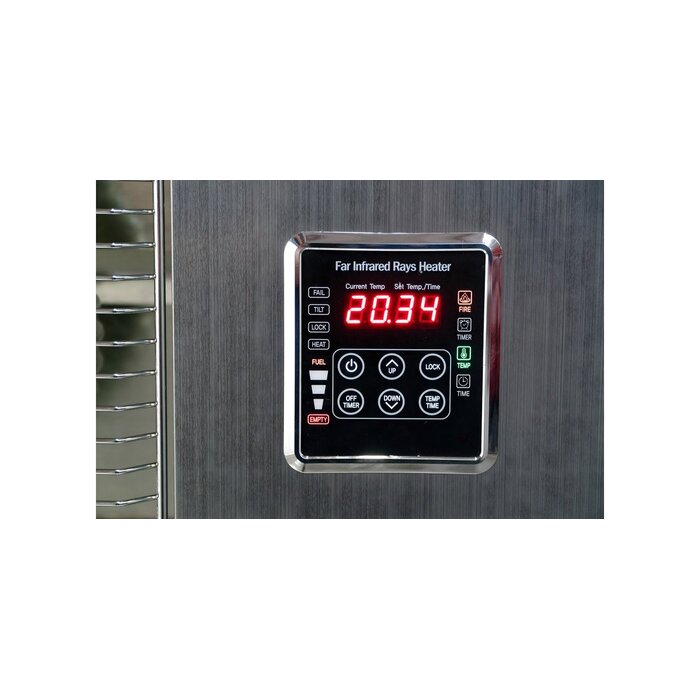

- Extensive LCD display showing: current temperature, thermostat temperature, timer setting and display lock

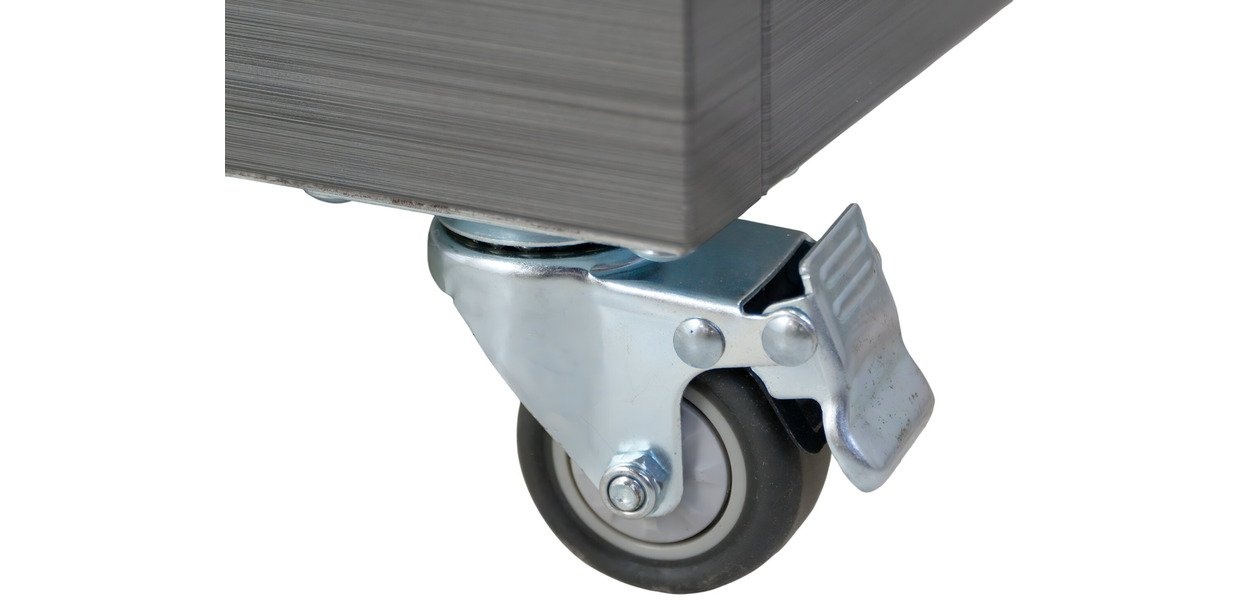

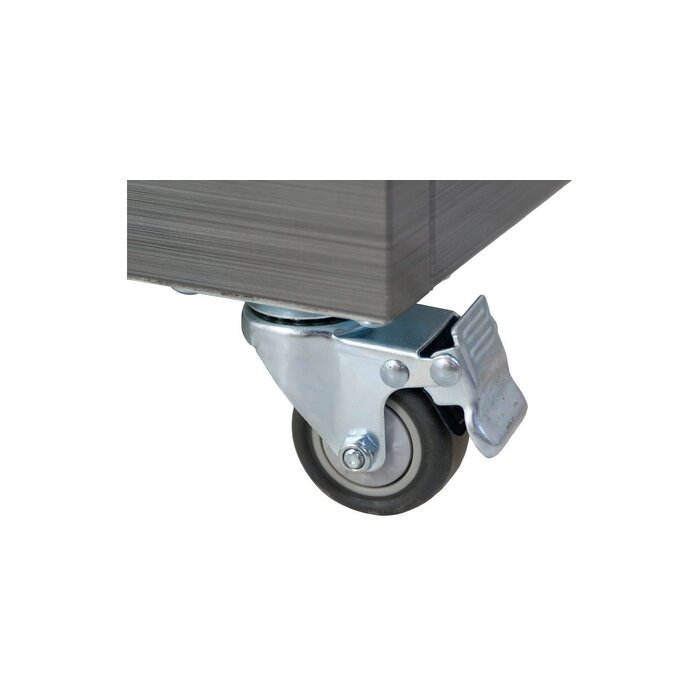

- 60mm rubber wheels for easy movement, even over uneven floors such as gratings or concrete slabs. Two wheels with brakes.
- Supplied with protective cover for dust-free storage after use.

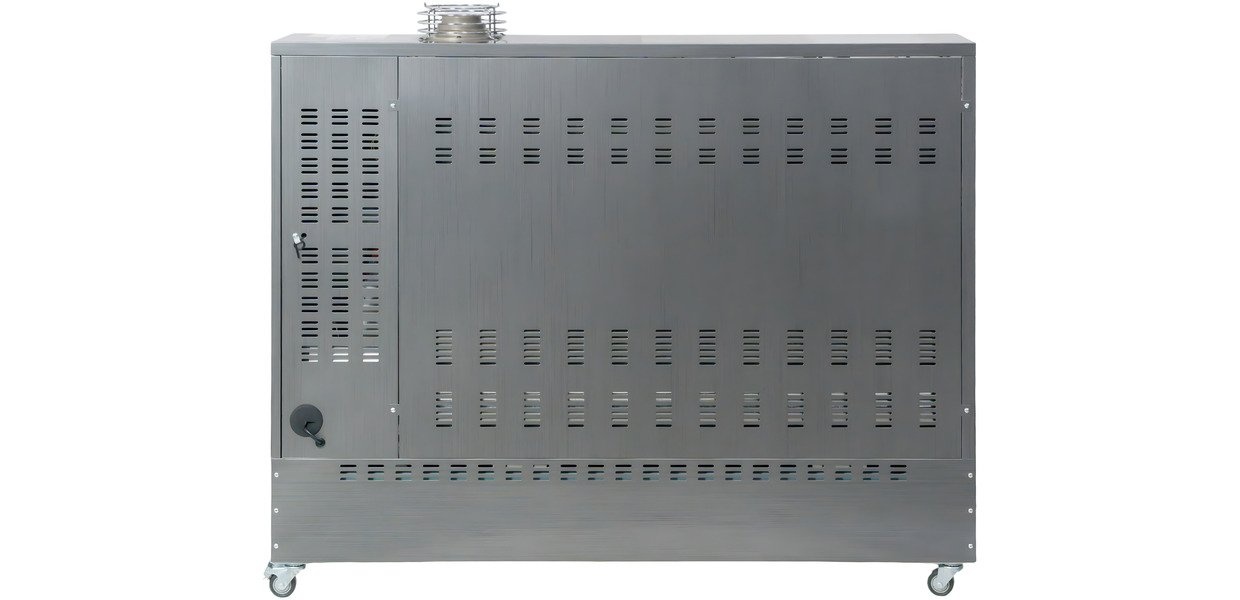

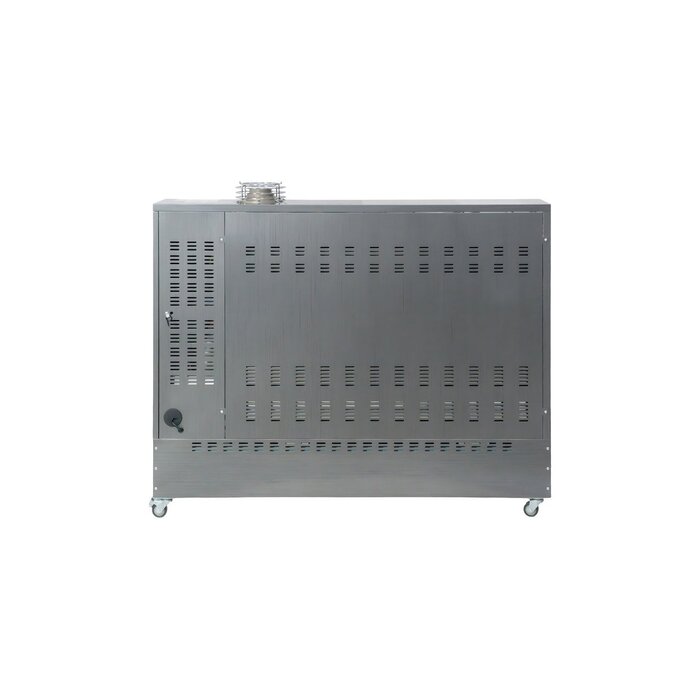

- The front grille and steel rear wall are removable for easy maintenance.
- IP24 waterproof
- 12 safety features with alarms for low fuel level, tipping over, ignition fault, overheating, overvoltage, engine protection, flame monitoring.
- 1.8 meter long power cord with plug
How do I choose the right power?
- This 16 kW model is suitable for heating rooms with a volume of 180 m³ to 920 m³, depending on the insulation and ventilation of the room. The better the insulation value of the building components (lower K-value), the larger the space you can heat.
- Minimum heatable volume of 180 m³ (K-value 2.5: uninsulated building, single glazing, solid stone walls, roof with old panels, areas where gates are regularly open)
- Maximum heatable volume of 920 m³, (K-value 0.5: recent building)
Options:
- Flue gas exhaust set, 2 meters, with a 90° bend, made of stainless steel. (ref. WDKBS)
- Jerrycan PE 10 liter (JERRYC10)
- Jerrycan PE 20 liters (ref. JERRYC20)
- Mobile fuel tank 53 liters (ref. TBC53M)
- Mobile diesel tank 75 liters with hand pump (ref. TBC75M)
- Power station for off-grid heating (ref. PS3000)
Remark:
Suitable for professional use in spaces with adequate ventilation. Ensure adequate ventilation to prevent oxygen deficiency and excessive carbon monoxide levels. Do not use the heater in enclosed spaces or residential buildings. It is recommended to install a CO sensor as a preventative measure.
Maintenance tip :
Have your heater inspected annually for proper operation and maintenance. We can supply you with the correct parts (fuel filter, air filter, jet, etc.) or perform the maintenance for you. Contact our service department for more information.
Specifications
Order no. | 722316829 |
|---|---|
Original song | WD56IK |
General | |
Heat emitted kW | 16 |
Heat type | Infrared / Radiant heat |
Energy source | Diesel |
Thermostat | |
Fuel tank capacity l | 45 |
Fuel consumption l/h | 1.5 |
Heatable space m³ | 920 |
Voltage V | 230 |
Autonomy you | 26 |
Cable | 1.6 |
Mobile | |
Frequency Hz | 50 |
Sound power level - LwA dB(A) | 56 |
Power consumption kW | 0.06 |
Product information | |
Length mm | 1300 |
Width mm | 320 |
Height mm | 1100 |
Weight kg | 60.00 |
