LIFTING CLAMP MTH420

MATOM LIFTING CLAMP MTH420

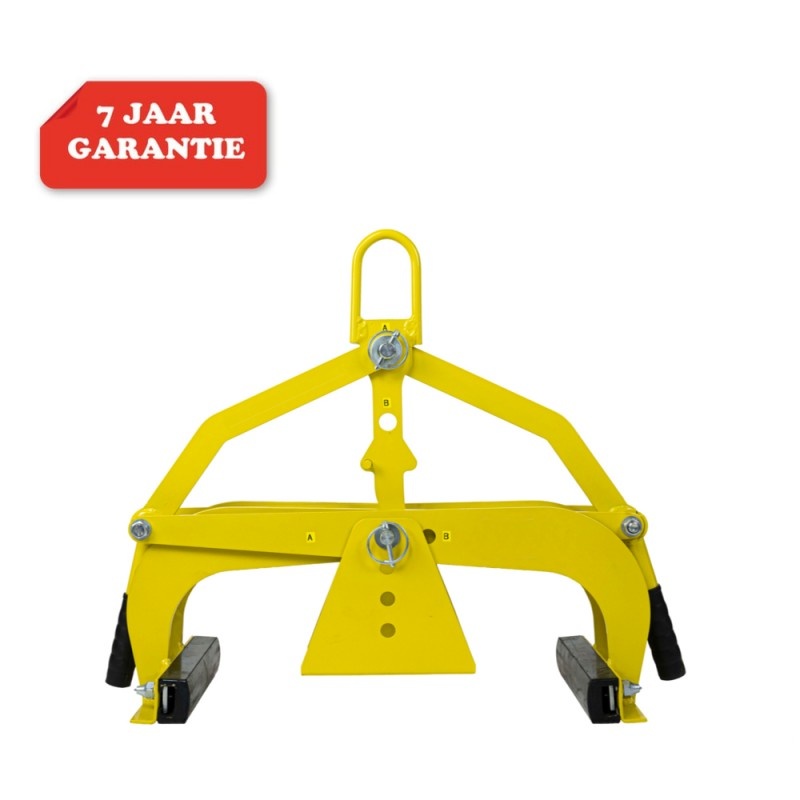

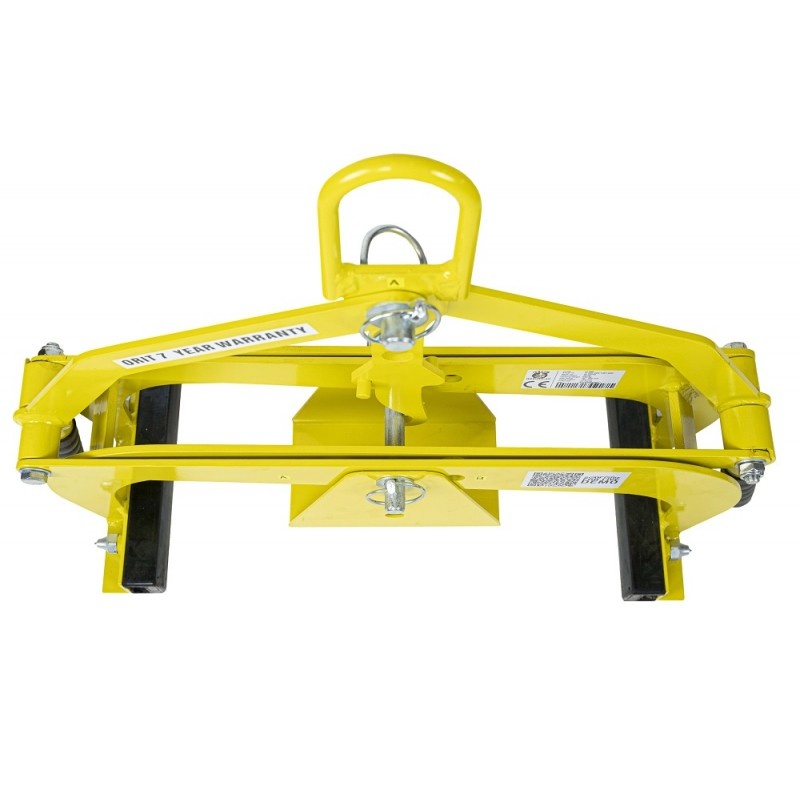

Universal tire clamp / lifting clamp type MTH420.
With the tire clamp you can easily place tires, steps, concrete elements, curbs and curbs.

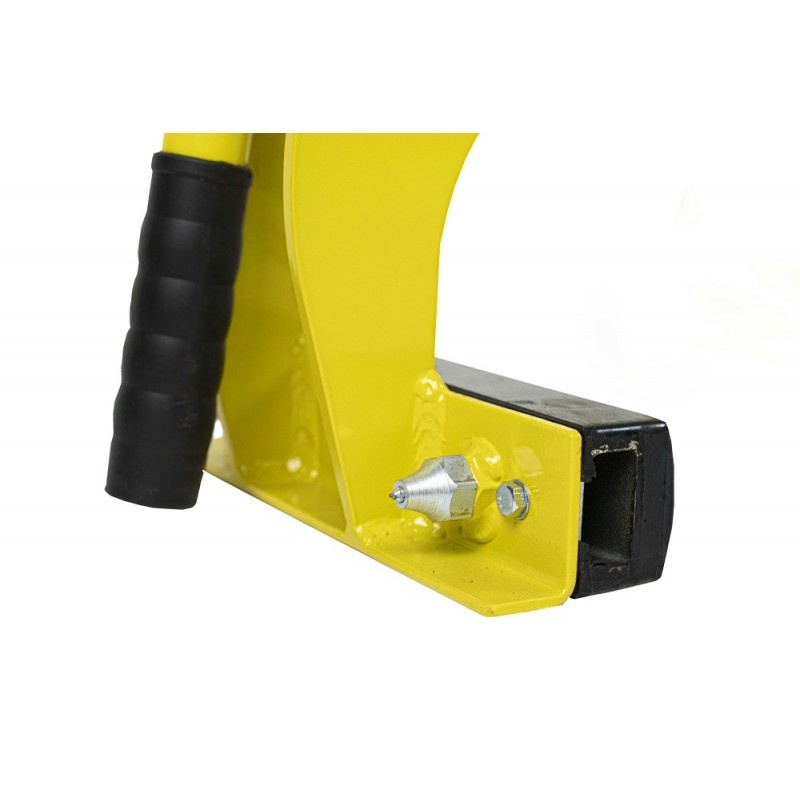

The clamps are fitted with rubber (length 23 cm).
The pack width is a maximum of 42cm.
The clamping depth is adjustable and maximum 14cm. The maximum weight to be lifted is 550kg.

The clamp unlocks when you move the eye (through which you insert the hook of the crane) slightly to the left or to the right.
Lifting and moving the material and then lifting new material again can be done by 1 person.
Due to its low weight of 13 kg and the handles on both sides, the clamp is also suitable for manual use by 2 people.

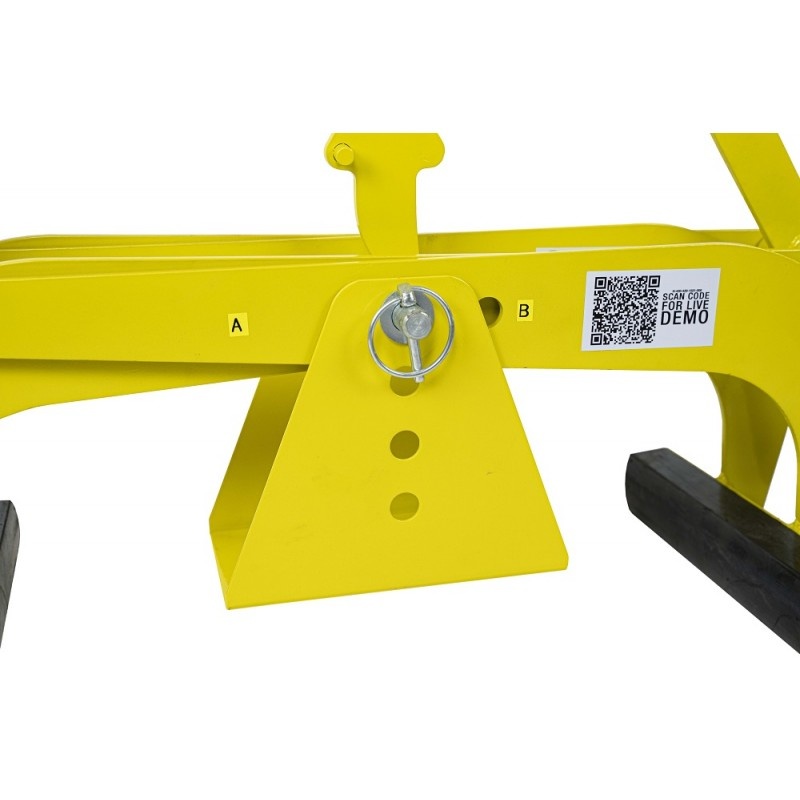

The supplied triangle serves as a spacer and is included.

Working width
10-420mm
lifting capacity
550 kg
Product Range
Lifting clamps
Weight
13 kg
Pack sizes (L/W/H)
1310 x 1070 x 2060mm
Dimensions (LxWxH)
580 x 220 x 600mm
art. no.
MTH420
EAN code
8718026806811
