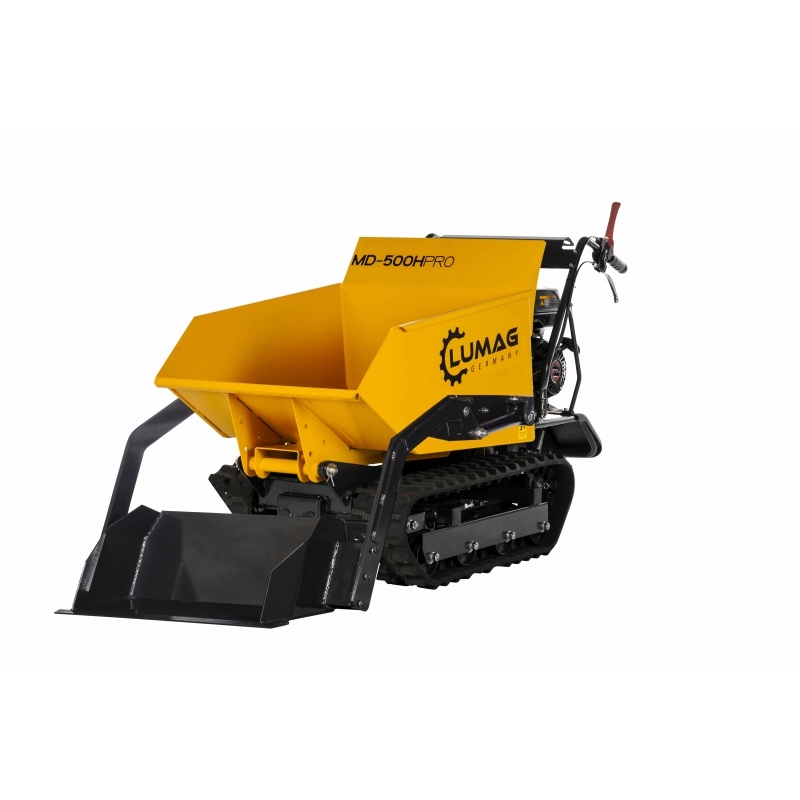

Lumag mini tracked dumper MD500HPROS
Lumag mini tracked dumper MD500HPROS
The 9.0 hp motor in combination with the tracks means that no surface is a problem for this mini track dumper Lumag MD500HPROS.
Tipping is completely hydraulic.

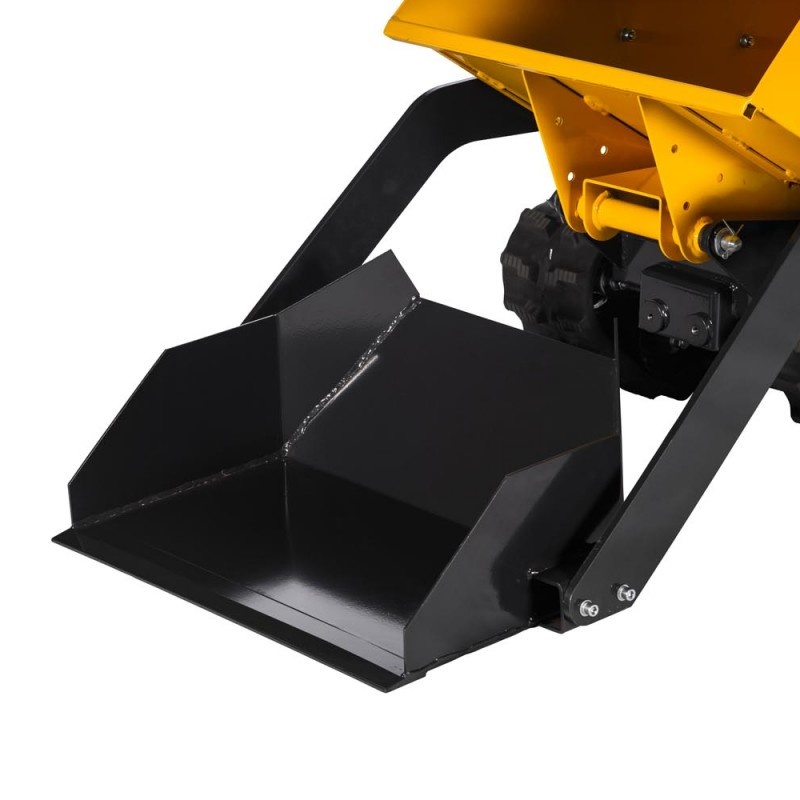

The loading shovel to load the dumper is also hydraulically operated.
This loading shovel is only suitable for loading the container with, for example, sand and gravel. The caterpillar drive ensures that you can transport your materials on any surface.
The machine is 71.4 cm wide and can therefore go through any door or gate! In addition, this machine is equipped with a drive box produced in Japan. This provides extra ground space (13cm) and has 6 forward and 2 reverse gears (of course you determine the gear before you start driving and you do not have to shift up).
The tipper body dimensions are (LxWxH) 100x70x45 cm. The maximum loading capacity is 500kg (212 liters). The own weight of the machine is 349 kg. The body is tipped by means of a hydraulic cylinder. The machine is controlled by slowing down one of the tracks.
A flat bed, snow blade and wood transport module are also available for this machine.
Starting mechanism Pull starter

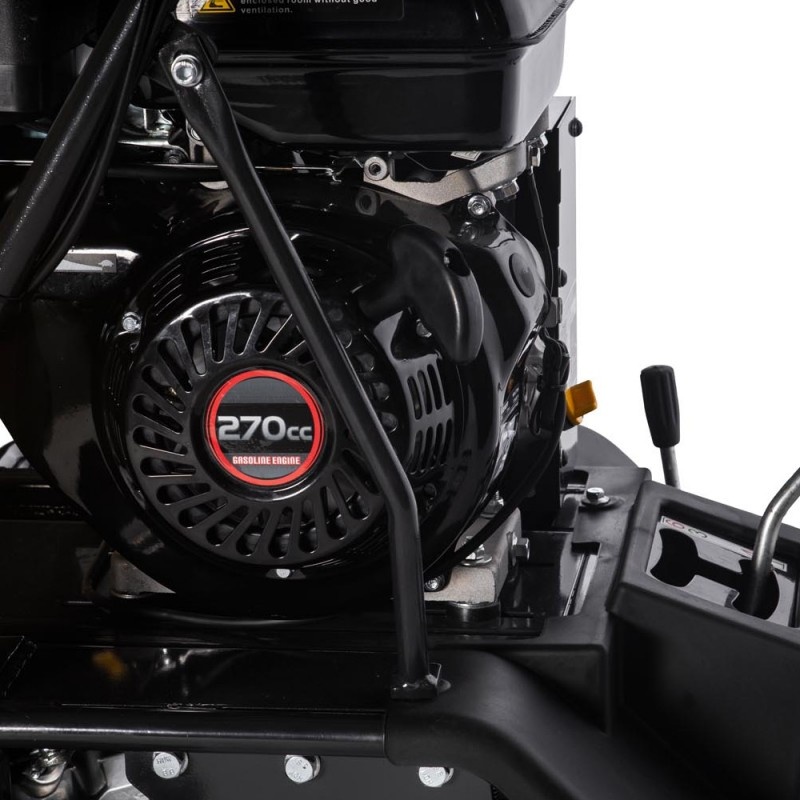

Engine type Air-cooled 1-cyl. 4-stroke OHV petrol engine
Max. power 9.0 hp
Cylinder capacity 270 cm3
Motor manufacturer Loncin (3 year warranty!)
Fuel capacity 3.6 liters
Type of fuel Euro unleaded petrol
Start system Pull starter
Sound power level LWA 106 dB (A)
Cargo box dimensions (L x W x H) 1000 x 700 x 450mm
Side walls fold down No.
Removable side walls No.
Foldable front cover No.
Hinged front cover No.
Max. load capacity 500 Kg
Container capacity 212 liters
Hydraulic self-loading system yes
Tipping mechanism Hydraulic, forward
Handbrake Automatic safety brake
Speed adjustable Yes, variable
Max. speed forward 3,6 Km / h
Forward gears 6
Reverse gears 2
Max. speed backwards 1,2 Km / h
Hydraulic pump 12 l / min (at 3000 rpm)
Working pressure max. 200 bar

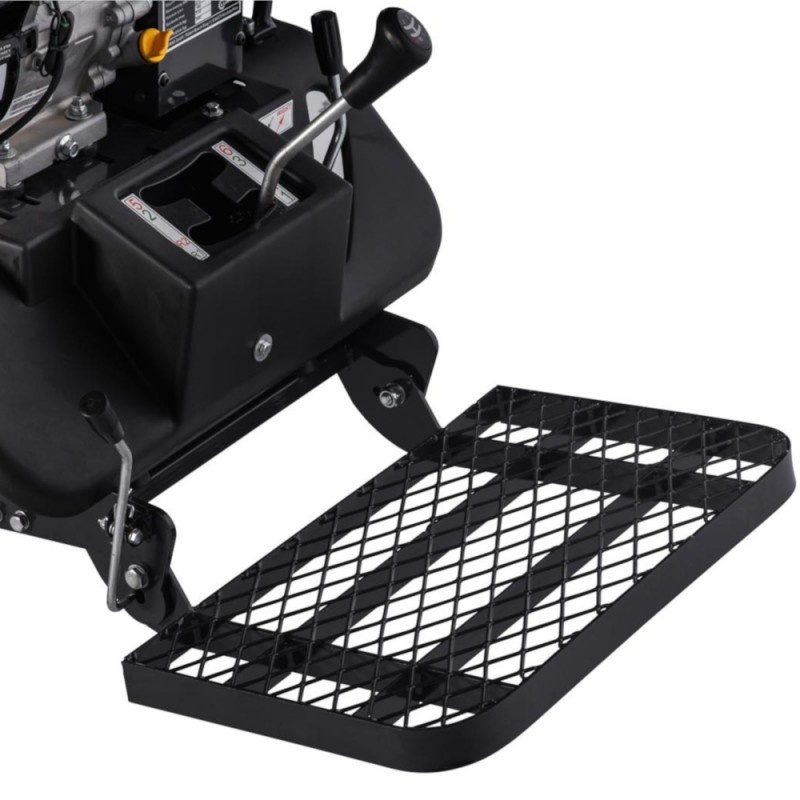

Plateau driver Yes
Machine dimensions (L x W x H) 1750 x 714 x 1259 mm
Weight approx. 349 kg
Art. No. MD500HPROS
EAN code 4047424007990
