Lumag tracked dumper High-Tip MD500HPROHTS

Lumag tracked dumper High-Tip MD500HPROHTS

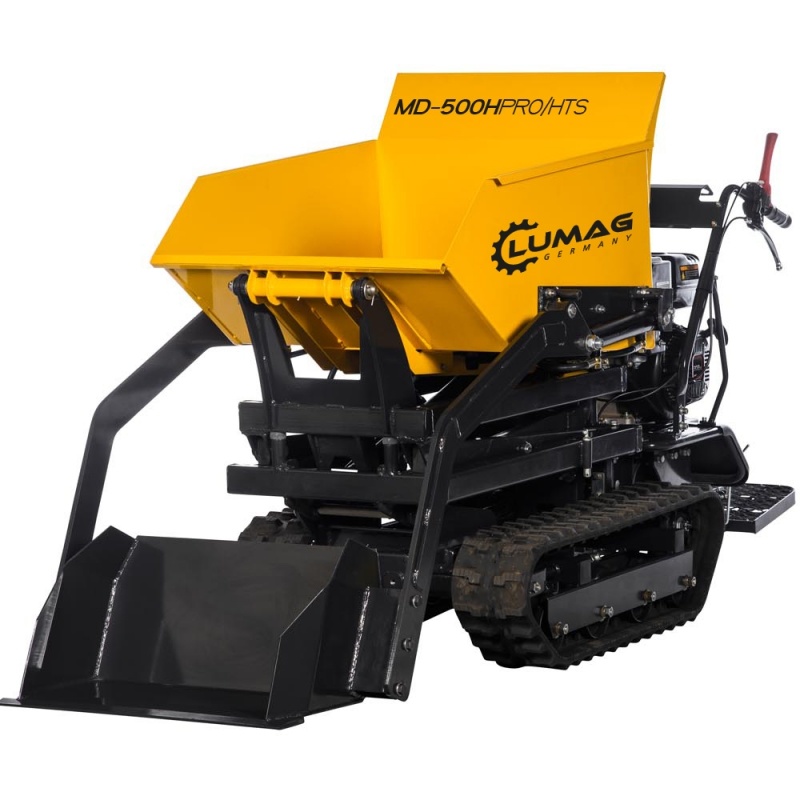

This Lumag MD500HPROHTS mini crawler dumper with an extra high tipping bucket and loading shovel, is a mechanical dumper with a hydraulic tipping system and equipped with a Loncin petrol engine.
The uniqueness of this dumper is the HIGH TIP tipping function in combination with the self-loading shovel.
This means that you can empty the tipper at a high level by means of a hydraulic scissor construction.
You can therefore easily tip the container onto a truck or into a container.
With the loading shovel you can also load the container yourself, for example with sand and gravel.

The MD500HPROHTS has a 9.1 HP (302 cm3) Loncin petrol engine. The maximum loading capacity is 500kg. Tipping is completely hydraulic. The caterpillar drive ensures that you can transport your materials on any surface.
The machine is 80 cm wide and can therefore go through a door or gate!
The tipper body dimensions are (LxWxH) 950 x 660 x 370 mm.
The maximum tipping height is 140.6 cm (90 °).
The machine's own weight is 446 kg.
The max. Working pressure is 200 bar.
The ground clearance is 12cm.
The capacity of the container is approx. 212 liters.
The maximum speed (6 forward and 2 reverse gears) of this dumper is 4 km per hour.
The drive is gear driven / mechanical (made in Japan).

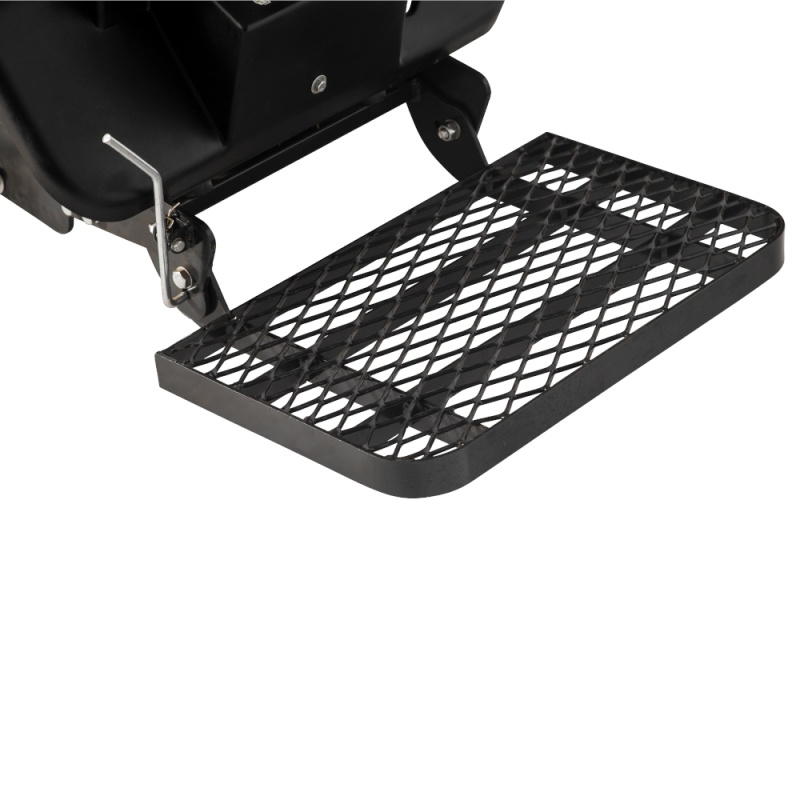

There is a platform on the back of the machine on which you can stand.

The strong and massive construction in combination with a powerful hydraulic pump and an ergonomically developed operating platform make this dumper series your ideal help.

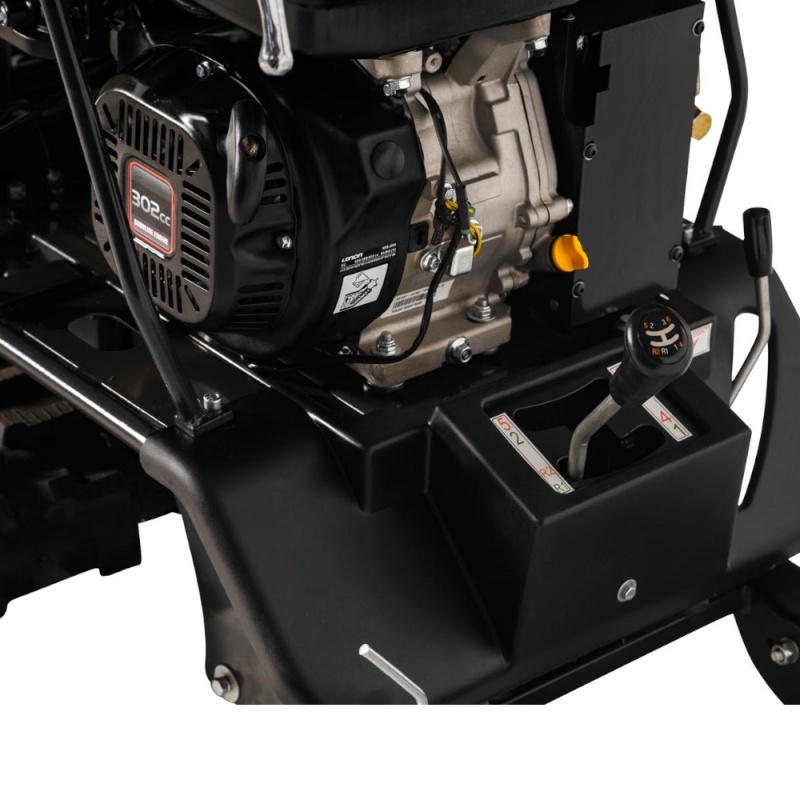

Engine type Air-cooled 1-cyl. 4-stroke OHV petrol engine
Max. power 9.1 hp
Cylinder capacity 302 cm3
Motor manufacturer Loncin (3 year warranty!)
Max. speed 3,600 min-1
Type of fuel Euro unleaded petrol
Start system Pull starter
Cargo box dimensions (L x W x H) 950 x 660 x 370 mm
Bucket capacity 212 liters
Max. load capacity 500 Kg
Hydraulic self-loading system No.
Tipping mechanism Hydraulic, forward
Max. Tipping height 140.6 cm (90 degrees!)
Hydraulic pump Yes, 1 x 12 L / min (max. 200 bar)
Drive Mechanical
Oil cooler No.
Turns stop left or right track
Handbrake handbrake
Speed adjustable Yes, variable
Max. speed backwards 3.0 Km / h
Max. speed forward 4 Km / h
Working pressure max. 200 bar
Ground clearance 120mm
Max. angle of inclination motor 30 degrees
Machine dimensions (L x W x H) 1816x 714 x 1259 mm
Weight approx. 446 Kg, 513 Kg (Net / Gross)
Art. No. MD500HPROHTS
