Vibration plate RP300HPCA

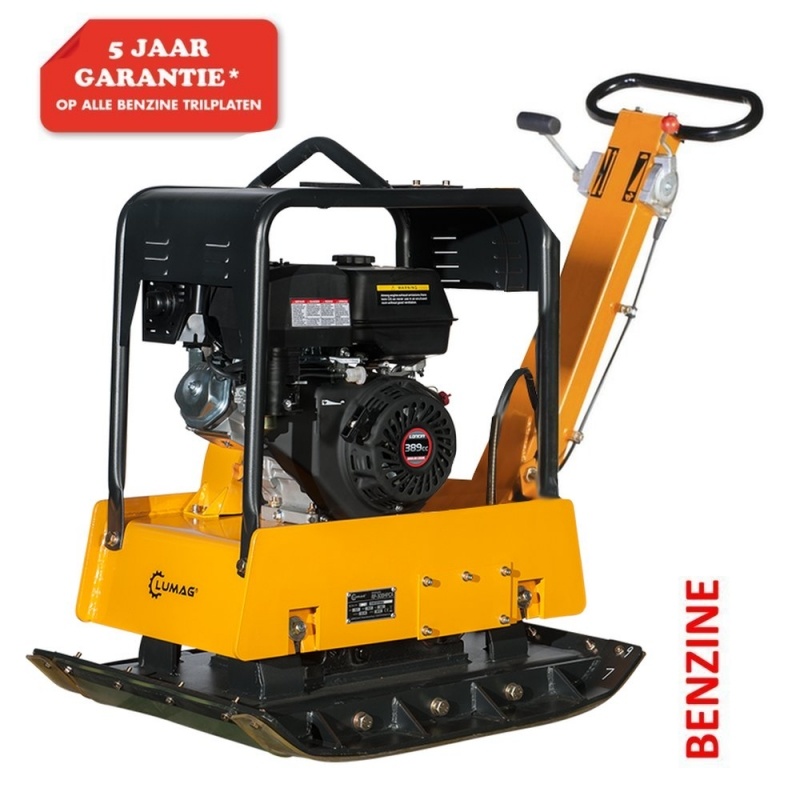

Lumag Vibration Plate RP300HPCA
The powerful (forward and backward running) Lumag RP300HPCA vibratory plate is suitable for compacting medium to heavy substrates as well as for vibrating paving (medium to medium-sized surfaces). Excellent for compacting sand, gravel, etc. due to its very powerful 11 HP engine. Very stable construction of the machine where the motor is protected by a heavy duty frame.
Easy to operate with a high depth effect and infinitely adjustable forward and reverse setting. The vibratory plate is considerably more convenient to use than a forward-only vibratory plate. By using the mounting plates you can use two different bottom plate dimensions. Also equipped with an electronic oil level system. Equipped with a fully shielded drive belt, a protective bracket, and now including a special transparent PU undermat which will prevent damage to the pavement and can dampen the impact force and a simple transport wheel set.
| Engine type | Air-cooled 1-cyl. 4-stroke OHV petrol engine |
| max. assets | 11hp |
| Displacement | 389cm³ |
| Direct injection | new |
| Engine manufacturer | Loncin (3 year warranty!) |
| Tank capacity | 6.5 litres |
| Fuel type | Euro unleaded petrol |
| Start system | pull starter |
| Electric start | new |
| Sound level LWA | 108dB(A) |
| Injection molding base plate | new |
| Base plate size ( L x W ) | 830 x 680mm (incl. 2 extensions of 100mm) |
| Striking power | 3800 Kg / 38 kN |
| Vibration Level | 4,810 rpm. |
| Vibration Frequency | 80 Hz |
| Depth of operation | 90 cm |
| Performance power per hour | 650 m2 |
| Forward and reverse shift | Yes, mechanical |
| Working speed forward | 20-25m. per minute |
| Climbing ability | 30° |
| water tank | new |
| Transport wheels | Yes |
| rubber mat | Yes |
| Weight approx. | 262 kg |
| Art.no. | RP300HPCA |
| Pack sizes (L/W/H) | 905 x 505 x 1130mm |
| EAN code | 4047424005798 |
