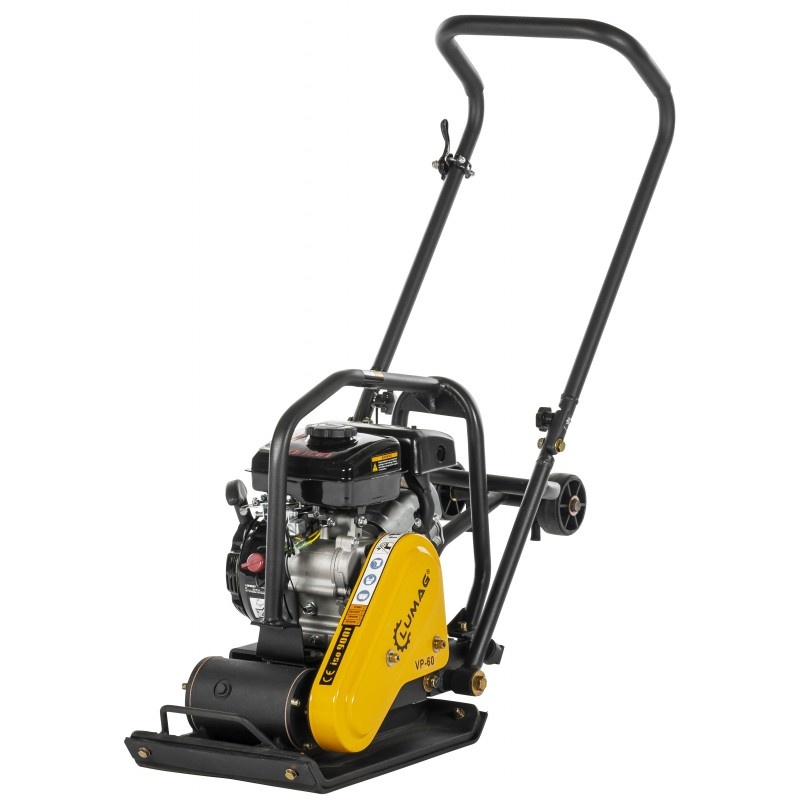

VP60 vibratory plate

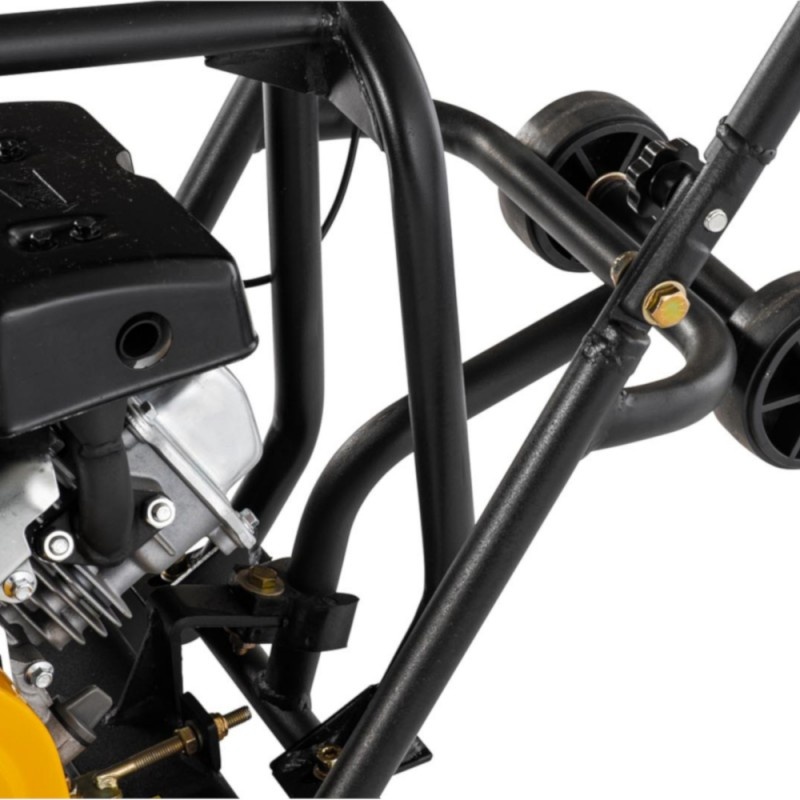

This very compact (forward-running) Lumag VP60 vibration plate is light in weight and therefore very easy to use. By placing both a handle on the front and at the rear and making the handle tiltable, the vibration plate can easily be placed (by someone alone) in a passenger car or transported.

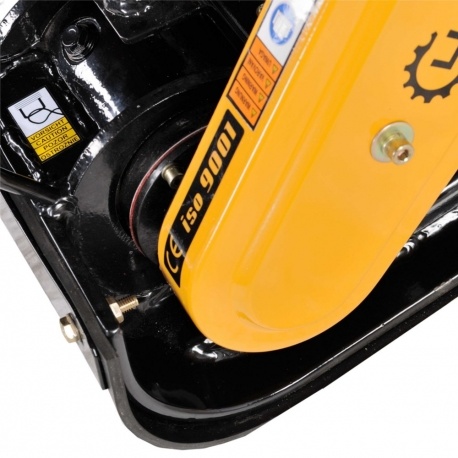

The VP60 is suitable for compacting various types of soil and materials as well as vibrating street work (smaller surfaces). Vibration plates are ideally suited for compacting gravel and sand and vibrating work on laying terraces, ornamental paving and repair work. Equipped with a fully shielded drive belt and equipped with handles and protective bracket. The ergonomically shaped handle is also equipped with foam rubber for fewer vibrations.
The VP60 is now supplied with a special PU bottom mat which will prevent damage to the roadwork, a simple "Kick-back" transport wheel set. The engine is suitable for euro unleaded petrol, but we recommend Aspen 4 alkylate petrol (especially if you do not use the machine regularly). See also the page "Which fuel to use?"

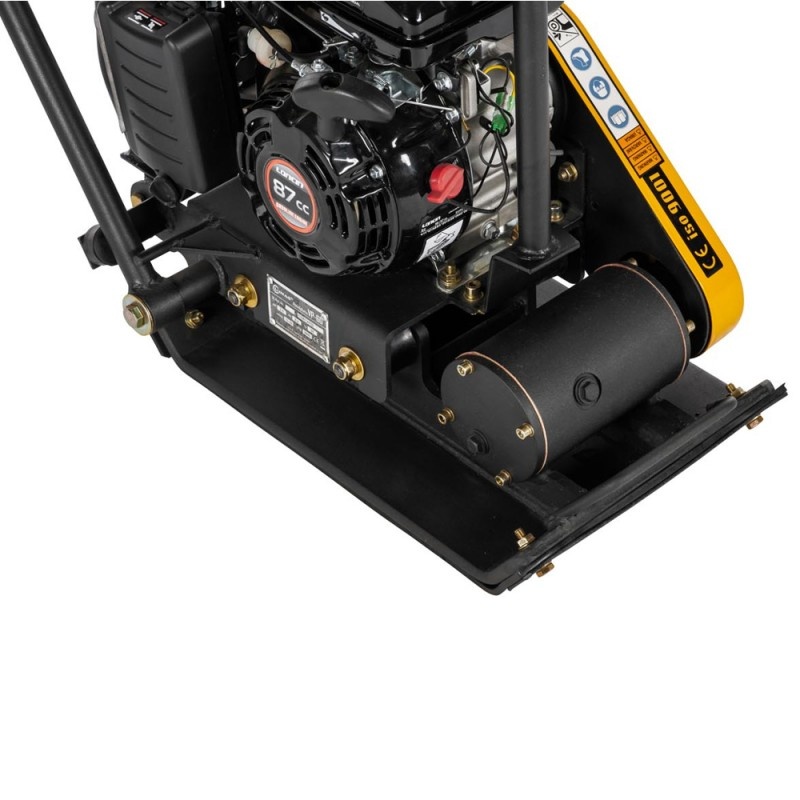

| Engine type | Air-cooled 1-cyl. 4-stroke OHV gasoline engine |
| Max power | 2.7 hp |
| Cylinder capacity | 87 cm³ |
| Direct injection | No |
| Engine manufacturer | Loncin (3 year warranty!) |
| Tank capacity | 1.6 liters |
| Fuel type | Euro unleaded gasoline |
| Start system | Pull starter |
| Electric start | No |
| Noise level LWA | 104 dB (A) |
| Injection molded base plate | No |
| Base plate size (L x W) | 435 x 300 mm |
| Impact force | 835 kg / 8.4 kN |
| Vibration level | 5,900 p / min. |
| Deep effect | 20 cm |
| Performance capacity per hour | 200 m2 |
| Forward and reverse switching | No |
| Work speed ahead | 0-11 m. Per min. |
| Water tank | No |
| Climbing ability | 30 ° |
| Transport wheels | Yes |
| Rubber mat | Yes |
| Weight approx. | 58 kg |
| Art. No. | VP60 |
| Pack sizes (L / W / H) | 640 x 350 x 620 mm |
| Gross weight | 64 kg |
| EAN code | 4047424004951 |
