Art: MBM600LRE_230VEAN: 9120039904092
Magnetic drilling machine
Groot assortiment
Scherpe prijzen - Snelle Levertijden
7 dagen per week bereikbaar +31621803866
infomeer naar de lease mogelijkheden
Description Read moreRead less

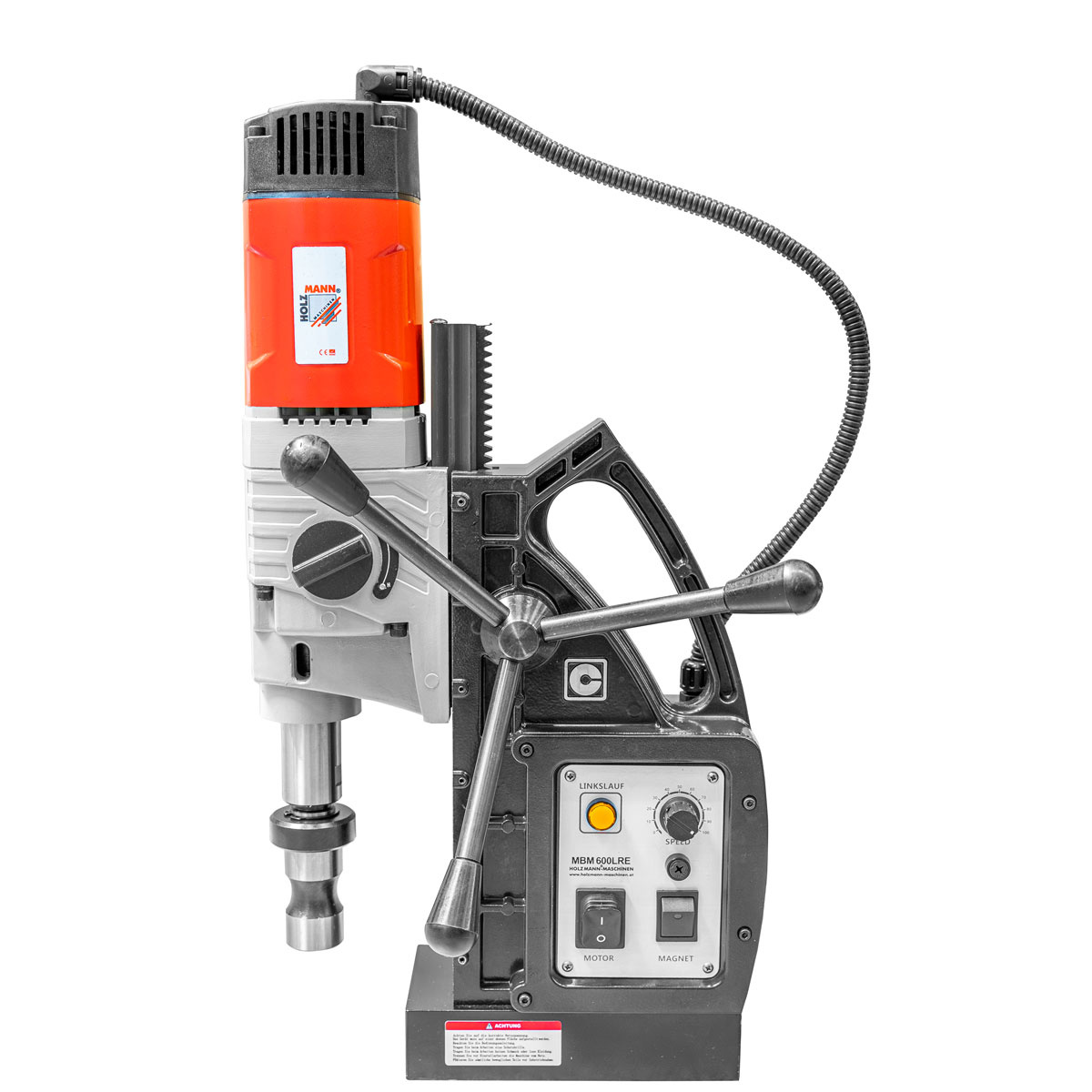

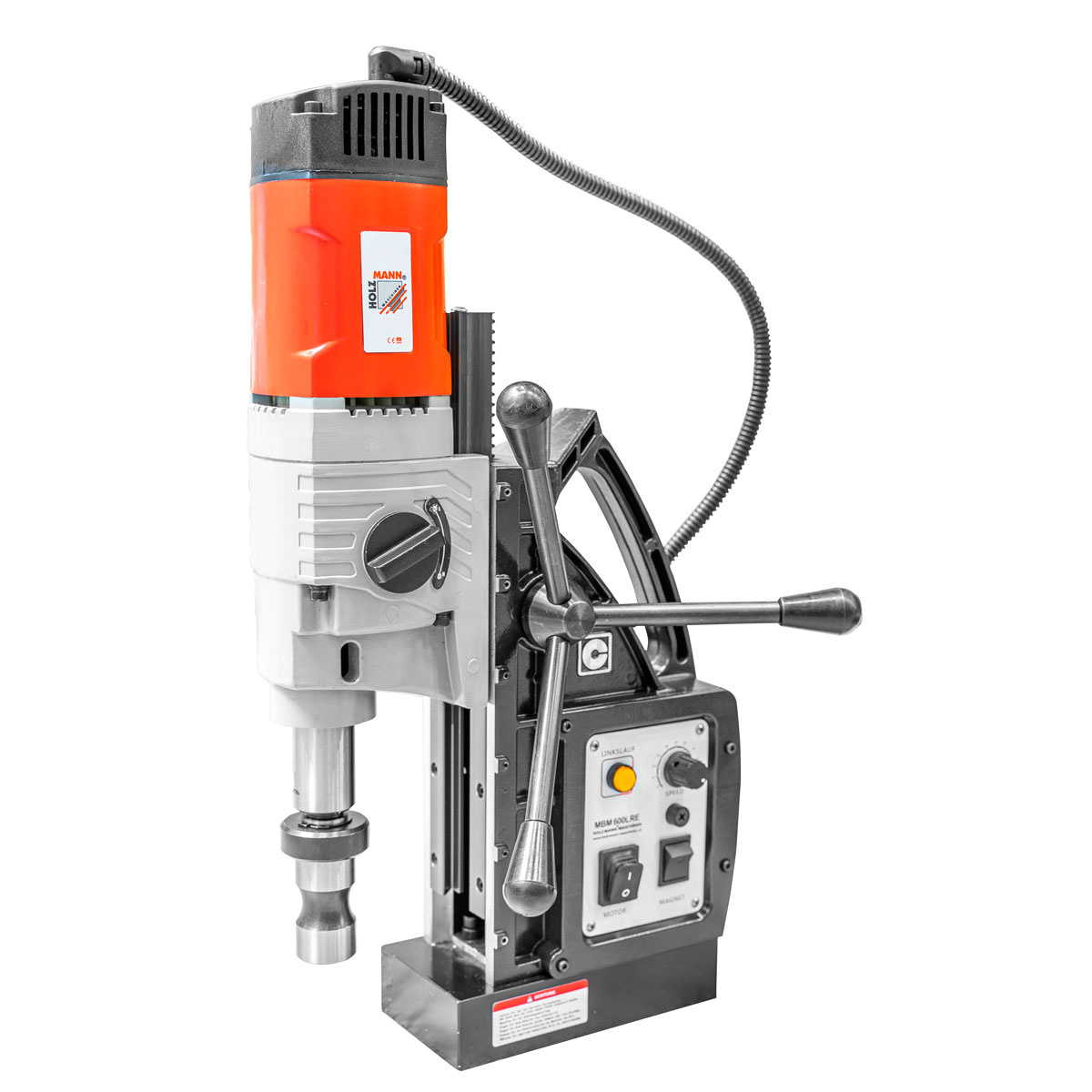

MBM600LRE_230V magnetic drilling machine
Highlights
- for core and threaded holes
- Ideal for machining large, bulky steel workpieces - wherever conventional drills and cordless screwdrivers are insufficient
- enables mobile machining of workpieces with precise guidance
- also for vertical drilling - effective and precise
- By activating the electromagnet, the drill can be attached to any steel part and in any position. No slipping!
- also suitable for working overhead - the magnet provides the necessary safety
- often used in construction, bridge building and shipbuilding
- multifunctional device with left and right rotation, adjustable speed, speed control and thread cutting device
Scope of delivery: Mandrel MK3 B16, keyed drill chuck, drift, tensioning belt and coolant system, transport box
Technical details
Engine data
Engine power S1 in W2080
Voltage 230V
Speed in min-190-225 / 160-405
Planing General
Twist drill max. drilling depth in mm 210
Technical specification
Countersunk hole max. Ø in mm32
Thread size max. M18
Magnetic base in mm205x107x68
Magnetic holding force in N15000
Weldon shank MK3 / MT3
Twist drill max. Ø in mm23
Core drill max. drilling depth in mm50
Core drill max. Ø in mm60
Distance between quick-change holder and base plate in mm330
Weight
Net weight in kg28
Gross weight in kg31
Shipping dimensions
Packaging height in mm200
Packaging width in mm510
Packaging length in mm610
General data
EAN code
9120039904092
