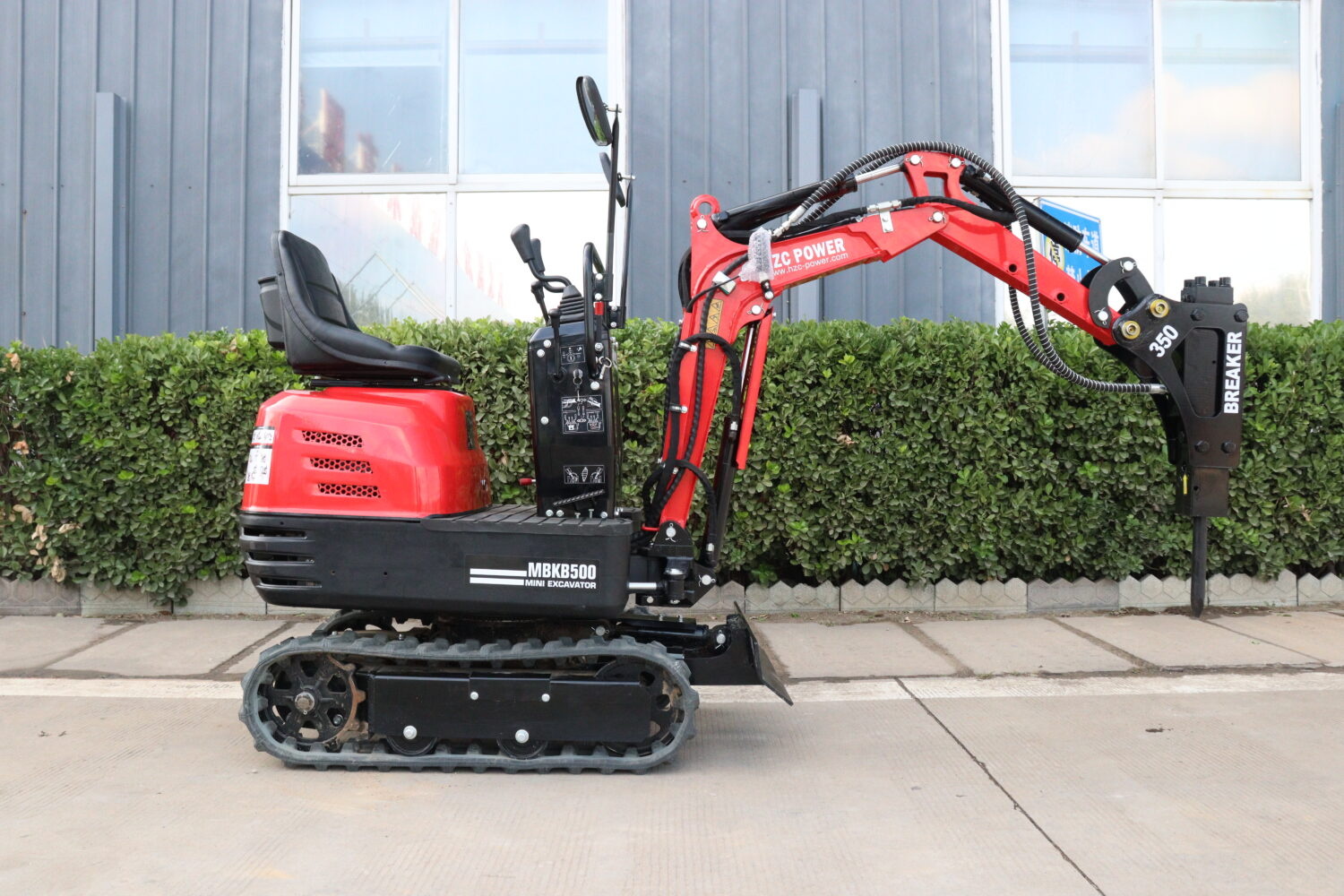

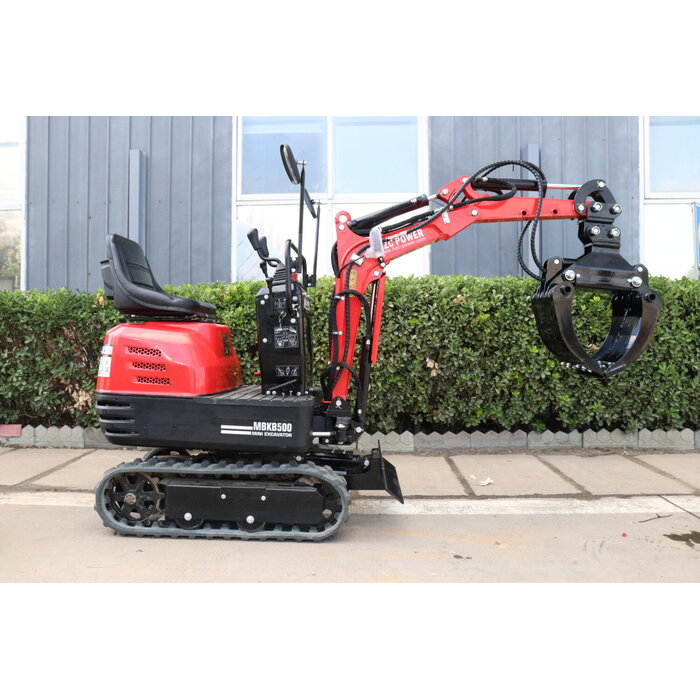

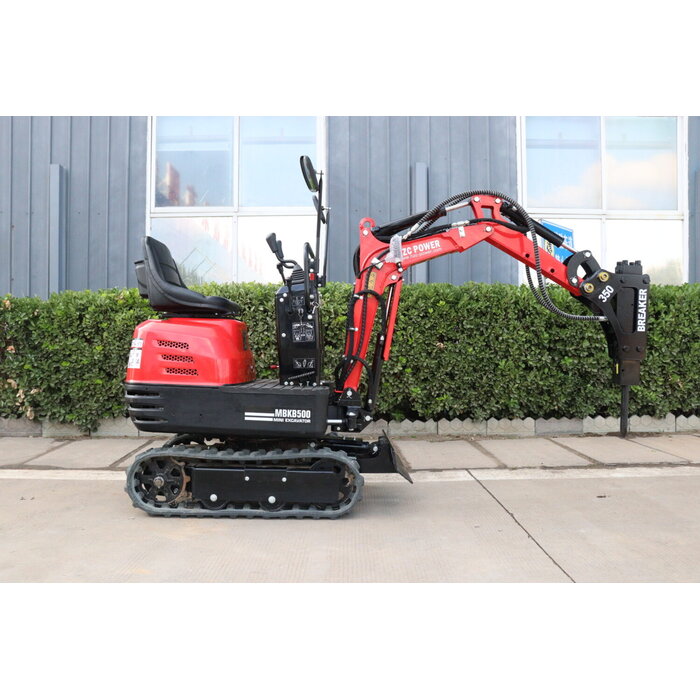

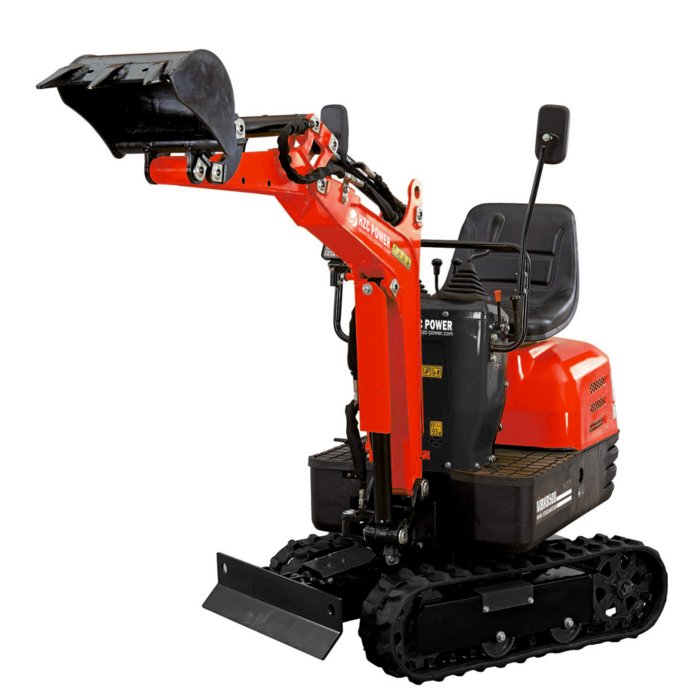

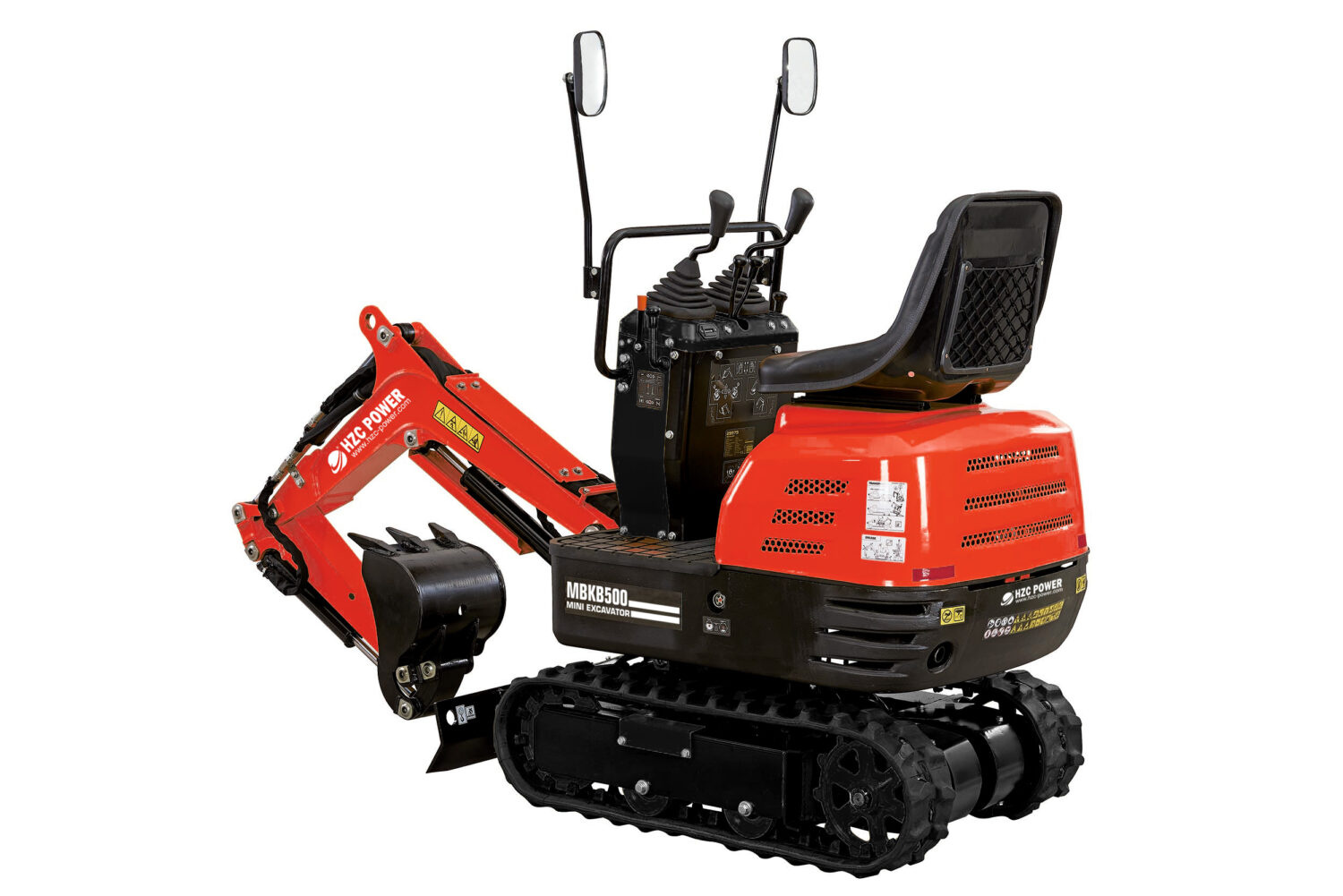

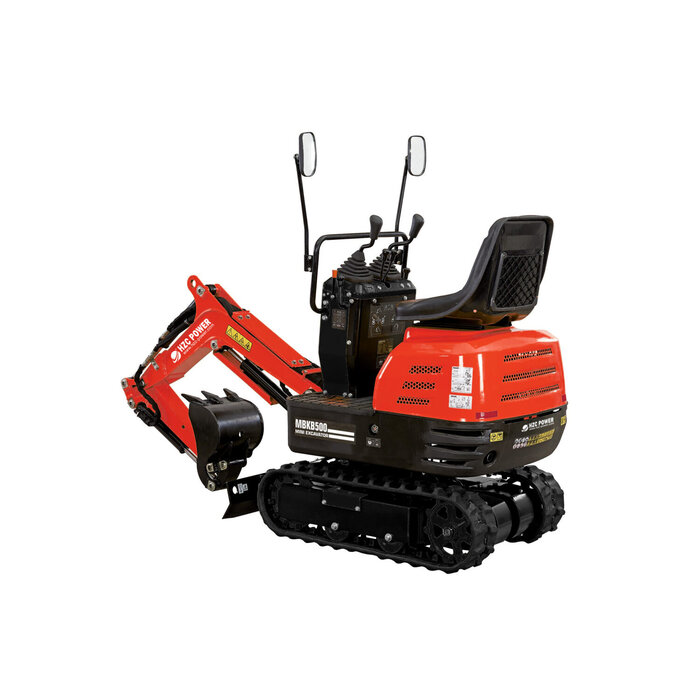

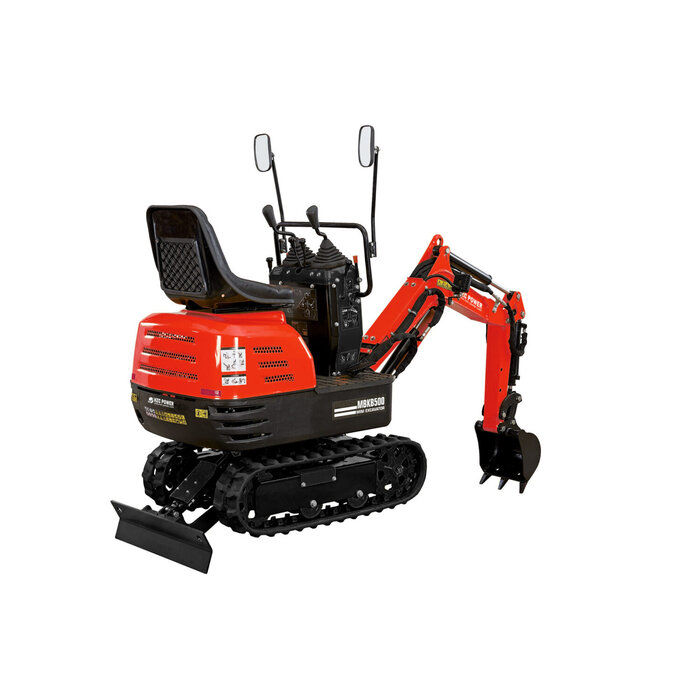

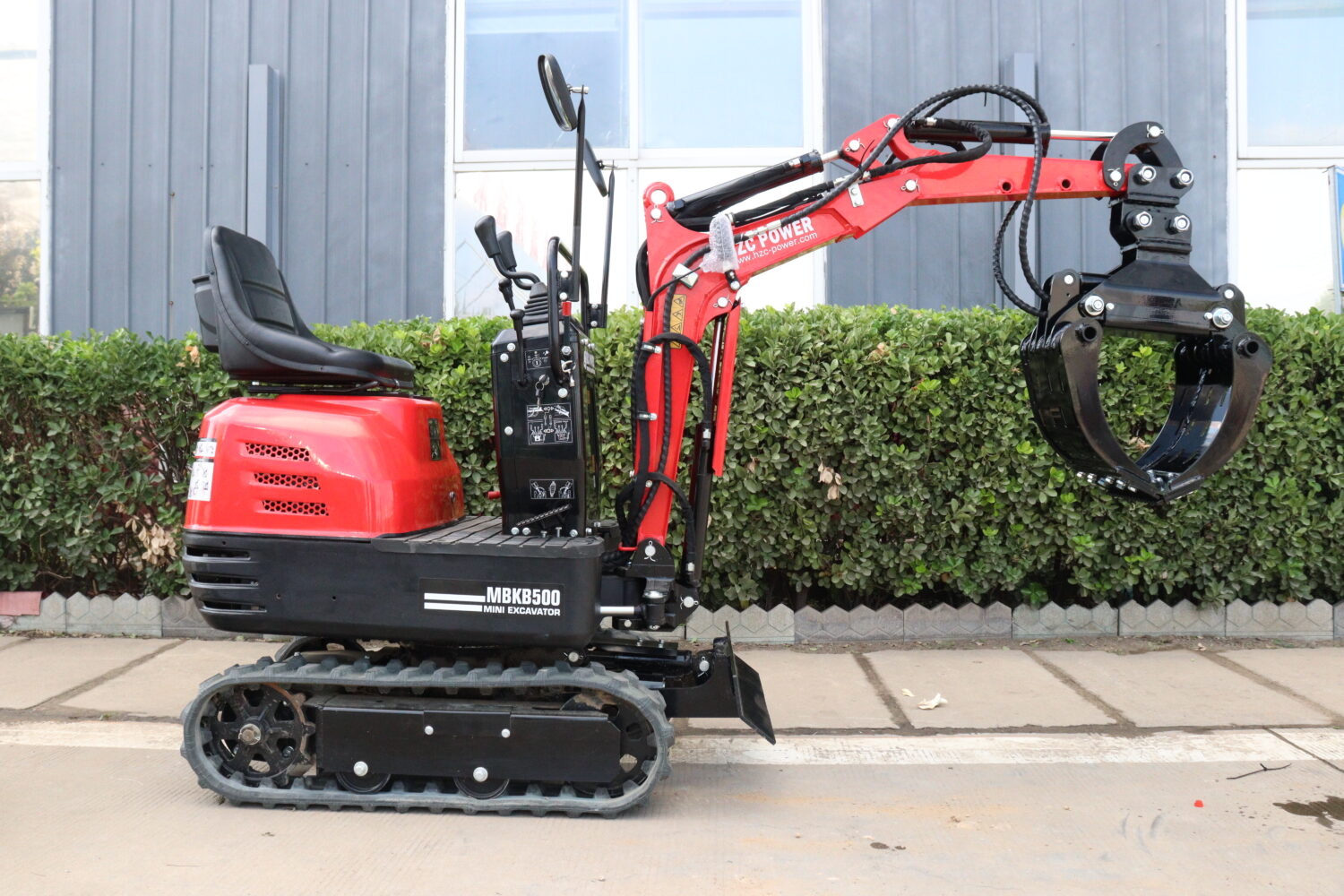

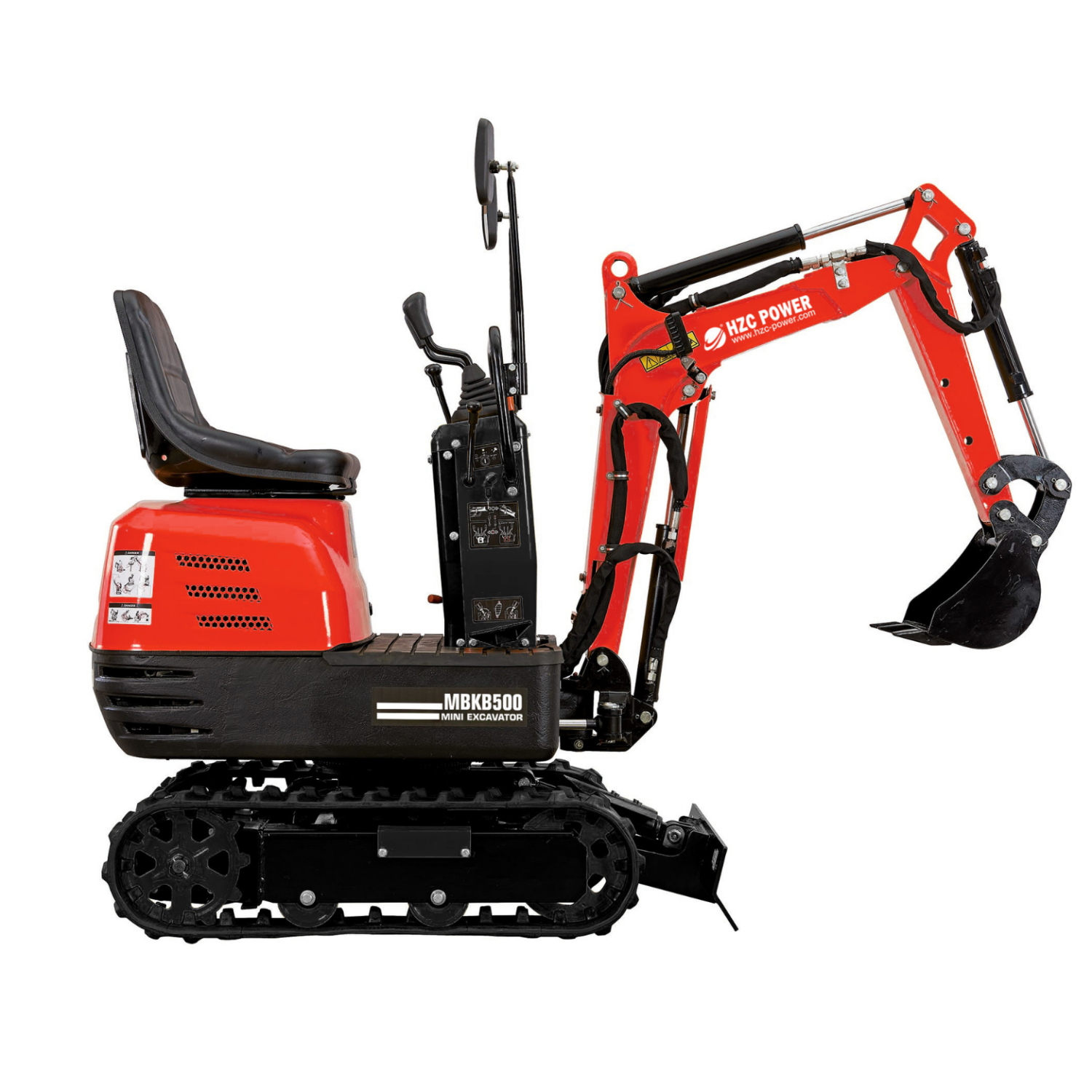

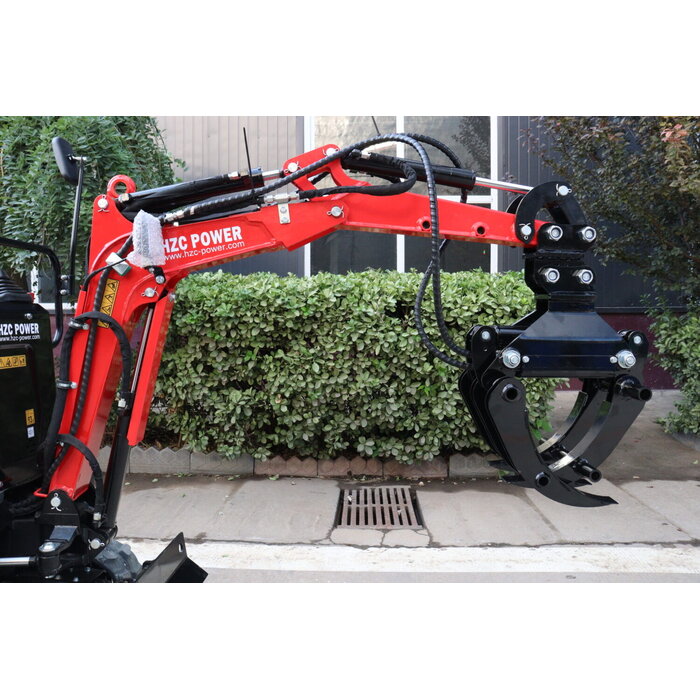

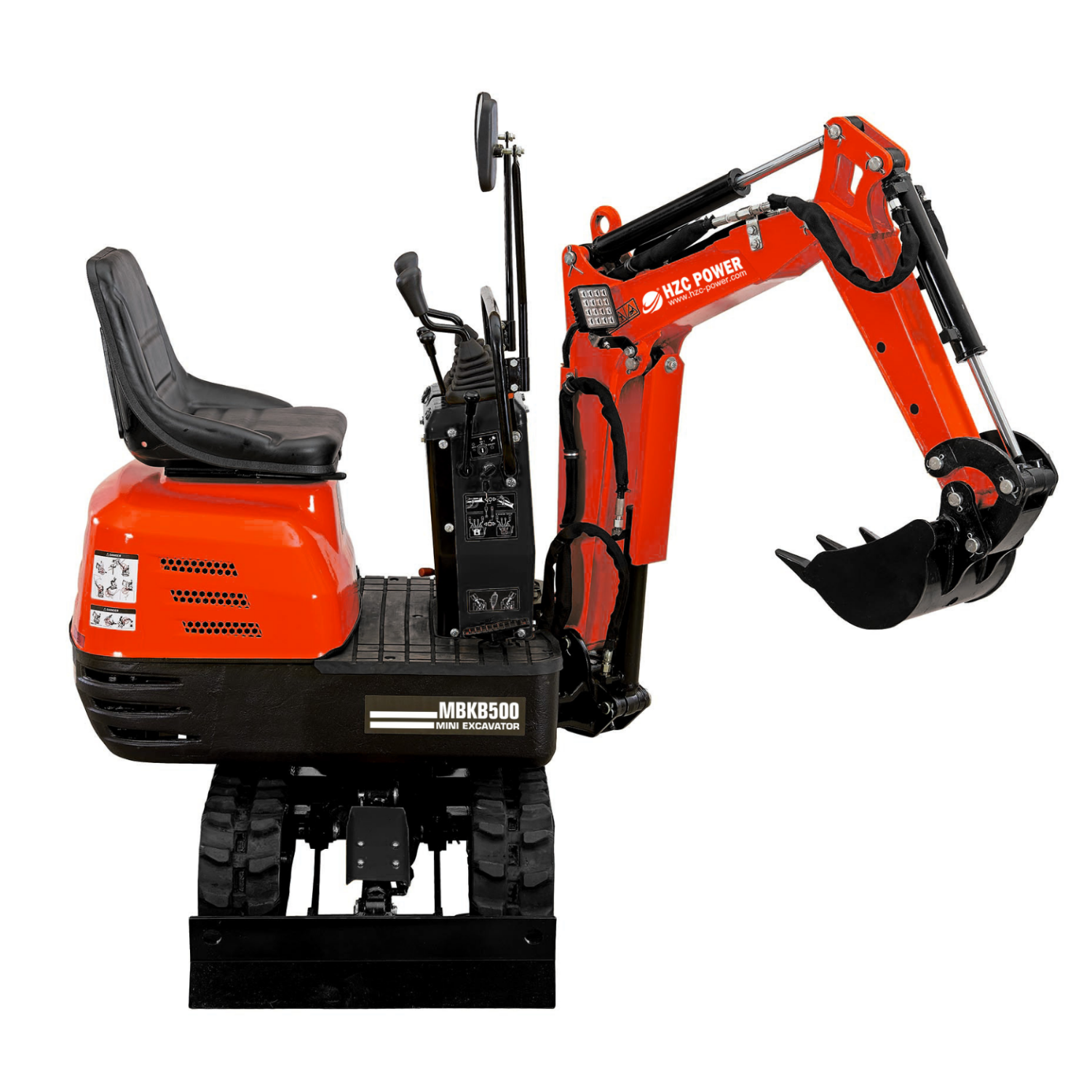

MBKB500 mini excavator, petrol, 562 kg, narrow

TheMBKB500mini excavator fromHZC Power, with its8.5 hp petrol engineand anoperating weight of 563.5 kg,impresses with itspowerful featuresandcompact design– ideal forwork in tight spacesoron difficult terrain. With abucket capacity of 0.011 m³and abucket width of 290 mm, it is perfectly suited forprecise excavation workandsmaller earthmoving tasks.

Equipped with a306 cc petrol engineand areliable key start system, the machine offers adigging force of 4.2 kN (arm)and8.8 kN (bucket). Themaximum travel speedis1.7 km/h, with adrawbar pull of 6.2 kN. Thanks to a70° swing range to the left and right,the excavator canbe positioned flexibly.

With aground pressure of only 0.27 kgf/cm²,rubber tracks (150 mm wide)and aclimbing ability of up to 15°,the excavator effortlessly masters evendifficult terrain. Thehydraulic driveis powered bytwo pumps, each with a flow rate of 8.3 l/min, and is fed via a12-litre hydraulic tank. Ahydraulic parking brake systemprovidesadditional safety when the machine is at a standstill.

Technical data

Petrol engine: 306 cc, 8.5 hp, 6.5 kW (complies with the latest EU environmental directive)
Starter motor for petrol engine: electric starter
Rotation angle: 360 degrees
Excavator arm swing range: approx. 70 degrees to the left, 70 degrees to the right
Maximum loading height: 1350 mm
Ejection height: max. 2100 mm
Digging depth: max. 1200 mm
Range: max. 2330 mm
Total width including mirror: 770 mm
Total width without mirrors: 700 mm
Track width: 690 mm
Maximum height: 1585 mm from floor to top edge of mirror
Minimum height: 1305 mm from floor to top of seat (without mirrors)
Load capacity (with excavator arm extended to 1.9 m): approx. 140 kg (bulldozer blade lowered)
Lifting capacity (with excavator arm extended to 1.9 m): approx. 80 kg (dozer blade up)
Tensile strength: approx. 450 kg
Hydraulic oil: approx. 10 l (HLP46)
Climbing ability: max. 18 degrees
Weight: approx. 563.5 kg

Standard equipment

Engine & Drive

Air-cooled petrol engine (306 cm³)
Electric start with key and switch-off function
Rubber tracks (150 mm wide) for minimal ground damage.
Hydraulic locking parking brake

hydraulic system

Double pump system (2 × 8.3 l/min)
Hydraulic tank with a capacity of 12 liters.
Powerful hydraulics for lifting and digging

Driving and working characteristics

Driving speed up to 1.7 km/h
Digging force: 8.8 kN (scoop) / 4.2 kN (arm)
Boom swing range: 70° left / 70° right
Swing speed: 9.3 rpm
Climbing ability up to 15°
Low ground pressure (26.5 kPa) – ideal for sensitive surfaces

Work equipment

Standard shovel with a volume of 0.011 m³ and a width of 290 mm.
Robust rubber tracks for easy and safe propulsion.
