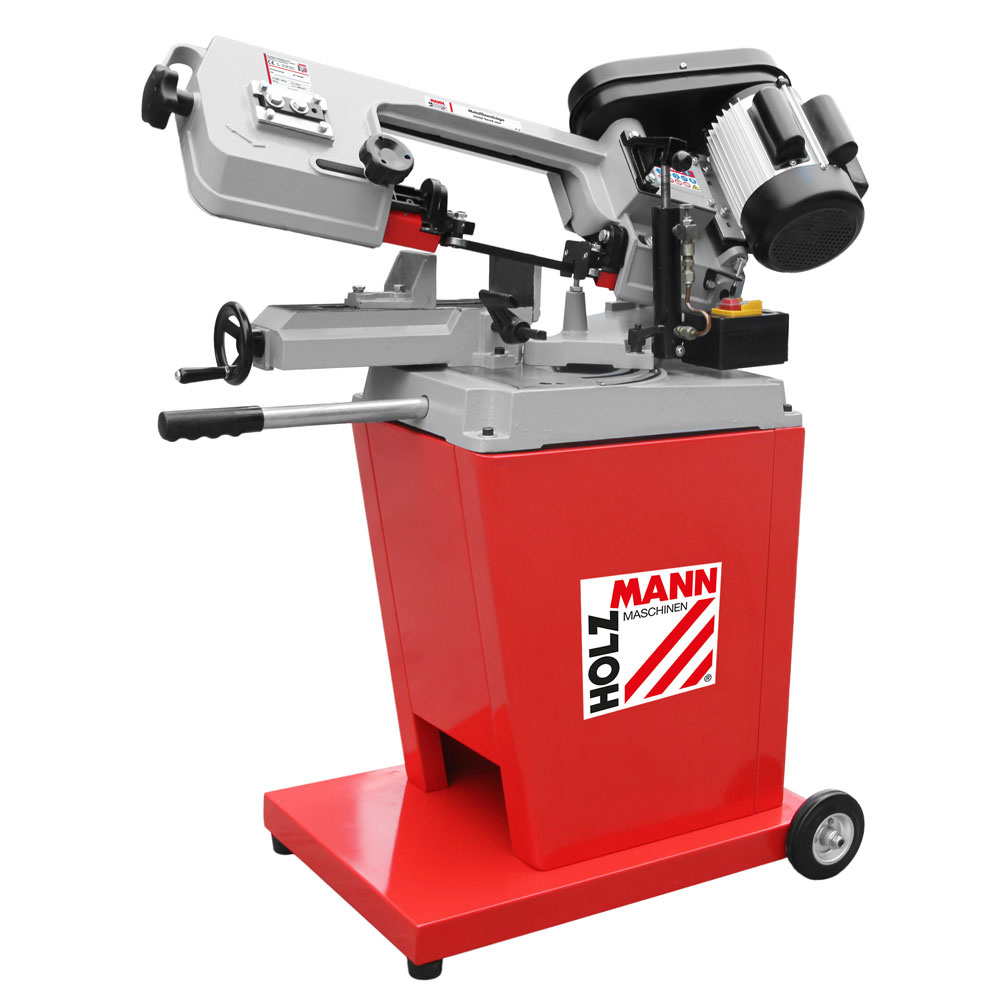

Name: Holzmann Metal Band Saw BS128HDR_230V *
Brand: Holzmann
SKU: BS128HDR_230V
Price: 599.00 EUR
Availability: InStock

Description

Metal Band Saw BS128HDR_230V *

Request a quote

The HOLZMANN BS128HDR_230V is designed as a mobile metal belt saw, but its features closely resemble those of a stationary machine. The swiveling saw unit allows for miter cuts up to +60° or -45°. A hydraulic lowering cylinder allows the saw arm's lowering speed to be individually adjusted to the material being cut. This protects the saw blade and ensures smooth cuts. Despite its space-saving design, the cutting performance is impressive: the BS128HDR_230V effortlessly processes round material with a diameter of up to 125 mm. Maximum flexibility and high performance combined in a single machine.

Highlights

Saw band dimensions: 1638 x 13 x 0.6 mm
automatic limit switch standard
The lowering speed of the saw arm is infinitely adjustable via hydraulic cylinder
solid cast machine with ball-bearing saw blade guide
quick-adjustable vice with workpiece stop
Height of vice support to floor 730 mm
with extendable handle and base for easy manoeuvring of the machine
3 saw blade speeds allow you to cut different materials
with base frame for easier work

Scope of delivery: HSS saw blade, slide, automatic limit switch, workpiece stop, base frame

Technical details

Engine data

Engine power S1 in W 550

Engine power S6 in W825

Voltage 230V / 50Hz

General dimensions

Swivel range -45° +60°

Cutting performance

Cutting capacity round Ø 90° in mm 125

Cutting capacity round Ø 45° in mm 95

Cutting capacity round Ø 60° in mm 50

Cutting capacity LxH 90° in mm 100x150

Cutting capacity LxH 45° in mm 95x76

Cutting capacity LxH 60° in mm 50x56

Band saws

Saw band in mm 1638x13x0.6

Saw blade speed in m/min 23/34/54

Weight

Net weight in kg 76

Gross weight in kg 84

Shipping dimensions

Package height in mm548

Packaging width in mm442

Package length in mm 942

General information

EAN code 9120058372896
