Metal band saw BS275TOP_230V *
The HOLZMANN BS275TOP_230V metal belt saw impresses with its solid construction and extremely precise saw guidance. This is ensured by the 5-point saw blade guide, the infinitely adjustable lowering speed on the pressure cylinder, and the torsion-resistant saw frame. The frame can be rotated up to 60°, and its design allows for a maximum cutting height of 225 mm. The integrated cooling system protects the saw blade and enables fast cutting throughput.
Highlights
- precision metal band saw in heavy cast iron design
- powerful and durable gear drive
- Saw blade guide with quick adjustment and automatic limit switch
- Robust vice made of gray cast iron with eccentric clamping system and workpiece stop
- hydraulic counter-pressure cylinder for infinitely adjustable lowering speed

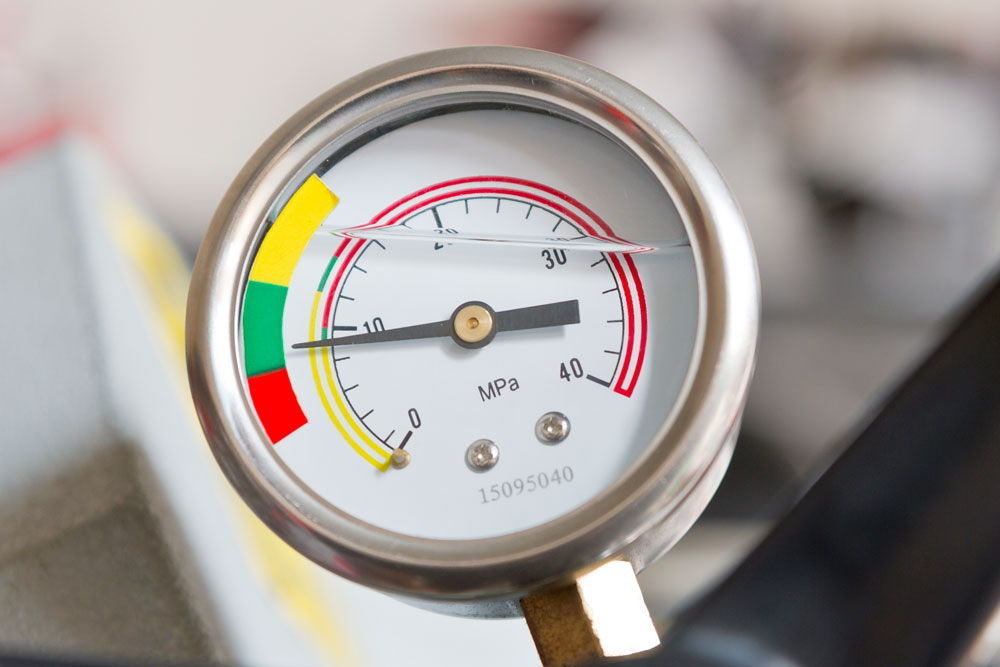

- Pressure gauge for displaying the saw blade tension
Technical details
Engine data
Motor power S1 in W 1.1 kW
Voltage 230V / 50Hz
General dimensions
Swivel range 0°-60°
Cutting performance
Cutting capacity round Ø 90° in mm 225
Cutting capacity round Ø 45° in mm 160
Cutting capacity round Ø 60° in mm 100
Cutting capacity LxH 90° in mm 200x200
Cutting capacity LxH 45° in mm 160x160
Cutting capacity LxH 60° in mm 100x100
Band saws
Saw band in mm 2450 x 27 x 0.9
Saw blade speed in m/min 75
Weight
Net weight in kg 195
Gross weight in kg 235
Shipping dimensions
Package height in mm 970
Packaging width in mm 580
Packaging length in mm 1,350
General information
EAN code
9120058374265
