Name: Holzmann Metal band saw machine BS370TOP_400V *
Brand: Holzmann
SKU: BS370TOP_400V
Price: 3999.00 EUR
Availability: InStock

Description

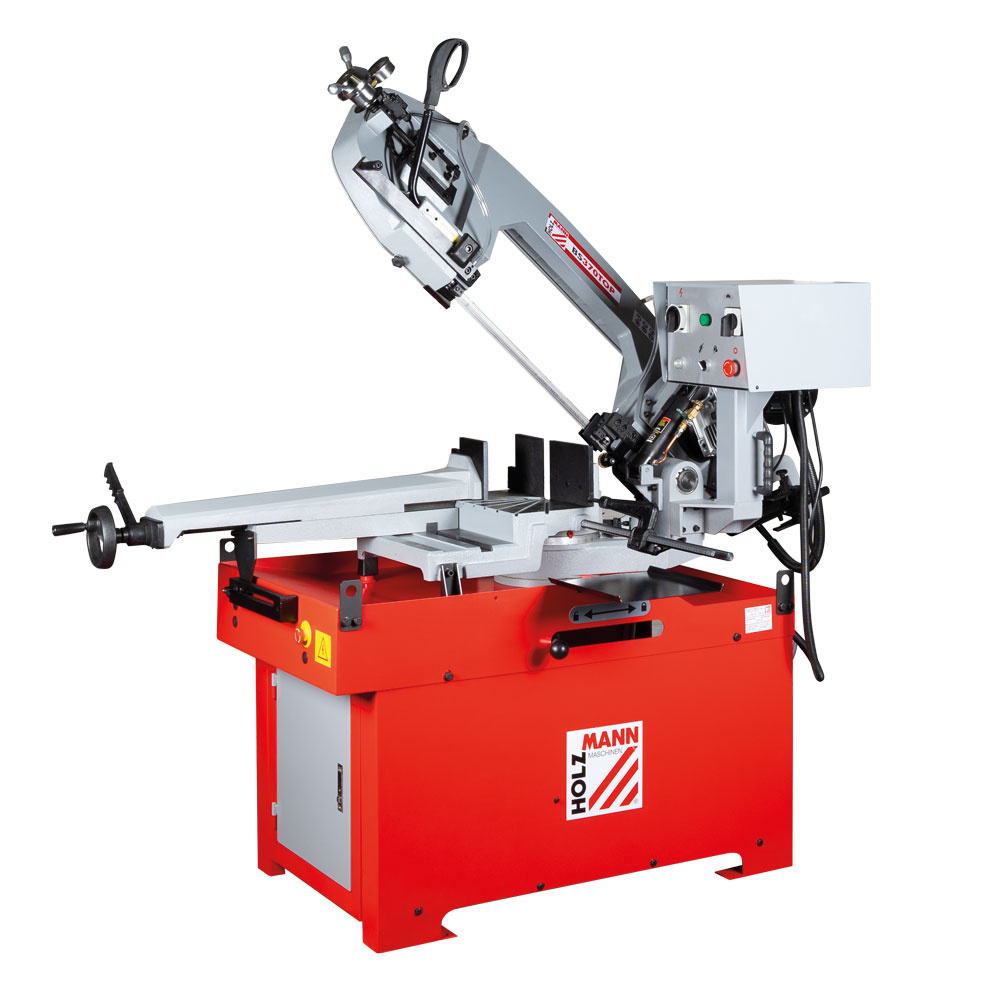

Metal band saw machine BS370TOP_400V *

Precision metal band saw in heavy-duty design
powerful 2-stage gear drive
Cutting angle adjustment: L: 0-45°, R: 0-60°
Saw arm can be lowered automatically or manually
After cutting, the machine is automatically switched off via limit switches
robust vice (contact surface to the ground = 900 mm)

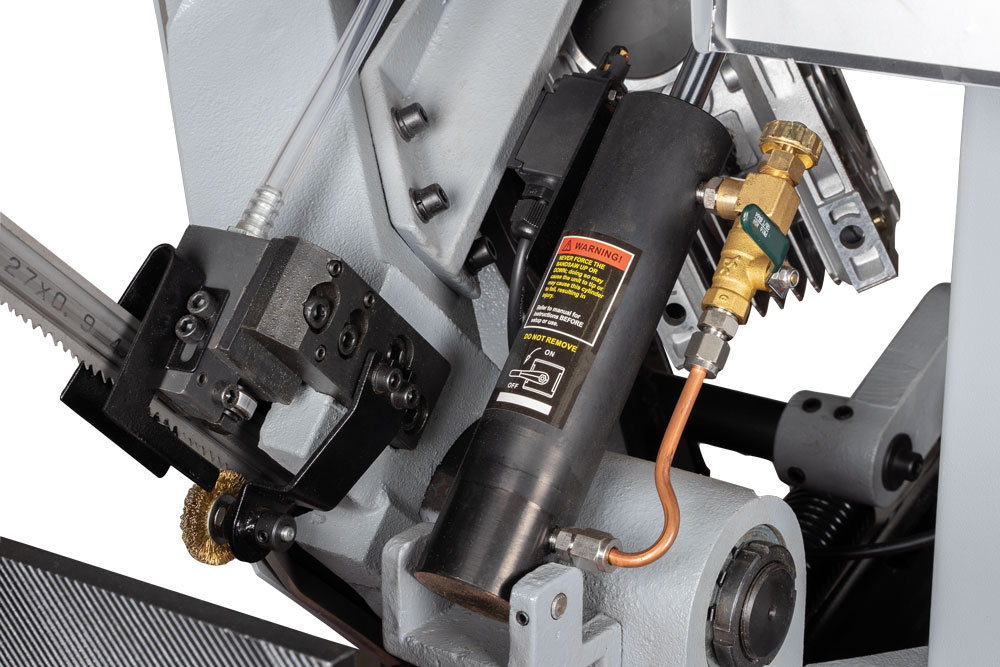

hydraulic lowering cylinder for continuously adjustable lowering speed
2-stage saw blade speed control (34 m/min; 68 m/min)

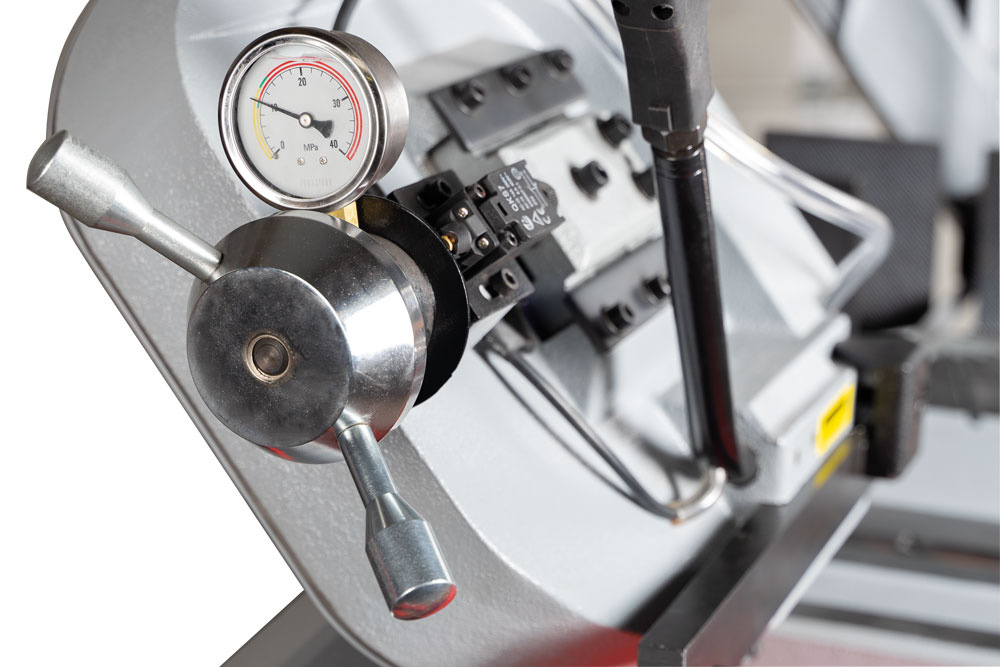

Pressure gauge to display the saw blade tension

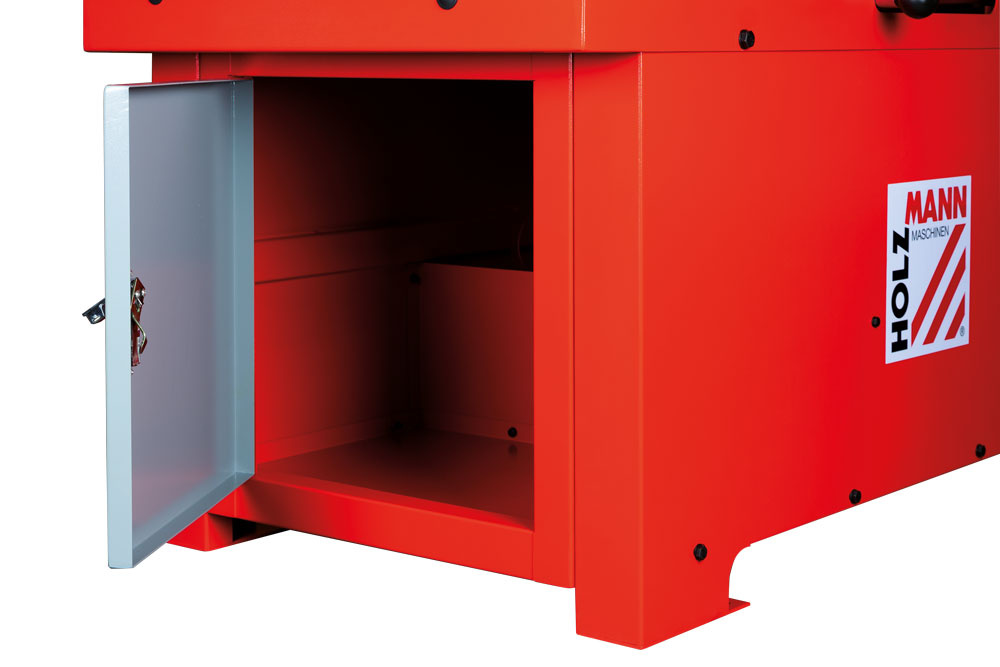

Machine stand with door and storage compartment as well as coolant tank (13 l) and coolant pump (45 W)

Scope of delivery : saw blade 3160 x 27 x 0.9 mm; CEE plug

Engine data

Engine power S1 in W 1100 (1) / 1500 (2)

Voltage 400 V / 50 Hz

General dimensions

Installation dimensions in mm 2200 x 1800 x 2100

Cutting performance

Cutting capacity round Ø 90° in mm 270

Cutting capacity round Ø 45° in mm 240

Cutting capacity round Ø 60° in mm 160

Cutting capacity round Ø -45° in mm 210

Cutting capacity LxH 90° in mm 370 x 220 (260 x 260)

Cutting capacity LxH 45° in mm 240 x 160 (220 x 220)

Cutting capacity LxH 60° in mm 150 x 150

Cutting area LxH -45° in mm 180 x 180

Band saws

Saw band in mm 3160 x 27 x 0.9

Saw blade speed in m/min 34 / 68

Fan diameter in mm 380

Volume and vibration:

Sound power level in dB(A) 88.5

Sound pressure level in dB(A) 75.6

Weight

Gross weight in kg 490

Net weight in kg 420

Shipping dimensions

Packaging width in mm 765

Package length in mm 1,770

Package height in mm 1,120

General information

EAN code

9120058378379
