Description

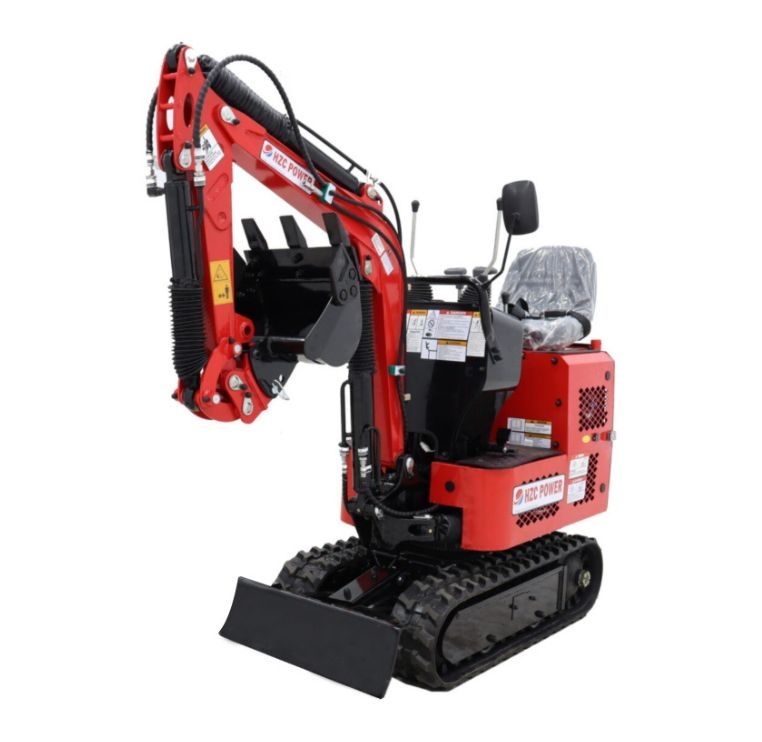

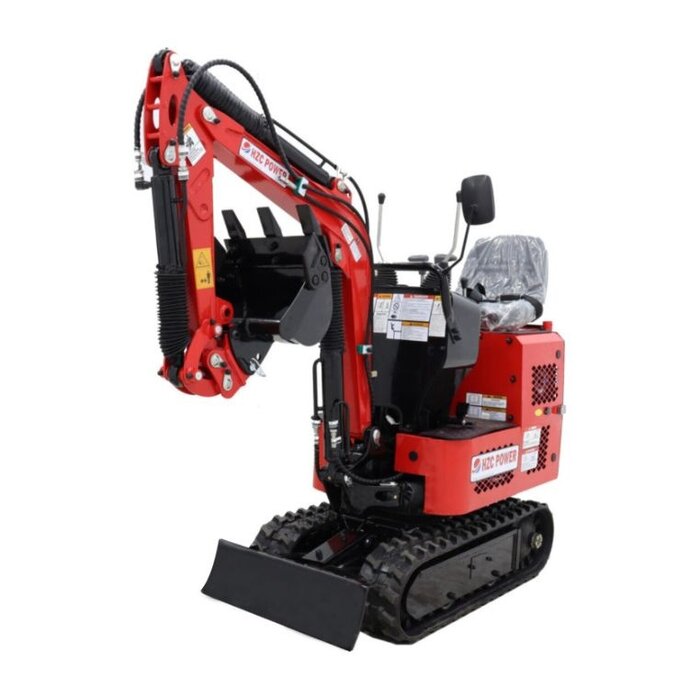

Mini excavator SDKB800, diesel, 814 kg, narrow

The SDKB800 is an exceptionally compact and versatile mini excavator, ideal for working on tight construction sites or in difficult terrain. Thanks to its narrow design and robust tracked drive, it offers exceptional maneuverability and stability on various surfaces.

Thanks to its 120° articulated arm, the SDKB800 can work precisely and flexibly – ideal for garden and landscaping maintenance, small construction projects, or renovation work. The powerful 9.5 hp diesel engine ensures reliable performance and efficient operation.

The well-thought-out, cab-less design provides optimum visibility of the work area, and its compact dimensions make the mini-excavator easy to transport.

The SDKB800 is the perfect choice for anyone looking for a reliable, maneuverable and efficient mini excavator for confined spaces.

Manufacturer and model

Model: SDKB800

Engine and drive

Engine: Buy diesel engine with 9.5 HP / 7 kW
Engine technology: single-cylinder, 4-stroke, air-cooled
Max. torque: 25 Nm
Max. speed: 3600 rpm
Fuel tank capacity: 5.5 liters
Starting system: electric start (12V)
Maximum climb capacity: 25°
Maximum speed: 2 km/h
Ground pressure: 0.35 kgf/cm²

Dimensions and weight

Overall dimensions: 2550 x 680 x 2220 mm (LxWxH)
Track dimensions: 1090 x 180 x 320 mm (LxWxH)
Product weight: 850 kg
Shipping weight: 950 kg

hydraulic system

Hydraulic oil tank capacity: 17 liters (HLP46)
Hydraulic pump: gear pump
Working pressure: 160 bar
Maximum pressure: 210 bar
Hydraulic flow: 30 liters per minute

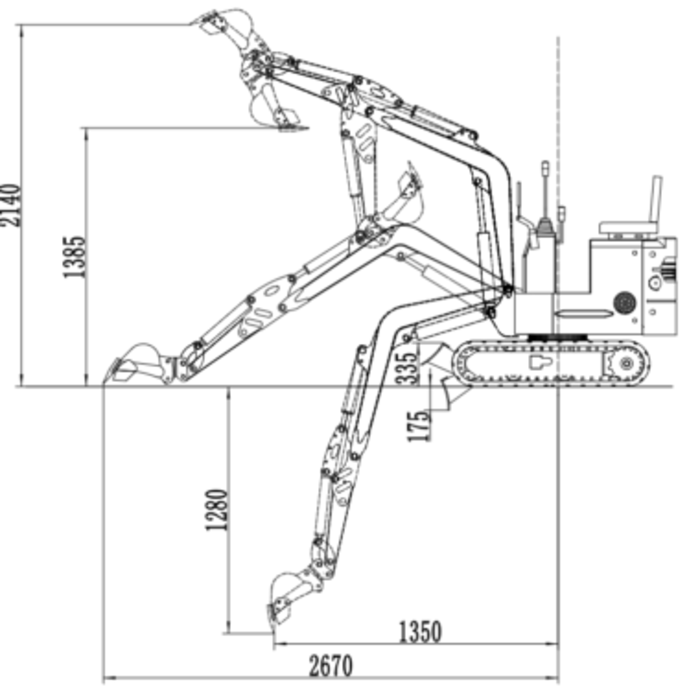

Performance data

Turning circle: 360°
Rotational speed: 13 rpm
Digging depth: 1400 mm
Loading height: 2150 mm
Range on the ground: 2850 mm
Traction force on the box: approx. 650 kg

Special features

Knickmatik: 120° (60° rotatable to the left and right)
Compact design without a cab: ideal for tight construction sites and small projects
Additional hydraulic connection: Enables the use of accessories such as jacks or grabs
Easy to transport: fits many trailers for easy moving

CAUTION: Use only the HZC Power Smart Charger (SLM10) to charge the starter battery. We accept no liability for damage caused by using third-party devices.
