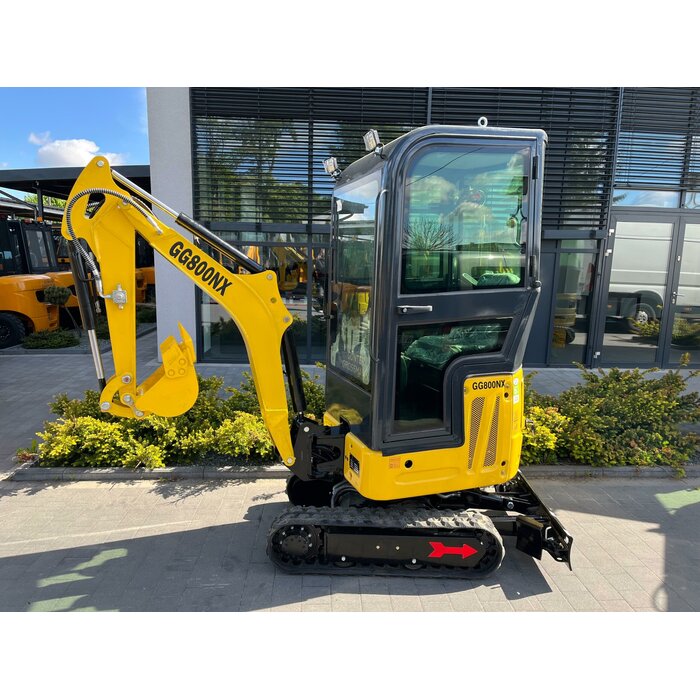

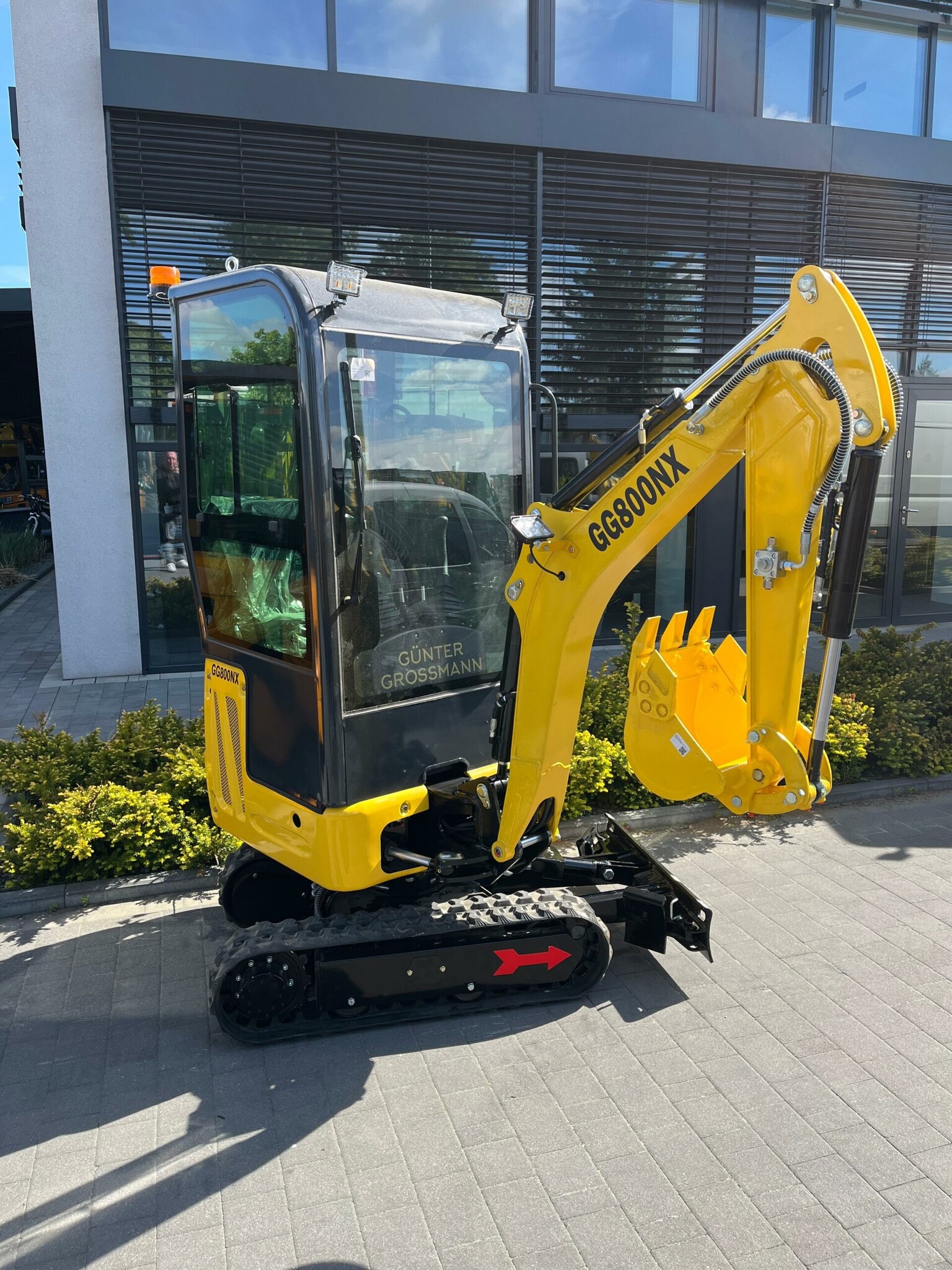

Mini excavator GG800NXC
Mini excavator GG800NXC

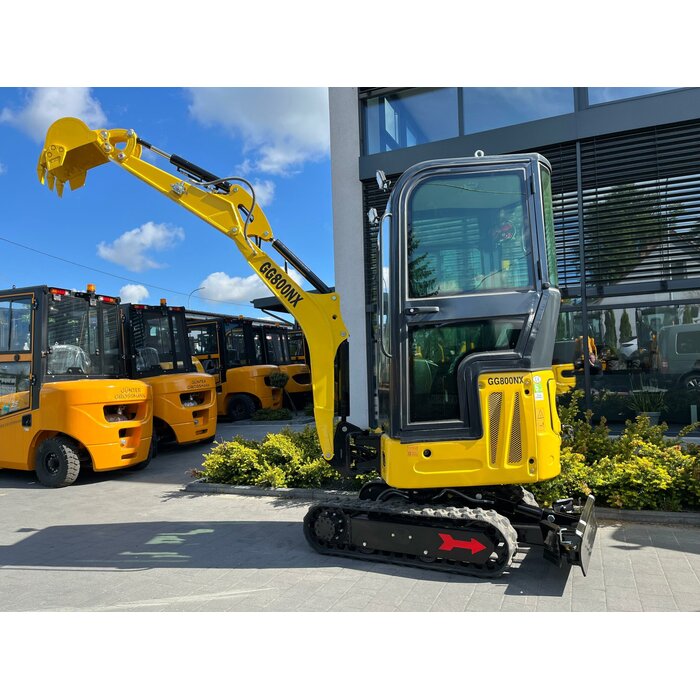

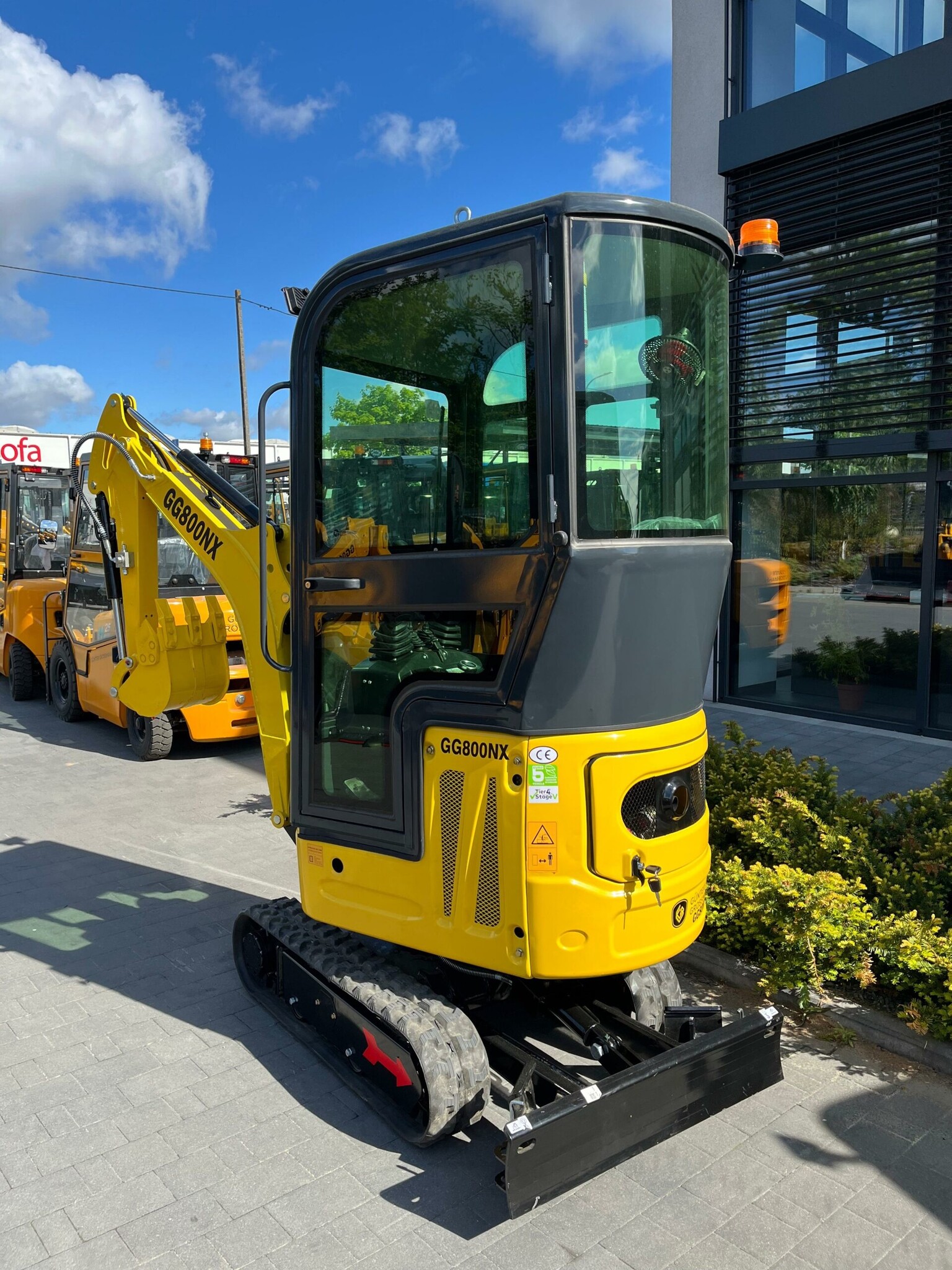

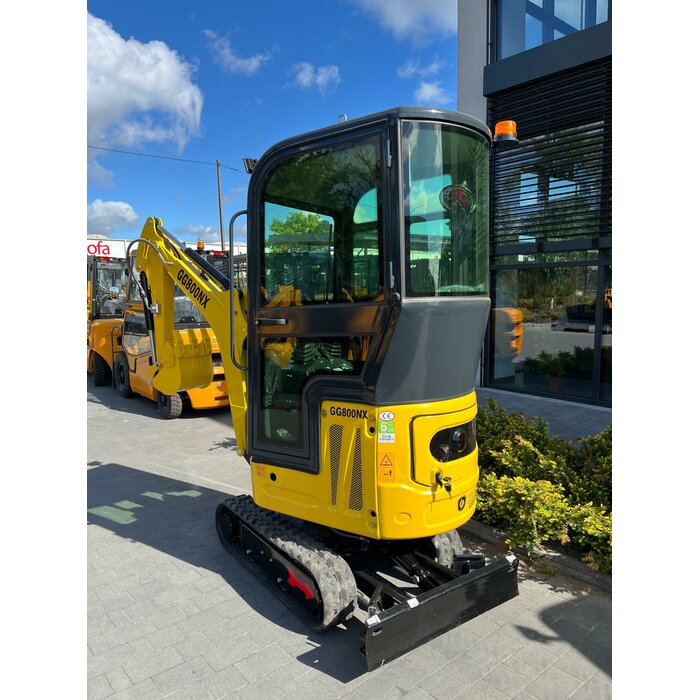

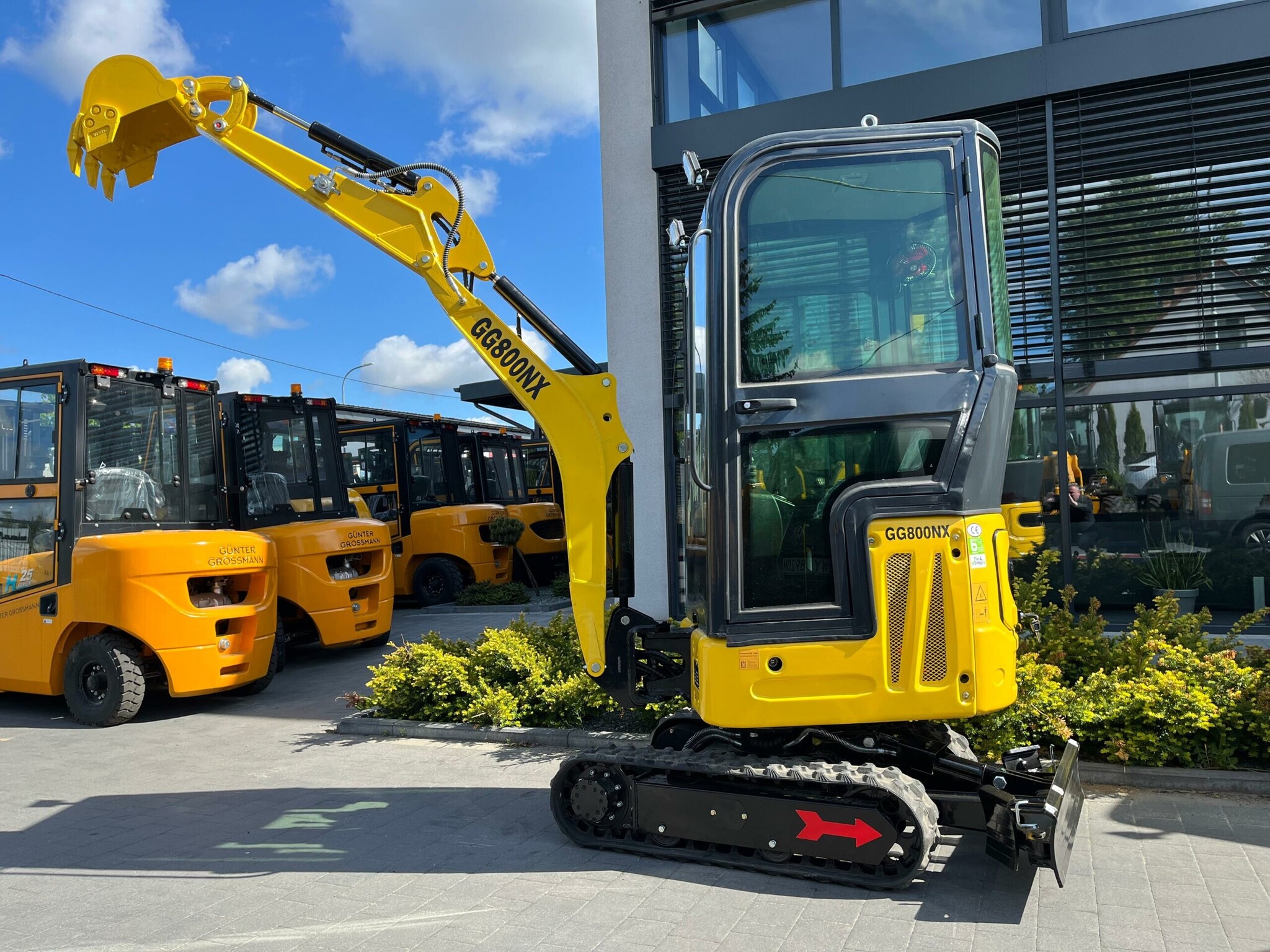

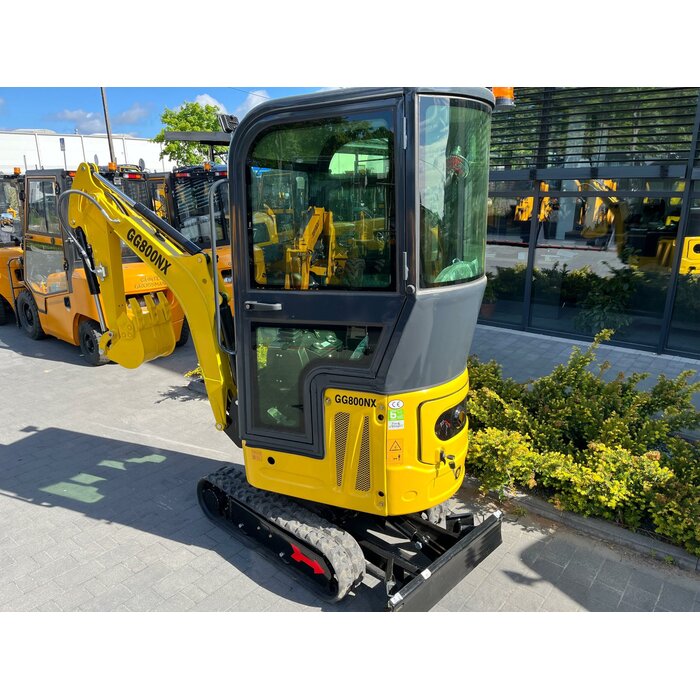

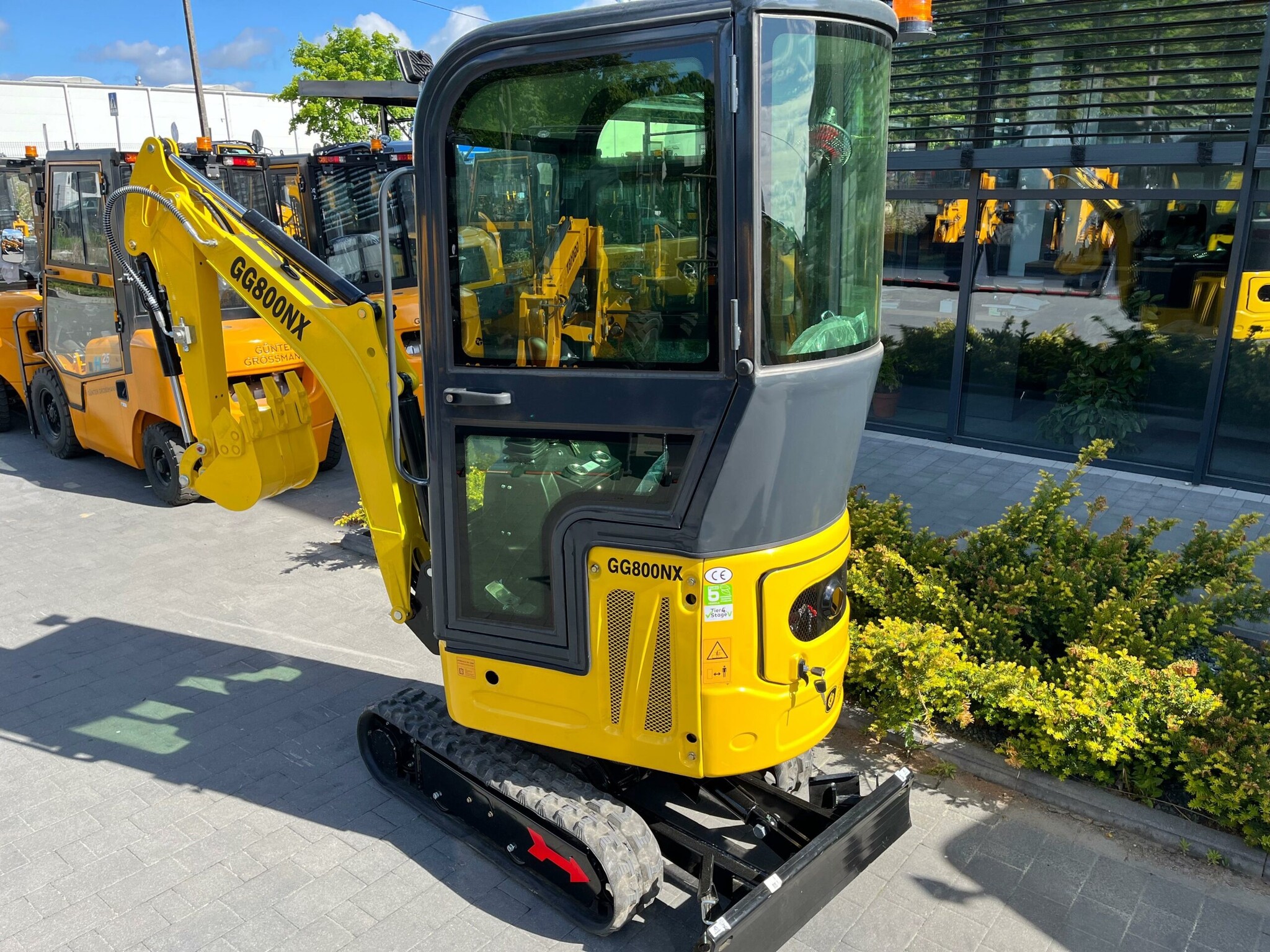

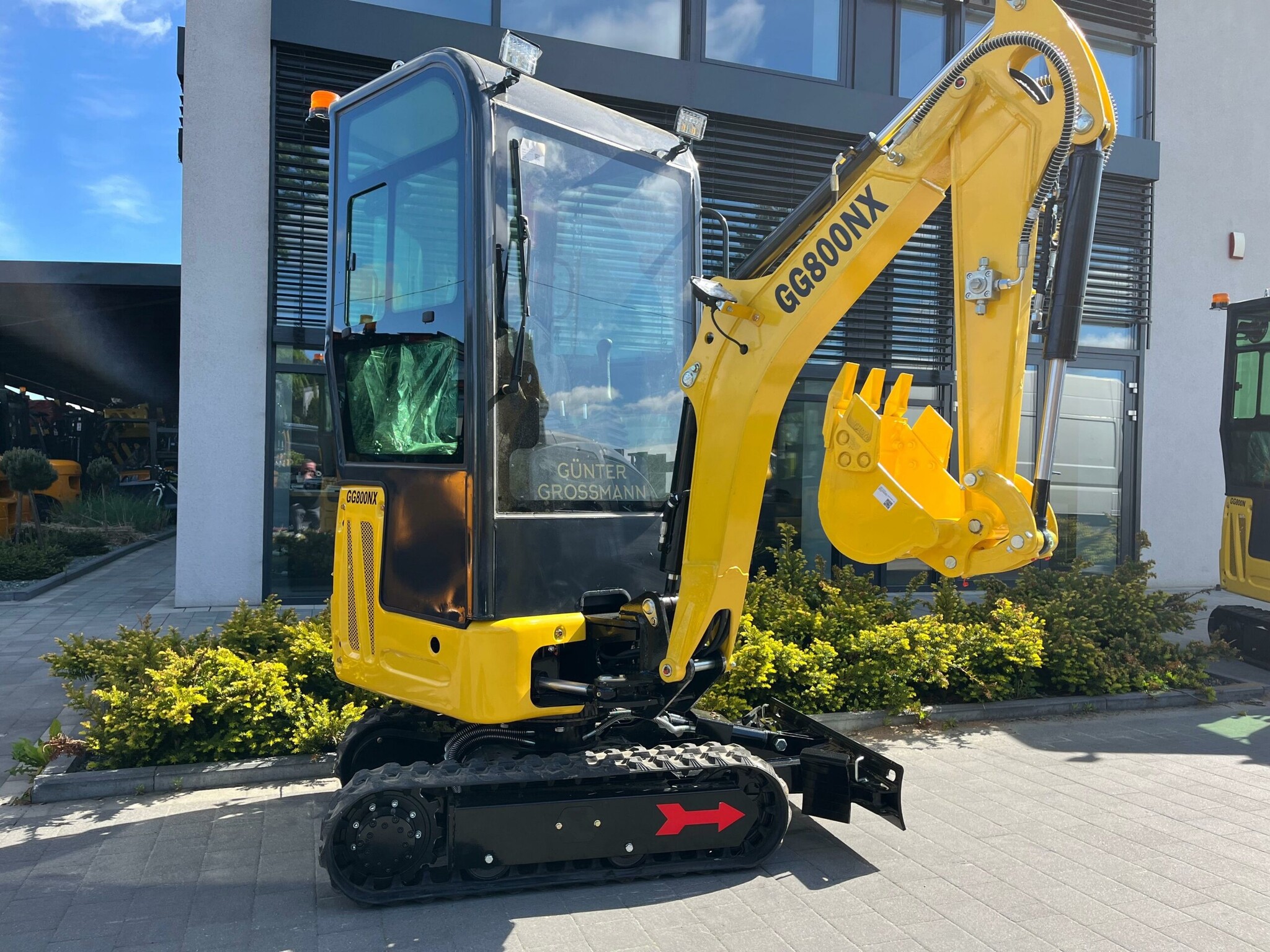

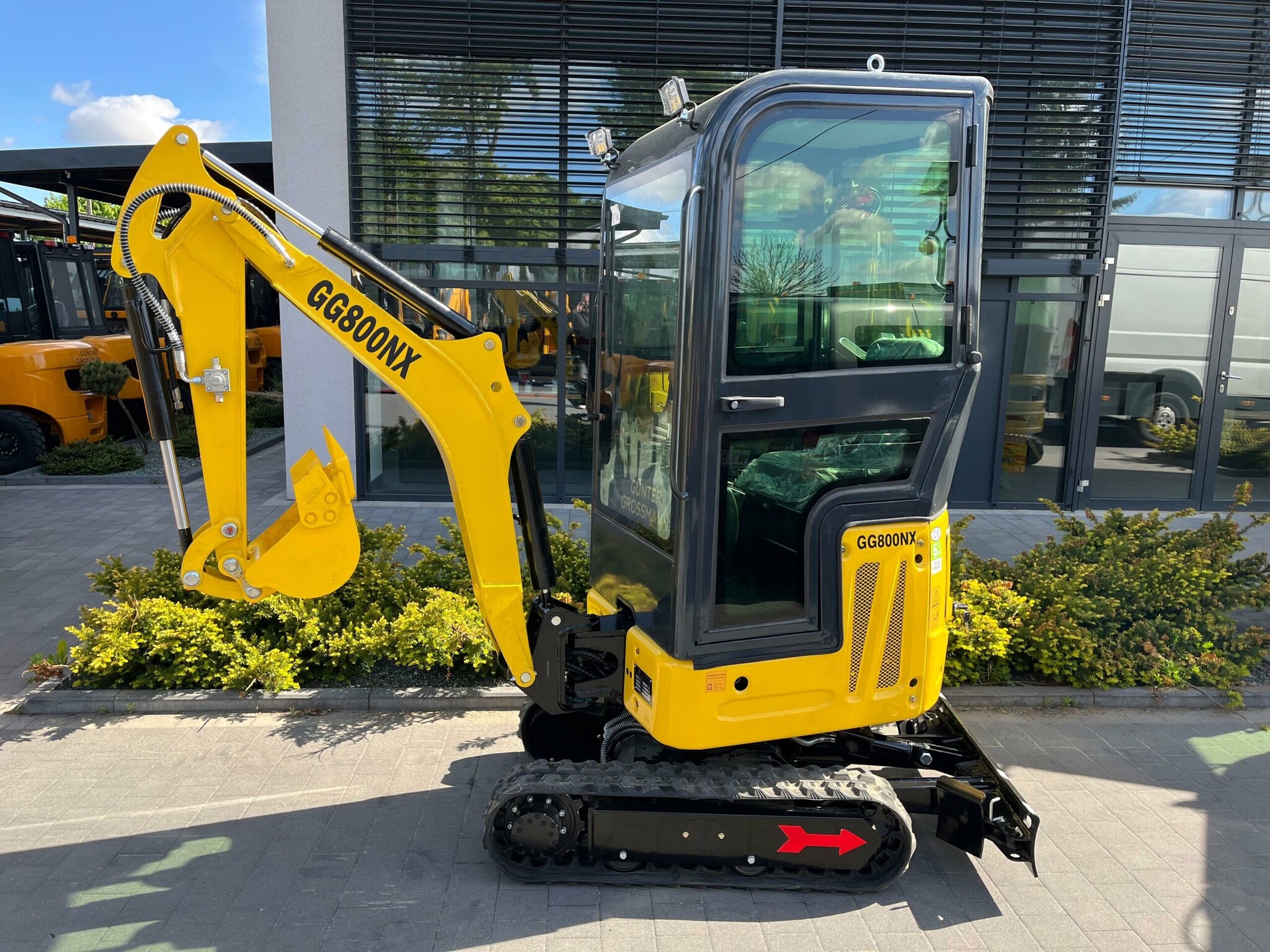

The GG800NXC is a compact, professional mini excavator, ideal for precise work in difficult-to-reach locations. The enclosed cab offers the operator comfort and protection in all weather conditions. With a weight of 1000 kg and a 0.025 m³ (380 mm) bucket, it provides efficient digging in tight spaces.
Strong and environmentally friendly performance
The GG800NXC is powered by a Euro 5-compliant Gunter Grossmann diesel engine (8.6 kW at 3600 rpm), delivering reliable and environmentally friendly operation. The 16 MPa Wayne hydraulic system and Dali engines ensure smooth, responsive operation, with a travel speed of 1.5 km/h for optimal mobility.
Wide working range
It offers a digging depth of 1650 mm, a height of 2610 mm, and 360° swing range for complete maneuverability. A dump height of 1850 mm and a blade lift height of 345 mm enable versatile earthmoving in a variety of conditions.
Compact and reliable
Measuring 2770 x 930 x 2100 mm, the GG800NXC is easy to transport and highly maneuverable. Its durable construction and enclosed cab make it perfect for year-round use by contractors, landscapers, and homeowners looking for a reliable mini excavator.
Technical data
Expandable caterpillars
knuckle boom
Operating weight: 1000 kg
Bucket capacity: 0.025 m3/cm³
Bucket width: 380 mm
Engine: Gunter Grossmann Diesel Euro 5
Nominal power: 8.6 kW / 3600 rpm
Main pump: Wanye Hydraulic
Hydraulic pressure: 16 MPa
Swing motor: Dalí
Travel motorcycle: Dalí
Travel speed: 1.5 km/h
Maximum digging depth: 1650 mm
Maximum digging height: 2610 mm
Maximum dumping height: 1850 mm
Maximum digging radius: 2890 mm
Swing radius: 360°
Maximum dozer blade lift height: 345 mm
Maximum dozer blade digging depth: 255 mm
Length: 2770 mm
Width: 930 mm
Height: 2100 mm
Track length: 1230 mm
Chassis width: 896 mm
track width 200 mm
