Mini track dumper MD500

Mini track dumper MD500

The 6.5 hp motor in combination with the tracks makes that no surface is a problem for this Lumag mini track dumper type MD500.
The machine is 74 cm wide and can therefore go through any door or gate! (the outer size of the tracks is 71 cm).
The body dimensions are (LxWxH) 110.5x71x35.5 cm.

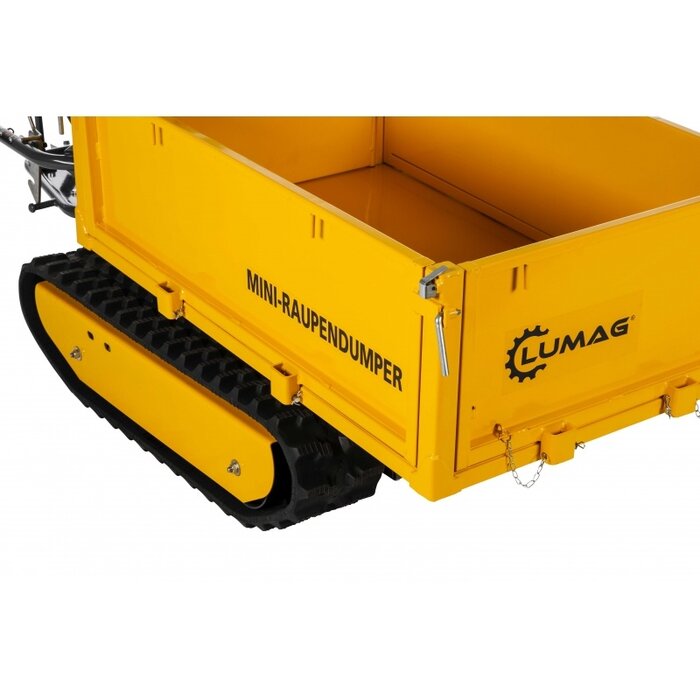

The sides can be folded down on both sides and front (then hang down completely) and can be removed if necessary.
The front flap is also hinged at the top, making it easy to tip material.
The maximum loading capacity is 500kg. The tipping of the body is done manually and is supported by a gas spring.
However, the placement of the body (which protrudes about 26 cm at the front) makes this easy.

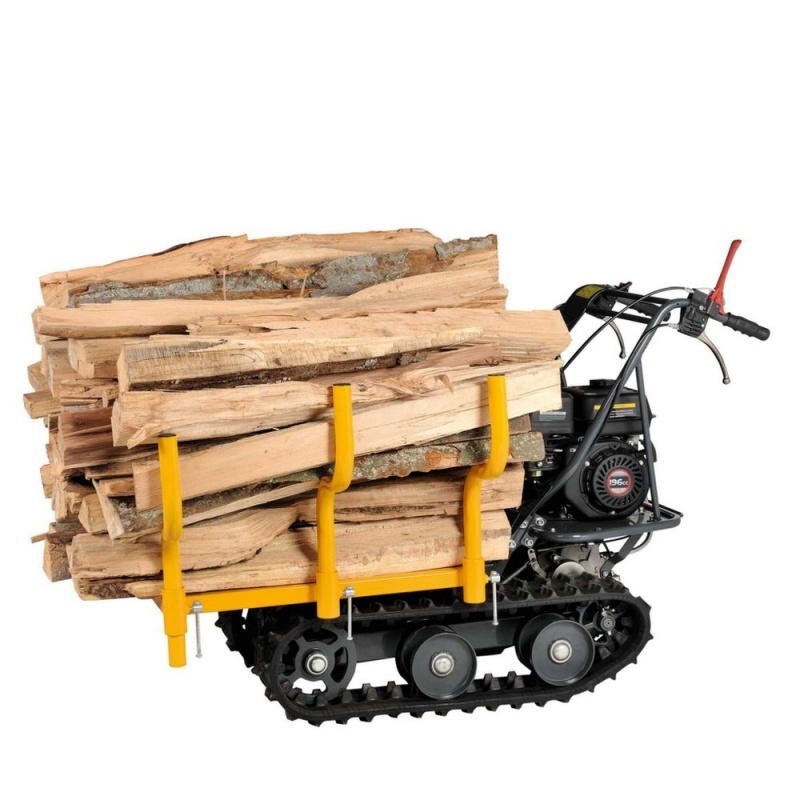

You can also install a snow shovel or wood transport module.
These are not supplied as standard.

Engine type Air-cooled 1-cyl. 4-stroke OHV petrol engine
Max. power 6.5 hp
Cylinder capacity 196 cm3
Motor manufacturer Loncin (3 year warranty!)
Tank capacity 3.6 liters
Fuel type Euro unleaded petrol
Start system Pull starter
Noise level LWA 106 dB (A)
Body dimensions (L x W x H) 1100 x 710 x 355mm
Folding side walls Yes
Side walls removable Yes
Folding front cover Yes
Front cover hinged Yes, top side
Max. load capacity 500 kg
Hydraulic self loading system No.
Tilting mechanism Mechanical
Gas spring support Yes, for tipper body
Hydraulic pump No.
Drive Hydrostatic
Track dimensions (L x W x H) 1120 x 180 x260mm
Rotate full hydraulic / control valve
Handbrake Automatic safety brake
Speed adjustable Yes, variable
Max. speed forward 3.6 Km / h
Forward gears 3
Max. reverse speed 1.2 Km / h
Reverse gears 1
Driver's platform No.
Machine dimensions (L x W x H) 1790 x 740 x 940mm
Weight approx. 228 kg
Art. No. MD500
EAN code 4047424003954
