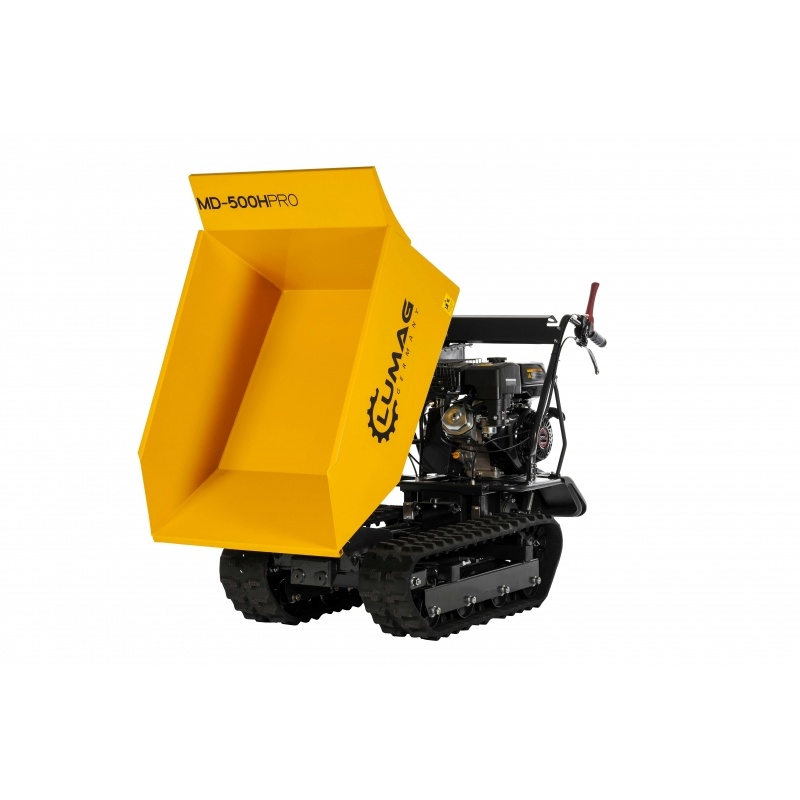

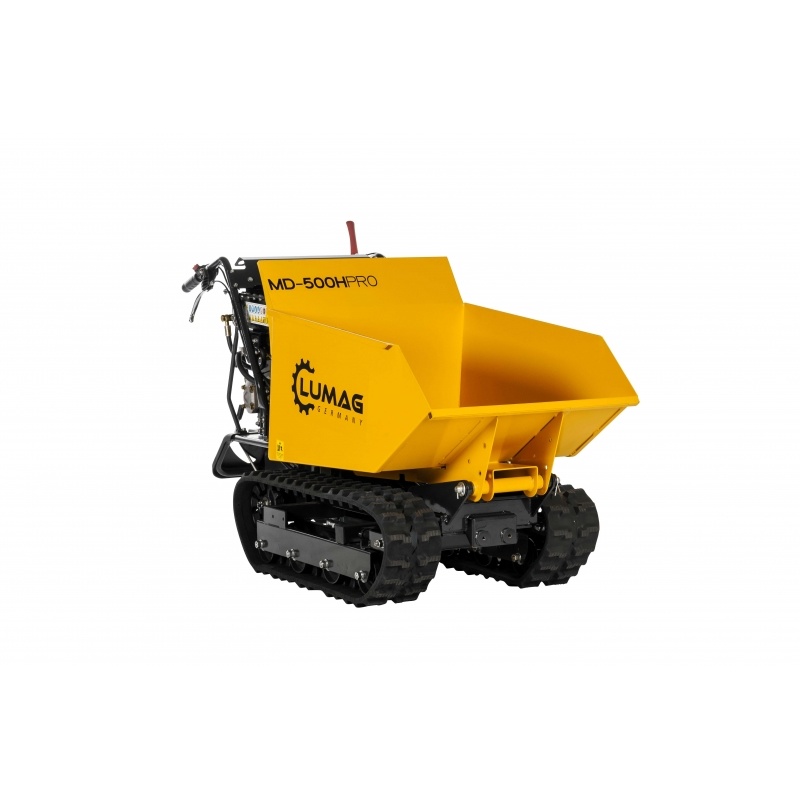

Mini track dumper MD500HPRO

Mini track dumper MD500HPRO

The 9.0 hp engine in combination with the tracks makes that no surface is a problem for this mini track dumper Lumag MD500HPRO.
The machine is 70.4 cm wide and can therefore go through any door or gate!
In addition, this machine is equipped with a gearbox manufactured in Japan.
This provides extra ground space and has 6 gears forward and 2 reverse (of course you decide before you drive the gear and you do not have to shift up).

The tipper body dimensions are (LxWxH) 100x70x45 cm.
The maximum loading capacity is 500kg (212 liters).
The own weight of the machine is 272 kg.

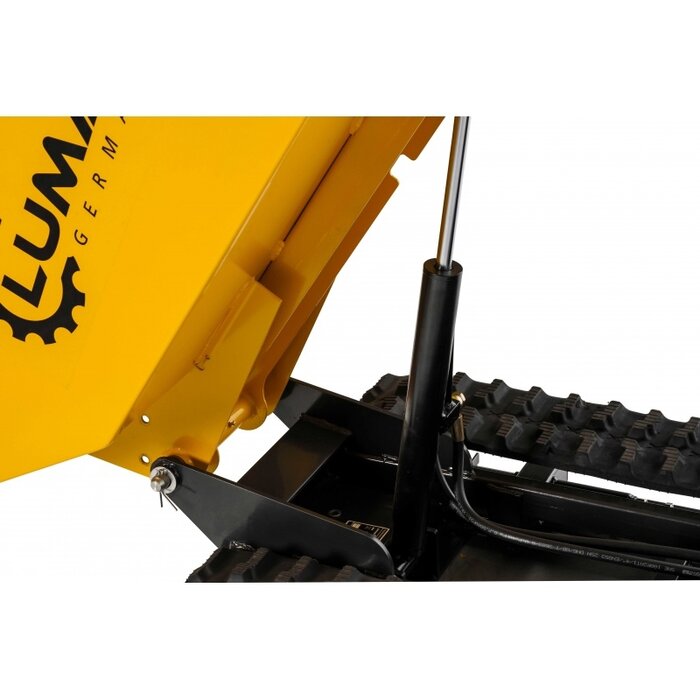

The tipping of the body is done by means of a hydraulic cylinder.
The machine is steered by braking one of the tracks.

The snowplow shown is an accessory.

Starter mechanism Pull starter
Engine type Air-cooled 1-cyl. 4-stroke OHV petrol engine
Max. power 9.0 hp
Cylinder capacity 270 cm3
Motor manufacturer Loncin (3 year warranty!)
Tank capacity 3.6 liters
Fuel type Euro unleaded petrol
Start system Pull starter
Noise level LWA 106 dB (A)
Cargo box dimensions (L x W x H) 1000 x 700 x 450mm
Folding side walls No.
Side walls removable No.
Folding front cover No.
Hinged front cover No.
Max. load capacity 500 kg
Cargo box capacity 212 liters
Hydraulic self loading system No.
Tilting mechanism Hydraulic, forward
Handbrake Automatic safety brake
Speed adjustable Yes, variable
Max. speed forward 3.6 Km / h
Forward gears 6
Reverse gears 2
Max. reverse speed 1.2 Km / h
Hydraulic pump 12 l / min (at 3000 rpm)
Working pressure max. 200 bar
Driver's platform No.
Machine dimensions (L x W x H) 1706 x 704 x 975 mm
Weight approx. 272 kg
Art. No. MD500HPRO
EAN code 40477424006719
