Description

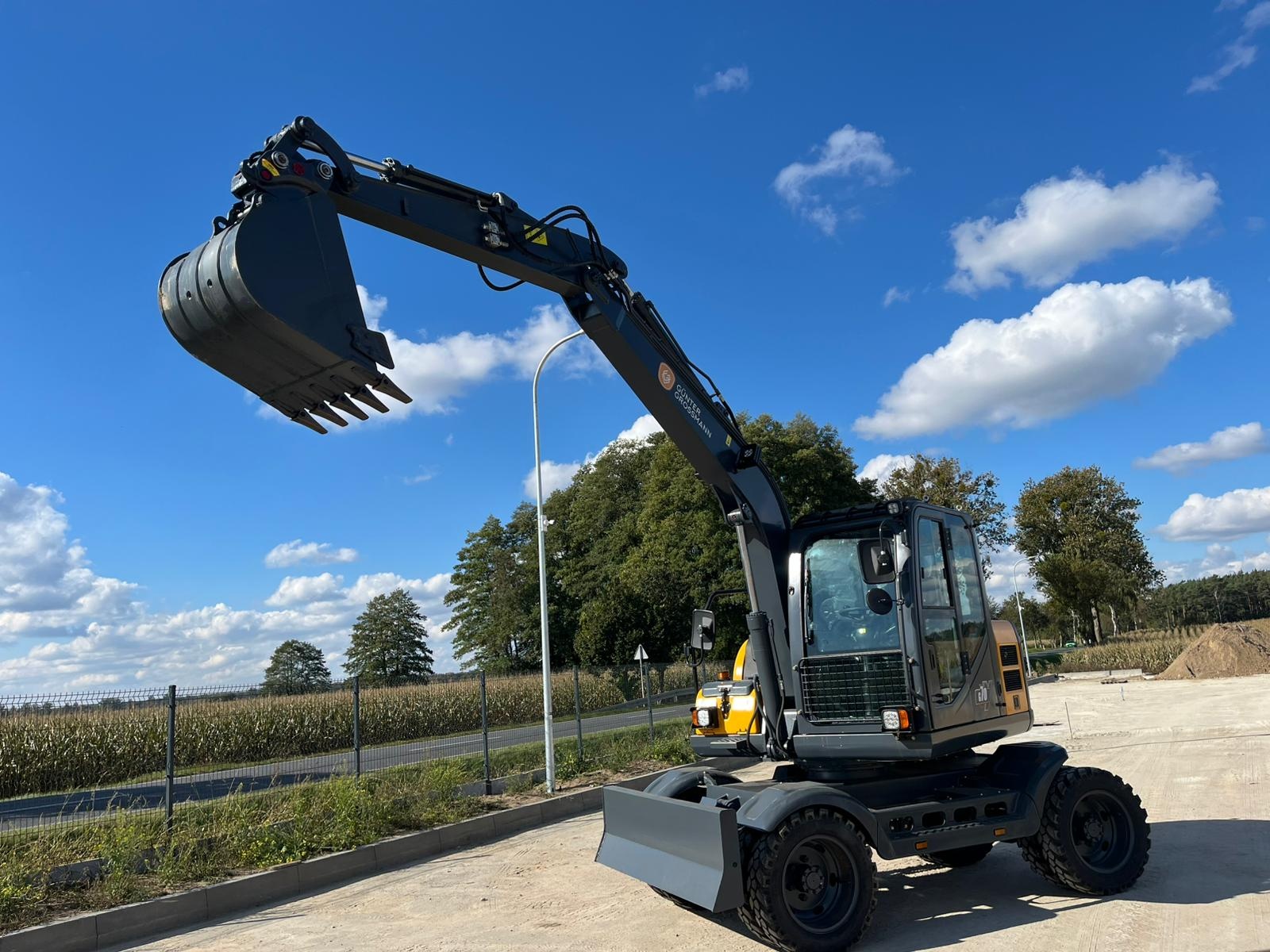

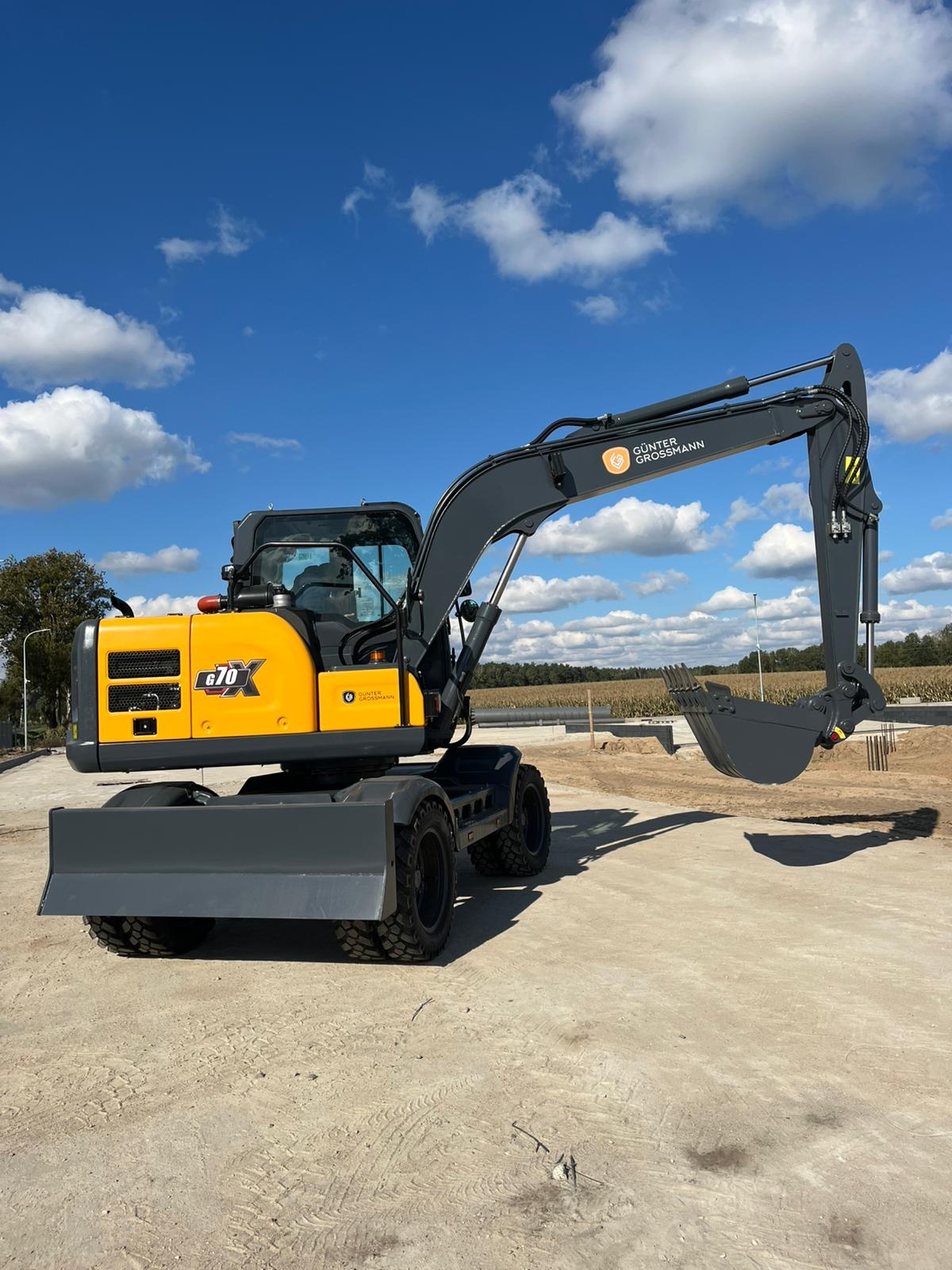

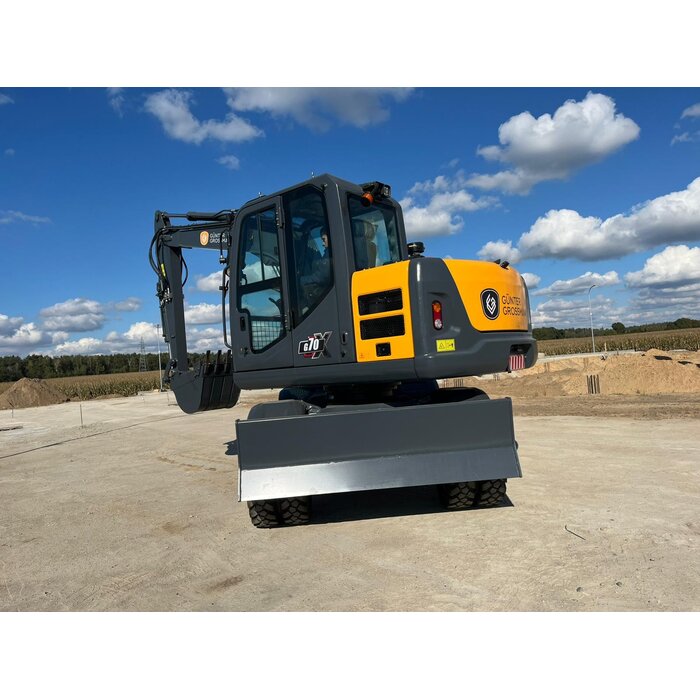

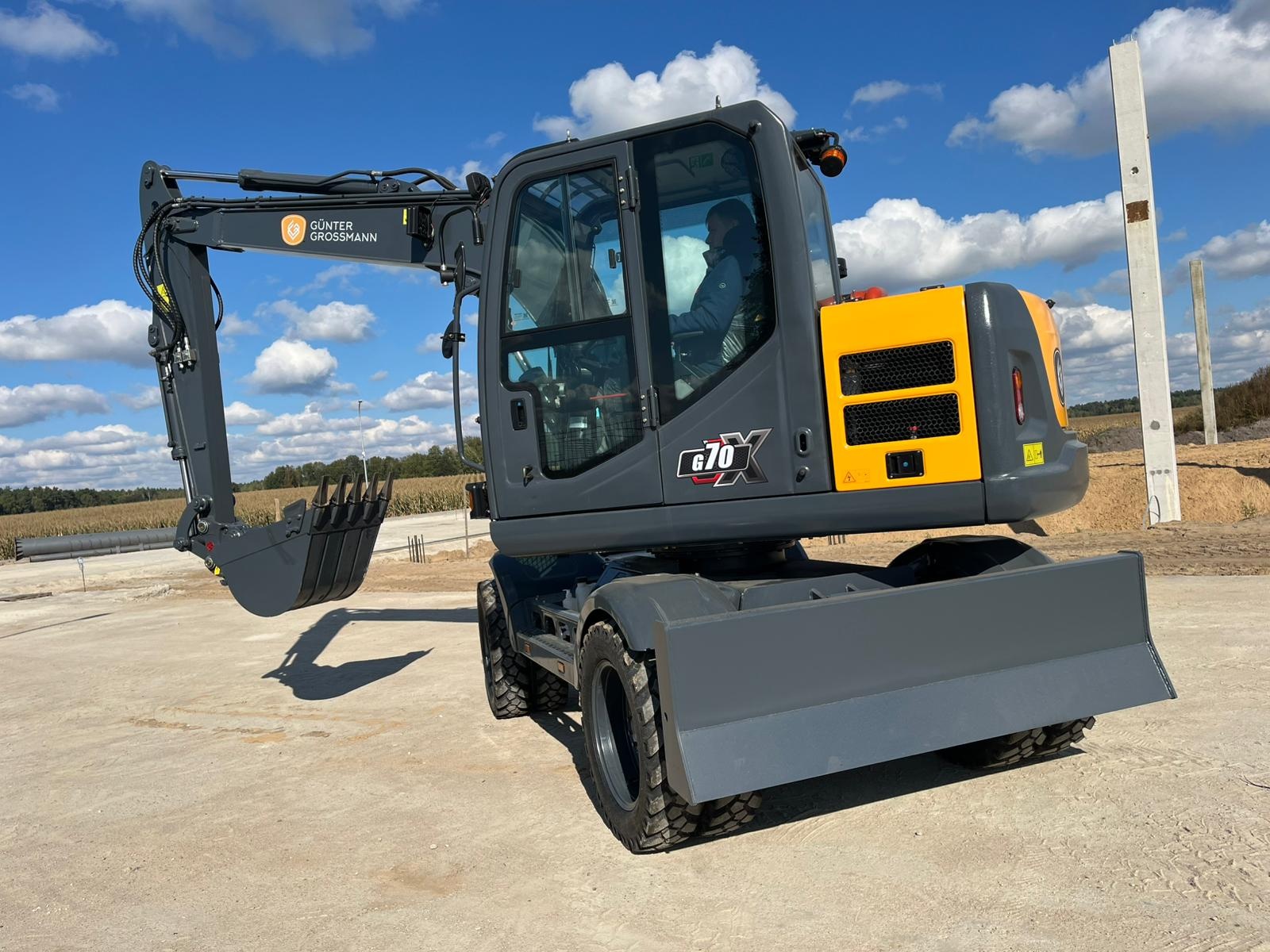

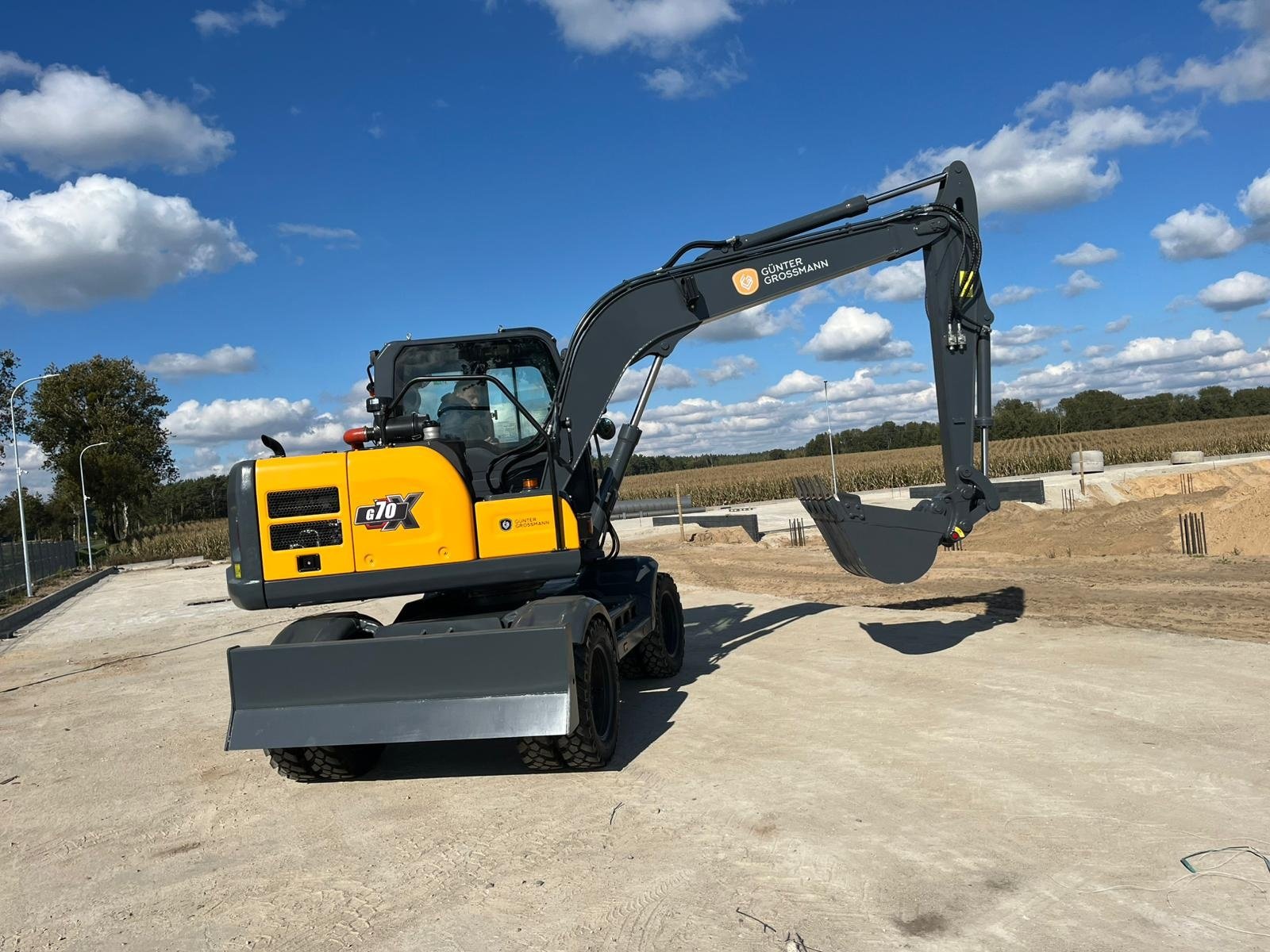

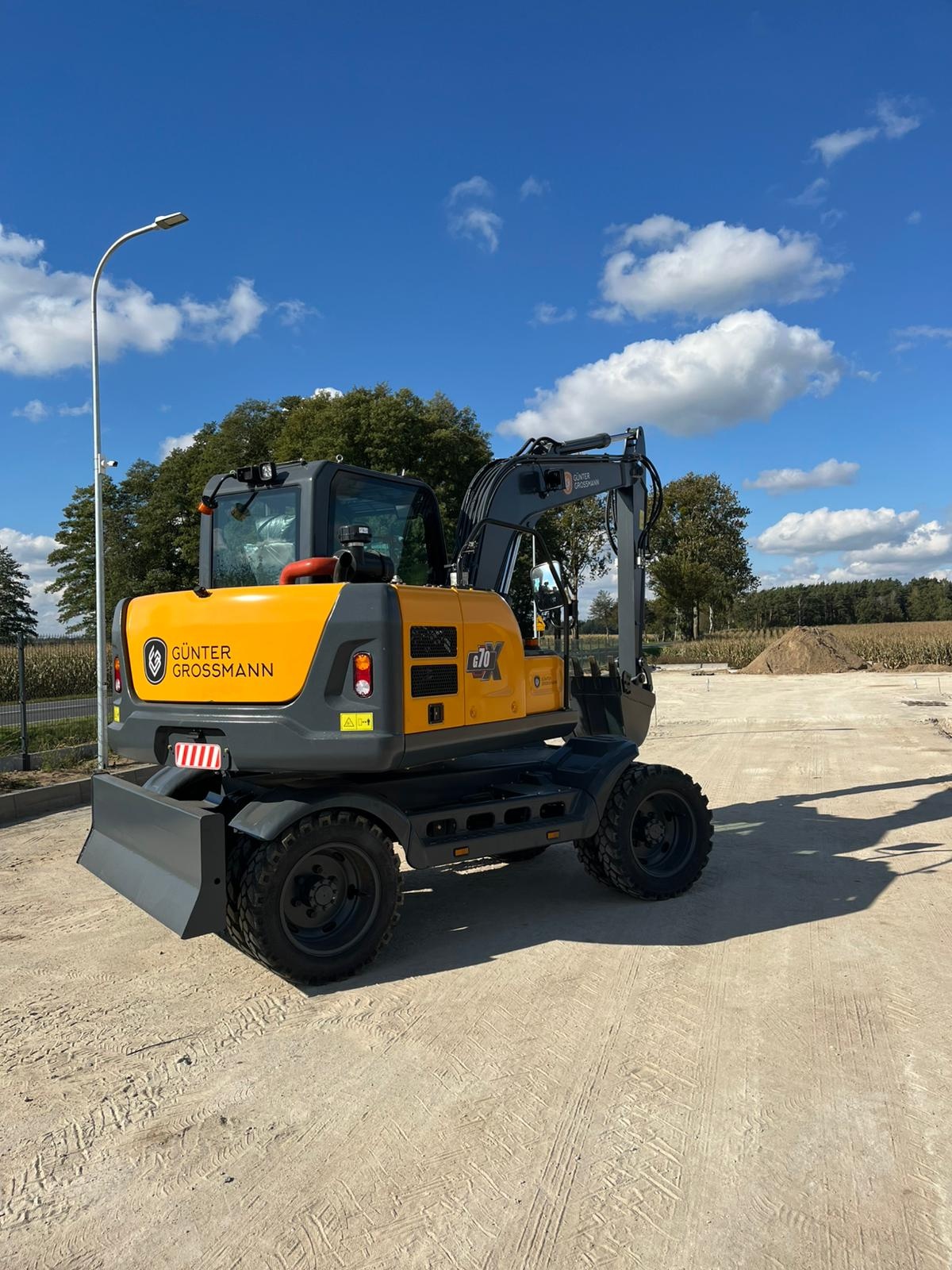

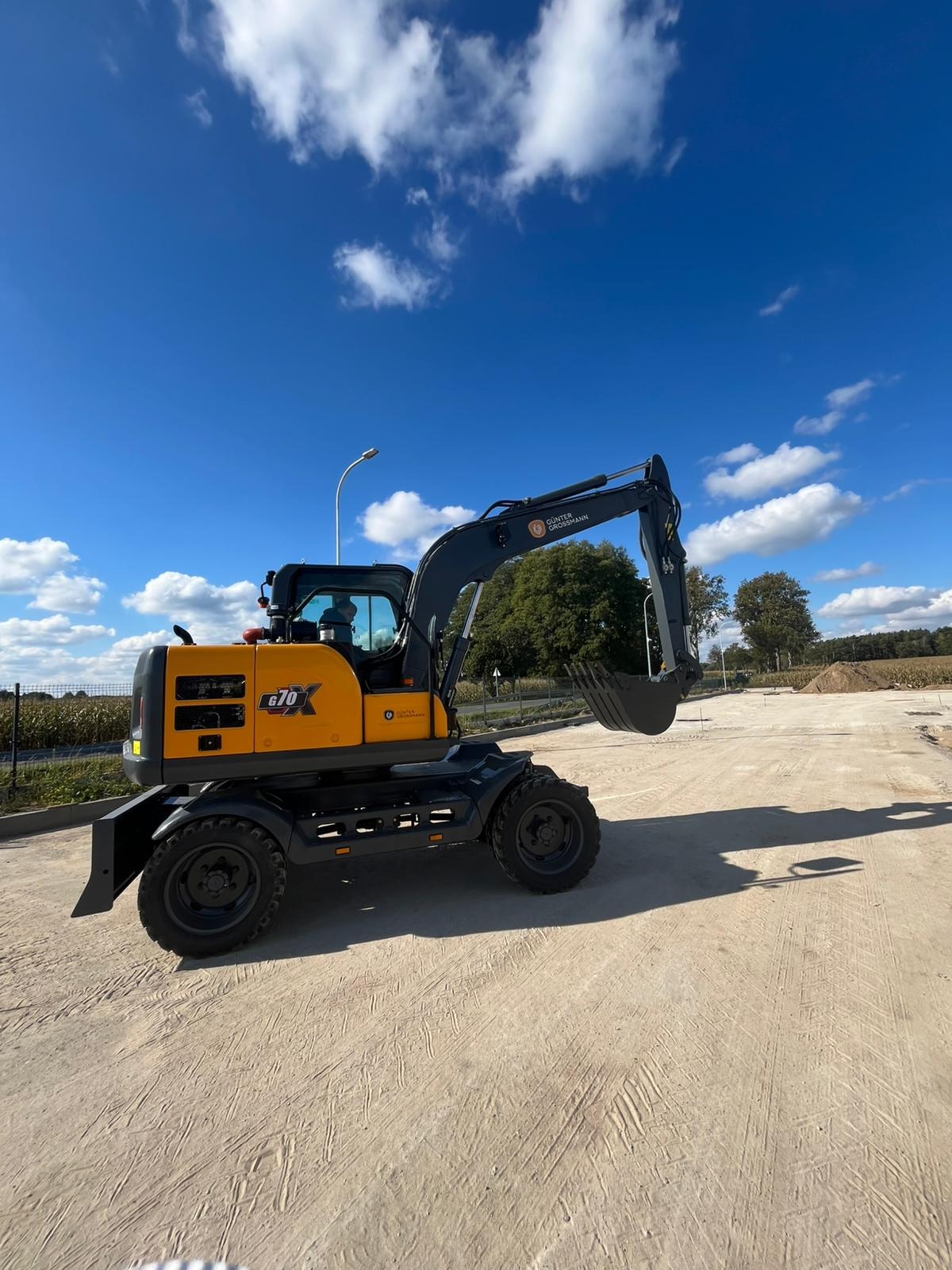

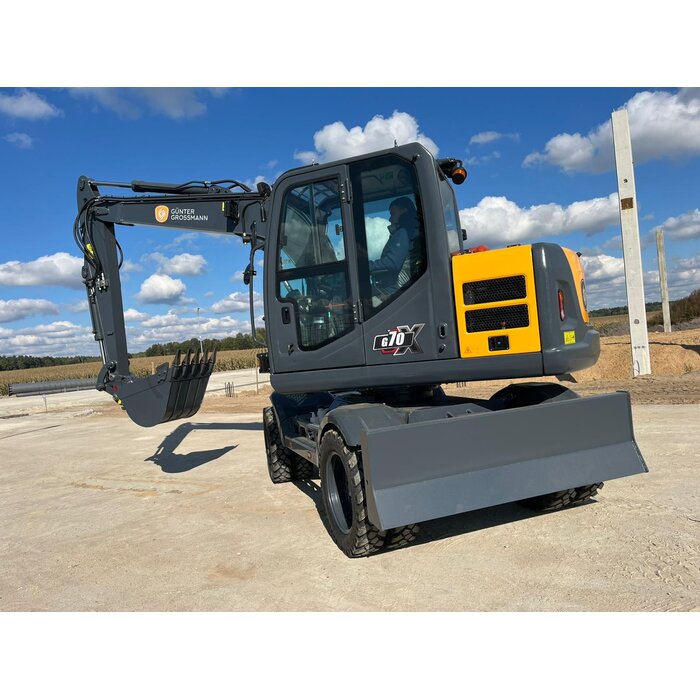

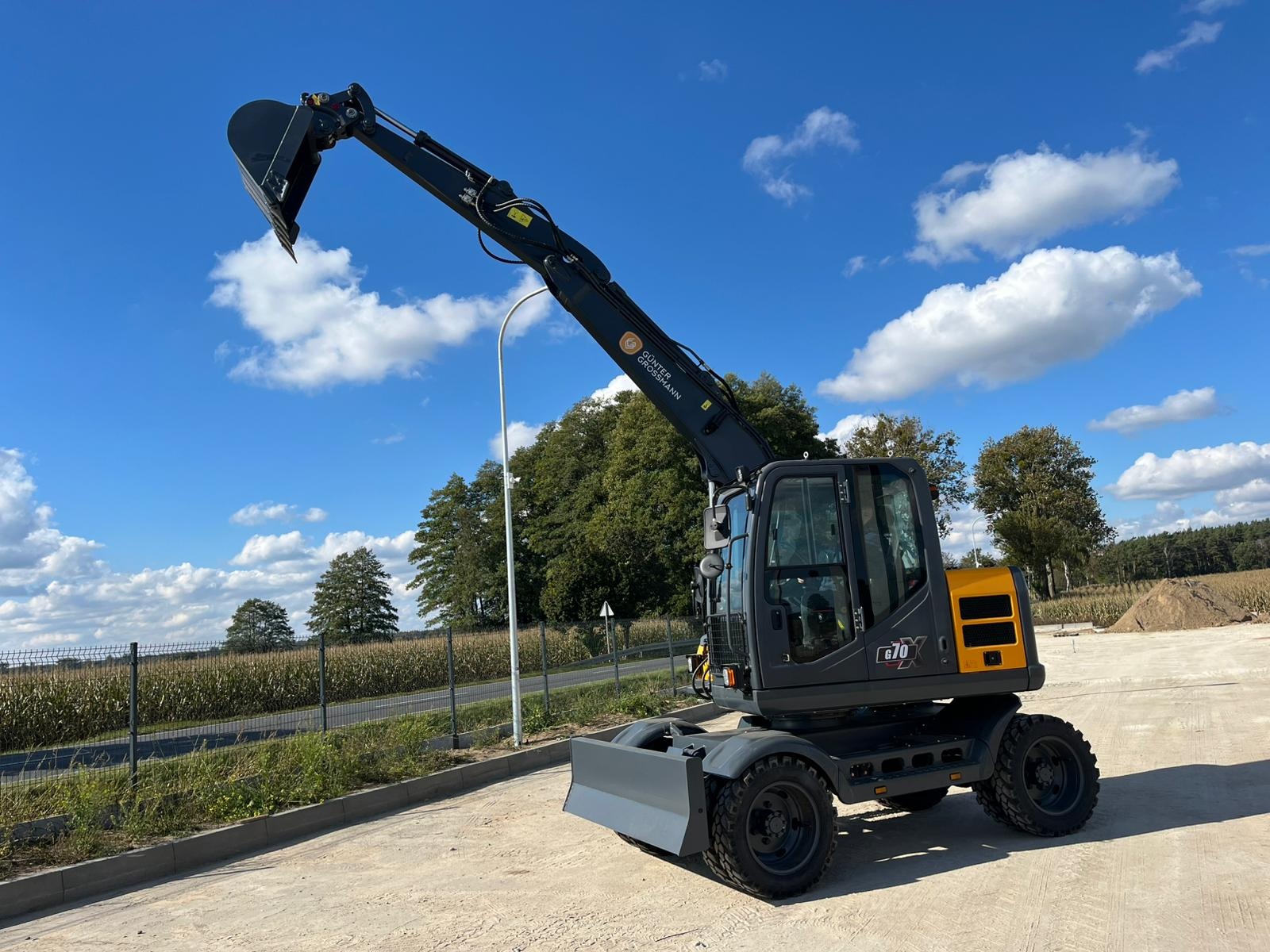

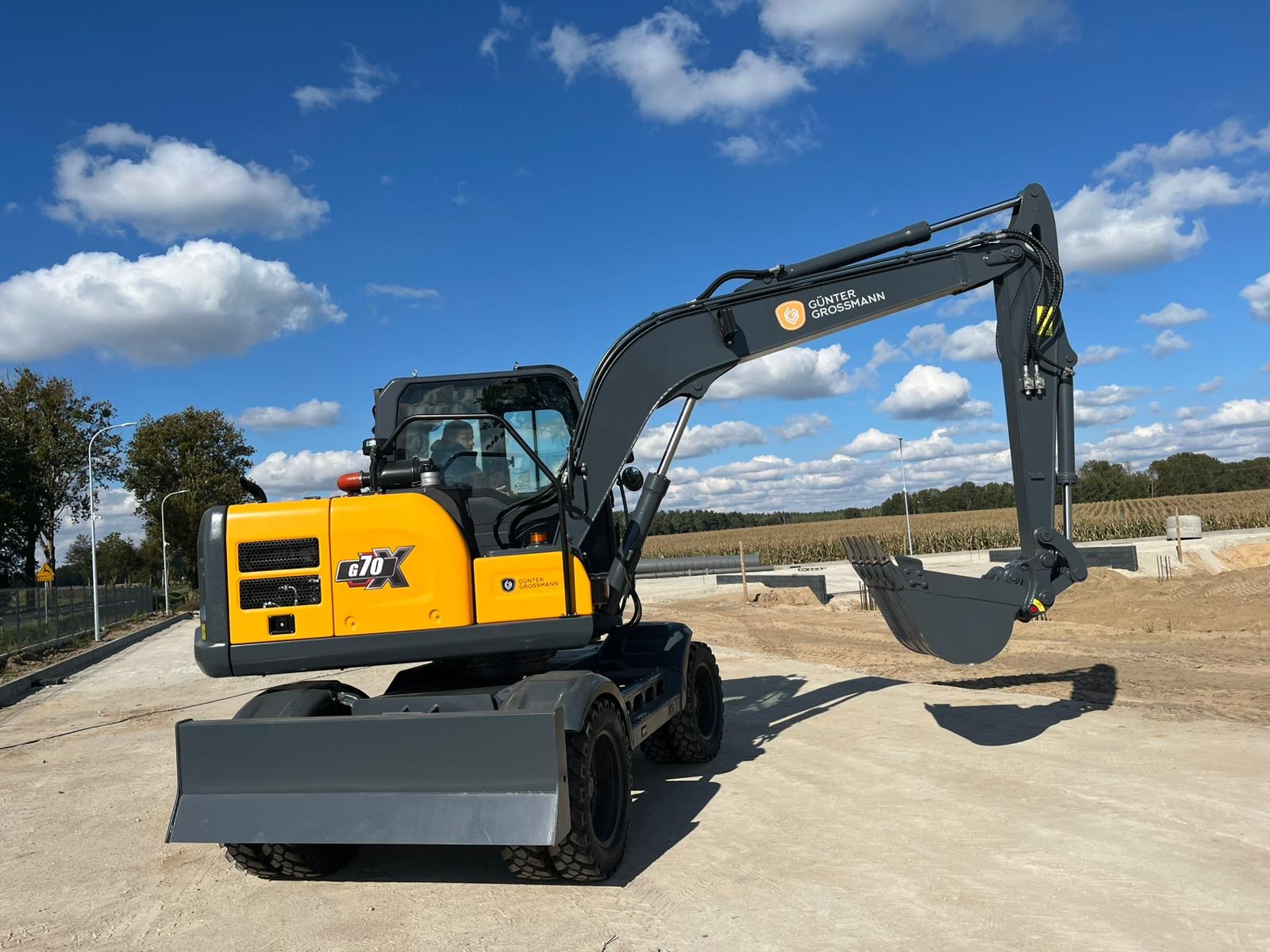

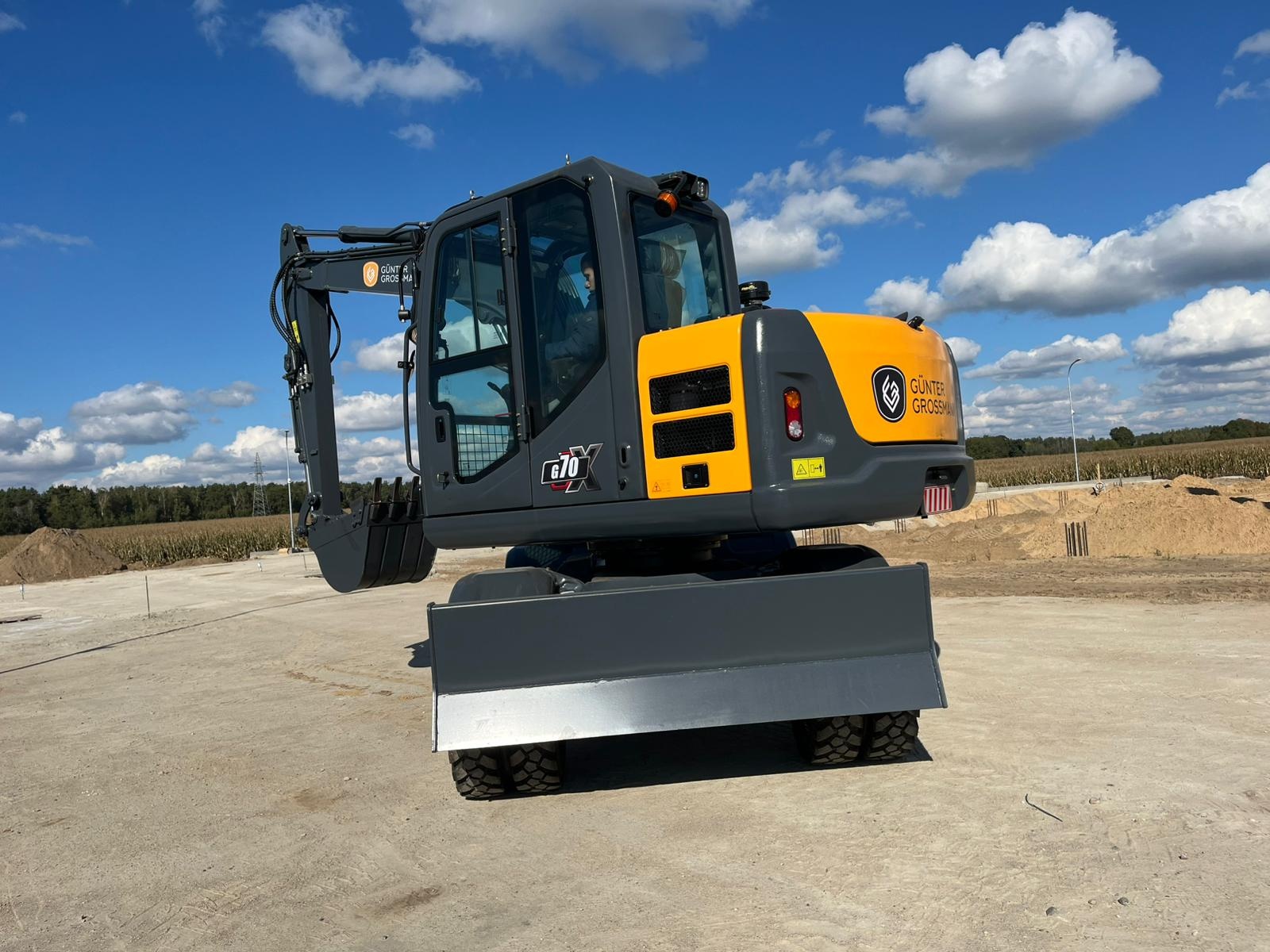

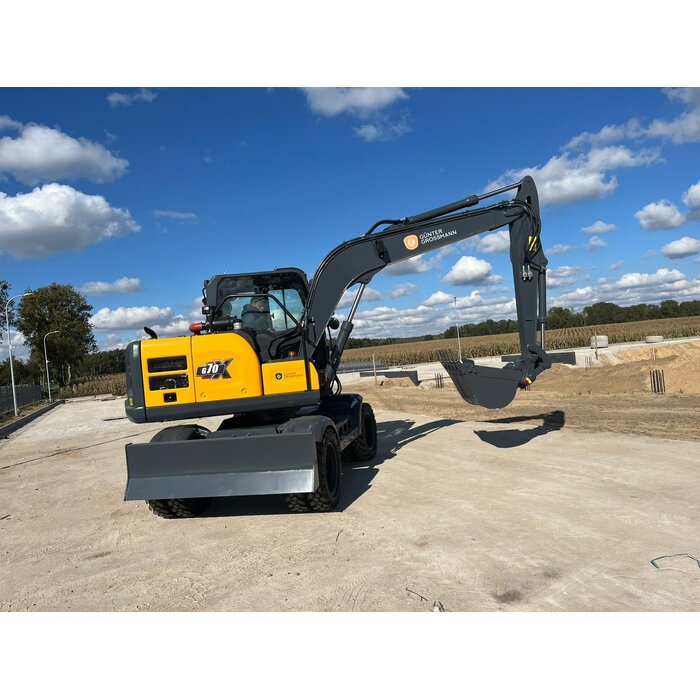

Mobile crane G70x

The G70X wheeled excavator is a powerful, precise, and highly mobile machine, ideal for all types of construction work. Powered by a Euro 5 Yuchai F3065-S580 48 kW (65 hp) engine, the G70X offers outstanding performance, reliability, and low emissions. Advanced hydraulic technology and efficient operating parameters make this excavator indispensable on any professional construction site.

Engine and hydraulic efficiency

Equipped with the Euro 5 Yuchai F3065-S580 engine, the G70X delivers 48 kW (65 hp) and meets the stringent Euro 5 emission standards for environmental friendliness. The engine combines high power with fuel efficiency for extended operation without frequent refueling. A hydraulic oil flow of 85 l/min and a main valve pressure of 24.5 MPa provide powerful working capacity for fast, precise movements and high digging force.

Excellent working parameters

The G70X offers a wide working envelope with a maximum digging reach of 6535 mm, minimizing the need to move the machine. It achieves a maximum digging depth of 3530 mm, a digging height of 6715 mm, and a dumping height of 4905 mm, making it suitable for deep excavation work and efficient material handling at height.

Speed and agility

Designed for high mobility, the G70X reaches a maximum travel speed of 30 km/h, allowing for rapid movement around the construction site. The platform rotation speed is 8.5 rpm, ensuring precise control in tight spaces. With a minimum turning radius of 2275 mm at the front and 1665 mm at the rear, the excavator offers excellent maneuverability, perfect for use in narrow or challenging terrain.
