mobile metal band saw BS125M_230V
Show all:
Metalworking,Bandzaag
Groot assortiment
Scherpe prijzen - Snelle Levertijden
7 dagen per week bereikbaar +31621803866
infomeer naar de lease mogelijkheden
Description Read moreRead less

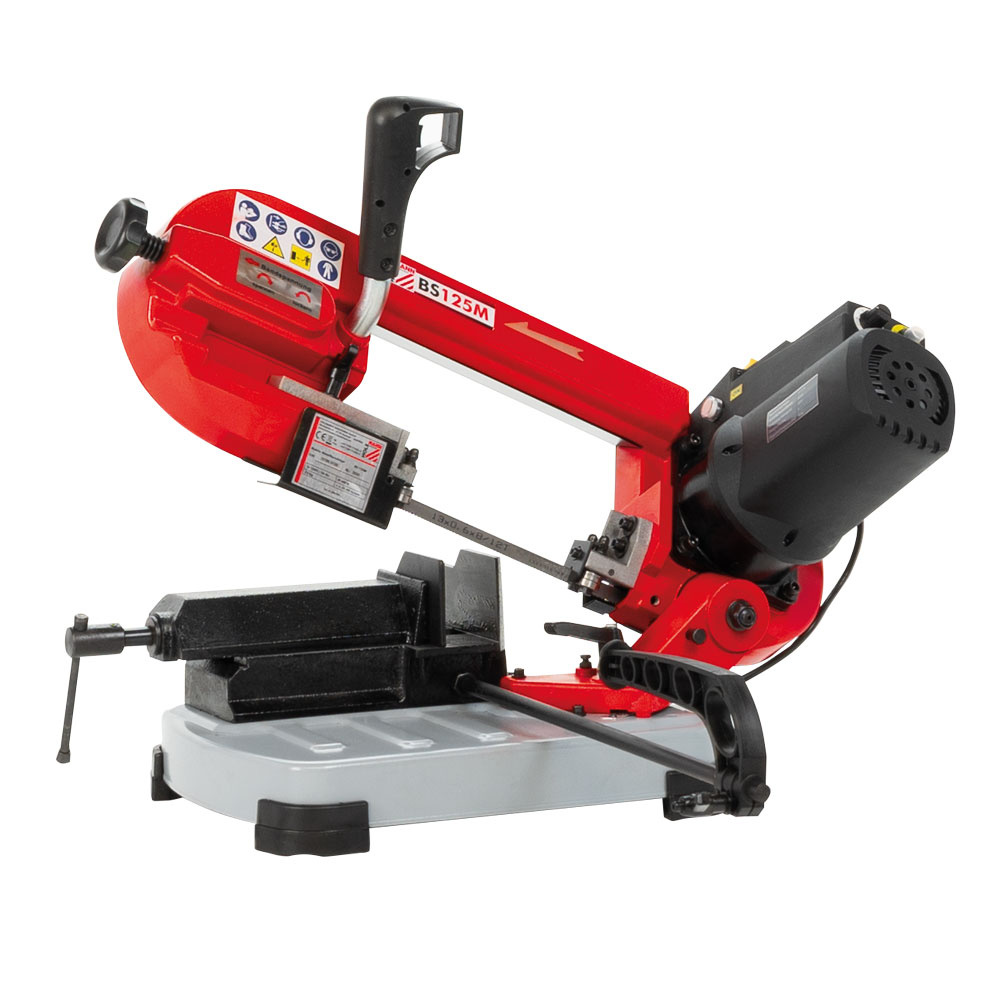

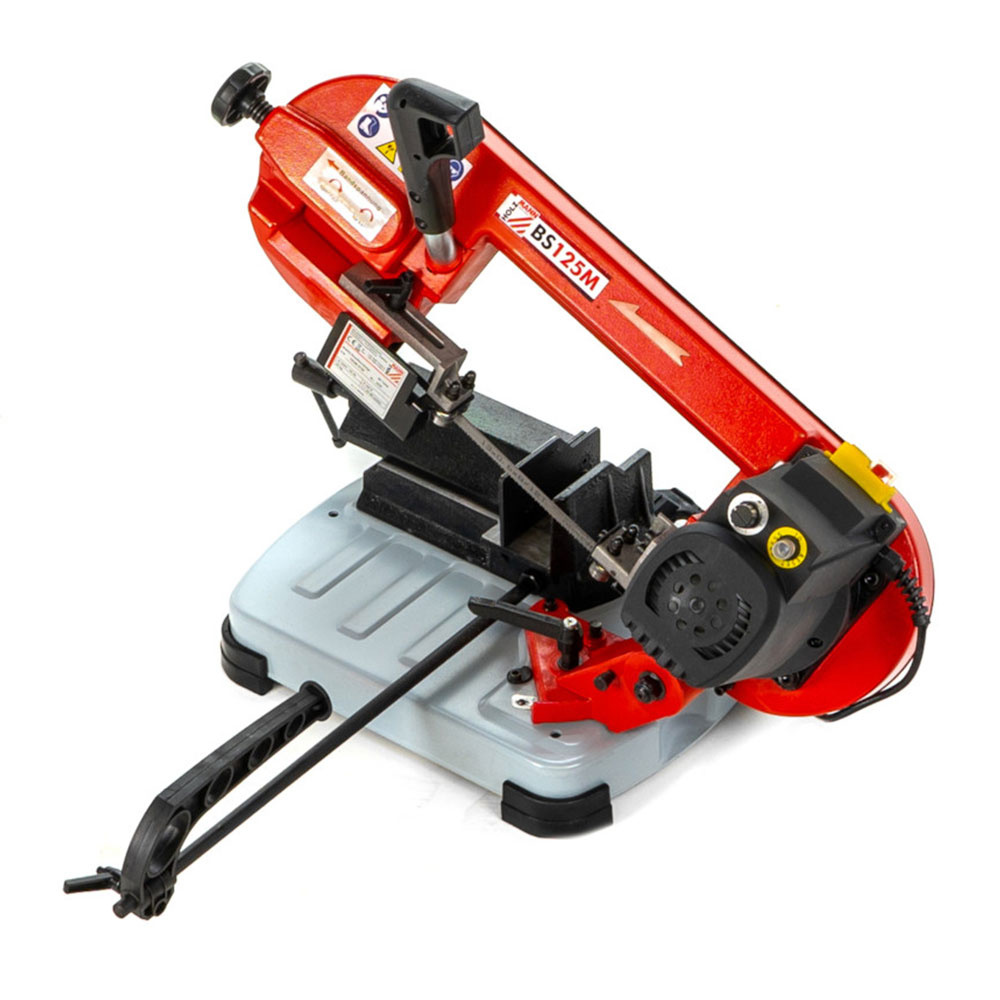

mobile metal band saw BS125M_230V
Thanks to its low weight, the HOLZMANN BS125M_230V portable metal band saw is particularly suitable for mobile assembly, repair, and construction site use. It is ideal for sawing iron, steel, aluminum, copper, and PVC. The band saw blade speed can be continuously adjusted to the specific material being processed via a potentiometer. The ball-bearing saw blade guide and a solid base plate with non-slip feet ensure smooth running and cutting precision. The saw blade tension can be conveniently adjusted via a front-mounted rotary knob, and the spring-assisted saw arm lowering assists in cutting. Miter cuts up to 60° with quick angle adjustment and scale, as well as a workpiece stop, complete this compact metal band saw's features.
Highlights
- stepless electronic speed control
- Ball-bearing saw band guide
- Adjustable saw blade tension
- spring-assisted saw arm lowering
- lockable saw bow for transport
- standard with band saw blade, vice, workpiece stop
Technical details
Engine data
Engine power S1 in W 400
Voltage 230V
Speed in min-12000-4200
General dimensions
Installation dimensions in mm 700 x 305 (640) x 435 (720)
Cutting performance
Cutting capacity round Ø 45° in mm 76
Cutting capacity round Ø 90° in mm 125
Cutting capacity LxH 45° in mm 76x76
Cutting capacity LxH 90° in mm 130x125
Band saws
Saw band in mm435x12.5x0.6
Saw blade speed in m/min 35-80
Volume and vibrations:
Sound power level in dB(A)90
Sound pressure level in dB(A) 77
Weight
Net weight in kg22
Gross weight in kg 25
Shipping dimensions
Packaging height in mm 450
Packaging width in mm 380
Packaging length in mm 720
General data
EAN Code 9120039901190
