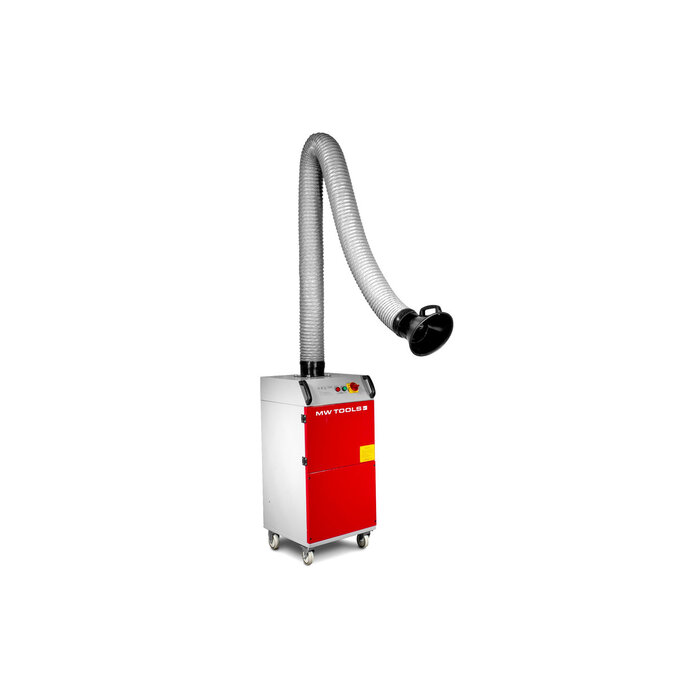

Mobile welding extraction 1600M³/H 1.1KW 230V MW Tools

Mobile filter for welding fumes with a flow rate of 1600 m³/h, 230V

Low-noise filter unit for welding fumes and vapours, with a 3-metre arm and compact footprint

Advantages:

• Filters welding fumes with a high-quality HEPA filter
• Supplied complete with all filters and flexible arm
• Low noise, only 70 decibels
• Extraction capacity, 1600m³/h
• 1 extraction arm of 3 meters, 360° rotatable
• Compact model , with a floor space of only 52x55cm

Features:

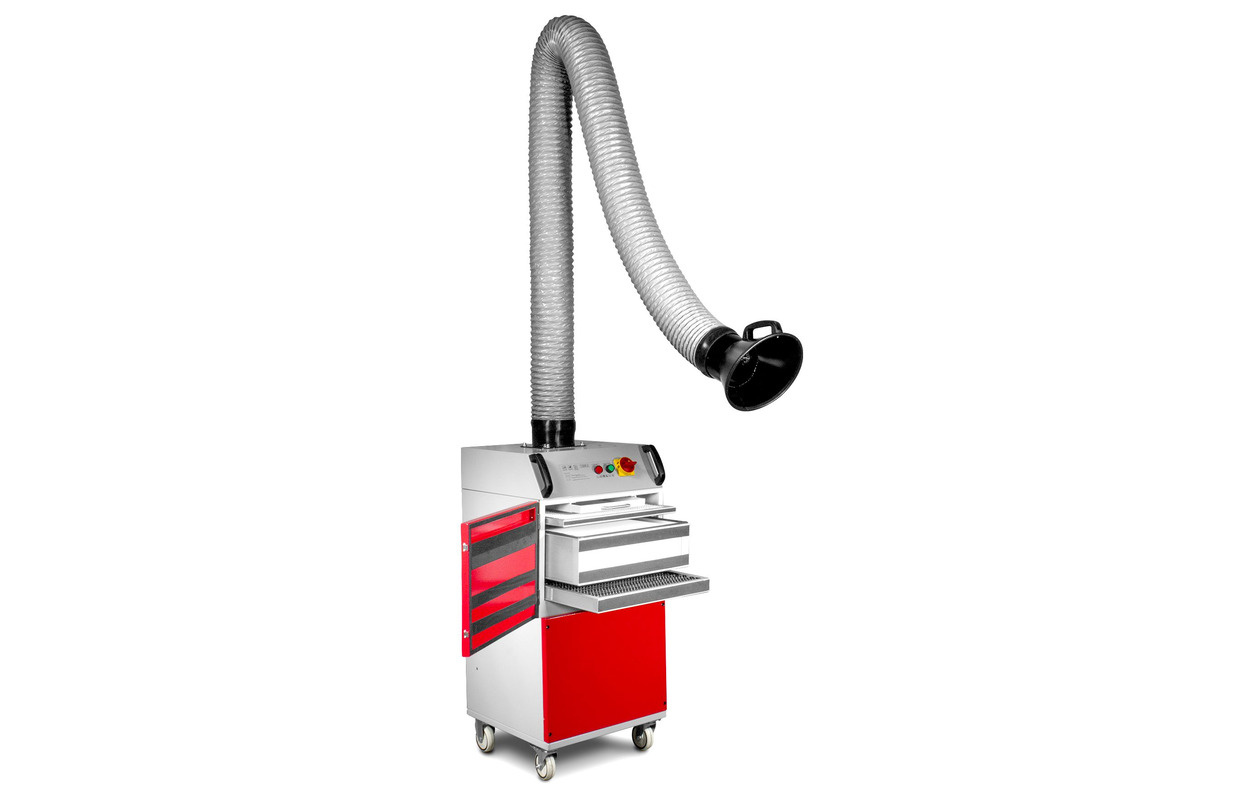

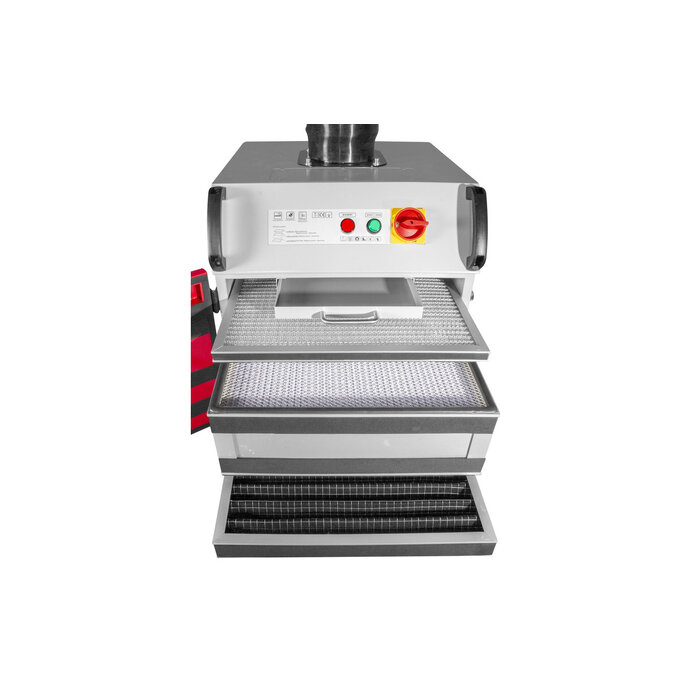

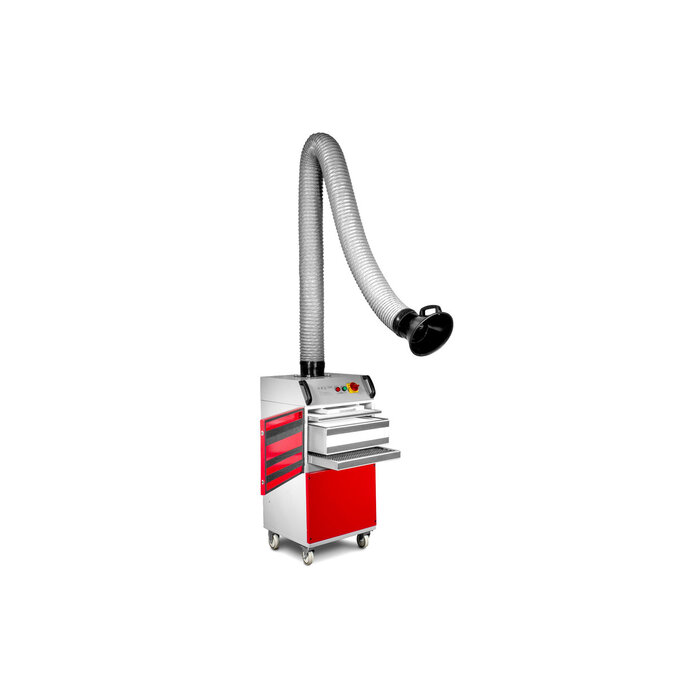

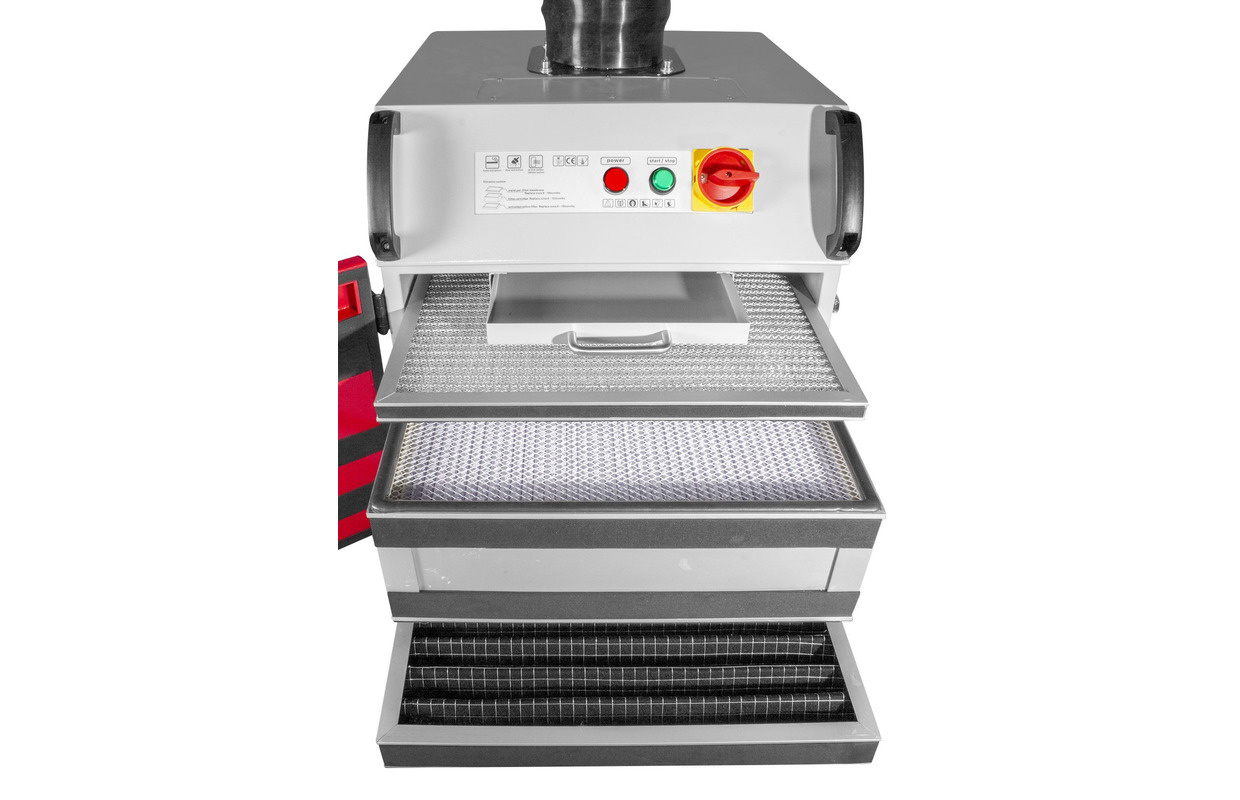

• High filter accuracy due to 3-stage filtration : fire-resistant stainless steel filter, HEPA filter and carbon filter for odour filtering.
• The machine is supplied as standard with 1 filter of each type.
• HEPA filter with precision 0.5 µm made of PFTE, filters the finest harmful substances up to 99%
• Filter surface of 13 m²
• Maximum flow rate of 1600 m³ at the engine inlet.
• Effective flow rate of 1150m³ at the inlet of the extractor nozzle
• Purified air is returned to the workshop via recirculation
• High flow rate thanks to an advanced fan design

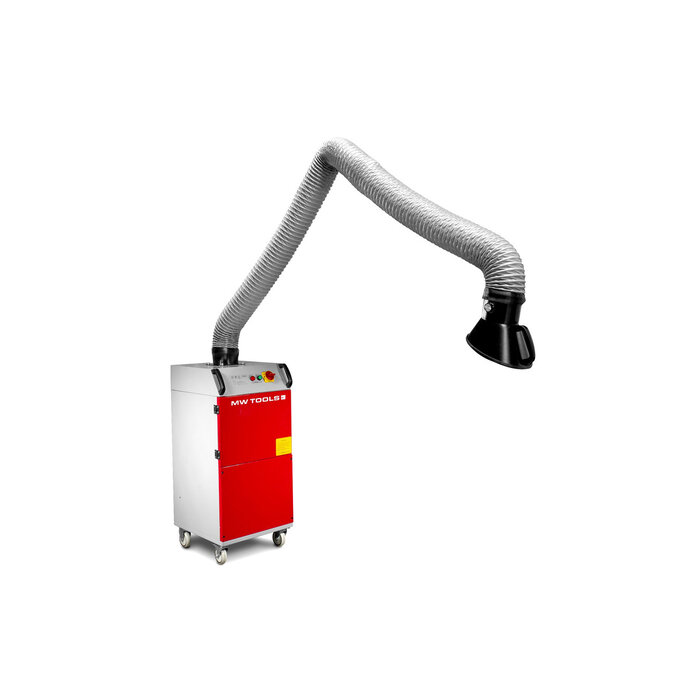

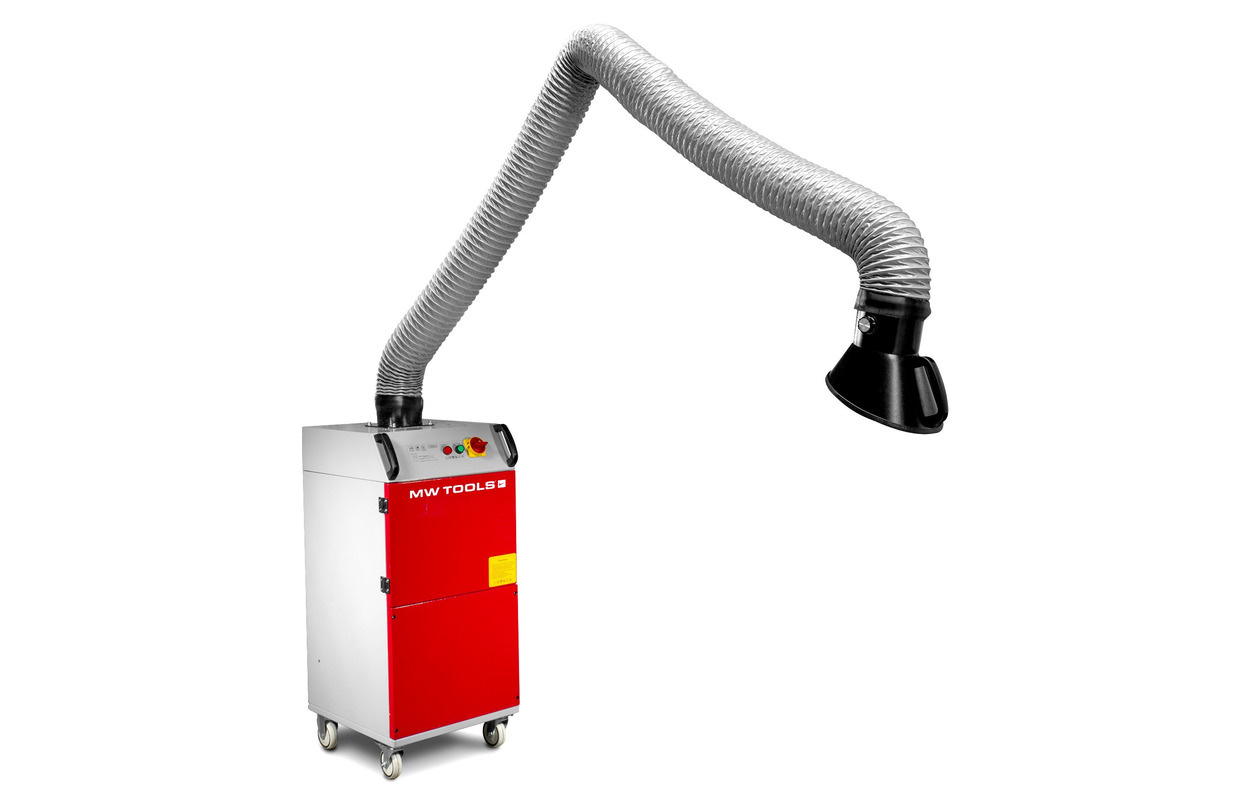

• 360° smoothly rotating arm of 3 meters, diameter 150 mm
• Stainless steel arm structure with 3 hinges for free positioning as desired
• Heat-resistant hose and plastic suction nozzle
• Only 70 decibels
• Stainless steel spark-resistant filter can be cleaned with water
• Collection container for slag and dust
• 4 swivel wheels with brakes
• Overload protection
• Suitable for use in a working environment where no ATEX zone applies
• Maximum flue gas temperature: 65°C. This welding fume extraction system is designed for welding fumes and is not suitable for fumes, gases, or vapors with other compositions or temperatures.

Consumables:

• Spark-resistant stainless steel filter (829000150). Can be cleaned with water.
• HEPA filter 0.5µm (829000152). Average lifespan: 9 months
• Carbon filter (829000154). Average lifespan: 5 months

Suitable for use in a working environment where no ATEX zone applies.
