HERCULES VIBRATION PLATE RP1800 incl Cutter

HERCULES VIBRATION PLATE RP1800 incl Cutter

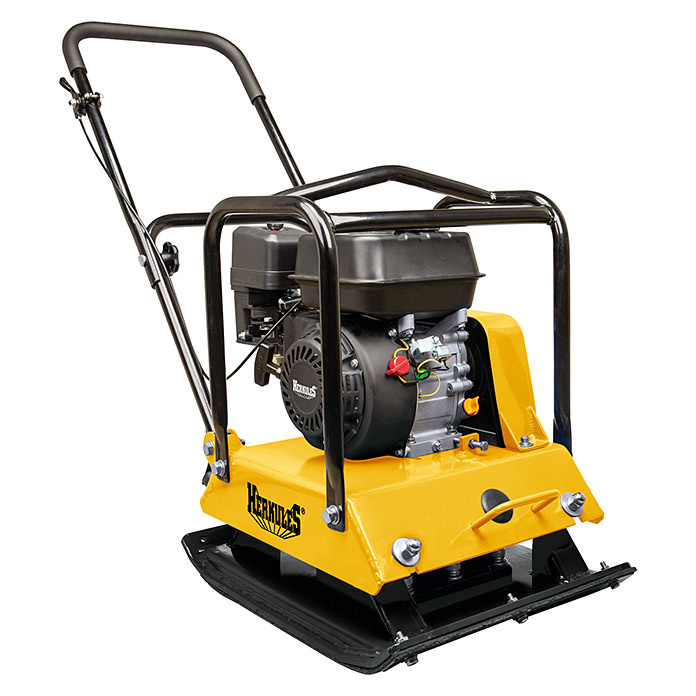

Vibrating plate RP1800

The RP1800 vibratory plate from Herkules is used in the field of housing construction, road construction, landscaping and construction sites. It compacts the soil to a depth of 30 cm and ensures a rapid progress of the work with a driving speed of 25 m / min.
The machine is powered by a powerful 4-stroke petrol engine with 4.8 kW (equivalent to 6.5 hp), which is started by a cable.
The equipment includes a base plate of 550 x 440 mm made of high quality steel.
The machine can also be used to process pavers.
To do this, the rubber plate included in the delivery must be mounted in order not to damage the surface.
In addition, the vibration plate is easy to use.
Thanks to the drive device, the machine can be moved comfortably and maneuverable over the surface.

1 x vibration plate, 1 x drive device 1 x rubber mat

Equipment

Transport handle, transport wheel, rubber mat

Motor driven operating mode
Area of application Construction site, craft, residential construction, road construction, landscaping
Displacement 196 cc
Fuel type Petrol 90 octane
Dimensions plate 550 x 440 mm
Engine 4-stroke petrol
Motor power 4.8 kW
Engine oil 0.6 l / SAE 10W-30
Sound pressure level 84.6 dB (A)
Sound power level 105 dB (A)
Starting method Cable
Compression pressure 2,200 kn
Compaction depth 30 cm
Vibration shocks 4,200 / min
Travel speed 25 m / min
Height 930 mm
Length 1,025 mm
Width 440 mm
warranty 2 years
Weight (net) 88 kg

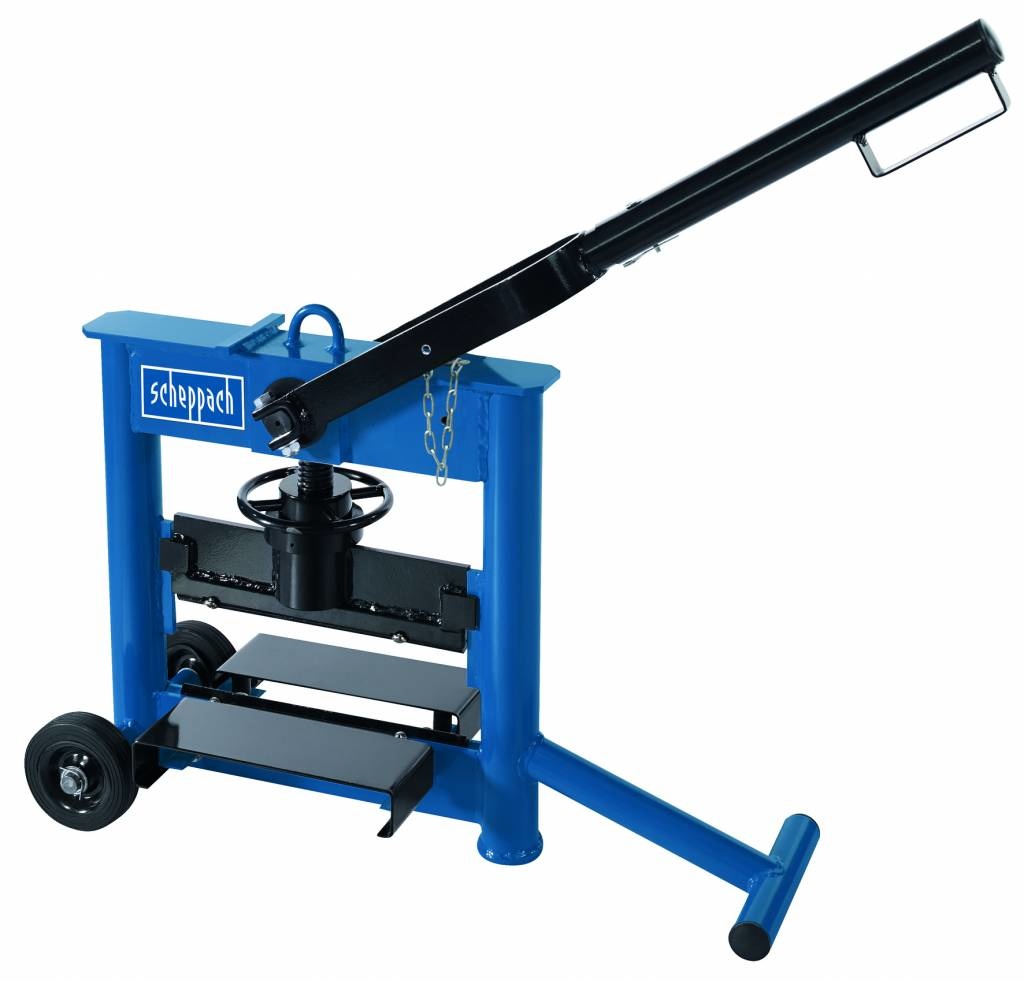

CREATOR CHIPPER HSC130

clinker cutter from Scheppach. The HSC130 is an important device for pavers. With the stone splitter, stones can be split very easily.

Brand SCHEPPACH
Net weight (kg) 57
Dimensions width 260 mm
Dimensions height 562 mm
Dimensions length 790 mm
Capacity max. 33/25 - 140 (L / H) mm
Table size height (mm) 120 mm
