ROLLER CHIPPER HC20HZ-NL

LUMAG ROLLER CHIPPER HC20HZ-NL

Very powerful Lumag HC20HZ-NL PTO driven chipper equipped with a hydraulic feed roller.
Now with a 5 YEAR warranty*

Very powerful Lumag HC20HZ-NL PTO driven chipper equipped with a hydraulic feed roller.

The maximum input diameter is 20cm.

This feed roller grabs the wood you feed in and pulls it in evenly.

The feed speed is adjustable. The efficiency of your shredder increases enormously.

Even the most twirled branches are simply pulled in and shredded.

The feed roller is actually indispensable when feeding branches with thorns or spines.

The advantage of the feed roller is that the feed to the knives takes place at a constant and even speed.

This roller takes care of the vibrations that you normally feel when feeding wood into a chipper.

Leafy pruning waste (such as branches with a lot of leaves on it) is also simply and evenly pulled in by the roller.

You can of course stop the roller and also have it run “backwards” if necessary, for example in the event of a blockage.

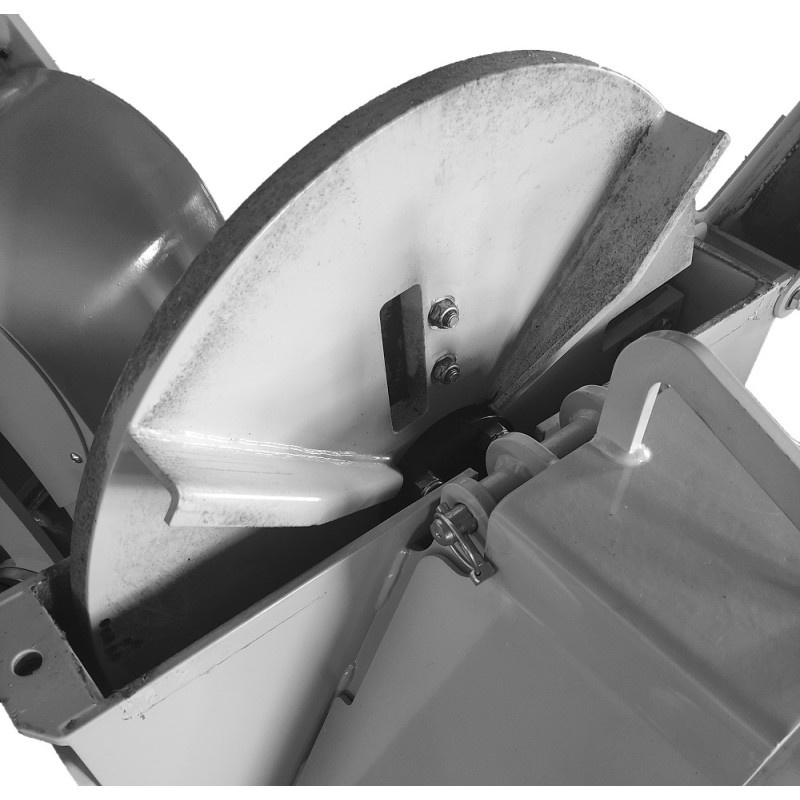

The feed roller brings the material to the 42 knives (and a counter knife) which shred the material.

The minimum capacity of the drive (PTO) is 20 HP.

The PTO shaft is not included. The

The three-point suspension drops into the Kat. i.

The shredder has a 360-degree adjustable discharge chute and hinged discharge hopper.

This means that you can easily clean the machine.

Of course you can work very safely with this machine due to all kinds of safety features.

The powerful tractor drive (min. 20 hp) ensures that branches up to 20 cm can be shredded.

The large and extra long hopper makes filling the machine very easy.

This makes the HC20HZ-NL a machine that shreds everything from branches to pruning waste.

The wood chips are ejected high out of the machine through the discharge tube and the target plate determines the ejection position.

The 4 wings on the rear of the chopping disc ensure optimum discharge.

The discharge chute (height 75cm) is adjustable. You can therefore decide for yourself where you place the collection bag (wheelbarrow, trailer, etc.) because the shaft can be adjusted to all sides.

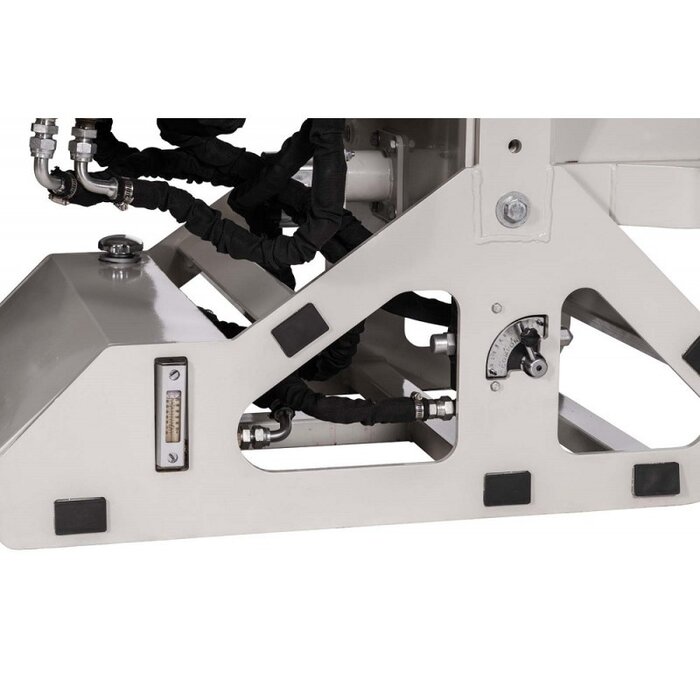

The hydraulic tank contains 26.5 liters of hydraulic oil and is equipped with a temperature indicator.

The tank is mounted on the underside of the shredder and ensures optimum weight distribution.

The very robust insertion shaft is hinged, so that you can easily lower the insertion shaft to one side in the event of blockages, cleaning or replacement of the blades.

The machine can perfectly shred branches, shrubs, hedges, etc.

You can also have green waste (such as pruning waste from a conifer) reduced by the shredder, but the machine is not suitable for only foliage waste (such as ferns, for example). You can of course use the shredded material perfectly as ground cover.

*To be eligible for the 5-year warranty, you must register after purchasing a Lumag shredder via: Register 5-year warranty

Engine type
PTO drive
Three-point suspension
Cat. i
PTO shaft speed
540 1/min
PTO drive
Via tractor with at least approx. 20 hp.
max. diameter input
200mm
Hydraulic oil
26.5 litres
Speed blades
1,100 rev. per minute
Number of knives
4 pieces on blade disc and 1 counter blade
Mulching
no
Noise level (LWA)
94.5dB(A)
max. power
20 hp
Starting system
N/A
Machine dimensions (L x W x H)
1885 x 1917 x 2185mm
Packing dimensions (L/W/H)
1240x1090x1175mm
Weight Gross (incl. packaging)
525 kg
Weight Net
475 kg
Art. no.
HC20HZ-NL
EAN code
4047424007464
