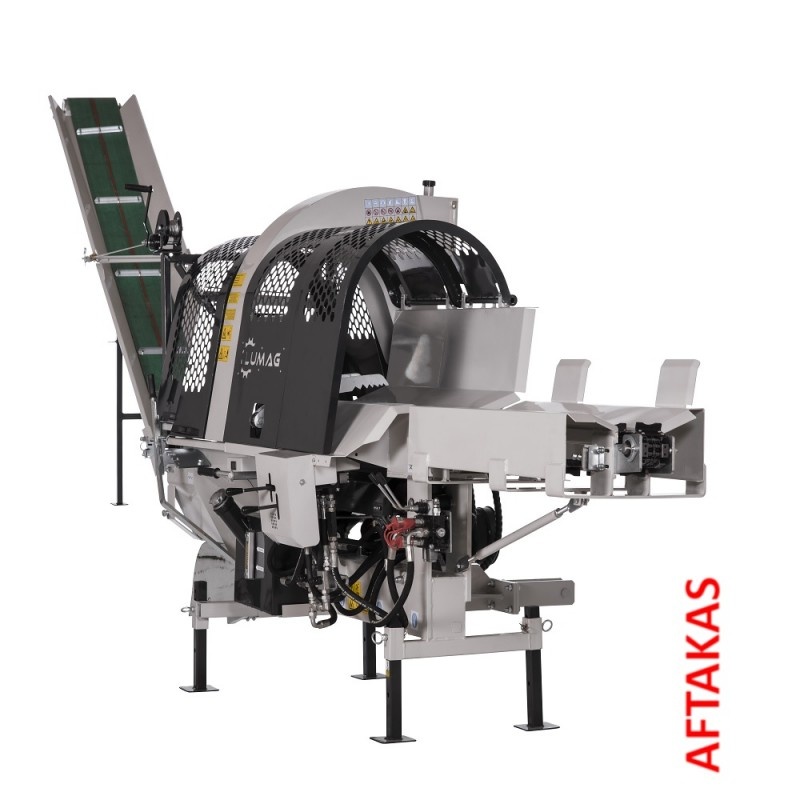

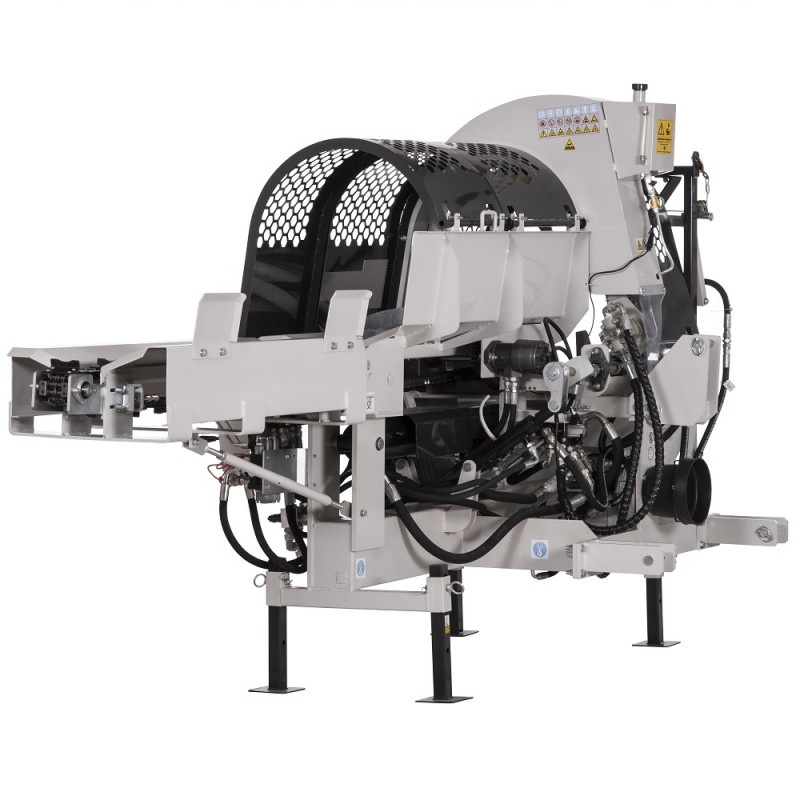

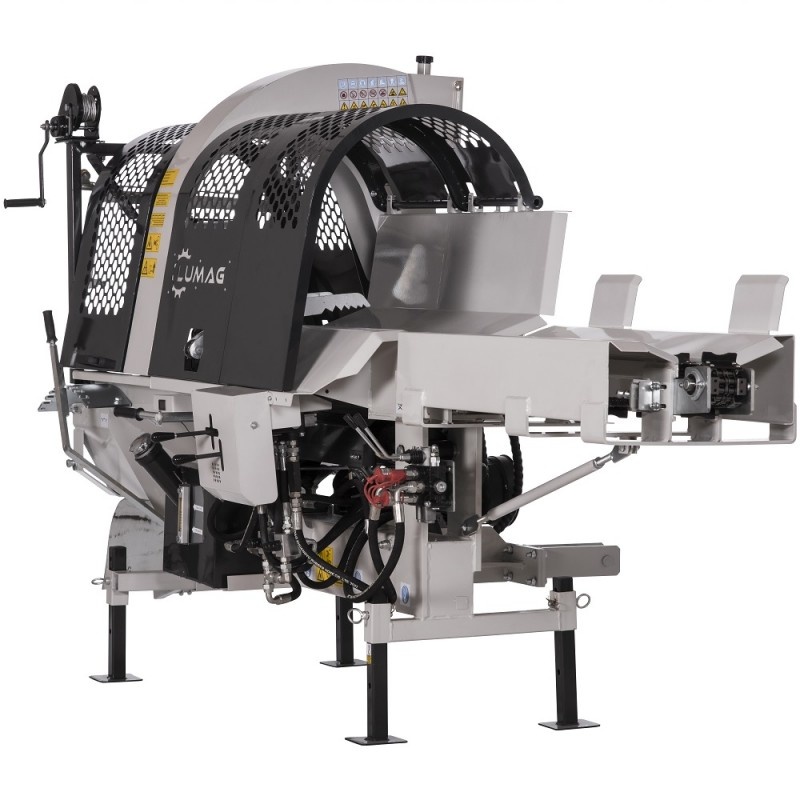

SAW SPLITTING MACHINE SSA500ZHPROS

LUMAG SAW SPLITTING MACHINE SSA500ZHPROS

This PTO driven sawing and splitting machines from Lumag combines three machines in one.
The machine saws your wood to the desired length and then splits the sawn piece of wood into 2 or 4 parts (a 6-part splitting cross is also available as an option).
The machine has a hydraulic chain driven infeed conveyor (wood infeed up to the saw) and outfeed conveyor (after splitting).
The sawing and clamping of the wood is also hydraulic and automatic.

This top model in the range of professional PTO driven sawing and splitting machines from Lumag combines three machines in one.

The machine saws your wood to the desired length and then splits the sawn piece of wood into 2 or 4 parts (a 6-part splitting cross is also available as an option).

The machine has a hydraulic chain driven infeed conveyor (wood infeed up to the saw) and outfeed conveyor (after splitting).

The sawing and clamping of the wood is also hydraulic and automatic. The saw-splitting machine is attached to a three-point hydraulics of a tractor (approx. 20 HP) by means of a

n PTO shaft (not included)

With this very powerful saw splitting machine you can split wood very safely, but of course your splitting yield is much higher than if you had to carry out both operations (splitting and sawing) separately.

Differences with the SSA500ZHPRO version:

- Chain-driven supply conveyor belt ensures better supply of the logs

- Automatic saw chain lubrication. The automatic oil pump ensures the correct oil supply to the saw chain.

- Cross control lever. Easily perform various functions of the hydraulic operation of the machine with 1 lever.

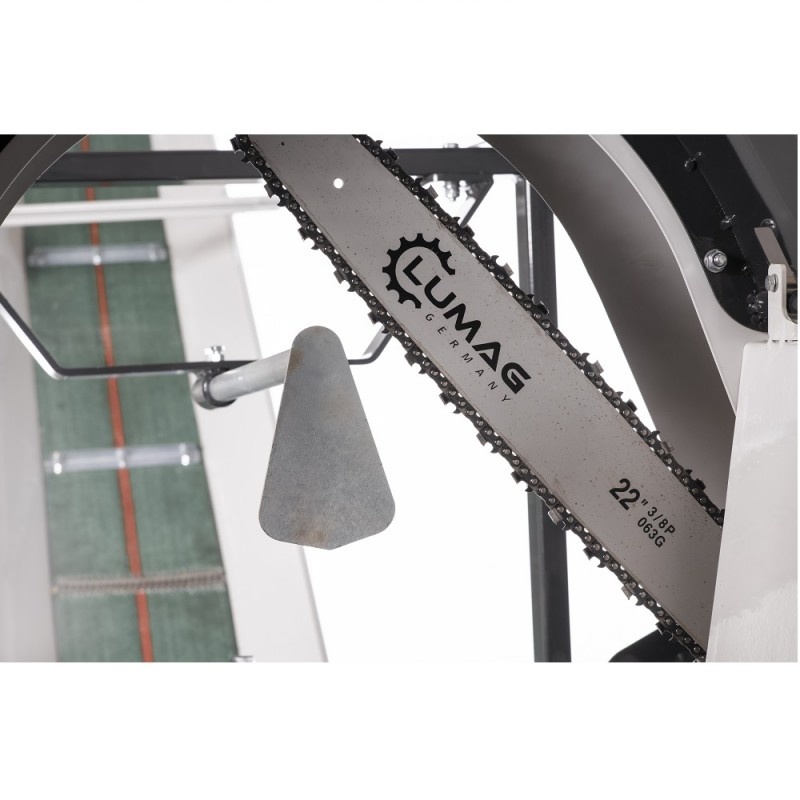

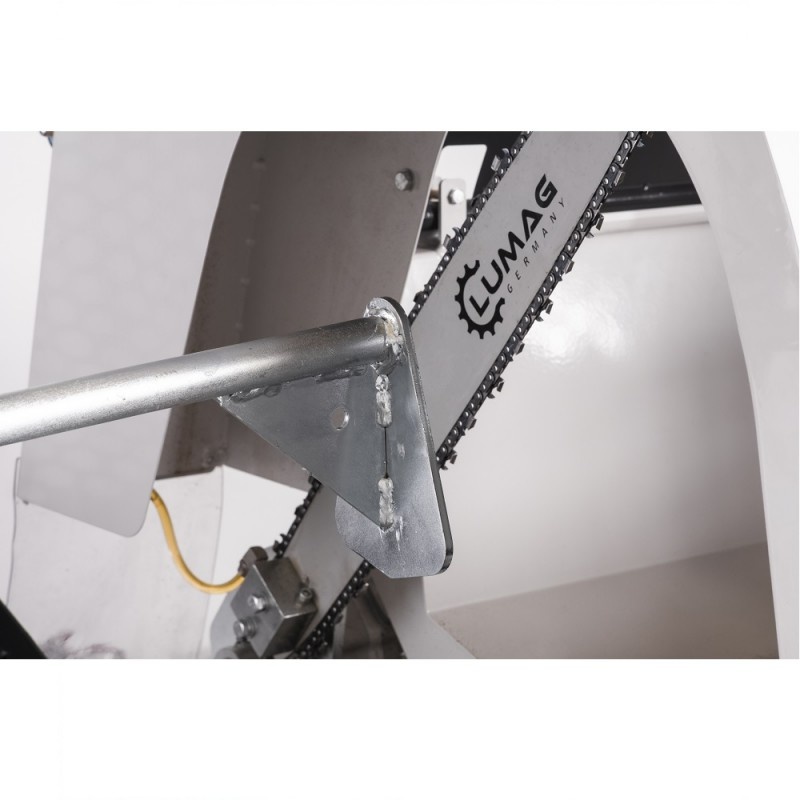

- Equipped with Stihl saw chain for the best sawing result

You can supply logs up to 50 cm in diameter with the supply belt, which runs all the way to the saw. With a hydraulically driven (and automatically sawing chainsaw) you cut the trunk to the desired length, the wood then falls in front of the splitting device that will split the wood with a hydraulic splitting force of 20 tons.

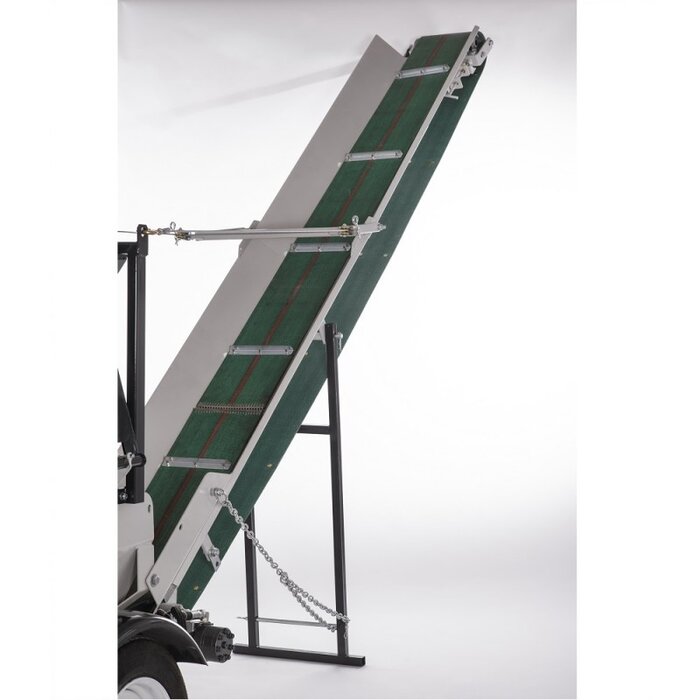

Then the wood comes on a 3.2 meter long conveyor belt that transports it to a place of your choice (you make a mountain of split wood or drop the wood directly into transport bags or trailer).

The maximum ejection height is 2 metres.

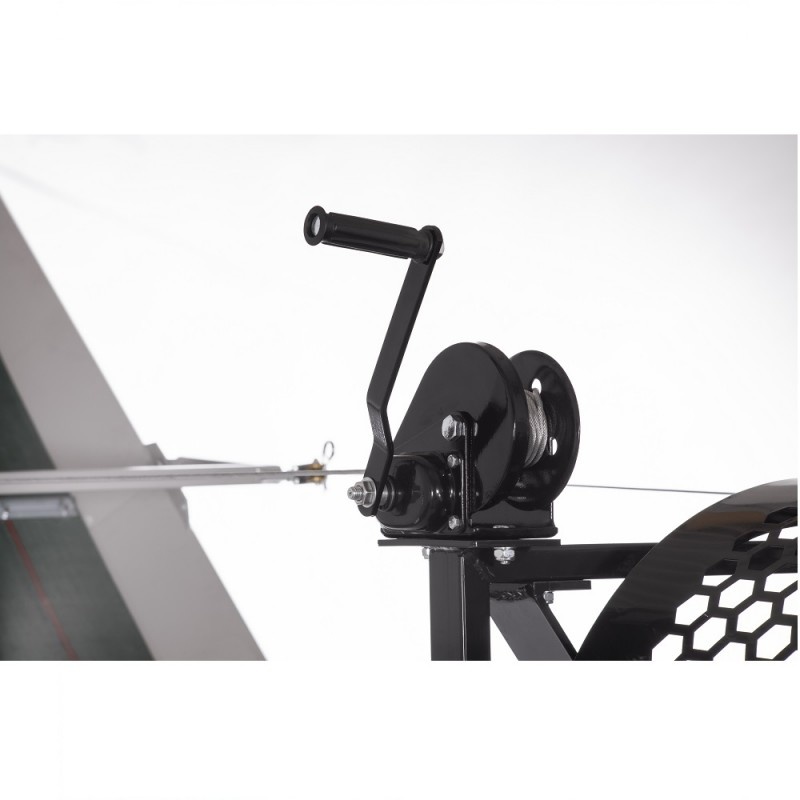

The conveyor belt can be easily adjusted to the height of the winch provided.

The machine can split up to 5-8 cubic meters per hour on average. Naturally, factors such as speed of supply, trunk thickness and type of wood are important.

The machine stands on a transport base and is equipped with a towbar coupling (only to be used on site).

The machine can use various extra available accessories such as a hydraulic log lifting installation, a hydraulic log feed table and a 6-part splitting cross.

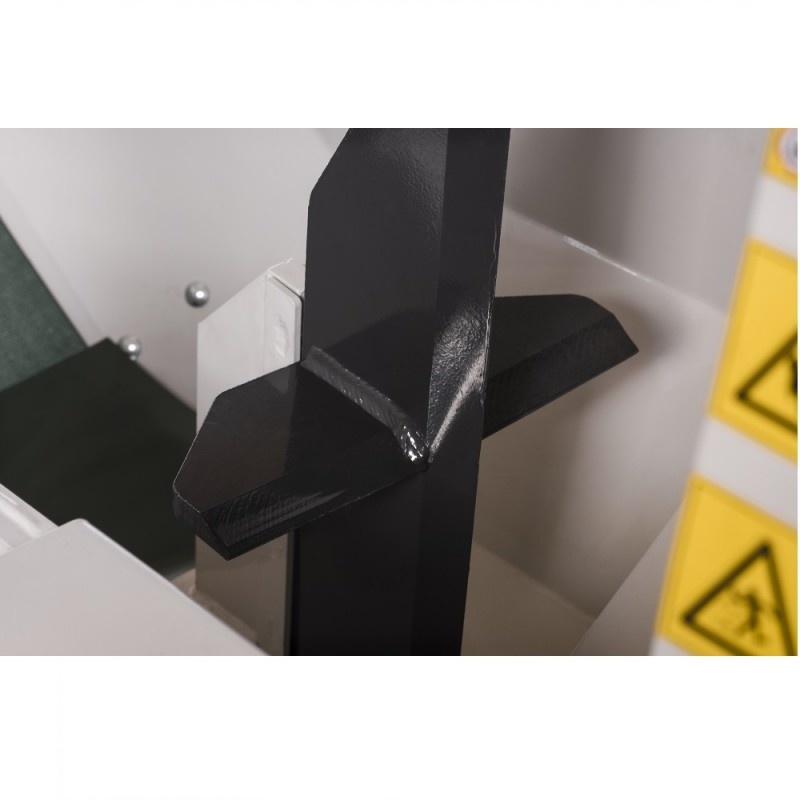

Each machine comes standard with a combination of a 2 and 4-piece splitting cross.

The 3-way control valve + Parker Pump & hydraulic motor that you see in the picture is delivered directly with the machine.

This machine is only supplied by an authorized Matom dealer. The machine is delivered to you fully assembled .

Type Engine
PTO drive
PTO drive
Via tractor with at least approx. 20 hp.
Motorcycle chainsaw
Hydraulic, max. 4,500 rev/min.
max. loading height
2 meters
Conveyor belt speed
Hydraulic motor, max. 284 rpm per min./110 bar/ 285Nm, 0.8 m. per sec.
Chain
C3621 000 0077/0.375/1.5mm
Saw/split cross section
max. 500mm (min. 100mm)
Gap speed forward
5 cm/sec.
Back split speed
4 cm/sec.
splitting force
20 tons
max. gap length
500-550mm
Sword length
550mm
Machine dimensions (L x W x H)
Conveyor belt: 3200 x 200 x2800mm
Weight Net
742 Kg (632 Kg + conveyor belt 110 Kg)
Packing dimensions (L/W/H)
Machine: 2200 x 1050 x 1250 mm, Conveyor belt 1850 x 450 x 570mm
Art. no.
SSA500ZHPROS
EAN code
404742400884
