SCHEPPACH BAND SAW MACHINE BASA1 8 "
SCHEPPACH BAND SAW MACHINE BASA1 8 "
Scheppach BASA1 band saw machine 8 ".
The most innovative design band saw machines from Scheppach.
SPECIAL CHARACTERISTICS:
Saw table size: 320 x 310 mm
Strap diameter: 205 mm

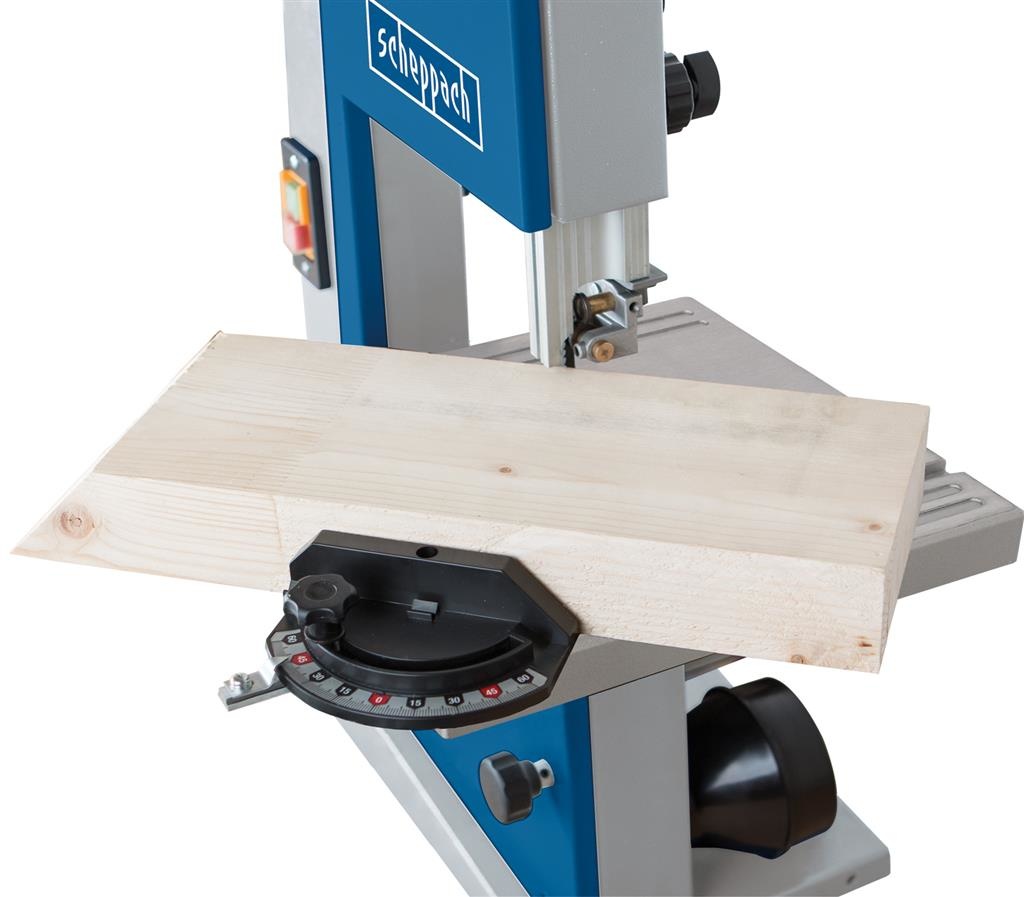

Solid table that can be adjusted from 0 ° to 45 °
3-roller precision guides above and below the table
The top saw blade is guided by a rack and is adjustable in height

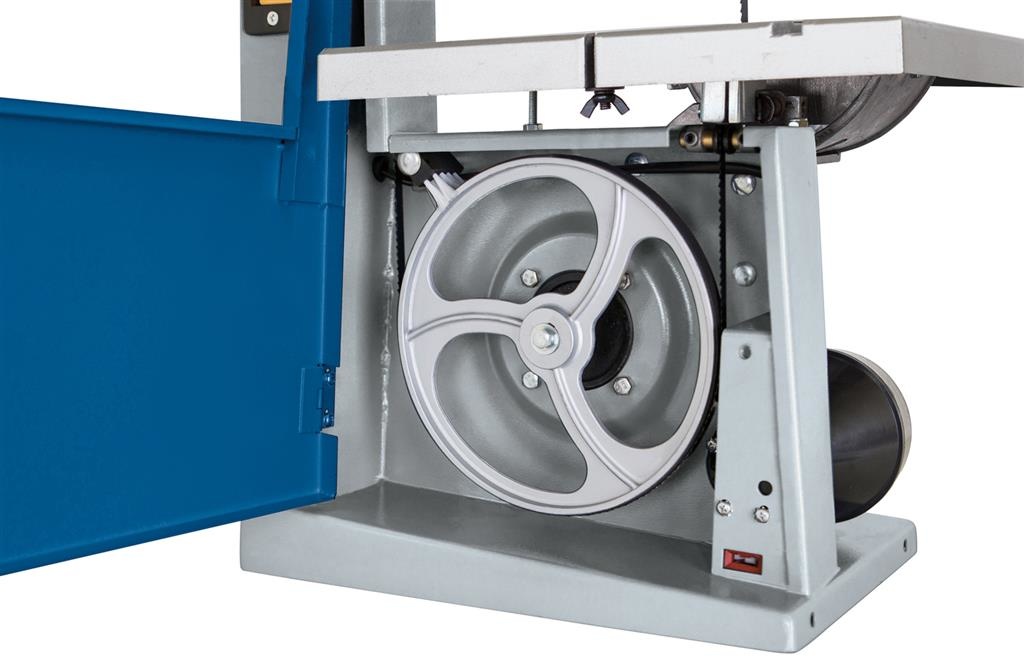

Balanced tire wheels with rubber surface

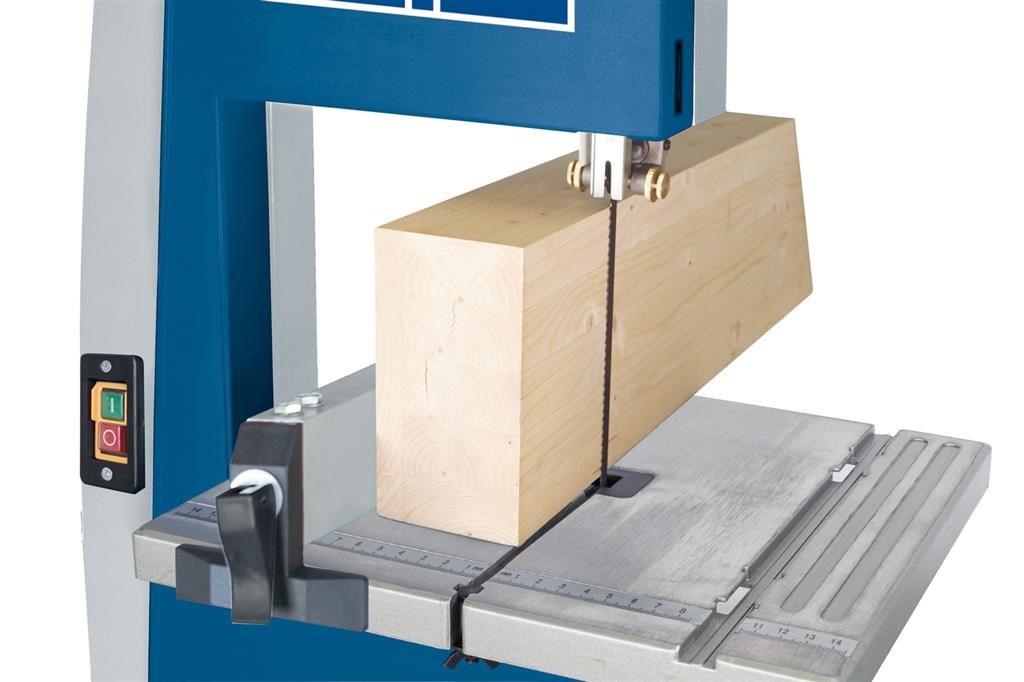

Cutting capacity up to workpieces 100 mm thick and 195 mm wide
Article number 1901501901
EAN code 4014915079002
Brand SCHEPPACH
Net weight (kg) 26.06
Belt speed 880 - 880 m / min
Cutting depth 100 mm
Cutting width 195 mm
Direction Vertical
Height 700 mm
Length 450 mm
Length of the contact surface 310 mm
Housing material Steel
Max. swivel range 0 - 45 °
Motor power 0.3 kW
Saw band length 1490 mm
Saw band width 3 - 12 mm
Suitable for metal No.
Suitable for wood Yes
Voltage 230 V.
Wheel diameter 200 mm
Width 500 mm
Width of the contact surface 320 mm
With stand No.
