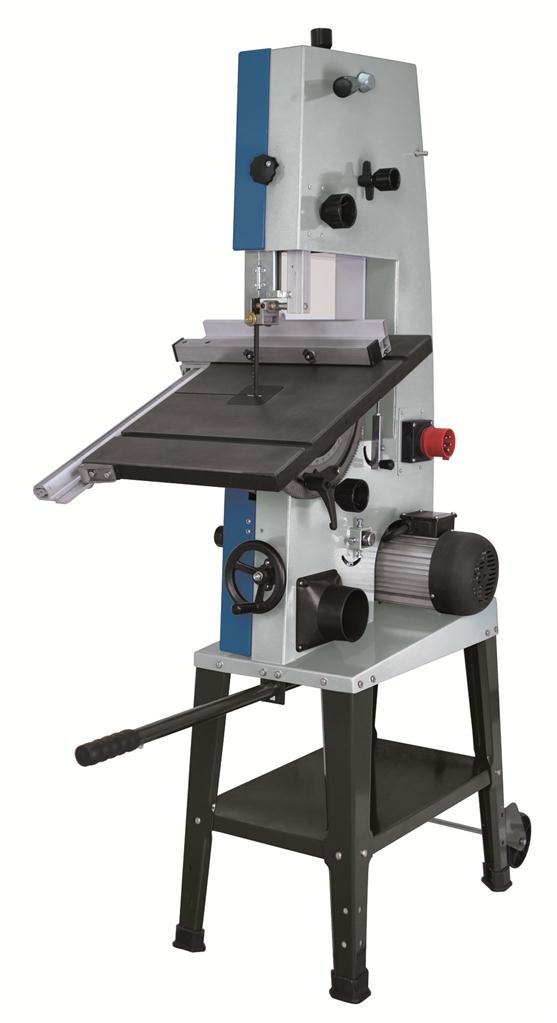

SCHEPPACH BAND SAW MACHINE BASA3 12 ", 400V
SCHEPPACH BAND SAW MACHINE BASA3 12 ", 400V
The Basa3 is one of the most innovative band saws on the market.
The Basa series has won several awards with its unique features.
At first glance, one can immediately see that the device is of high class.
There is hardly any better band saw than the Basa3.
SPECIAL CHARACTERISTICS:

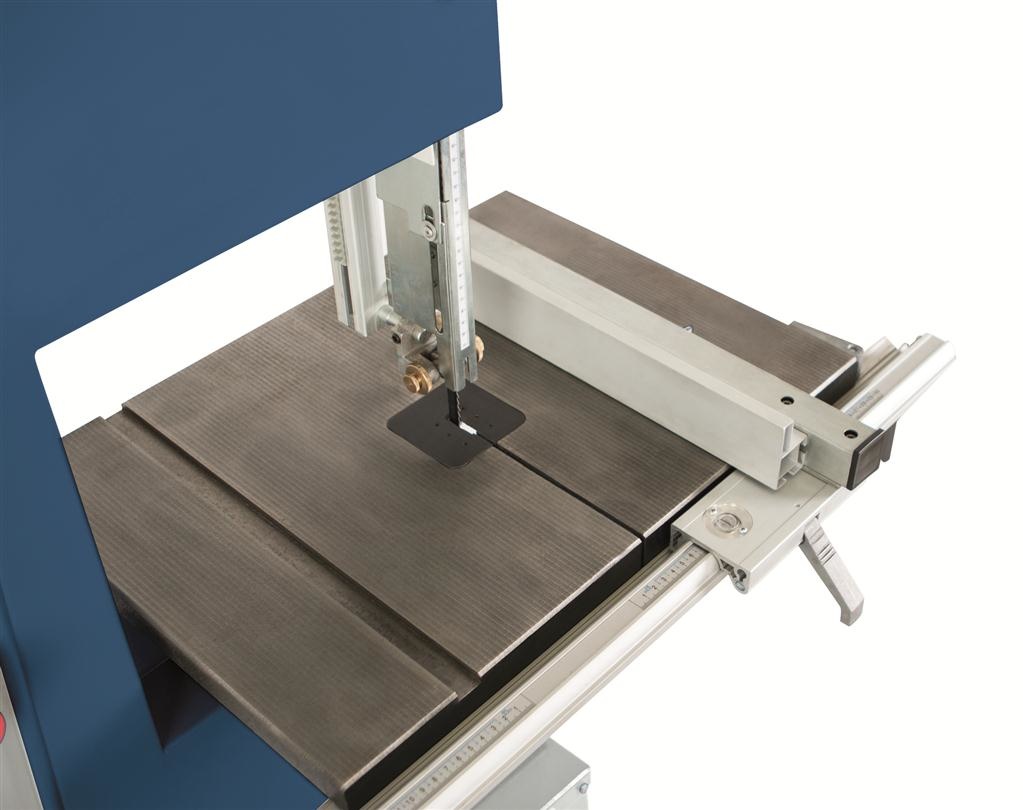

Saw table dimensions: 548 x 400 mm
Strap diameter: 315 mm
Sawing speed variably adjustable between 370 and 750 m / min

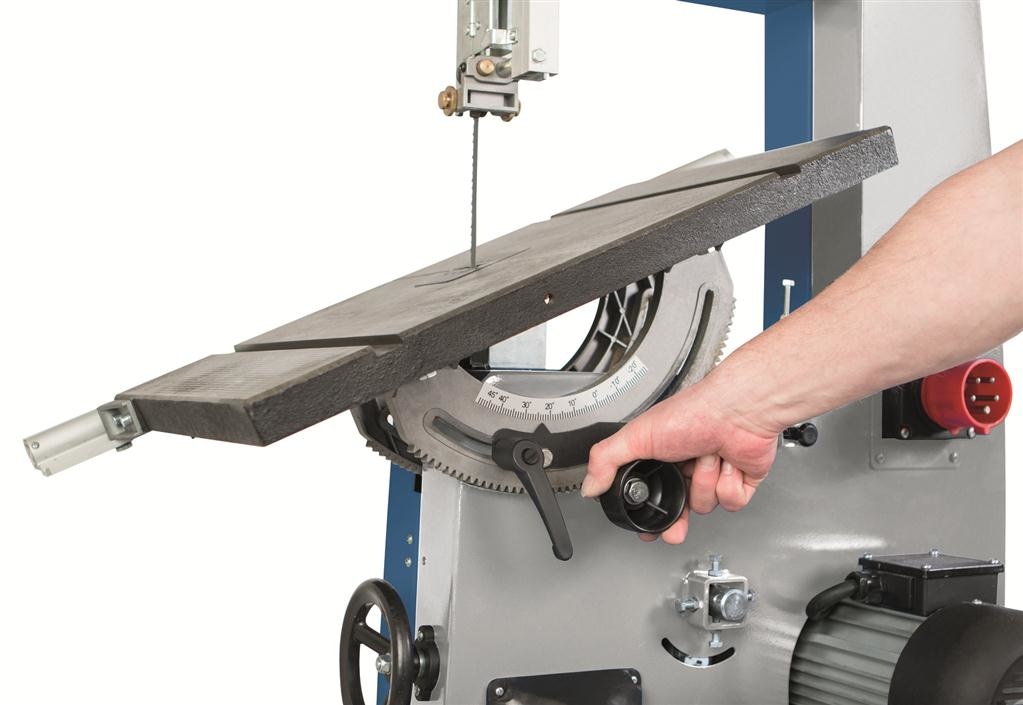

Solid table that can be adjusted from -8 ° to 45 °
3-roller precision guides above and below the table
The saw blade can be fixed quickly
Balanced and ground tire wheels with rubber surface
Cutting capacity up to workpieces of 205 mm thick and 306 mm wide

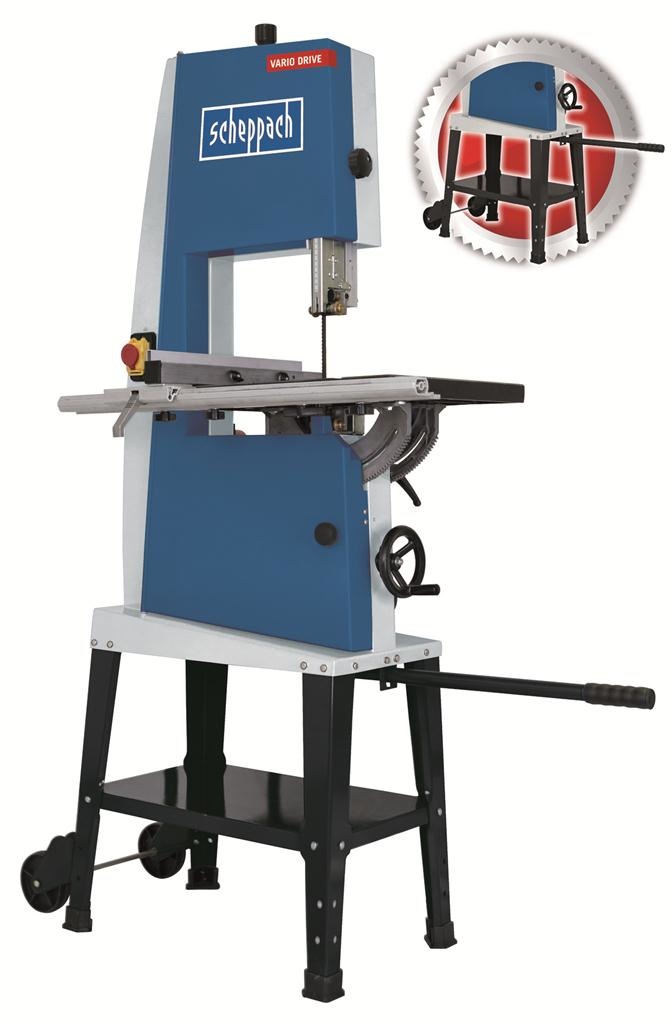

Includes base with wheels for easy transport
Article number 1901503902
EAN code 4014915079026
Brand SCHEPPACH
Net weight (kg) 83.8
Belt speed 370 - 750 m / min
Cutting depth 205 mm
Cutting width 306 mm
Direction Vertical
Height 1660 mm
Length 610 mm
Length of the contact surface 400 mm
Housing material Steel
Max. swivel range 8 - 45 °
Motor power 0.7 kW
Saw band length 2360 mm
Saw band width 3.5 - 15 mm
Suitable for metal No.
Suitable for wood Yes
Voltage 400 V.
Wheel diameter 315 mm
Width 1030 mm
Width of the contact surface 548 mm
With chassis Yes
