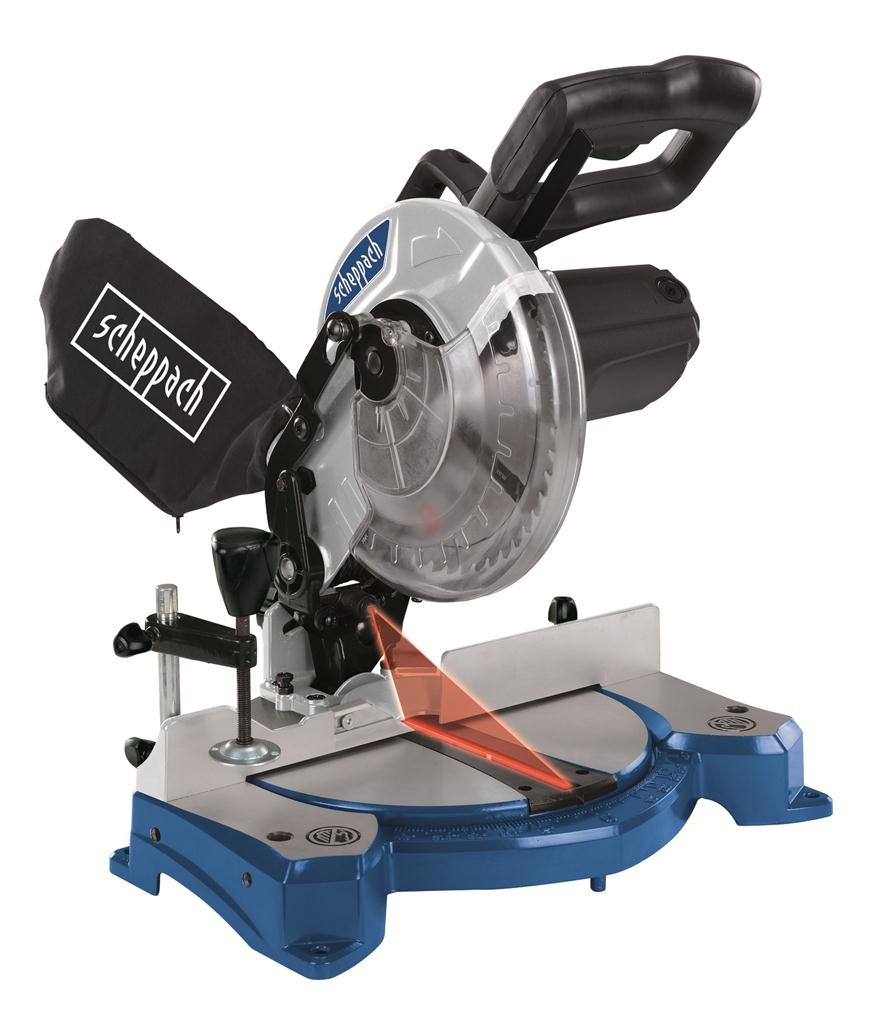

SCHEPPACH CUT-OFF SAW 8 "HM80L

SCHEPPACH CUT-OFF SAW 8 "HM80L

The Scheppach HM80L is the ideal crosscut saw, including laser.
With the aluminum base, it is light and therefore easy to transport.
Despite this light weight, the HM80L is versatile and very precise in hard and soft wood.

SPECIAL CHARACTERISTICS
Lightweight design for easy transport
Powerful 1500 Watt motor makes it a versatile saw
Compact top easily fits in small stores
The 24 TPI carbide saw blade stays sharp and makes clean cuts
Cross cutter capacity up to 120 mm
Fully closed blade guard for added safety
Torsion resistant design and top quality construction
Includes precision laser

Cutting capacity

Cut 120 mm in length and 60 mm in depth at 90 ° / 90 °
Cut 80 mm lengthwise and 60 mm depth at 90 ° / 45 °
Cut 120 mm in length and 35 mm in depth at 45 ° / 90 °
Cut 80 mm in length and 35 mm in depth at 45 ° / 45 °
Cut 118 mm in length and 60 mm in depth at 90 ° / 22.5 °
Cut 120 mm in length and 55 mm in depth at -22.5 ° / 90 °
Miter angles: 45-30-22.5-15-0-15-22.5-30-45 °

Article number 3901105915
EAN code 4046664017028
Brand SCHEPPACH
Net weight (kg) 9
Cutting depth cutting company 45 ° / 45 ° 35 mm
Cutting depth for cutting company 45 ° / 90 ° 35 mm
Cutting depth for cutting company 90 ° / 45 ° 60 mm
Cutting depth cutting company 90 ° / 90 ° 60 mm
Cutting height table operation 45 ° 35 mm
Cutting height table operation 90 ° 60 mm
Cutting width for cutting company 45 ° / 45 ° 80 mm
Cutting width for cutting company 45 ° / 90 ° 120 mm
Cutting width for cutting company 90 ° / 45 ° 80 mm
Cutting width for cutting company 90 ° / 90 ° 120 mm
Height 468 mm
No-load speed 5000 rpm
Tilt setting left 0 °
Tilt adjustment right 45 °
Length 395 mm
Miter setting left 45 °
Right miter adjustment 45 °
Nom. power consumption 1500 W.
Saw blade bore 30 mm
Saw blade diameter 210 mm
Suitable for metal No.
Suitable for plastic No.
Suitable for stone No.
Suitable for wood Yes
Voltage 230 V.
Weight 7.7 kg
Width 340 mm
Stand included No.
With laser Yes
